CN202858697U - Heat preservation cup - Google Patents

Abstract

The utility model discloses a thermos cup, which solves the problem that the cup mouth of the existing thermos cup is relatively large, and when drinking water, especially when the cup is drunk quickly or the cup body is lifted too high, the water in the cup body is easy to flow from both sides. The problem of overflowing and wetting clothes includes a cup body and a cup cover matched with the cup body. The thermos cup also includes a cup plug sealed and arranged at the mouth of the cup body. Connected to the water outlet, the cup plug is also provided with a rotating cover, the bottom of the rotating cover is clamped with the cup plug and the rotating cover and the cup plug can be rotated relatively, and the rotating cover is provided with several different Caliber and drinking water port corresponding to the water outlet. The utility model has the advantages that when the water is drunk quickly or the cup body is lifted too high, the water in the cup body is not easy to overflow from both sides and wet the clothes; different drinking water outlets can be selected according to the amount of drinking water each time, so as to adjust the water output; the structure is simple , easy to use and other beneficial effects.

Description

a thermos cup

technical field

The utility model relates to a cup, in particular to a thermos cup. the

Background technique

The current thermos cups generally unscrew the lid and drink the water in the cup directly. Since the mouth of the thermos cup is relatively large, when drinking water, especially when drinking fast or when the cup body is lifted too high, the cup body The water in the container is easy to overflow from both sides, thus wet the clothes.

Chinese patent authorization announcement number CN202457634U, authorized announcement date 2012.10.03 discloses a thermos cup, which is an inner and outer double-layer thermos cup, with a cavity between the inner and outer layers, the inner layer of the thermos cup is provided with external threads, and the thermos cup The outer layer is provided with internal threads. Its disadvantage is that when the thermos cup is used for drinking water, especially when the cup is drunk quickly or the cup body is raised too high, the water in the cup body is still easy to overflow from both sides, thereby wetting the clothes. the

Utility model content

The utility model aims to solve the problem that the existing thermos cup has a large cup mouth, and when drinking water, especially when the cup body is lifted too high, the water in the cup body is likely to overflow from both sides and thus wet the clothes. The problem is to provide a thermos cup with simple structure, easy to use, water is not easy to overflow from both sides when it is used for drinking water, and the water output can be adjusted. the

In order to achieve the above object, the utility model adopts the following technical solutions:

A thermos cup, comprising a cup body, the thermos cup also includes a cup mouth plug sealed and arranged at the mouth of the cup body, the top of the cup mouth plug is provided with a water outlet connected to the cup body, and the cup mouth plug is A rotating cover is also provided, the bottom of the rotating cover is clamped with the cup plug and the rotating cover rotates relative to the cup plug, and several drinking water outlets with different diameters corresponding to the water outlets are arranged on the rotating cover. The cup stopper is used to seal the cup mouth, so that the water in the cup body can only flow out from the water outlet on the cup stopper. The rotating cover is snapped on the cup stopper and can be rotated. When the mouth is aligned with the water outlet, you can drink water. At this time, the water can only flow out through the water outlet and the drinking port. There are rotating covers on both sides of the drinking port to block it. Overflow on both sides. After drinking, turn the rotating cover to cover the water outlet. At this time, the water in the cup will not flow out. Just cover the cup. Choose a different drinking water outlet for each drinking water volume, so as to adjust the water output. The utility model has a simple structure and is very convenient to use. The problem of spilling on the sides and wetting clothes. the

Preferably, the upper part of the cup body is provided with a stepped structure, and the stepped surface of the stepped structure is provided with an anti-slip sleeve that is attached to the outer wall of the cup. The anti-slip sleeve can improve the friction force when gripping, prevent the cup body from slipping out of the hand, and improve safety.

Preferably, the anti-slip sleeve is provided with anti-slip stripes. The anti-slip stripes can increase the friction, the anti-slip effect is good, and the processing is simple.

Preferably, the cup body is a double-layer stainless steel cup body with a sandwich layer.

Preferably, a shoulder is provided on the mouth plug, and a slot is provided on the inner wall of the bottom of the rotary cover, and the slot is adapted to the shoulder.

Preferably, a cup cover is provided on the rotating cover, and the cup cover is adapted to the rotating cover.

Preferably, a sealing ring contacting with the upper edge of the mouth of the cup body is provided on the stopper of the cup. the

Therefore, the utility model has the following beneficial effects:

(1) When drinking water quickly or the cup body is lifted too high, the water in the cup body is not easy to overflow from both sides and wet the clothes;

(2) Different drinking water outlets can be selected according to the amount of drinking water each time, so as to adjust the water output;

(3) The structure is simple and easy to use.

Description of drawings

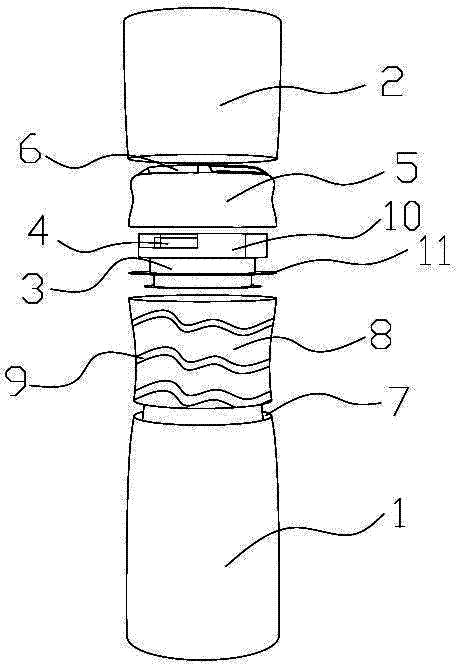

Fig. 1 is a kind of structure exploded schematic view of the utility model.

In the figure: cup body 1, cup cover 2, cup plug 3, water outlet 4, rotating cover 5, drinking port 6,

Step structure 7, anti-slip sleeve 8, anti-slip stripe 9, shoulder 10, sealing ring 11. the

Detailed ways

Below in conjunction with accompanying drawing and specific embodiment, the utility model is further described.

In the embodiment shown in Figure 1, a thermos cup includes a double-layer stainless steel cup body 1 with a sandwich layer, a cup cover 2 matched with the cup body 1, and a cup mouth sealed at the mouth of the cup body 1 Stopper 3, the upper part of the cup body 1 is provided with a step structure 7, the step surface of the step structure 7 is provided with an anti-slip sleeve 8 that fits with the outer wall of the cup body 1, the anti-slip sleeve 8 is engraved with anti-slip stripes 9, and the top of the cup mouth plug 3 is open. There is a water outlet 4 communicating with the cup body 1, and the cup mouth plug 3 is provided with a sealing ring 11 contacting with the upper edge of the cup body 1 mouth, and the cup mouth plug 3 is also covered with a rotating cover 5, and the cup mouth plug 3 The upper part protrudes outwards to form a card shoulder 10, and the inner wall of the bottom of the rotating cover 5 is provided with a card slot, which is compatible with the card shoulder 10, and the rotating cover 5 rotates relative to the cup plug 3, and the rotating cover 5 is provided with three different calibers and The water drinking port 6 corresponding to the water outlet 4.

When you need to drink water, just open the cup cover 2, turn the rotating cover 5 according to the water output when drinking, and turn the suitable drinking water port 6 on the rotating cover 5 to align with the water outlet 4 to drink water. After drinking, turn the rotating cover 5. Make the rotating cover 5 block the water outlet and then cover the cup lid, which is very convenient to use.

Claims (7)

1. thermos cup, comprise cup (1), it is characterized in that, described thermos cup comprises that also sealing is arranged on the rim of a cup plug (3) of cup (1) oral area, described rim of a cup plug (3) top is provided with the delivery port (4) that is connected with cup (1), also be provided with rotary cover (5) on the described rim of a cup plug (3), rotate relative to rim of a cup plug (3) with (3) clamping of rim of a cup plug and rotary cover (5) described rotary cover (5) bottom, and described rotary cover (5) is provided with some different bores and the bubbler (6) corresponding with delivery port (4).

2. a kind of thermos cup according to claim 1 is characterized in that, described cup (1) top is provided with ledge structure (7), and the step surface of described ledge structure (7) is provided with the Anti-slip cover (8) of fitting with cup (1) outer wall.

3. a kind of thermos cup according to claim 2 is characterized in that, described Anti-slip cover (8) is provided with anti-skidding striped (9).

4. according to claim 1 and 2 or 3 described a kind of thermos cups, it is characterized in that described cup (1) is for having the double-layer stainless steel cup of folder dead level.

5. a kind of thermos cup according to claim 4 is characterized in that, described rim of a cup plug (3) is provided with dogging shoulder (10), and the inwall of described rotary cover (5) bottom is provided with draw-in groove, and described draw-in groove and dogging shoulder (10) are suitable.

6. a kind of thermos cup according to claim 5 is characterized in that, described rotary cover (5) is provided with bowl cover (2), and described bowl cover (2) is suitable with rotary cover (5).

7. a kind of thermos cup according to claim 5 is characterized in that, described rim of a cup plug (3) is provided with the sealing ring (11) that contacts with the top edge of cup (1) oral area.
