Abstract
The utility model discloses a thermoelectric ceramic high-voltage cast aluminum heater. The thermoelectric ceramic high-voltage cast aluminum heater comprises a left shield (1) and right shield (6), a plurality of heat dissipation units (2), ceramic heating plates (12) and an automatic temperature controller (7). Each heat dissipation unit (2) is composed of an upper heat dissipation joint (13), a main rib sheet (11) and a lower heat dissipation connector (14). The upper and lower interfaces of the adjacent heat dissipation units (2) are respectively connected each other through butt-joint pipe joints (5). The main rib sheet (11) is provided with heating plate installing openings (17). The ceramic heating plates (12) are installed in all the heating plate installing openings (17) of the heat dissipation units (2). The automatic temperature controller (7) is mounted on the right shield (6). A radial front wing panel (3) and a radial rear wing panel (10) are correspondingly arranged on the front and rear of the main rib sheet (11). Heat dissipation wing panels (16) are arranged on both sides of the main rib sheet (11). The upper portions of the heat dissipation wing panels (16) are connected with arc-shaped heat dissipation wing panels (15). With the structure, the thermoelectric ceramic high-voltage cast aluminum heater has the advantages of being simple and rational in structure, convenient to produce and machine, good in heat dissipation performance, convenient to move, safe and reliable in use, comfortable in temperature and the like.
Description
Technical field
The utility model relates to a kind of heating of house equipment, particularly a kind of high-voltage cast-aluminum moulding and the high-voltage cast-aluminum warmer that combined by a plurality of heat-sink units of ceramic heating plate heating.
Background technology
Along with the fast development of China's economy, living standard and housing condition have obtained obvious improvement, and winter, heating of house was more and more general.At northern area unified pipe network heating system is arranged, so generally adopt the heating radiator heating.And do not have unified heating system at southern area, especially in Sichuan, provinces and cities' weather in winter high humidities such as Chongqing, Hubei, Hunan, Anhui, Jiangsu, Shanghai, Zhejiang, temperature are low, the general modes such as warmer, air-conditioning, laying underground heat that adopt of heating.Warmer generally adopts heating wire, quartz ampoule heating, and local temperature is high, and room air is relatively drier, uses dangerous.Air-conditioning is installed and used, maintenance cost is high, heat from top to down, height bends down on the indoor temperature, room air is relatively dry, noise is large during use.The geothermal heating early investment is high, and quantities is large, and installation is required sternly, and flooring radiation cooling/heating is to regulate temperature by the water yield, and the temperature control in each room is not easy, and firing rate is slow, and energy utilization rate is low, maintenance difficult during fault.For this reason, many manufacturers develop and study, but not yet have so far rational product to emerge.
Summary of the invention
For overcoming the existing existing deficiency of Shelter in South China Cities heating mode, the purpose of this utility model provide a kind of simple and reasonable, production and processing convenient, hot conduction and perfect heat-dissipating, conveniently moving, safe and reliable, temperature is comfortable and the electric ceramic high-voltage cast-aluminum warmer of suitable southern area intermittence heating requirement.
The utility model solves the problems of the technologies described above the technical scheme that adopts, it comprises left and right sides guard shield, a plurality of heat-sink unit, ceramic heating plate, automatic thermostat, described heat-sink unit is comprised of the upper heat radiating joint that is connected as a single entity, main muscle sheet and lower heat radiating joint, connected by the butt tube joint respectively between the upper lower interface of adjacent heat-sink unit, the main muscle sheet of heat-sink unit is provided with the heating board installing port, the ceramic heating plate is installed on the heating board installing port of all heat-sink units, and automatic thermostat is installed on the right guard shield.
Correspondence is provided with fin after the positive fin of radiation and the radiation before and after the main muscle sheet of described heat-sink unit, main muscle sheet both sides are provided with heat-dissipating fin, heat-dissipating fin top is connected with the arc heat-dissipating fin, and the convection channel that is made of the positive fin of arc heat-dissipating fin, heat-dissipating fin and radiation communicates with the heat loss through convection mouth on the positive fin of radiation.
Described automatic thermostat is provided with display screen and function button, and function button comprises function setting button, set of time button, temperature adjustment buttons, Timing button and power switch.
Described left guard shield is provided with humidifier.
After adopting said structure, have the following advantages compared with the prior art and effect: the one, owing to fin after the front and back of high-voltage cast-aluminum body arrange the positive fin of radiation and radiation, in both sides heat-dissipating fin is set, cooling surface area is large, greatly improved radiating efficiency, radiating mode is combined by convection current and auxiliary penetrating, and can not cause human body uncomfortable, fin is straight plate structure after the positive fin of radiation and the radiation, and sanitation and hygiene are convenient.The 2nd, conveniently moving is namely inserted instant heating, and surface temperature is comfortable, can not scald child, and is safe and reliable, is particularly suitable for the heating of child and old man family.The 3rd, automatic thermostat has been installed, can displays temperature on the display screen, the parameter such as humidity, time, heating symbol, week, timing, can according to the different demands of individual by the function button setting heat, the humidification time, adjust indoor temperature and humidity, the utility model is by two class appliance design, safety easy to use.The 4th, high-voltage cast-aluminum die cast, heat conduction velocity are fast because heat-sink unit adopts, good heating effect, and product glossiness is high, and is elegant in appearance, and production efficiency is high, long service life, is fit to produce in enormous quantities.The 5th, to make pollution-freely, material is reusable, the production and application safety and environmental protection.
Description of drawings
Fig. 1 is front view of the present utility model.

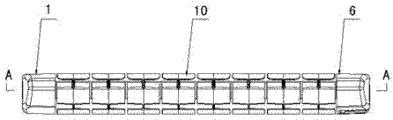

Fig. 2 is top view of the present utility model.
Fig. 3 is the A-A profile of Fig. 2.
Fig. 4 is the right view of the utility model heat-sink unit.
Fig. 5 is left view of the present utility model.
1 left guard shield wherein, 2 heat-sink units, the positive fin of 3 radiation, 4 heat loss through convection mouths, 5 butt tube joints, 6 right guard shields, 7 automatic thermostats, 8 display screens, 9 function buttons, fin after 10 radiation, 11 main muscle sheets, 12 ceramic heating plates, heat radiating joint on 13,14 times heat radiating joints, 15 arc heat-dissipating fins, 16 heat-dissipating fins, 17 heating board installing ports, 18 humidifiers.
The specific embodiment
Fig. 1 is to shown in Figure 5, specific embodiments for a kind of electric ceramic high-voltage cast-aluminum of the utility model warmer, it comprises left and right sides guard shield 1,6, a plurality of heat-sink units 2, ceramic heating plate 12, automatic thermostat 7, described heat-sink unit 2 is by the upper heat radiating joint 13 that is connected as a single entity, main muscle sheet 11 and lower heat radiating joint 14 form, connected by butt tube joint 5 respectively between the upper lower interface of adjacent heat-sink unit 2, the main muscle sheet 11 of heat-sink unit 2 is provided with heating board installing port 17, ceramic heating plate 12 is installed on the heating board installing port 17 of all heat-sink units 2, and automatic thermostat 7 is installed on the right guard shield 6.Described left guard shield 1 is provided with humidifier 18.Described automatic thermostat 7 is provided with display screen 8 and function button 9, and function button 9 comprises function setting button, set of time button, temperature adjustment buttons, Timing button and power switch.Can displays temperature on the display screen 8, the parameter such as humidity, time, heating symbol, week, timing.
The main muscle sheet 11 front and back correspondences of described heat-sink unit 2 are provided with fin 10 after the positive fin 3 of radiation and the radiation, main muscle sheet 11 both sides are provided with heat-dissipating fin 16, heat-dissipating fin 16 tops are connected with arc heat-dissipating fin 15, and the convection channel that is made of the positive fin 3 of arc heat-dissipating fin 15, heat-dissipating fin 16 and radiation communicates with the heat loss through convection mouth 4 on the positive fin 3 of radiation.Radiating mode adopts convection current and auxiliary penetrating to combine, and heating-up temperature is moderate, can not cause human body uncomfortable.
The above is specific embodiment of the utility model; be not that the utility model is made any pro forma restriction; do not breaking away from the technical solution of the utility model basis, the simple modification of having done, equivalent variations or modification all fall into protection domain of the present utility model.
Claims (4)
1. electric ceramic high-voltage cast-aluminum warmer, comprise left and right sides guard shield (1,6), a plurality of heat-sink units (2), ceramic heating plate (12), automatic thermostat (7), it is characterized in that: described heat-sink unit (2) is by the upper heat radiating joint (13) that is connected as a single entity, main muscle sheet (11) and lower heat radiating joint (14) form, connected by butt tube joint (5) respectively between the upper lower interface of adjacent heat-sink unit (2), the main muscle sheet (11) of heat-sink unit (2) is provided with heating board installing port (17), ceramic heating plate (12) is installed on the heating board installing port (17) of all heat-sink units (2), and automatic thermostat (7) is installed on the right guard shield (6).
2. electric ceramic high-voltage cast-aluminum warmer according to claim 1, it is characterized in that: correspondence is provided with fin (10) after the positive fin of radiation (3) and the radiation before and after the main muscle sheet (11) of described heat-sink unit (2), main muscle sheet (11) both sides are provided with heat-dissipating fin (16), heat-dissipating fin (16) top is connected with arc heat-dissipating fin (15), by arc heat-dissipating fin (15), the convection channel that heat-dissipating fin (16) and the positive fin of radiation (3) consist of communicates with the heat loss through convection mouth (4) on the positive fin of radiation (3).
3. electric ceramic high-voltage cast-aluminum warmer according to claim 1 and 2, it is characterized in that: described automatic thermostat (7) is provided with display screen (8) and function button (9), and function button (9) comprises function setting button, set of time button, temperature adjustment buttons, Timing button and power switch.
4. electric ceramic high-voltage cast-aluminum warmer according to claim 3, it is characterized in that: described left guard shield (1) is provided with humidifier (18).
