CN202850122U - Novel intelligent double-source constant pressure water supply device - Google Patents
Novel intelligent double-source constant pressure water supply device Download PDFInfo
- Publication number
- CN202850122U CN202850122U CN2012203561038U CN201220356103U CN202850122U CN 202850122 U CN202850122 U CN 202850122U CN 2012203561038 U CN2012203561038 U CN 2012203561038U CN 201220356103 U CN201220356103 U CN 201220356103U CN 202850122 U CN202850122 U CN 202850122U
- Authority
- CN
- China
- Prior art keywords
- water
- constant pressure
- pipe
- novel intelligent
- water supply
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 title claims abstract description 128
- 238000006243 chemical reaction Methods 0.000 claims abstract description 4
- 230000008878 coupling Effects 0.000 claims description 3
- 238000010168 coupling process Methods 0.000 claims description 3
- 238000005859 coupling reaction Methods 0.000 claims description 3
- 239000012530 fluid Substances 0.000 claims description 3
- 239000010865 sewage Substances 0.000 claims description 3
- 230000000694 effects Effects 0.000 abstract description 3
- 239000008399 tap water Substances 0.000 description 17
- 235000020679 tap water Nutrition 0.000 description 17
- 239000008400 supply water Substances 0.000 description 3
- 238000000605 extraction Methods 0.000 description 2
- JEGUKCSWCFPDGT-UHFFFAOYSA-N h2o hydrate Chemical compound O.O JEGUKCSWCFPDGT-UHFFFAOYSA-N 0.000 description 2
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000007812 deficiency Effects 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 239000000284 extract Substances 0.000 description 1
- 238000009434 installation Methods 0.000 description 1
- 238000000034 method Methods 0.000 description 1
- 230000021715 photosynthesis, light harvesting Effects 0.000 description 1
- 238000005086 pumping Methods 0.000 description 1
- 230000009897 systematic effect Effects 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
- Y02A20/00—Water conservation; Efficient water supply; Efficient water use
Landscapes
- Sewage (AREA)
- Control Of Fluid Pressure (AREA)
- Control Of Positive-Displacement Pumps (AREA)
Abstract
本实用新型公开了一种新型智能双源恒压供水设备，该装置包括进水管(1)、水箱(2)、吸水管(3)、分水器(4)水泵(5)、集水器(6)稳压罐(7)、远传压力表(8)和智能控制装置(9)。其特征在于：所述水箱(2)和吸水管(3)各自连接在所述进水管(1)上；所述水箱(2)通过出水管(11)和吸水管(3)汇合连接到分水器(4)上；所述智能控制装置(9)采用大面板操作界面，双核、多信号控制系统。该设备在无负压和水箱恒压供水的基础上，采用智能控制系统，将无负压与水箱恒压变频供水并联使用，目的在于确保水压不足或停水时能正常供水，提高供水的稳定性，且具有较好的节能效果。
The utility model discloses a novel intelligent dual-source constant-pressure water supply device, which comprises a water inlet pipe (1), a water tank (2), a water suction pipe (3), a water separator (4), a water pump (5), and a water collector (6) Regulator tank (7), remote pressure gauge (8) and intelligent control device (9). It is characterized in that: the water tank (2) and the water suction pipe (3) are respectively connected to the water inlet pipe (1); the water tank (2) is connected to the water distribution pipe (11) and the water suction pipe (3) On the water tank (4); the intelligent control device (9) adopts a large panel operation interface, a dual-core, multi-signal control system. Based on the non-negative pressure and constant pressure water supply of the water tank, the equipment adopts an intelligent control system to use the non-negative pressure and the constant pressure frequency conversion water supply of the water tank in parallel. Stability, and has better energy-saving effect.
Description
Technical field:
The utility model relates to a kind of supply equipment, particularly a kind of novel intelligent double source constant pressure water supply equipment.
Background technology:
When cities and towns high building height surpasses the tap water supply lift, usually need to set up the secondary pressurized feed pump to building water supply.Because suction water pipe can produce negative pressure during pumping for water pump, the water supply administrative department in most domestic city all forbids the suction water pipe of pressure pump directly is connected with the municipal tap water pipe network, has influence on other users' water with the negative pressure of avoiding drawing water.For this reason, conventional secondary pressurized equipment is equipped with water tank.Tap water is put into first water tank, and the suction water pipe of feed pump links to each other with water tank, extracts the water of water tank for past high building resident family.Can't utilize the overbottom pressure of tap water during such device secondary pressurized, cause energy dissipation.In addition, if adopt non-negative pressure water-supply installation, though the negative pressure that produces in the time of can solving the tap water access, the water tank capacity is little, cost is high, in case the output of tap water less than the pump-out of water pump, this device can only be cut off the water.
Summary of the invention:
For above-mentioned the deficiencies in the prior art, the purpose of this utility model provides a kind of novel intelligent double source constant pressure water supply equipment, the suction water pipe of this equipment is connected to tap water pipe network can not produce negative pressure to tap water pipe network, when tap water supply is normal, can utilize the overbottom pressure pressurization of tap water to supply water, and, but Automatic Extraction storing water in water tank water supply not enough or when cutting off the water when tap water hydraulic.
The purpose of this utility model realizes by the following method: novel intelligent double source constant pressure water supply equipment comprises water inlet pipe 1, water tank 2, suction water pipe 3, water knockout drum 4 water pumps 5, water collector 6 vacuum tanks 7, distance-transmission pressure gauge 8 and intelligence controlling device 9, and described water tank 2 and suction water pipe 3 are connected on the described water inlet pipe 1 separately; Described water tank 2 converges by outlet pipe 11 and suction water pipe 3 and is connected on the water knockout drum 4; Described intelligence controlling device 9 adopts large panel operation interface, double-core, many whistle control systems.
Described water tank 2 outsides are provided with water inlet pipe 10 and outlet pipe 11, and the top is provided with manhole 12, exhaust opening 13, fluid level controller 14, overfall 20, sewage draining exit 21.
The water inlet pipe 10 of described water tank 2 and described water inlet pipe 1 coupling part are provided with electromagnetic valve 15.
Described large panel operation interface dimensions is 450mm*650mm.
Simultaneously variable frequency starting operation of two pumps when described double-core control namely moves.
Described many signal controlling are that water pump adopts switch and frequency conversion different control modes.
The beneficial effects of the utility model are: (1) directly is connected in series with city planting ductwork and can cause negative pressure to city planting ductwork; (2) when tap water supply is normal, water pump can utilize the overbottom pressure pressurization of tap water to supply water good energy-conserving effect; (3) not enough when tap water hydraulic or when cutting off the water, the Automatic Extraction storing water in water tank supplies water, assurance user's water demand; (4) intelligent automatic control pump working; (5) adopt large control panel, the equipment operational factor in panel with the digitized forms centralized displaying, clear, be convenient at any time supervisory control system running situation; (6) adopt double-core, many whistle control systems, systematic Water supply pressure is more stable, more reliable performance, and energy-saving effect is more obvious.
Description of drawings:

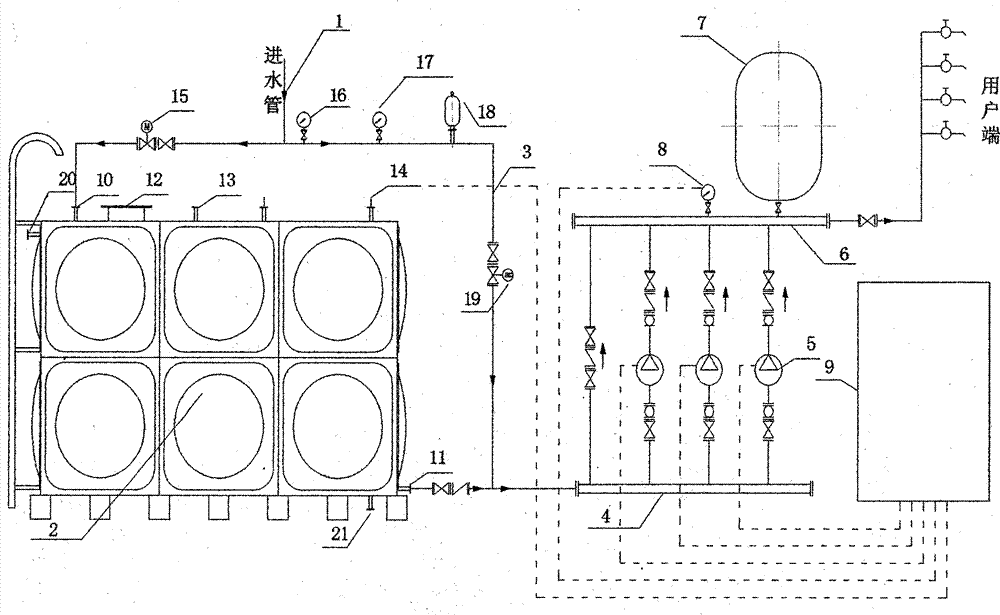

Fig. 1 is structural representation of the present utility model.
The specific embodiment:
The utility model is described in further detail below in conjunction with the drawings and specific embodiments:
Novel intelligent double source constant pressure water supply equipment is comprised of tap water water inlet pipe 1, water tank 2, suction water pipe 3, water knockout drum 4, water pump 5, water collector 6, vacuum tank 7, distance-transmission pressure gauge 8 and intelligence controlling device 9.Tap water water inlet pipe 1 wherein one the tunnel connects suction water pipe 3, another road water receiving case 2, and then two-way is connected with water knockout drum 4, water pump 5 and gives user side with tap water, intelligence controlling device 9 control water pipe, the water yield of water tank and the work of water pump.
Described water tank 2 outsides are provided with water inlet pipe 10 and outlet pipe 11, and the top is provided with manhole 12, exhaust opening 13, fluid level controller 14, overfall 20, and the bottom is provided with sewage draining exit 21.The water inlet pipe 10 of described water tank 2 and described water inlet pipe 1 coupling part are provided with electromagnetic valve 15, and hand valve, flap valve are installed in described outlet pipe 11 delivery port positions.Vacuum meter 16, electro connecting pressure gauge 17, vacuum breaker 18, motor operated valve 19 are housed on the described suction water pipe 3.Described water tank 2 and suction water pipe 3 are connected on the described water inlet pipe 1 separately.Described water knockout drum 4 connects four road pipelines, wherein one the tunnel directly take over valve, flap valve, hand valve, water collector 6, distance-transmission pressure gauge 8, vacuum tank 7 and send user side, three-way connection (pipe) road serial connection hand valve, connecting hose, water pump 5, connecting hose, flap valve, hand valve, distance-transmission pressure gauge 8, water collector 6, vacuum tank 7 send user side in addition.The large panel operation interface dimensions of described novel intelligent control device is 450mm*650mm.Two pumps while variable frequency starting when the double-core control of described novel intelligent control device namely moves, the two pumps pressure of supply water is peak clipping Pinggu each other, when arbitrary pump or frequency converter break down, does not all affect the normal operation of equipment.Many signal controlling of described novel intelligent control device are that water pump adopts frequency conversion and switch different control modes, the water pump of switch control mainly is in that water supply volume is large, pipeline pressure reduces rapidly or pipeline pressure when continuing to reduce, and starts fast water pump and stablizes pipeline pressure; The part pump adopts variable frequency control, adjusts the operating frequency of pump according to water supply volume.
Claims (7)
1. novel intelligent double source constant pressure water supply equipment, comprise water inlet pipe (1), water tank (2), suction water pipe (3), water knockout drum (4) water pump (5), water collector (6) vacuum tank (7), distance-transmission pressure gauge (8) and intelligence controlling device (9), it is characterized in that: described water tank (2) and suction water pipe (3) are connected on the described water inlet pipe (1) separately; Described water tank (2) converges by outlet pipe (11) and suction water pipe (3) and is connected on the water knockout drum (4); Described intelligence controlling device (9) adopts large panel operation interface, double-core, many whistle control systems.
2. novel intelligent double source constant pressure water supply equipment according to claim 1, it is characterized in that: described water tank (2) outside is provided with water inlet pipe (10) and outlet pipe (11), and the top is provided with manhole (12), exhaust opening (13), fluid level controller (14), overfall (20), sewage draining exit (21).
3. novel intelligent double source constant pressure water supply equipment according to claim 1, it is characterized in that: the water inlet pipe (10) of described water tank (2) and described water inlet pipe (1) coupling part are provided with electromagnetic valve (15).
4. novel intelligent double source constant pressure water supply equipment according to claim 1 is characterized in that, vacuum meter (16), electro connecting pressure gauge (17), vacuum breaker (18), motor operated valve (19) are housed on the described suction water pipe (3).
5. novel intelligent double source constant pressure water supply equipment according to claim 1 is characterized in that, described large panel operation interface dimensions is 450mm*650mm.
6. novel intelligent double source constant pressure water supply equipment according to claim 1 is characterized in that, simultaneously variable frequency starting operation of two pumps when described double-core control namely moves.
7. novel intelligent double source constant pressure water supply equipment according to claim 1 is characterized in that, described many signal controlling are that water pump adopts switch and frequency conversion different control modes.
