Abstract

The utility model discloses a packaging bag for moisture-proof soap powder, which comprises a bag body. The bag body is provided with a bag mouth and a hollow plastic ring. One end of the hollow plastic ring is connected with the bag mouth, and the other end of the hollow plastic ring has an internal thread. , with a cover, the cover has external threads, the external threads of the cover match the internal threads of the hollow plastic ring, the cover seals the hollow plastic ring through the cooperation of the external thread and the internal thread, just unscrew the cover Soap powder can be poured out. After pouring, just screw on the cover again to seal the bag, so it can effectively prevent the soap powder from getting wet, and the hollow plastic ring is hard and not easy to deform, which facilitates the pouring of soap powder Pick.

Description

Moisture-proof soap powder packaging bag

technical field

The utility model relates to a packaging bag structure, in particular to a soap powder packaging bag structure with moisture-proof function.

Background technique

In the prior art, soap powder is generally packed in bags. When in use, the bag needs to be cut open to facilitate the pouring of the soap powder. After pouring the soap powder, most people will not tie the mouth of the bag tightly, and the soap powder will Long-term contact with the air, or even being splashed by water accidentally splashed during laundry, will not only easily cause the soap powder to be damp and agglomerated, but also easily cause the soap powder to deteriorate and affect the use effect of the soap powder. If you want to tie the mouth of the bag If it is tight, you need to use additional tools such as clips. Furthermore, the sack formed after the soap powder packaging bag is cut is soft, and when the soap powder is poured out, the soft sack is prone to collapse and deformation, thereby causing the user to pour the soap powder too much, not only Cause the waste of soap powder, also easily damage clothing.

Utility model content

In order to solve the above problems, the utility model provides a moisture-proof soap powder packaging bag. The moisture-proof soap powder packaging bag of the utility model can effectively prevent the soap powder from being damp, and is also convenient for pouring the soap powder, and has a simple structure and is easy to implement.

The technical scheme that the utility model adopts in order to solve its technical problem is:

A packaging bag for moisture-proof soap powder, comprising a bag body, the bag body is provided with a mouth, and a hollow plastic ring is provided, one end of the hollow plastic ring is connected to the mouth of the bag, and the other end of the hollow plastic ring has an inner Thread, provided with a cover, the cover has external threads, the external threads of the cover match the internal threads of the hollow plastic ring, and the cover is matched with the internal threads through the external threads And close the described hollow plastic circle.

Preferably, the pocket opening is located at the upper part of the pocket body.

Further, the hollow plastic ring is a hollow cylinder, the end face of the other end of the hollow plastic ring is a ring-shaped end face, the cover body is integrally formed by a connecting post and an end cover, and the connecting post is Cylindrical, the external thread is located on the side of the connecting post, the diameter of the end cap is larger than the diameter of the connecting post, and the end cap can close the circular end face of the hollow plastic ring.

Furthermore, it may be that the end cover has two opposite surfaces, which are respectively an inner surface and an outer surface, and a protrusion is provided on the inner surface of the end cover at a position corresponding to the annular end surface. An annular protruding strip, the annular end surface is provided with an annular groove matching the annular protruding strip, and the annular protruding strip can be embedded in the annular concave in the slot.

Furthermore, it is also possible that a protruding annular rib is provided on the annular end surface, and the end cap has two opposite surfaces which are respectively an inner surface and an outer surface, and the end cap On the inner surface of the inner surface corresponding to the position of the annular convex strip, there is an annular groove matching the annular convex strip, and the annular convex strip can be embedded in the ring in the groove.

The beneficial effects of the utility model are: the moisture-proof soap powder packaging bag of the utility model has a bag opening on the bag body, and a hollow plastic ring is connected to the bag mouth, and a cover is used to close the hollow plastic ring. The soap powder needs to be unscrewed to take out the cover. After pouring, just screw on the cover again to seal the bag, so it can effectively prevent the soap powder from getting wet, and the hollow plastic ring is hard and not easy to deform. It is convenient to take out the soap powder.

Description of drawings

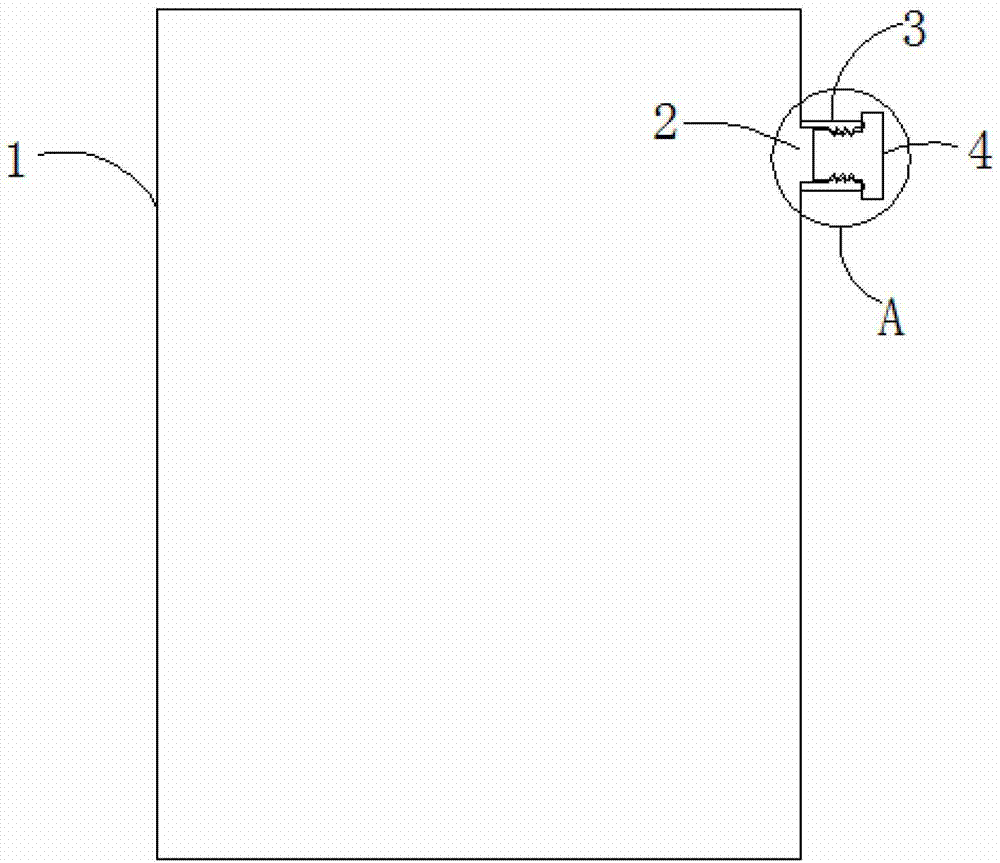

Fig. 1 is the structural representation of the utility model;

Fig. 2 is an enlarged view of part A of Fig. 1 .

Detailed ways

Embodiment: a kind of moisture-proof soap powder packing bag, comprises bag body 1, is provided with bag mouth 2 on described bag body 1, is provided with hollow plastic ring 3, and one end of described hollow plastic ring 3 is connected with bag mouth 2, so The other end of the hollow plastic ring 3 has an internal thread 31, and a cover 4 is provided. The cover 4 has an external thread 41, and the external thread 41 of the cover 4 is consistent with the internal thread 31 of the hollow plastic ring 3. Matching, the cover body 4 closes the hollow plastic ring 3 through the cooperation of the external thread 41 and the internal thread 31 .

Preferably, the pocket opening 2 is located on the upper part of the pocket body 1 .

The hollow plastic ring 3 is in the shape of a hollow cylinder, the end face of the other end of the hollow plastic ring is an annular end face, and the cover body 4 is integrally formed by a connecting post 42 and an end cap 43, and the connecting post 42 It is cylindrical, the external thread 41 is located on the side of the connecting column 42, the diameter of the end cap 43 is larger than the diameter of the connecting column 42, and the end cap 43 can close the circular ring of the hollow plastic ring 3 end face.

A protruding annular rib 32 is provided on the annular end surface, and the end cap 43 has two opposite surfaces and are respectively an inner surface and an outer surface, and the inner surface of the end cap is connected to the inner surface of the end cap. A circular groove 44 matching the circular convex strip is formed at a position corresponding to the circular convex strip, and the circular convex strip can be embedded in the circular groove.

Claims (5)

1. moistureproof soap powder packaging bag, comprise bag (1), it is characterized in that: offer sack (2) on the described bag (1), be provided with hollow plastic circle (3), one end of described hollow plastic circle (3) is connected with sack (2), the other end of described hollow plastic circle (3) has negative thread (31), be provided with lid (4), described lid (4) has outside thread (41), the outside thread (41) of described lid (4) is complementary with the negative thread (31) of described hollow plastic circle (3), and described lid (4) seals described hollow plastic circle (3) by described outside thread (41) and cooperating of described negative thread (31).

2. moistureproof soap powder packaging bag as claimed in claim 1, it is characterized in that: described sack (2) is positioned at the top of described bag (1).

3. moistureproof soap powder packaging bag as claimed in claim 1, it is characterized in that: described hollow plastic circle (3) is the cylindrical shape of hollow, the end face of the other end of described hollow plastic circle is the annular arrangement end face, described lid (4) is made of joint pin (42) and end cap (43) one, described joint pin (42) is cylindrical, described outside thread (41) is positioned on the side of described joint pin (42), described end cap (43) diameter is greater than described joint pin (42) diameter, and described end cap (43) can seal the annular arrangement end face of described hollow plastic circle (3).

4. moistureproof soap powder packaging bag as claimed in claim 3, it is characterized in that: described end cap has two relative surfaces and is respectively inside face and outside face, the position corresponding with described annular arrangement end face is provided with the annular arrangement raised line of protrusion on the inside face of described end cap, offer the toroidal cavity that is complementary with described annular arrangement raised line on the described annular arrangement end face, described annular arrangement raised line can be embedded in the described toroidal cavity.

5. moistureproof soap powder packaging bag as claimed in claim 3, it is characterized in that: described annular arrangement end face is provided with the annular arrangement raised line (32) of protrusion, described end cap (43) has two relative surfaces and is respectively inside face and outside face, the position corresponding with described annular arrangement raised line offers the toroidal cavity (44) that is complementary with described annular arrangement raised line on the inside face of described end cap, and described annular arrangement raised line can be embedded in the described toroidal cavity.
