Abstract

The utility model discloses a book holder, in which a convex body is added to the upper jaw of the folder, and a concave body is added to the lower jaw. The convex body and the concave body are made of foamed plastics. The beneficial effect is that the book can be clamped according to the general shape of the book, which is convenient for people to read and is beneficial to protect the book.

Description

a book holder

技术领域 technical field

本实用新型属于文具技术领域，尤其涉及一种书夹。The utility model belongs to the technical field of stationery, in particular to a book holder.

背景技术 Background technique

人们在阅读比较厚重的图书时，需要持续地用手将图书展开，非常不方便。用力轻时，不方便阅读；用力重时，费力且容易损坏图书。因此，不少研究者提出了解决之道。方便书夹(CN 201833678U)、一种看书工具(CN 201633318U)和稳固两用书夹(CN 201977187U)等专利技术都是相关的研究成果。但仅仅就保持图书展开问题而言，现有方案均显繁杂。When people read thicker books, they need to continue to unfold the books by hand, which is very inconvenient. When the force is light, it is inconvenient to read; when the force is heavy, it is laborious and easy to damage the book. Therefore, many researchers have proposed a solution. Patented technologies such as convenient book holder (CN 201833678U), a reading tool (CN 201633318U) and stable dual-purpose book holder (CN 201977187U) are related research results. But only with regard to keeping the book expansion problem, the existing schemes are all obviously complicated.

发明内容 Contents of the invention

本实用新型针对书夹存在的不足，提出一种更为简单实用的书夹。The utility model aims at the shortcomings of the book holder, and proposes a simpler and more practical book holder.

本实用新型所采取的措施是：在夹体的上夹口部位，增加凸体；在下夹口部位，增加凹体。凸体和凹体用泡沫塑料制成。The measures taken by the utility model are: increase the convex body at the upper jaw position of the clamp body; increase the concave body at the lower jaw position. The convex body and the concave body are made of foamed plastics.

本实用新型的有益效果是：能够依照图书展开的大体形状夹持图书，既方便人们阅读，又有利于保护图书。The beneficial effect of the utility model is that the book can be clamped according to the general shape of the book, which is not only convenient for people to read, but also beneficial to protect the book.

附图说明 Description of drawings

下面结合附图和实施例对本实用新型做进一步的说明。Below in conjunction with accompanying drawing and embodiment the utility model is described further.

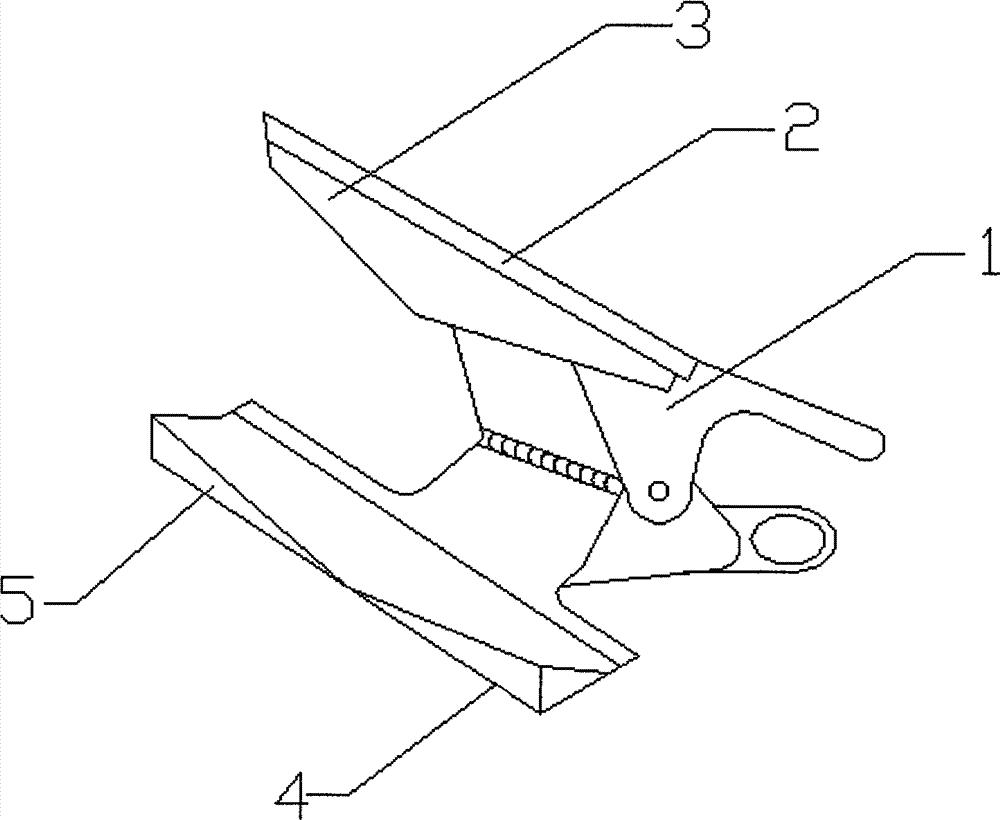

图1为本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.

图中，1.夹体，2.上夹口，3.凸体，4.下夹口，5.凹体。In the figure, 1. clamp body, 2. upper jaw, 3. convex body, 4. lower jaw, 5. concave body.

具体实施方式 Detailed ways

如图1所示，在夹体(1)的上夹口(2)位置上增加凸体(3)，在下夹口(4)的位置上增加凹体(5)。As shown in Figure 1, a convex body (3) is added at the position of the upper jaw (2) of the clip body (1), and a concave body (5) is added at the position of the lower jaw (4).

凸体和凹体的制作材料可以选用泡沫塑料，也可以采用与夹体材料一致的硬质材料。The material for making the convex body and the concave body can be selected from foamed plastics, and can also be made of the same hard material as that of the clip body.

本领域内普通技术人员的简单更改和替换都在本实用新型的保护范围之内。Simple modifications and replacements by those skilled in the art are all within the protection scope of the present utility model.

Claims

1. A book holder, comprising a convex body at the upper jaw position and a concave body at the lower jaw position, characterized in that: the convex body and the concave body are made of foamed plastics.
