CN202844007U - Medicine-tidying box used in sickroom - Google Patents

Abstract

A medicine sorting box for a ward, the utility model relates to a nursing article, in particular to a medicine sorting box for a patient in a ward for sorting out medicines. The utility model provides a simple structure, reasonable design, so that the patient's medicine bottle can be placed properly, the medicine box itself can rely on the magnet to attract at the bottom of the hospital bed, occupying a small space and making the hospital room tidy. A medicine sorting box for a ward, including a box body, a medicine bottle fixing groove, a magnet, and a thermometer storage hole. The box body is made of plastic, and two magnets are fixedly connected to it. The medicine bottle fixing groove is a cylinder with an opening on it. There is a thermometer storage hole on the left side of the box body. The thermometer storage hole is provided with a sponge pad. The diameter of the thermometer storage hole is 10mm. The utility model has the advantages of simple structure, reasonable design, multiple grooves for placing medicine bottles, so that patients' medicine bottles can be properly placed, small space occupation, tidy wards, and low manufacturing cost.

Description

Ward medicine storage box

technical field

The utility model relates to a nursing product, in particular to a medicine sorting box for patients in the ward for sorting out medicines. the

Background technique

At present, in the general ward of the hospital, there are usually six or eight people in one room, and the available space for each patient is very small. The patient has only one bedside cabinet for storing items, and some patients need to take multiple medicines every day. The medicine bottle placed in the ward not only occupies the already small space, but also looks very messy, which affects the patient's mood. Every time the patient takes medicine, the patient needs to find a certain medicine to take in many medicine bottles, which is very inconvenient . the

Contents of the invention

The purpose of this utility model is to overcome the deficiencies in the above-mentioned technology, and provide a simple structure and reasonable design, so that the patient's medicine bottle can be properly placed, and the medicine box itself can be attracted to the bottom of the hospital bed by magnets, which takes up little space. A medical storage box for the patient room that keeps the patient room tidy. the

In order to achieve the above object, the technical solution adopted by the utility model is:

A medicine sorting box for a ward, including a box body, a medicine bottle fixing groove, a magnet, and a thermometer storage hole. The box body is made of plastic, and two magnets are fixedly connected to it. The medicine bottle fixing groove is a cylinder with an opening on it. There is a thermometer storage hole on the left side of the box body. The thermometer storage hole is provided with a sponge pad. The diameter of the thermometer storage hole is 10mm.

The utility model has the advantages of simple structure and reasonable design, and provides multiple grooves for placing medicine bottles, so that the medicine bottles of patients can be properly placed, takes up little space, makes the ward tidy, and has low manufacturing cost. the

Description of drawings

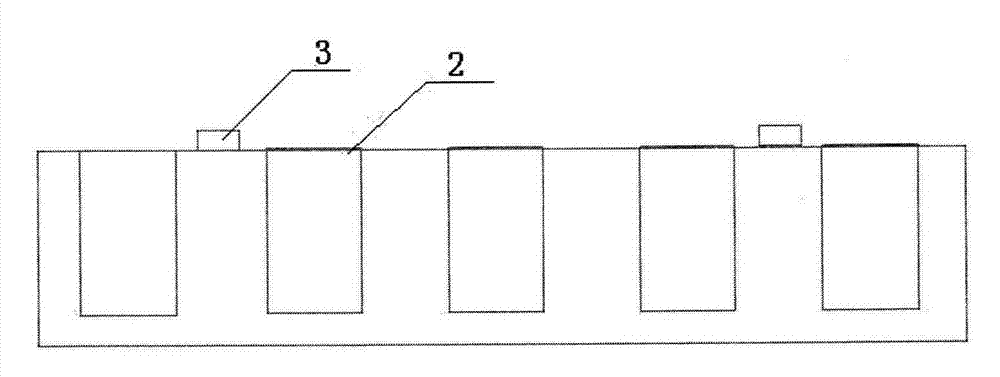

Fig. 1 is a structural representation of the utility model;

Figure 2 is a top view of Figure 1;

Figure 3 is the left view of Figure 1.

Detailed ways

Below in conjunction with accompanying drawing, the embodiment of the utility model is described in further detail:

From Fig. 1, Fig. 2 and Fig. 3, it can be seen that the utility model includes a box body 1, a medicine bottle fixing groove 2, a magnet 3, and a thermometer storage hole 4. The box body 1 is made of plastic, and two magnets 3 are fixedly connected thereto. 1. There are a plurality of medicine bottle fixing grooves 2 on the box body 1. The medicine bottle fixing groove 2 is a cylinder with an opening on it. There is a thermometer storage hole 4 on the left side of the box body 1. A sponge pad is arranged on the thermometer storage hole 4. The softness of the sponge pad plays the role of shock absorption, which can protect the thermometer placed in the thermometer storage hole 4, and the diameter of the thermometer storage hole 4 is 10mm.

When the utility model is in use, the medicine bottle is first placed in the medicine bottle fixing groove 2 successively, and the label on the medicine bottle should be aligned with the opening of the medicine bottle fixing groove 2, so that it is convenient to take medicine; At the iron frame, attach the magnet 3 to the bottom of the bed. The attraction force of the magnet 3 is enough to attract the whole device to the bottom of the bed. When you need to take medicine, take out the box body 1 that is attached to the bottom of the bed. It is convenient to find the required medicine at the opening of the opening. After taking the medicine, put the box body 1 back to the original place. During the whole process, the medicine bottle will not be lost and left behind. It is convenient for the patient to take the medicine. When not in use, the box body 1 is sucked Under the bed, not messy. the

Claims (1)

1. A sorting box for medicines in a ward, characterized in that it includes a box body, a medicine bottle fixing groove, a magnet, and a thermometer storage hole. The box body is made of plastic, and two magnets are fixedly connected to it. A medicine bottle fixing groove, the medicine bottle fixing groove is a cylinder with an opening on it, a thermometer storage hole is arranged on the left side of the box body, a sponge pad is arranged on the thermometer storage hole, and the diameter of the thermometer storage hole is 10mm.
