CN202842333U - Ashtray with cover - Google Patents
Ashtray with cover Download PDFInfo
- Publication number
- CN202842333U CN202842333U CN 201220522168 CN201220522168U CN202842333U CN 202842333 U CN202842333 U CN 202842333U CN 201220522168 CN201220522168 CN 201220522168 CN 201220522168 U CN201220522168 U CN 201220522168U CN 202842333 U CN202842333 U CN 202842333U
- Authority
- CN
- China
- Prior art keywords
- ashtray
- cigarette ash
- cover
- hole
- blade
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 235000019504 cigarettes Nutrition 0.000 claims abstract description 44
- 230000007613 environmental effect Effects 0.000 abstract description 2
- 230000036651 mood Effects 0.000 abstract description 2
- 239000004071 soot Substances 0.000 abstract 2
- 230000000981 bystander Effects 0.000 description 1
Landscapes
- Pinball Game Machines (AREA)
Abstract
本实用新型公开了一种带盖的烟灰缸，包括烟灰缸体与烟灰缸盖，所述烟灰缸体与烟灰缸盖可拆卸连接，且烟灰缸盖上设有通孔，通孔内设有数条叶片和一圆柱条，所述叶片和圆柱条平行设置，且两端分别固定在通孔内壁上。当人们使用本实用新型的时候，烟灰会顺着叶片掉入烟灰缸体内，有效的防止了烟灰在有风的情况下四处飞散，保证了环境清洁，由于叶片的遮挡，人眼不会直接看到脏的烟灰，这样就不会影响心情，给人们的生活带来极大的舒适，圆柱条可用于熄灭烟头，可达到保护环境卫生和让人感觉舒适的目的。
The utility model discloses an ashtray with a cover, which comprises an ashtray body and an ashtray cover. The ashtray body and the ashtray cover are detachably connected. A strip blade and a cylinder strip, the blade and the cylinder strip are arranged in parallel, and the two ends are respectively fixed on the inner wall of the through hole. When people use the utility model, the soot will fall into the ashtray along the blades, which effectively prevents the soot from flying around in the windy situation and ensures a clean environment. Seeing dirty cigarette ash will not affect the mood and bring great comfort to people's life. The cylindrical strip can be used to extinguish cigarette butts, which can achieve the purpose of protecting environmental sanitation and making people feel comfortable.
Description
Technical field
The utility model relates to a kind of ashtray, relates in particular to a kind of ashtray with cover.
Background technology
At present, the ashtray of known technology does not have the cigarette ash cylinder cap, human eye can directly be seen the cigarette ash in the ashtray, affects mood, secondly, have that cigarette ash can disperse in the situation of wind everywhere, the environmental sanitation around the impact impacts the bystander, if ashtray is established a lid, can stop cigarette ash, but people need uncap when shaking off cigarette ash, not being easily, having, is exactly that function is comparatively single, only have the function of taking in cigarette ash, and attractive in appearance not.
Summary of the invention
The purpose of this utility model just is that providing a kind of addresses the above problem; can effectively prevent dispersing of cigarette ash everywhere; block the cigarette ash in the ashtray, and can be convenient for people to cigarette and extinguish cigarette end in the placing burning, thereby reach the protection of the environment health and allow the people feel comfortable ashtray with cover.
To achieve these goals, the technical solution adopted in the utility model is such: a kind of ashtray with cover, comprise cigarette ash cylinder body and cigarette ash cylinder cap, described cigarette ash cylinder body and cigarette ash cylinder cap removably connect, and ashtray covers and is provided with through hole, be provided with several blades and a cylindrical bars in the through hole, described blade and cylindrical bars be arranged in parallel, and two ends are separately fixed on the through-hole wall.
As preferably: described ashtray covers and is provided with several semicircular breach.
As preferably: described blade evenly distributes, and be obliquely installed, and cylindrical bars is positioned at the middle part of through hole.
Compared with prior art; the utility model has the advantage of: ashtray covers and is provided with through hole; and be provided with several blades and a cylindrical bars in the through hole; blade can block the cigarette ash in the cigarette ash cylinder body; effectively prevent dispersing of cigarette ash everywhere; and the cigarette ash of shaking off can fall into along the slit of blade in the cigarette ash cylinder body; cylindrical bars can be used for extinguish cigarette end; can reach the protection of the environment health and allow the people feel comfortable purpose, ashtray covers and is provided with several semicircular breach, is convenient for people to place the cigarette that is burning; blade evenly distributes; be obliquely installed, and cylindrical bars is positioned at the middle part of through hole, looks neat and artistic.
Description of drawings

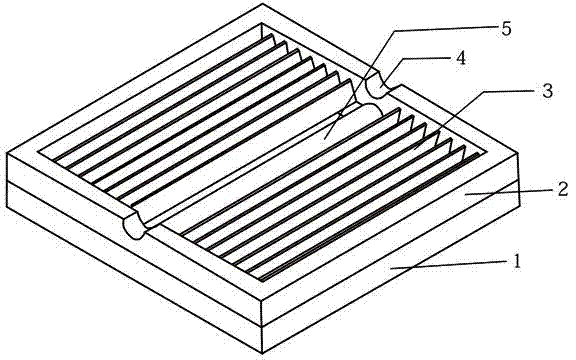

Fig. 1 is structural representation of the present utility model.
Among the figure: 1, cigarette ash cylinder body; 2, cigarette ash cylinder cap; 3, blade; 4, breach; 5, cylindrical bars.
The specific embodiment
The utility model is described in further detail below in conjunction with accompanying drawing.
Embodiment 1: referring to Fig. 1, a kind of ashtray with cover comprises cigarette ash cylinder body 1 and cigarette ash cylinder cap 2, and described cigarette ash cylinder body 1 removably connects with cigarette ash cylinder cap 2, and cigarette ash cylinder cap 2 is provided with through hole, be provided with several blades 3 and a cylindrical bars 5 in the through hole, described blade 3 and cylindrical bars 5 be arranged in parallel, and two ends are separately fixed on the through-hole wall, described cigarette ash cylinder cap 2 is provided with several semicircular breach 4, described blade 3 evenly distributes, and be obliquely installed, and cylindrical bars 5 is positioned at the middle part of through hole.
Cigarette ash cylinder cap 2 is provided with through hole; and be provided with several blades 3 and a cylindrical bars 5 in the through hole; blade 3 can block the cigarette ash in the cigarette ash cylinder body 1; effectively prevent dispersing of cigarette ash everywhere; and the cigarette ash of shaking off can fall into along the slit of blade 3 in the cigarette ash cylinder body 1; cylindrical bars 5 can be used for extinguish cigarette end; can reach the protection of the environment health and allow the people feel comfortable purpose; cigarette ash cylinder cap 2 is provided with several semicircular breach 4; be convenient for people to place the cigarette that is burning, blade 3 evenly distributes, and is obliquely installed; and cylindrical bars 5 is positioned at the middle part of through hole, looks neat and artistic.
Claims (3)
1. ashtray with cover, comprise cigarette ash cylinder body and cigarette ash cylinder cap, it is characterized in that: described cigarette ash cylinder body and cigarette ash cylinder cap removably connect, and ashtray covers and is provided with through hole, be provided with several blades and a cylindrical bars in the through hole, described blade and cylindrical bars be arranged in parallel, and two ends are separately fixed on the through-hole wall.
2. ashtray with cover according to claim 1, it is characterized in that: described ashtray covers and is provided with several semicircular breach.
3. ashtray with cover according to claim 1, it is characterized in that: described blade evenly distributes, and be obliquely installed, and cylindrical bars is positioned at the middle part of through hole.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN 201220522168 CN202842333U (en) | 2012-10-12 | 2012-10-12 | Ashtray with cover |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN 201220522168 CN202842333U (en) | 2012-10-12 | 2012-10-12 | Ashtray with cover |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN202842333U true CN202842333U (en) | 2013-04-03 |
Family
ID=47973592
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN 201220522168 Expired - Fee Related CN202842333U (en) | 2012-10-12 | 2012-10-12 | Ashtray with cover |
