CN202840549U - a solar wire - Google Patents

Abstract

The utility model discloses a solar power cable, which includes a cable body, on which a solar panel patch and a small lithium battery are arranged, the solar panel patch is electrically connected to the small lithium battery, and the small lithium battery is connected to the cable body. The utility model has a simple and ingenious structure, and can work using solar energy by arranging the solar patch and the small lithium battery, without the need for additional power supply. When used for car decorative lights, the car power supply does not need to be modified, and when used for furniture or electrical appliance DIY decoration, the power supply does not need to be modified, which brings convenience to work or life.

Description

a solar wire

technical field

The utility model relates to electric wires, in particular to a solar electric wire which is provided with a solar panel patch and a small lithium battery and can utilize solar energy. the

Background technique

In the prior art, ordinary wires, such as chasing lights or decorative light strips, must be powered on before they can be used. It is difficult to use without a power interface, and sometimes in a specific environment without a power interface. Bring inconvenience to life or work. the

Contents of the invention

The purpose of this utility model is to provide a solar power wire with a reasonable design. Its structure is simple and ingenious. By setting a solar patch and a small lithium battery, it can use solar energy to work without additional power supply, which brings great benefits to work or life. Come conveniently. the

The technical scheme that the utility model adopts for realizing the above-mentioned purpose is:

A kind of solar electric wire, it comprises a wire main body, is provided with solar panel patch and small lithium battery on this electric wire body, and this solar panel patch is electrically connected with this small lithium battery, and this small lithium battery is connected with this electric wire main body . the

As a further improvement of the utility model, the small lithium battery is arranged at the end of the wire body. the

As a further improvement of the utility model, the solar panel patch is arranged on the surface of the wire body. the

As a further improvement of the utility model, the wire body is a chasing light or a decorative light strip. the

The beneficial effects of the utility model are as follows: the utility model has a simple and ingenious structure, and can use solar energy to work by setting a solar patch and a small lithium battery, and does not need an additional power supply. , When used for furniture or electrical appliances DIY decoration, it also does not need to change the power supply, which brings convenience to work or life. the

Below in conjunction with accompanying drawing and embodiment, the utility model is further described. the

Description of drawings

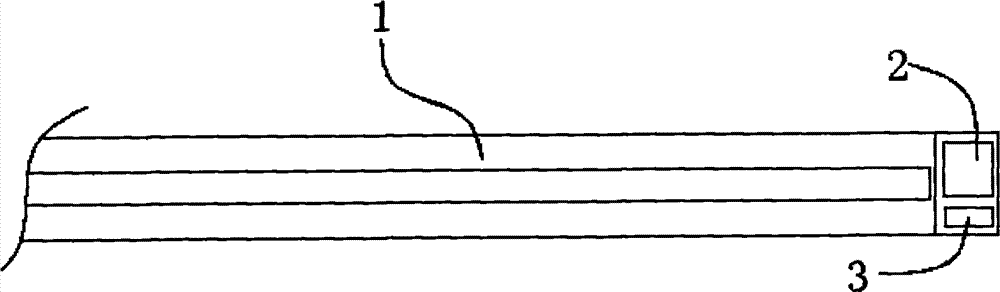

Fig. 1 is the structural representation of the utility model. the

Detailed ways

Embodiment: See Fig. 1, a kind of solar electric wire of the present utility model, it comprises a wire body 1, is provided with solar panel patch 2 and small-sized lithium battery 3 on this wire body 1, and this solar panel patch 2 and this small The lithium battery 3 is electrically connected, and the small lithium battery 3 is connected with the wire body 1 . the

The small lithium battery 3 is arranged at the end of the wire body 1 . the

The solar panel patch is arranged on the surface of the wire body 1 . the

The wire body 1 is a tracing light or a decorative light strip. the

The electric energy is obtained through the solar patch, and is stored in the small lithium battery 3, and is supplied to the wire body 1 for use. The utility model has a simple and ingenious structure. By setting the solar patch and the small lithium battery 3, the solar energy can be used for work, and no additional power supply is needed. When used for car decorative lights, the car power supply does not need to be changed, and it is used for furniture or electrical appliances DIY. When decorating, there is also no need to change the power supply, which brings convenience to work or life. the

As described in the embodiment of the utility model, other solar electric wires with the same or similar structure as the utility model are all within the protection scope of the utility model.

Claims (2)

1. solar energy electric wire, it comprises a wire body, it is characterized in that: be provided with solar panels paster and compact lithium cell in this wire body, this solar panels paster is electrically connected with this compact lithium cell, and this compact lithium cell is connected with this wire body.

2. solar energy electric wire according to claim 1 is characterized in that, described compact lithium cell is arranged at the end of this wire body.

3, solar energy electric wire according to claim 1 is characterized in that, described solar panels paster is arranged on the surface of this wire body.

4, solar energy electric wire according to claim 1 is characterized in that, described wire body is line or the Decorative lamp belt of following spot.
