Abstract
一种陶瓷化防火耐火电缆，属于电缆技术领域。该电缆包括至少一组芯线、无机填充料、第二陶瓷化防火耐火复合带和无卤低烟阻燃聚烯烃护套；芯线外层绕包第二陶瓷化防火耐火复合带，芯线与芯线之间和芯线与第二陶瓷化防火耐火复合带之间填充无机填充料，第二陶瓷化防火耐火复合带的外层挤包无卤低烟阻燃聚烯烃护套。本实用新型与现有技术相比有益效果是：该电缆具有耐火性能高，防水，防潮、不吸水、机械性能好，环保，成本低的优点。
The invention relates to a ceramicized fireproof and refractory cable, which belongs to the technical field of cables. The cable includes at least one set of core wires, inorganic fillers, a second ceramic fire-resistant and fire-resistant composite tape and a halogen-free low-smoke flame-retardant polyolefin sheath; the outer layer of the core wire is wrapped with the second ceramic fire-resistant and fire-resistant composite tape, and the core wire Inorganic fillers are filled between the core wire and between the core wire and the second ceramicized fireproof and refractory composite tape, and the outer layer of the second ceramicized fireproof and refractory composite tape is extruded with a halogen-free low-smoke flame-retardant polyolefin sheath. Compared with the prior art, the utility model has the beneficial effects that the cable has the advantages of high fire resistance, waterproof, moisture-proof, non-absorbent, good mechanical performance, environmental protection and low cost.
Description
Technical field
The utility model belongs to the cable technology field, particularly a kind of ceramic fireproof＝fire-proof cable.
Background technology
At present, mainly with the traditional handicraft structure of Mica tape conductor, minority is used mineral insulated cable to widely used fire-resisting cable.Tradition Mica tape cable, the mica tape fire resistance period is short, and residue is floury structure after the burning, therefore, can not continue to play a role, and, mica tape contains the glass fiber composition, glass fiber is that tiny fiber material is made, and frangibility is floating, in process of production in the floating air, the operator sucks in the lung, can't get rid of, and causes huge infringement to health.Mineral insulated cable, fire-resistant respond well, but because production equipment needs special equipment, take up an area large, many, the apparatus expensive of investment, and complex manufacturing, production length are limited to, and need welding, exist and lay the shortcomings such as inconvenience, maintenance cost height, do not form large-scale production always.
Summary of the invention
Technical problem to be solved in the utility model is, overcomes the defective that prior art exists, and provides a kind of fire-resistant effective, the cable of environmental protection.
The technical solution adopted in the utility model comprises at least one core assembly line, inorganic fillings, the second ceramic fireproof＝fire-proof composite band and halogen-free and low-smoke flame-retardant polyolefin sheathed;
Every core assembly line includes conductor lines, the first outsourcing ceramic fireproof＝fire-proof composite band and halogen-free and low-smoke flame-retardant polyolefin insulating barrier; Wherein, the first ceramic fireproof＝fire-proof composite band is wrapped outer in conductor lines, and it is outer that the halogen-free and low-smoke flame-retardant polyolefin insulating barrier is extruded in the first outsourcing ceramic fireproof＝fire-proof composite band.
Outer wrapped the second ceramic fireproof＝fire-proof composite band of heart yearn, fill inorganic fillings between heart yearn and the heart yearn and between heart yearn and the second ceramic fireproof＝fire-proof composite band, the skin of the second ceramic fireproof＝fire-proof composite band extrudes halogen-free and low-smoke flame-retardant polyolefin sheathed.
The utility model compared with prior art beneficial effect is: it is high that this cable has a fire resistance, waterproof, moistureproof, do not absorb water, good mechanical property, environmental protection, the advantage that cost is low.
Description of drawings

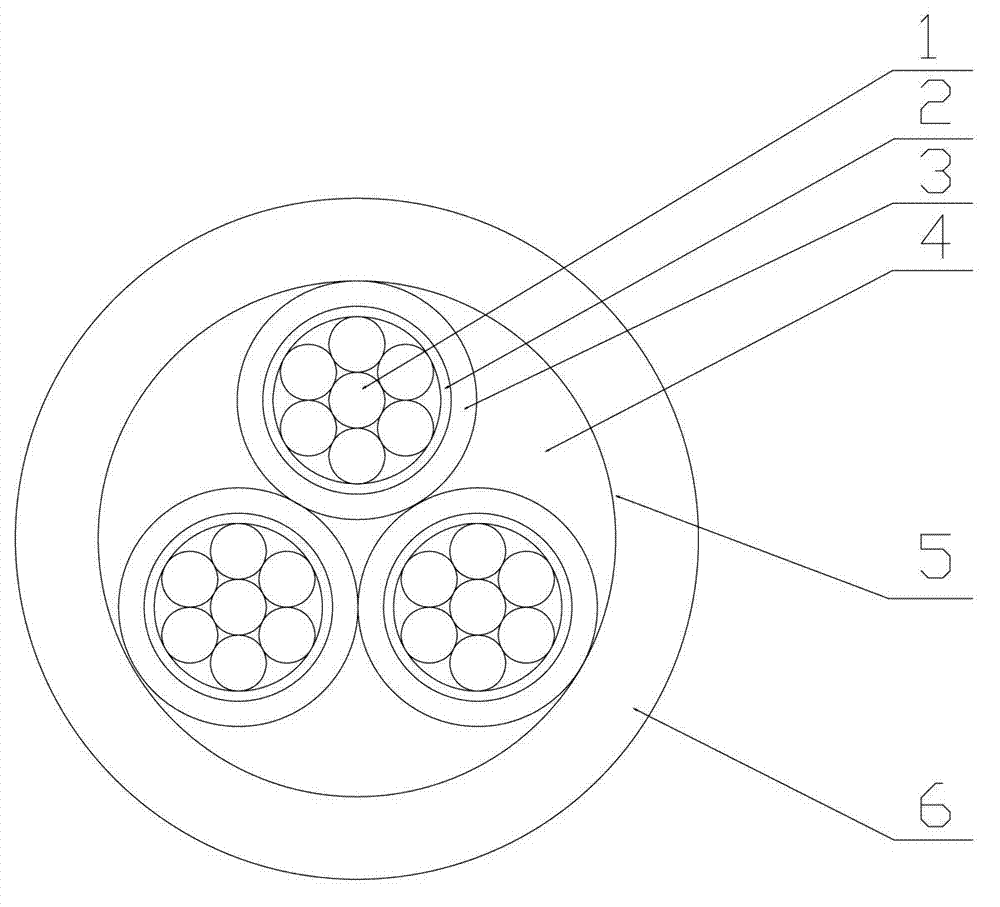

Fig. 1 is the utility model embodiment 1 power cable structure schematic diagram;
Fig. 2 is the utility model embodiment 2 control cables structural representations.
Among the figure: 1 conductor lines, 2 first ceramic fireproof＝fire-proof composite band, 3 halogen-free and low-smoke flame-retardant polyolefin insulating barriers, 4 inorganic fillings, 5 second ceramic fireproof＝fire-proof composite band, 6 halogen-free and low-smoke flame-retardant polyolefin sheathed.
Embodiment
The utility model is described in further detail below in conjunction with accompanying drawing:
Embodiment 1
Power cable
Heart yearn group number can adopt 1～5 core, and conductor lines 1 adopts copper or aluminium conductor line, adopts 3 cores in the present embodiment, and conductor lines 1 adopts the aluminium conductor line.
As shown in Figure 1, comprise 3 core assembly lines, inorganic fillings 4, the second ceramic fireproof＝fire-proof composite band 5 and halogen-free and low-smoke flame-retardant polyolefin sheathed 6; Wherein inorganic fillings 4 is high refractory material, can further strengthen the thermal endurance class of cable, and halogen-free and low-smoke flame-retardant polyolefin sheathed 6 have possessed all properties of low-smoke non-halogen flame-retardant.
Every core assembly line includes aluminium conductor line, the first ceramic fireproof＝fire-proof composite band 2 and halogen-free and low-smoke flame-retardant polyolefin insulating barrier 3, and halogen-free and low-smoke flame-retardant polyolefin insulating barrier 3 can stop spreading of the intensity of a fire.Can be limited in burning in the subrange, not produce and spread, keep other various device, avoid resulting in greater loss; Wherein, it is outer that the first ceramic fireproof＝fire-proof composite band 2 is wrapped in the aluminium conductor line, and halogen-free and low-smoke flame-retardant polyolefin insulating barrier 3 is wrapped in the first ceramic fireproof＝fire-proof composite band 2 skins.
The heart yearn skin wraps up the second ceramic fireproof＝fire-proof composite band 5 successively, the skin of filling inorganic fillings 4, the second ceramic fireproof＝fire-proof composite band 5 between heart yearn and the heart yearn and between heart yearn and the second ceramic fireproof＝fire-proof composite band 5 wraps up halogen-free and low-smoke flame-retardant polyolefin sheathed 6.
Control cables
Heart yearn group number can adopt 2～61 cores, adopts 24 cores in the present embodiment, and conductor lines 1 adopts the copper conductor line.
As shown in Figure 2, comprise 24 core assembly lines, inorganic fillings 4, the second ceramic fireproof＝fire-proof composite band 5 and halogen-free and low-smoke flame-retardant polyolefin sheathed 6; Wherein inorganic fillings 4 is high refractory material, can further strengthen the thermal endurance class of cable, and halogen-free and low-smoke flame-retardant polyolefin sheathed 6 have possessed all properties of low-smoke non-halogen flame-retardant.
Every core assembly line includes copper conductor line, the first ceramic fireproof＝fire-proof composite band 2 and halogen-free and low-smoke flame-retardant polyolefin insulating barrier 3, and halogen-free and low-smoke flame-retardant polyolefin insulating barrier 3 can stop spreading of the intensity of a fire.Can be limited in burning in the subrange, not produce and spread, keep other various device, avoid resulting in greater loss; Wherein, it is outer that the first ceramic fireproof＝fire-proof composite band 2 is wrapped in the copper conductor line, and halogen-free and low-smoke flame-retardant polyolefin insulating barrier 3 is wrapped in the first ceramic fireproof＝fire-proof composite band 2 skins.
The heart yearn skin wraps up the second ceramic fireproof＝fire-proof composite band 5 successively, the skin of filling inorganic fillings 4, the second ceramic fireproof＝fire-proof composite band 5 between heart yearn and the heart yearn and between heart yearn and the second ceramic fireproof＝fire-proof composite band 5 wraps up halogen-free and low-smoke flame-retardant polyolefin sheathed 6.
Claims (2)
