一种超级电容器老化处理夹具，具有框架，框架的两侧长框边上分别设有正极座和负极座，正极座的内侧设有正极支架，在正极座的每个安装孔内嵌有一铜套，每个铜套中动连接一正极铜杆，正极铜杆上（前端）且处于正极座和正极支架之间设有弹簧，正极铜杆的末端伸出正极座，所有正极铜杆的末端均与正极铜线连接，负极座的内侧面设有负极铜条，负极铜条的内侧面设有和负极座固定连接的负极支架，每个负极座的安装孔内设有螺栓，每一螺栓穿过负极铜条上对应的通孔连接一负极铜柱，负极铜柱紧贴负极铜条。本夹具可以对多个超级电容器同时进行老化处理，效率高且安装和拆卸方便快捷，由于接触充分，能够满足承受大电流充放电。
A fixture for aging treatment of supercapacitors, which has a frame, a positive pole seat and a negative pole seat are respectively arranged on the sides of the long frames of the frame, a positive pole bracket is provided on the inner side of the positive pole seat, and a copper sleeve is embedded in each mounting hole of the positive pole seat Each copper sleeve is dynamically connected to a positive copper rod. A spring is provided on the positive copper rod (front end) and between the positive seat and the positive support. The end of the positive copper rod extends out of the positive seat. The ends of all positive copper rods are It is connected with the positive copper wire, and the inner surface of the negative pole seat is provided with a negative electrode copper bar, and the inner surface of the negative electrode copper bar is provided with a negative pole bracket fixedly connected with the negative pole seat, and each negative pole seat is equipped with a bolt in the installation hole, and each bolt passes through the A negative electrode copper column is connected through a corresponding through hole on the negative electrode copper bar, and the negative electrode copper column is close to the negative electrode copper bar. The fixture can simultaneously perform aging treatment on multiple supercapacitors, has high efficiency and is convenient and quick to install and disassemble, and can withstand high current charging and discharging due to sufficient contact.
Description
Technical field
The utility model relates to ultracapacitor burin-in process anchor clamps.
Background technology
The lifetime of ultracapacitor is divided into three phases, and wherein the crash rate of earlier failure period is higher, and after having crossed during this period of time, can enter a stationary phase for a long time, is called random failure period, after this, is loss failure period.So need to adopt aging means for rejecting the defectiveness product that is caused by potential undesirable element in the failure period in early days, burin-in process is exactly the process to ultracapacitor punching electricity, pressurize (voltage), discharge, in this course, charging and discharging currents large, require the positive and negative electrode of super capacitor fully to be connected with the positive and negative electrode that charges and discharge power supply.For the body cylindrical shape, the small column of two ends projection is respectively the ultracapacitor of positive and negative electrode terminal, and aging instrument is to adopt two copper bars to be connected with bolt with the super capacitor both positive and negative polarity respectively at present, copper bar is accessed again the joint of aging power supply.Adopting to have two major defects by aging instrument: 1. the single ultracapacitor of installation or removal all needs approximately 30s, inefficiency averaging time; 2. after aging the finishing, the shell that easily touches ultracapacitor during dismounting negative pole copper bar causes short circuit, damages ultracapacitor and copper bar.
The utility model content
The ultracapacitor burin-in process anchor clamps that the both positive and negative polarity that the purpose of this utility model is to propose a kind of quick realization super capacitor and power positive cathode fully are connected.
For achieving the above object, the utility model is taked following technical scheme: a kind of ultracapacitor burin-in process anchor clamps, has framework, be respectively equipped with positive electrode seat and negative pole seat on the both sides long frame edge of framework, each is provided with row's mounting hole along its length on the opposite face of positive electrode seat and negative pole seat, and the mounting hole on the positive electrode seat and the mounting hole on the negative pole seat are corresponding one by one; The inboard of positive electrode seat is provided with the anodal support between the two short edges that are fixed on framework, each mounting hole on the anodal support on the corresponding positive electrode seat is provided with hugging, each mounting hole in positive electrode seat is embedded with a copper sheathing, an anodal copper bar is dynamically connected in each copper sheathing, on the anodal copper bar and be between positive electrode seat and the anodal support and be provided with spring, the head of anodal copper bar is on the anodal support in the hugging, the end of anodal copper bar stretches out positive electrode seat, the terminal of all anodal copper bars all is connected with anodal copper cash, the medial surface of negative pole seat is provided with the negative pole copper bar, the medial surface of negative pole copper bar is provided with the negative pole support that is fixedly connected with the negative pole seat, mounting hole on the negative pole support on the corresponding negative pole seat is provided with hugging, be provided with bolt in the mounting hole of each negative pole seat, each bolt passes on the negative pole copper bar corresponding through hole and connects a negative pole copper post, and negative pole copper post is in the hugging of negative pole support and is close to the negative pole copper bar.
Be provided with some cushion blocks between positive electrode seat and the anodal support, by bolt and T-shaped nut cushion block be fixed between long frame edge and the anodal support.
Negative pole copper post is the patterned surface with pointed tooth through the annular knurl processing with the end face that anodal copper bar contacts with super capacitor.
The utlity model has following good effect: 1, these anchor clamps can carry out burin-in process simultaneously to a plurality of ultracapacitors, and efficient is high.2, the negative pole copper post of these anchor clamps maintains static, and anodal copper bar slides in copper sheathing, under the effect of Compress Spring power ultracapacitor being pressed between anodal copper bar and the negative pole copper post, mounts and dismounts convenient and swift.Because contact fully can be satisfied and bear high current charge-discharge.3, negative pole copper post is the patterned surface with pointed tooth through the annular knurl processing with the end face that anodal copper bar contacts with super capacitor, when patterned surface and ultracapacitor positive and negative electrode termination contact, pointed tooth can pierce through the oxide layer of ultracapacitor positive and negative electrode terminal surfaces, reduces the ageing process thermal value thereby reduce the contact internal resistance.
Description of drawings
Fig. 1 is the utility model overview.

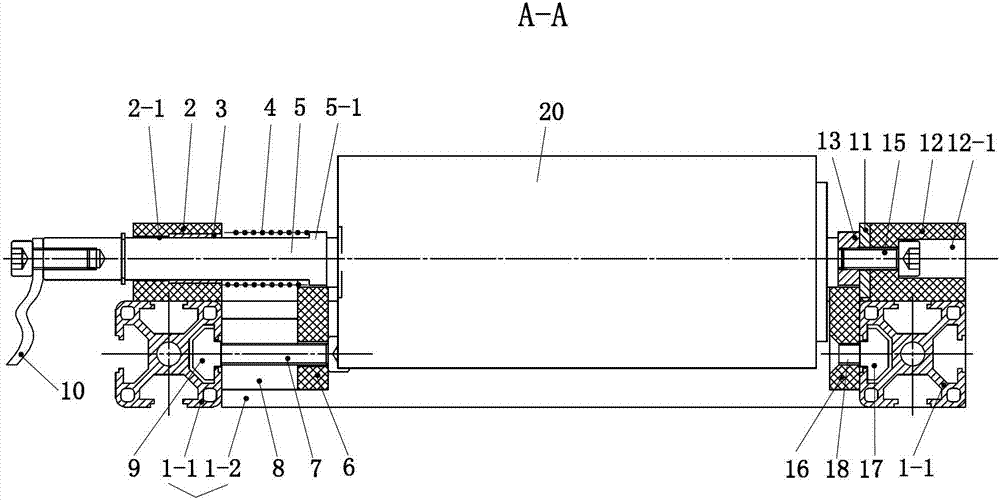

Fig. 2 is the cut-open view of figure A-A.
Fig. 3 is the view of positive electrode seat.
Fig. 4 is the view of negative pole seat.
Fig. 5 is an anodal mantel view.
Fig. 6 is that negative pole props up mantel view.
Embodiment
Embodiment 1
See Fig. 1 to Fig. 6, the present embodiment has framework 1, and framework 1 is comprised of two long frame edge 1-1 and two short edge 1-2, and long frame edge 1-1 and short edge 1-2 are section bar.Be respectively equipped with positive electrode seat 2 and negative pole seat 12 on the both sides long frame edge 1-1 of framework 1, each is provided with row's mounting hole along its length on the opposite face of positive electrode seat 2 and negative pole seat 12, mounting hole 2-1 on the positive electrode seat 2 and the mounting hole 12-1 on the negative pole seat 12 are corresponding one by one, and two corresponding mounting holes are center line altogether.
The inboard of positive electrode seat 2 is provided with the anodal support 6 between the two short edge 1-2 that are fixed on framework, each mounting hole 2-1 on the anodal support 6 on the corresponding positive electrode seat is provided with hugging 6-1, each mounting hole 2-1 in positive electrode seat 2 is embedded with a copper sheathing 3, an anodal copper bar 5 is dynamically connected in each copper sheathing 3, anodal copper bar 5 can slide in copper sheathing 3, on the anodal copper bar 5 and be between positive electrode seat 2 and the anodal support 6 and be provided with spring 4, anodal copper bar 5 has diameter greater than the head 5-1 of spring outer diameter, head 5-1 end face contacts with ultracapacitor, the head 5-1 of anodal copper bar 5 is on the anodal support 6 among the hugging 6-1, the end of anodal copper bar 5 stretches out positive electrode seat 2, and the terminal of all anodal copper bars 5 all is connected with anodal copper cash 10.Be provided with some cushion blocks 8 between long frame edge 1-1 and the anodal support 6, corresponding every cushion block 8 is provided with bolt hole on the anodal support 6, in the groove of long frame edge 1-1, be provided with T-shaped nut 9, each bolt 7 is by bolt hole and cushion block 8 upper bolt holes on the anodal support 6, it is terminal and be connected nut 9 connections, by bolt 7 and T-shaped nut 9 cushion block 8 is fixed between positive electrode seat 2 and the anodal support 6 like this.
The medial surface of negative pole seat 12 is provided with negative pole copper bar 11, and the medial surface of negative pole copper bar 11 is provided with negative pole support 16, between negative pole seat 12 and the negative pole support 16 by screw 18 be connected nut 17 and connect.Mounting hole 12-1 on the negative pole support 16 on the corresponding negative pole seat 12 is provided with hugging 16-1, be provided with bolt 15 in the mounting hole 12-1 of each negative pole seat 12, each bolt 15 passes on the negative pole copper bar 11 corresponding through hole and connects a negative pole copper post 13, and negative pole copper post 13 is among the hugging 16-1 of negative pole support 16 and is close to negative pole copper bar 11.
Negative pole copper post is the patterned surface with pointed tooth through the annular knurl processing with the end face that anodal copper bar contacts with super capacitor.Be convenient carrying, each mounting handle 19 on two short edge 1-2 of framework 1.
During use, ultracapacitor 20 is clamped between anodal copper bar and the negative pole copper post.Anodal copper cash,
The negative pole copper bar is connected with aging power supply.
Claims (3)
1. ultracapacitor burin-in process anchor clamps, it is characterized in that: have framework (1), be respectively equipped with positive electrode seat (2) and negative pole seat (12) on the both sides long frame edge (1-1) of framework (1), each is provided with row's mounting hole along its length on the opposite face of positive electrode seat (2) and negative pole seat (12), and the mounting hole (2-1) on the positive electrode seat (2) and the mounting hole (12-1) on the negative pole seat (12) are corresponding one by one; The inboard of positive electrode seat (2) is provided with the anodal support (6) between the two short edges (1-2) that are fixed on framework, each mounting hole (2-1) on the upper corresponding positive electrode seat of anodal support (6) is provided with hugging (6-1), each mounting hole (2-1) in positive electrode seat (2) is embedded with a copper sheathing (3), an anodal copper bar (5) is dynamically connected in each copper sheathing (3), anodal copper bar (5) is gone up and is between positive electrode seat (2) and the anodal support (6) and is provided with spring (4), the head (5-1) of anodal copper bar (5) is in the upper hugging (6-1) of anodal support (6), the end of anodal copper bar (5) stretches out positive electrode seat (2), the terminal of all anodal copper bars (5) all is connected with anodal copper cash (10), the medial surface of negative pole seat (12) is provided with negative pole copper bar (11), the medial surface of negative pole copper bar (11) is provided with the negative pole support (16) that is fixedly connected with negative pole seat (12), mounting hole (12-1) on the upper corresponding negative pole seat (12) of negative pole support (16) is provided with hugging (16-1), be provided with bolt (15) in the mounting hole (12-1) of each negative pole seat (12), each bolt (15) passes through hole corresponding to negative pole copper bar (11) and connects a negative pole copper post (13), and negative pole copper post (13) is in the hugging (16-1) of negative pole support (16) and is close to negative pole copper bar (11).
2. ultracapacitor burin-in process anchor clamps according to claim 1, it is characterized in that: be provided with some cushion blocks (8) between positive electrode seat (2) and the anodal support (6), by bolt (7) and T-shaped nut (9) cushion block (8) be fixed between long frame edge (1-1) and the anodal support (6).
3. ultracapacitor burin-in process anchor clamps according to claim 1 is characterized in that: the patterned surface with pointed tooth of end face for processing through annular knurl that negative pole copper post and anodal copper bar contact with super capacitor.
