本实用新型涉及一种污水处理的中水回用系统，包括依次连接的污水预处理系统、配水池、厌氧污泥床、A/O生物滤池、MBR生化池和后处理系统，其特征是：所述MBR生化池与反渗透设备分开设置，所述MBR生化池通过第二中间水池与反渗透设备连接，所述反渗透设备与清水池连接。有益效果：生化池和反渗透膜分开设置方便了维修，有利于清洗和更换滤芯。使生化池氧的传输率高，节省推流设备且节约能源；深化处理使用了氧化沟技术并采用立体循环方式，在有效减小占地面积的同时，又可很好地将活性污泥截留在生化池内，使进一步深化处理的清水进入第二中间池，极大减轻了活性污泥对膜组件的污染。
The utility model relates to a reclaimed water reuse system for sewage treatment, which comprises a sewage pretreatment system, a water distribution tank, an anaerobic sludge bed, an A/O biological filter tank, an MBR biochemical tank and a post-treatment system connected in sequence, and is characterized in that Yes: the MBR biochemical pool is set separately from the reverse osmosis equipment, the MBR biochemical pool is connected to the reverse osmosis equipment through the second intermediate pool, and the reverse osmosis equipment is connected to the clean water pool. Beneficial effects: the biochemical pool and the reverse osmosis membrane are set separately to facilitate maintenance and facilitate cleaning and replacement of filter elements. Make the oxygen transmission rate of the biochemical pool high, save the plug-flow equipment and save energy; the oxidation ditch technology is used in the deepening treatment and the three-dimensional circulation method is adopted, which can effectively reduce the occupied area and trap the activated sludge well In the biochemical pool, the further treated clear water enters the second intermediate pool, which greatly reduces the pollution of the activated sludge to the membrane module.
Description
技术领域 technical field
本实用新型属于污水处理技术，尤其涉及一种污水处理的中水回用系统。The utility model belongs to the sewage treatment technology, in particular to a reclaimed water reuse system for sewage treatment.
背景技术 Background technique
传统的污水处理技术是采用前置处理、生化处理和后处理三过程将需要处理的污水处理达到国家或当地排放指标后，就将处理后的污水排放掉，这样失去了水资源再次利用的价值，不利于循环经济的发展。中水回用技术的发明和使用是当前解决水资源循环利用的重要课题。膜生物反应器（MBR）是一种由膜分离单元与生物处理单元相结合的新型水处理技术，由于MBR将传统污水处理的曝气池与二沉池合二为一，并取代了三级处理的全部工艺设施，因此可大幅减少占地面积，节省土建投资。与传统的生化水处理技术相比，MBR具有以下主要特点：处理效率高、出水水质好；设备紧凑、占地面积小；易实现自动控制、运行管理简单。“以膜组件取代二沉池在生物反应器中保持高活性污泥浓度减少污水处理设施占地”为代价，带来的缺点膜堵塞后清洗膜非常麻烦、对入水水质要求较高，故应用在工业污水处理突显成本较高。The traditional sewage treatment technology uses three processes of pre-treatment, biochemical treatment and post-treatment to treat the sewage to be treated after reaching the national or local discharge indicators, and then discharge the treated sewage, which loses the value of water resources reuse , is not conducive to the development of circular economy. The invention and use of reclaimed water reuse technology is an important issue to solve the recycling of water resources. Membrane bioreactor (MBR) is a new type of water treatment technology that combines a membrane separation unit with a biological treatment unit. Since MBR combines the aeration tank and the secondary sedimentation tank of traditional sewage treatment into one, it replaces the three-stage All the process facilities are processed, so the floor area can be greatly reduced and the civil construction investment can be saved. Compared with the traditional biochemical water treatment technology, MBR has the following main features: high treatment efficiency, good effluent quality; compact equipment, small footprint; easy to realize automatic control, simple operation and management. At the cost of "replacing the secondary settling tank with membrane modules to maintain a high concentration of activated sludge in the bioreactor and reducing the land occupation of sewage treatment facilities", the shortcomings brought about by the membrane blockage are very troublesome to clean the membrane, and the requirements for the quality of the influent water are high, so the application The high cost of industrial sewage treatment is highlighted.
实用新型内容 Utility model content
本实用新型是为了克服现有技术中的不足，提供一种方便维修，有利于清洗和更换滤芯和反渗透膜的污水处理的中水回用系统，解决了膜堵塞时间短，脱氮效果差的问题，实现了工业废水中水重复使用。The utility model aims to overcome the deficiencies in the prior art and provide a reclaimed water reuse system for sewage treatment that is convenient for maintenance and beneficial for cleaning and replacing filter elements and reverse osmosis membranes, and solves the problem of short membrane clogging time and poor denitrification effect To solve the problem, realize the reuse of water in industrial wastewater.
本实用新型为实现上述目的，通过以下技术方案实现，一种污水处理的中水回用系统，包括依次连接的污水预处理系统、配水池、厌氧污泥床、A/O生物滤池、MBR生化池和后处理系统，其特征是：所述MBR生化池与反渗透设备分开设置，所述MBR生化池通过第二中间水池与反渗透设备连接，所述反渗透设备与清水池连接。In order to achieve the above object, the utility model is realized by the following technical scheme, a sewage treatment reclaimed water reuse system, including a sewage pretreatment system, a water distribution tank, an anaerobic sludge bed, an A/O biological filter, The MBR biochemical pool and post-treatment system are characterized in that: the MBR biochemical pool is set separately from the reverse osmosis equipment, the MBR biochemical pool is connected to the reverse osmosis equipment through a second intermediate pool, and the reverse osmosis equipment is connected to the clean water pool.
所述A/O生物滤池通过第一中间水池与MBR生化池连接，所述第一中间水池与后处理系统连接。The A/O biofilter is connected to the MBR biochemical tank through the first intermediate tank, and the first intermediate tank is connected to the post-treatment system.
所述MBR生化池由微孔曝气盘和若干氧化沟构成，所述氧化沟底部设有进水口，上部设有出水口，使流体自下至上呈立体循环方式。The MBR biochemical pool is composed of a microporous aeration plate and several oxidation ditches. The bottom of the oxidation ditch is provided with a water inlet, and the upper part is provided with a water outlet, so that the fluid circulates in a three-dimensional manner from bottom to top.
所述反渗透设备出口水端连接有CLO2发生器。The outlet water end of the reverse osmosis equipment is connected with a CLO2 generator.
有益效果：采用的是生化池和反渗透膜分开设置方便了维修，有利于清洗和更换滤芯和反渗透膜。使生化池氧的传输率高，节省推流设备且节约能源；，与传统水平推流的生化池相比，深化处理使用了氧化沟技术并采用立体循环方式，在有效减小占地面积的同时，又可将活性污泥截留在MBR生化池内，使进一步深化处理的清水进入第二中间水池，这样极大减轻了活性污泥对膜组件的污染，减少膜组件胡清洗频率，延长了膜组件的寿命，有效提高了生化池的集约程度。Beneficial effects: the biochemical pool and the reverse osmosis membrane are set separately to facilitate maintenance and facilitate cleaning and replacement of the filter element and the reverse osmosis membrane. The oxygen transmission rate of the biochemical pool is high, saving plug-flow equipment and energy; compared with the traditional horizontal plug-flow biochemical pool, the deepening treatment uses the oxidation ditch technology and adopts the three-dimensional circulation method, which effectively reduces the floor area. At the same time, the activated sludge can be trapped in the MBR biochemical tank, so that the further treated clear water enters the second intermediate tank, which greatly reduces the pollution of the activated sludge to the membrane module, reduces the cleaning frequency of the membrane module, and prolongs the life of the membrane. The life of the components effectively improves the intensity of the biochemical pool.
附图说明 Description of drawings
图1是本实用新型的连接框图。Fig. 1 is a connection block diagram of the utility model.
具体实施方式 Detailed ways
以下结合较佳实施例，对依据本实用新型提供的具体实施方式详述如下：详见附图，一种污水处理的中水回用系统，包括依次连接的污水预处理系统、配水池、厌氧污泥床、A/O生物滤池、MBR生化池和后处理系统，其特征是：所述MBR生化池与反渗透设备分开设置，所述MBR生化池通过第二中间水池与反渗透设备连接，所述反渗透设备与清水池连接。所述MBR生化池由微孔曝气盘和若干氧化沟构成，所述氧化沟底部设有进水口，上部设有出水口，使流体自下至上呈立体循环方式，在有效减小占地面积的同时，又可将活性污泥截留在MBR生化池内。所述反渗透设备出口水端连接有CLO2发生器。Below in conjunction with the preferred embodiments, the specific implementation methods provided according to the utility model are described in detail as follows: See the accompanying drawings for details, a reclaimed water reuse system for sewage treatment, including a sewage pretreatment system, a water distribution tank, and a drain Oxygen sludge bed, A/O biofilter, MBR biochemical pool and post-treatment system, characterized in that: the MBR biochemical pool is set separately from the reverse osmosis equipment, and the MBR biochemical pool is connected to the reverse osmosis equipment through the second intermediate pool connected, the reverse osmosis equipment is connected with the clear water pool. The MBR biochemical pool is composed of a microporous aeration plate and a number of oxidation ditches. The bottom of the oxidation ditch is provided with a water inlet, and the upper part is provided with a water outlet, so that the fluid circulates in a three-dimensional manner from bottom to top, effectively reducing the occupied area. At the same time, the activated sludge can be trapped in the MBR biochemical pool. The outlet water end of the reverse osmosis equipment is connected with a CLO2 generator.
反渗透设备中装有粗滤和精滤设备，并通过机泵施加的水压，使水在通过高密中空膜中与其他离子杂质分离出来，通过电导率仪控制，生产出来的回用水相当于纯水，在经过CLO2发生器进行杀菌消毒，制出来的回用水我们用于浇花和作为凉水塔补水之用，这样既解决了水的排放问题，也可解决水资源利用之问题。The reverse osmosis equipment is equipped with coarse filtration and fine filtration equipment, and through the water pressure applied by the pump, the water is separated from other ion impurities in the high-density hollow membrane, controlled by the conductivity meter, and the recycled water produced is equivalent to Pure water is sterilized by a CLO2 generator, and the reused water produced is used for watering flowers and replenishing water for cooling towers. This not only solves the problem of water discharge, but also solves the problem of water resource utilization.
1、处理能力：处理废水：600m3/d，回用水量：200m3/d。1. Treatment capacity: waste water treatment: 600m 3 /d, water reuse: 200m 3 /d.
2、进水水质：2. Influent water quality:
表2-1设计进水水质指标Table 2-1 Design Influent Water Quality Index
3、出水水质：设计出水水质满足《污水综合排放标准》（DB12/356-2008）三级标准，基本水质指标如表3-1所示。回用水水质满足《城市污水再生利用城市杂用水水质》（GB/T18920-2002）冲厕标准，基本水质指标如表3-2所示。表3-1设计出水水质指标3. Outlet water quality: The designed outflow water quality meets the third-level standard of the Comprehensive Wastewater Discharge Standard (DB12/356-2008), and the basic water quality indicators are shown in Table 3-1. The quality of reused water meets the toilet flushing standard of "Urban Sewage Recycling and Utilization of Urban Miscellaneous Water Quality" (GB/T18920-2002), and the basic water quality indicators are shown in Table 3-2. Table 3-1 Design effluent quality indicators

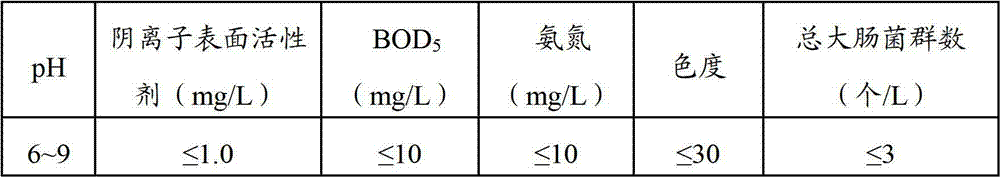

回用水水质指标Water quality indicators for reused water
回用水主要构筑物与设备Main structures and equipment for water reuse
一、主要构筑物：1. Main structures:
1、MBR生化池1. MBR biochemical pool
数量：1座。有效容积：200m3；尺寸：L×B×H＝9m×4.5m×5.5m；材质：钢砼。Quantity: 1 seat. Effective volume: 200m 3 ; size: L×B×H=9m×4.5m×5.5m; material: steel concrete.
2、第一中间水池2. The first intermediate pool
数量：1座。有效容积：20m3；尺寸：L×B×H＝2.8m×1.5m×5.5m；材质：钢砼。Quantity: 1 seat. Effective volume: 20m 3 ; size: L×B×H=2.8m×1.5m×5.5m; material: steel concrete.
3、第二中间水池3. The second intermediate pool
数量：1座。有效容积：10m3；尺寸：L×B×H＝1.5m×1.5m×5.5m；材质：钢砼。Quantity: 1 seat. Effective volume: 10m 3 ; size: L×B×H=1.5m×1.5m×5.5m; material: steel concrete.
4、鼓风机房4. Blower room
数量：1座。尺寸：L×B×H＝7m×3.5m×5m；材质：砖混；Quantity: 1 seat. Dimensions: L×B×H=7m×3.5m×5m; Material: brick-concrete;
5、清水池5. Clear water pool
数量：1座。有效容积：200m3；尺寸：L×B×H＝13.6m×4m×3.5m；材质：钢砼。Quantity: 1 seat. Effective volume: 200m 3 ; size: L×B×H=13.6m×4m×3.5m; material: steel concrete.
二、设备：2. Equipment:
1、MBR膜系统1. MBR membrane system
反渗透膜设备Reverse osmosis membrane equipment
数量：1台；处理量：Q＝10m3/h，N＝30kw。Quantity: 1 set; Capacity: Q=10m 3 /h, N=30kw.
2、CLO2发生器2. CLO2 generator
数量：1台；发生能力：Q＝50gCLO2/h，N＝0.6KWQuantity: 1 set; generating capacity: Q＝50gCLO2/h, N＝0.6KW
以上所述，仅是本实用新型的较佳实施例而已，并非对本实用新型的结构作任何形式上的限制。凡是依据本实用新型的技术实质对以上实施例所作的任何简单修改、等同变化与修饰，均仍属于本实用新型的技术方案的范围内。The above descriptions are only preferred embodiments of the present utility model, and are not intended to limit the structure of the present utility model in any form. Any simple modifications, equivalent changes and modifications made to the above embodiments according to the technical essence of the present utility model still belong to the scope of the technical solution of the present utility model.
