本实用新型公开了一种变频绕线机，包括底座，底座的一侧设有机箱，机箱上设有计数器，机箱内设有变频器控制的电机，电机通过传送带与夹具轮连接，夹具轮上固定连接设有挡块的转盘，转盘的一侧设有光电发送器，另一侧设有光电接收器，夹具轮的轴套外边设有接近开关，转轴与夹具轮固定连接并穿出机箱；底座的另一侧安装立柱，立柱顶部设有带手轮的顶杆，顶杆设有锁紧手柄；还设有正转脚踏开关和反转脚踏开关，所述的计数器、变频器、光电发送器、光电接收器、接近开关、正转脚踏开关、反转脚踏开关均通过导线连接。本实用新型操作简便，运行平稳，适应性较强，适用于电机等电器的线圈绕线。
The utility model discloses a frequency conversion winding machine, which comprises a base, a cabinet is arranged on one side of the base, a counter is arranged on the cabinet, a motor controlled by a frequency converter is arranged in the cabinet, the motor is connected with a clamp wheel through a conveyor belt, and a The turntable is fixedly connected with a stopper. One side of the turntable is equipped with a photoelectric transmitter, and the other side is equipped with a photoelectric receiver. A proximity switch is installed outside the sleeve of the fixture wheel. The rotating shaft is fixedly connected with the fixture wheel and passes through the chassis; The other side of the base is installed with a column, and the top of the column is provided with a push rod with a hand wheel, and the push rod is provided with a locking handle; a forward rotation foot switch and a reverse rotation foot switch are also provided, and the counter, frequency converter, The photoelectric transmitter, the photoelectric receiver, the proximity switch, the forward rotation foot switch and the reverse rotation foot switch are all connected by wires. The utility model has the advantages of simple and convenient operation, stable operation and strong adaptability, and is suitable for coil winding of electrical appliances such as motors.
Description
Technical field
The utility model relates to the Winder of the electrical equipment such as a kind of motor, is specifically related to a kind of frequency-variable winding machine.
Background technology
The electric equipment products such as motor stator need to turn to inductance coil with enamel wire, just need to use wire coiling machine.Wire coiling machine of a great variety by its purpose classification, can be divided into universal and tailored version.Universal by one or the suitable wire coiling machine that multiple framework coiling is installed of several line; Tailored version is that fixing special-purpose winding chuck is housed, can only a kind of coil of coiling.At present, the traditional wire coiling machine that generally uses is the type that artificial winding displacement beats shaping, and technique is loaded down with trivial details, and winding process is complicated.
The inductance coil wire coiling machine
Summary of the invention
Technical problem to be solved in the utility model provide a kind of easy and simple to handle, operate steadily, and larger adaptive frequency-variable winding machine arranged.
For solving the problems of the technologies described above, frequency-variable winding machine of the present utility model comprises base, and a side of base is provided with cabinet, cabinet is provided with counting machine, be provided with the motor of Frequency Converter Control in the cabinet, motor is connected with the anchor clamps wheel by belt conveyor, and the upper captive joint of anchor clamps wheel is provided with the rotating disk of block, one side of rotating disk is provided with photoelectric sender, opposite side is provided with photelectric receiver, and the axle sleeve outside of anchor clamps wheels is provided with approach switch, and rotating shaft and anchor clamps are taken turns and captiveed joint and pass cabinet; The opposite side of base is installed column, and the column top is provided with the push rod with handwheel, and push rod is provided with clamp handle; Also be provided with forward foot-operated switch and counter-rotating foot-operated switch, described counting machine, frequency converter, photoelectric sender, photelectric receiver, approach switch, forward foot-operated switch, counter-rotating foot-operated switch all connect by wire.
Because technique scheme has adopted motor, frequency converter, counting machine and wheel word, after load onto main shaft and winding mould, input power is switched on, the driven by motor load operation, counting machine is also counted thereupon.Adjust suitable rotating speed, just can at the uniform velocity turn round, behind the number that touches the mark, the counting machine action disconnects approach switch, thereby finishes once customization coiling.Therefore, the utility model is easy and simple to handle, moves more steadily, and any speed governing of Auto-counting can quantitative automatic work, shows that numeral is directly perceived.Employing contact pointless control can failure-free work under relatively poor environment, and comformability is stronger, is the desirable spooling equipments of industry such as various motors, electrical equipment, voltage transformer, power tool and electrician's repairing.
Description of drawings

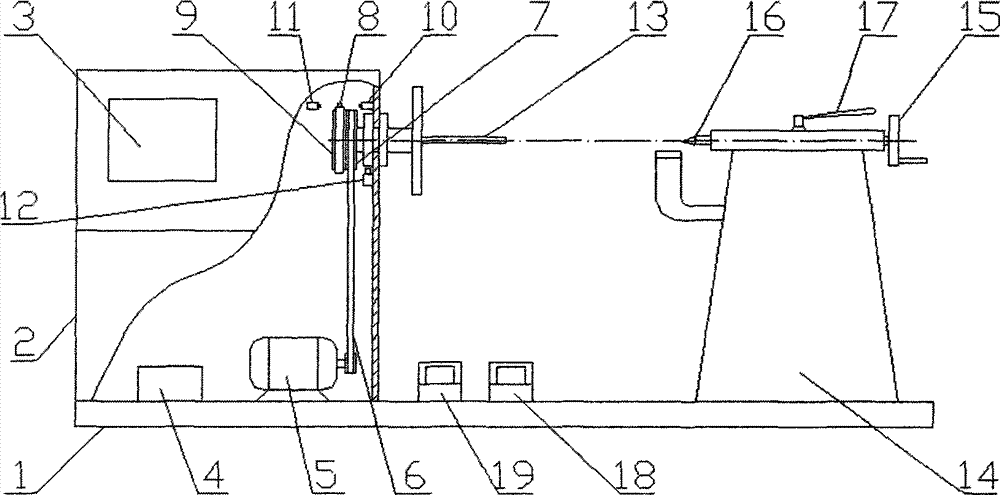

Fig. 1 is the structural representation of the utility model frequency-variable winding machine;
Fig. 2 is the optoelectronic transceiver schematic diagram in the embodiment shown in Figure 1;
Fig. 3 is the coiling schematic diagram of embodiment shown in Figure 1.
The specific embodiment
By Fig. 1, Fig. 2 and Fig. 3 as seen, frequency-variable winding machine of the present utility model comprises base 1, one side of base 1 is provided with cabinet 2, cabinet 2 is provided with counting machine 3, be provided with the motor 5 of frequency converter 4 controls in the cabinet 2, motor 5 is connected with anchor clamps wheel 7 by belt conveyor 6, captive joint is provided with the rotating disk 9 of block 8 on the anchor clamps wheel 7, one side of rotating disk 9 is provided with photoelectric sender 10, opposite side is provided with photelectric receiver 11, the axle sleeve outside of anchor clamps wheel 7 is provided with approach switch 12, and rotating shaft 13 and anchor clamps are taken turns 7 and captiveed joint and pass cabinet 2; The opposite side of base 1 is installed column 14, and column 14 tops are provided with the push rod 16 with handwheel 15, and push rod 16 is provided with clamp handle 17; Also be provided with forward foot-operated switch 18 and counter-rotating foot-operated switch 19, described counting machine 3, frequency converter 4, photoelectric sender 10, photelectric receiver 11, approach switch 12, forward foot-operated switch 18, counter-rotating foot-operated switch 19 all connect by wire.
Principle of work of the present utility model is: mould that will be to be wound the line is loaded onto main shaft 13, rotates handwheel 15 and allows push rod 16 withstand main shaft, pulls clamp handle 17 locking push rods 16.Plugged, stir the code-disc of counting machine 3 to the needs number, by forward foot-operated switch 18 or counter-rotating foot-operated switch 19, motor entry into service, again slow circumvolve frequency converter 4 knobs, driving anchor clamps wheel 7 by belt conveyor 5 rotates, drive the load entry into service by rotating shaft 13 again, every fortune circles, and the block 8 on the rotating disk 9 just blocks the optoelectronic transceiver signal one time, with the transmission of optoelectronic transceiver signal, counting machine 3 is also counted thereupon.Adjust suitable rotating speed, just can at the uniform velocity turn round, behind the number that touches the mark, counting machine 3 actions disconnect approach switch 12, thereby finish once customization coiling.When carrying out working the second time, need press counting machine 3 reset keys, again line operate.
Claims (1)
1. frequency-variable winding machine, comprise base, it is characterized in that: a side of described base (1) is provided with cabinet (2), cabinet (2) is provided with counting machine (3), be provided with the motor (5) of frequency converter (4) control in the cabinet (2), motor (5) is connected with anchor clamps wheels (7) by belt conveyor (6), the upper captive joint of anchor clamps wheels (7) is provided with the rotating disk (9) of block (8), one side of rotating disk (9) is provided with photoelectric sender (10), opposite side is provided with photelectric receiver (11), the axle sleeve outside of anchor clamps wheel (7) is provided with approach switch (12), and rotating shaft (13) and anchor clamps are taken turns (7) and captiveed joint and pass cabinet (2); The opposite side of base (1) is installed column (14), and column (14) top is provided with the push rod (16) of band handwheel (15), and push rod (16) is provided with clamp handle (17); Also be provided with forward foot-operated switch (18) and counter-rotating foot-operated switch (19), described counting machine (3), frequency converter (4), photoelectric sender (10), photelectric receiver (11), approach switch (12), forward foot-operated switch (18), counter-rotating foot-operated switch (19) all connect by wire.
