Abstract
The utility model discloses a cloth rolling machine, which comprise a cloth roller, a twitch roller and a suction device, wherein the cloth roller and the twitch are arranged on the frame, the middle surface of the cloth roller is smooth, both ends of the cloth roller are provided with antiskid layers, the cloth roller comprises two symmetrical first and second sub-roller bodies, the end portion of the first sub-roller body is provided with a convex, the second sub-roller end is provided with a groove relative to clamping, and the suction device is arranged on one side of the twitch roller. The cloth rolling machine can not only pull out the cloth roller conveniently with the friction increased, but also remove the embossment and dust of the upper and lower surface of the cloth at the same time.
Description
Technical field
The utility model relates to technical field of textile machine, particularly relates to a kind of cloth rewinder.
Background technology
Work beam commonly used by simplified, silently form with the stamen axle.Aborning its simplified one the cracking, the easy like this cloth that causes is pullled wire vent; When work beam was taken out from yardage roll, because cloth cover has certain friction coefficient, and yardage roll was long, made work beam effort when taking out, and easily cloth cover was pulled bad.Cloth tends to produce a lot of sludge ices, dust and fine hair in process of production, and these foreign material are involved in the cloth can affect outward appearance and cloth quality.
Summary of the invention
In order effectively to overcome the above problems, the utility model provides a kind of cloth rewinder, also can conveniently extract work beam in the situation that increases friction force, and can remove sludge ice and the dust of cloth cover upper and lower surface in batching.
To achieve these goals, the technical solution adopted in the utility model is: a kind of cloth rewinder, comprise work beam and fabric guide roll on the frame, the work beam middle part surface is smooth, work beam two cephalic pars are provided with skid resistant course, and work beam is comprised of first, second sub-roll body docking of two symmetries, and wherein the first sub-roll body end is provided with projection, and the second sub-roll body end is provided with the groove of corresponding inlay card; Also comprise dust eliminating equipment, dust eliminating equipment is arranged on fabric guide roll one side.
As preferably, it is arranged with dust shield at fabric guide roll one side upper and lower described dust eliminating equipment, and described dust shield is connected with dust collecting fan by pipeline.
As preferably, the cover mouth of described dust shield is strip gab, and opening length is consistent with the fabrics cloth cover width.
Compared with prior art, the utility model has the advantage of: at two of work beam skid resistant course being set can increase friction force, avoids occuring wire vent, and the work beam middle part is smooth surface simultaneously, conveniently extract work beam, and in batching, can remove sludge ice and the dust of cloth cover upper and lower surface.
Description of drawings
Fig. 1 is structural representation of the present utility model
Fig. 2 is the utility model birds-eye view;

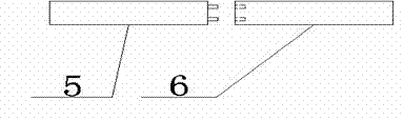

Fig. 3 is the work beam structural representation.
The specific embodiment
The utility model is described in further detail below in conjunction with accompanying drawing.
Consult Fig. 1, Fig. 2, Fig. 3, a kind of cloth rewinder, comprise work beam 1 and fabric guide roll 2 on the frame, work beam 1 middle part surface is smooth, 1 liang of cephalic par of work beam is provided with skid resistant course, and work beam 1 is comprised of the first sub-roll body 5, second sub-roll body 6 docking of two symmetries, and wherein the first sub-roll body 5 ends are provided with projection, and the second sub-roll body 6 ends are provided with the groove of corresponding inlay card; Also comprise dust eliminating equipment, dust eliminating equipment is comprised of the dust shield 3 that is symmetricly set on fabric guide roll 2 one side upper and lowers, and the cover mouth of described dust shield 3 is strip gab, and opening length is consistent with fabrics cloth cover 4 width, and dust shield 3 is connected with dust collecting fan by pipeline.
By process on the fabric guide roll 2,3 of upper and lower dust shields siphon away the foreign material of design on fabric surface cloth always when rolling during work; It is oppositely afterburning to arrest work beam 1 two when taking out work beam 1, can be with the first sub-roll body 5 and the second sub-roll body 6 separately and extract.
The above is preferred embodiment of the present utility model only, is not limited to the utility model, and for a person skilled in the art, the utility model can have change and change.All within spirit of the present utility model and principle, any modification of doing, improvement etc. all should be included within the protection domain of the present utility model.
Claims (3)
1. cloth rewinder, comprise work beam and fabric guide roll on the frame, it is characterized in that: the work beam middle part surface is smooth, work beam two cephalic pars are provided with skid resistant course, and work beam is comprised of first, second sub-roll body docking of two symmetries, wherein the first sub-roll body end is provided with projection, and the second sub-roll body end is provided with the groove of corresponding inlay card; Also comprise dust eliminating equipment, dust eliminating equipment is arranged on fabric guide roll one side.
2. a kind of cloth rewinder according to claim 1, it is characterized in that: it is arranged with dust shield at fabric guide roll one side upper and lower described dust eliminating equipment, and described dust shield is connected with dust collecting fan by pipeline.
3. a kind of cloth rewinder according to claim 1, it is characterized in that: the cover mouth of described dust shield is strip gab, and opening length is consistent with the fabrics cloth cover width.
