CN202827228U - Cushion for car - Google Patents

Abstract

The utility model relates to an accessory used on a car, and discloses a car mat, which comprises a flat plate. One side of the flat plate is movably linked to a side plate, and a plurality of hanging straps are connected to the side plate. The other side of the flat plate is movable. Attached is a soft board with a safety buckle. According to the technical scheme of the utility model, the strap on the side plate hangs above the front seat of the car, the safety buckle on the soft board buckles the safety belt on the rear seat, and the flat plate is placed in the gap between the front seat and the rear seat of the car. It is beneficial for children to sit on the tablet to play and have a rest, and the manufacturing cost is low and the operation is convenient.

Description

a car mat

technical field

The utility model relates to accessories used on automobiles, in particular to a convenient and practical vehicle pad for children. the

Background technique

With the advancement of technology, the cars on the market are pursuing more abundant, multi-functional and practical structures. However, when a child sits in the car, there is often not enough space or the adult cannot take good care of it or the child cannot have enough space to play. It is impossible for children to have a good accommodation environment in the car. Therefore, how to design an accessory device used on a car to allow children to have a convenient play space has always been a problem. the

Utility model content

The utility model provides an economical and practical car mat aiming at the shortcomings in the prior art that the seat on the car is single, unable to meet the children's play needs and unable to take good care of them. the

In order to solve the above technical problems, the utility model is solved through the following technical solutions:

A vehicle pad, comprising a flat plate, one side of the flat plate is movably connected to a side plate, a plurality of hanging straps are connected to the side plate, and a soft board with a safety buckle is movably connected to the other side of the flat plate. In this structure, the lanyard on the side panel hangs above the front seat of the car, and the safety buckle on the soft board buckles the safety belt on the rear seat. Play rest on tablet. the

Preferably, the flat panel is a foldable flat panel. It is conducive to folding and has a small storage space. the

Preferably, a layer of cloth with a zipper is wrapped around the flat panel, and a layer of sponge is arranged between the cloth and the flat panel. It is beneficial for children sitting on it to sit comfortably and has a protective effect, and the zipper is conducive to changing the sponge inside at any time. the

Preferably, snap buttons are provided on the lanyard. Easy to hang. the

Preferably, several storage bags are provided on the periphery of the side panel. It is good for placing toys or food for children. the

According to the technical solution of the utility model, the lanyard on the side plate hangs above the front seat of the car, the safety buckle on the soft plate buckles the safety belt on the back seat, and the flat plate is placed in the gap between the front seat and the back seat of the car, and there is It is beneficial for children to sit on the tablet to play and have a rest, the manufacturing cost is low, and the operation is convenient. the

Description of drawings

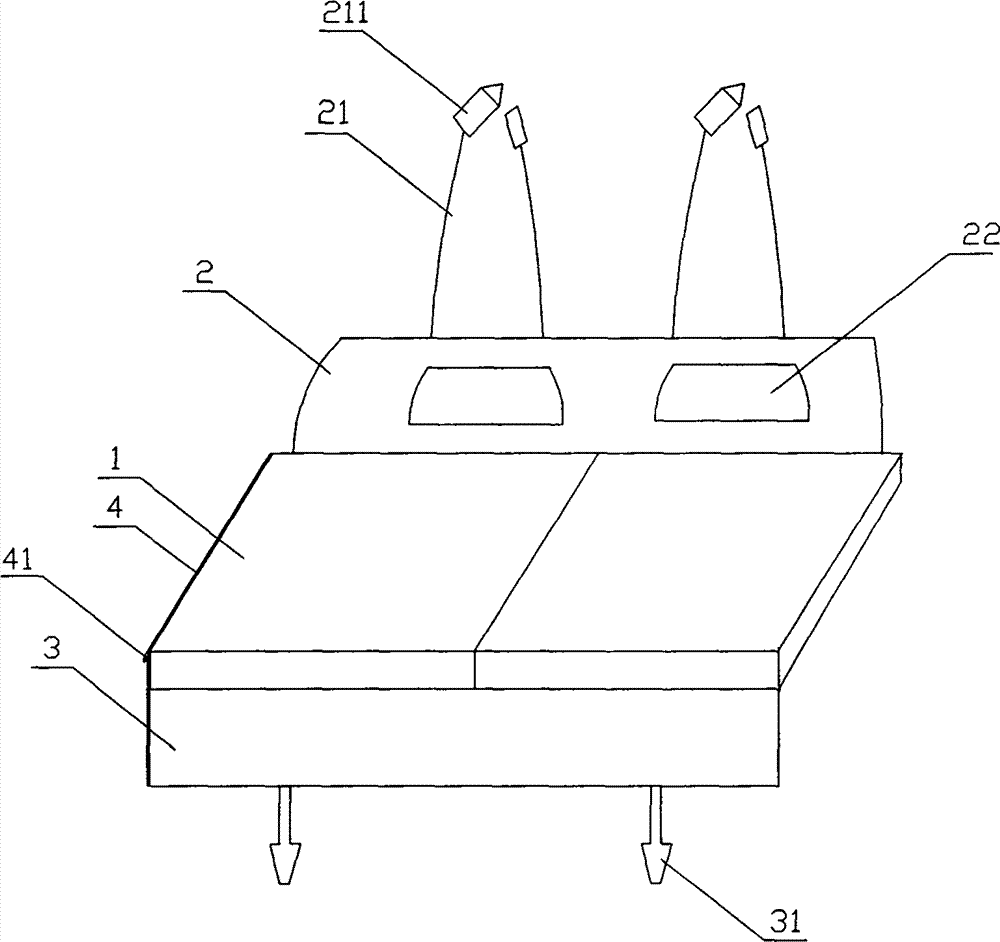

Fig. 1 is a three-dimensional structure schematic diagram of the present utility model. the

Detailed ways

Below in conjunction with accompanying drawing and embodiment the utility model is described in further detail:

Example

As shown in Fig. 1, a kind of vehicle pad comprises a flat plate 1, a side plate 2 is movably linked to one side of the flat plate 1, and a plurality of hanging straps 21 are connected to the side plate 2, and the other side of the flat plate 1 is movably connected The soft plate 3 with safety buckle belt 31 is arranged. The flat panel 1 is a foldable flat panel. A layer of cloth 4 with a zipper 41 is wrapped around the flat panel 1 , and a layer of sponge is arranged between the cloth 4 and the flat panel 1 . The lanyard 21 is provided with snap buttons 211 . Several storage bags 22 are arranged on the periphery of the side panel 2 . the

In a word, the above descriptions are only preferred embodiments of the present utility model, and all equal changes and modifications made according to the patent scope of the utility model should fall within the scope of the utility model patent. the

Claims (5)

1. A pad for a vehicle, characterized in that: it comprises a flat panel, one side of the flat panel is movably linked with a side plate, the side panel is connected with several hanging straps, and the other side of the flat panel is movably connected with a safety buckle strap. soft board. 2 . The car mat according to claim 1 , wherein the flat panel is a foldable flat panel. 3 . 3 . The car mat according to claim 1 , wherein a layer of cloth with a zipper is wrapped around the flat panel, and a layer of sponge is arranged between the cloth and the flat panel. 4 . 4. A car mat according to claim 1, characterized in that: said hanging strap is provided with snap buttons. 5 . The car mat according to claim 1 , wherein a plurality of storage bags are arranged on the periphery of the side panel. 5 .
