Abstract

The utility model relates to a partition board type fitter workbench, which comprises a partition board (1), a work base (2) and a garbage drawer box (3). The inside of the work base (2) is hollow, and its outline is a regular polygon. There is a circular hole (21) in the middle of the upper surface of the working base (2), and several spacers are evenly and vertically installed on the upper end of the working base (2) along the middle hole (21). plate (1), above the round hole (21) there is a connecting disk (4) to connect several partitions (1) together, and the lower end of the working base (2) is installed with a A garbage drawer box (3) is drawn out from one side wall of the abutment (2), and a round oblique funnel (5) leading to the garbage drawer box (3) is connected to the inner side of the circular hole (21). The utility model has a simple structure, can rationally utilize the space of the workbench, is convenient and quick to clean up, and does not generate a large amount of dust.

Description

A partition plate fitter workbench

technical field

The utility model relates to the field of machining equipment, in particular to a partition plate type fitter workbench.

Background technique

The traditional fitter workbench will generate a lot of dust and metal shavings during operation. Cleaning is generally carried out by each station separately, which is not easy to clean. At the same time, a large amount of dust will be produced in the cleaning process, making the environment of the processing workshop difficult to keep clean.

Contents of the invention

The technical problem to be solved by the utility model is to provide a partition plate type fitter workbench, which has a simple structure, can rationally utilize the space of the workbench, is convenient and quick to clean, and does not generate a large amount of dust.

The technical solution adopted by the utility model to solve the technical problem is: provide a partition plate type fitter workbench, including a partition plate, a work base and a garbage drawer box, the inside of the work base is hollow, and the outline is a regular polygon. There is a round hole in the middle of the upper surface of the working base, and several partitions are evenly and vertically installed on the upper end of the working base along the middle hole, and there is a connecting disc above the round hole Several partitions are connected together, the lower end of the working base is equipped with a garbage drawer box that can be drawn out from one side wall of the working base, and the inner side of the round hole is connected with a round hole leading to the garbage drawer box. shaped oblique funnel.

The number of partitions matches the number of equal sides of the working base.

The rear end of the box body of the garbage drawer box is connected with a movable shelf board, and the front end of the box body is equipped with a handle.

Beneficial effect

The utility model relates to a partition plate type fitter workbench, which has a simple structure, can rationally utilize the space of the workbench, is convenient and quick to clean, and does not generate a large amount of dust.

Description of drawings

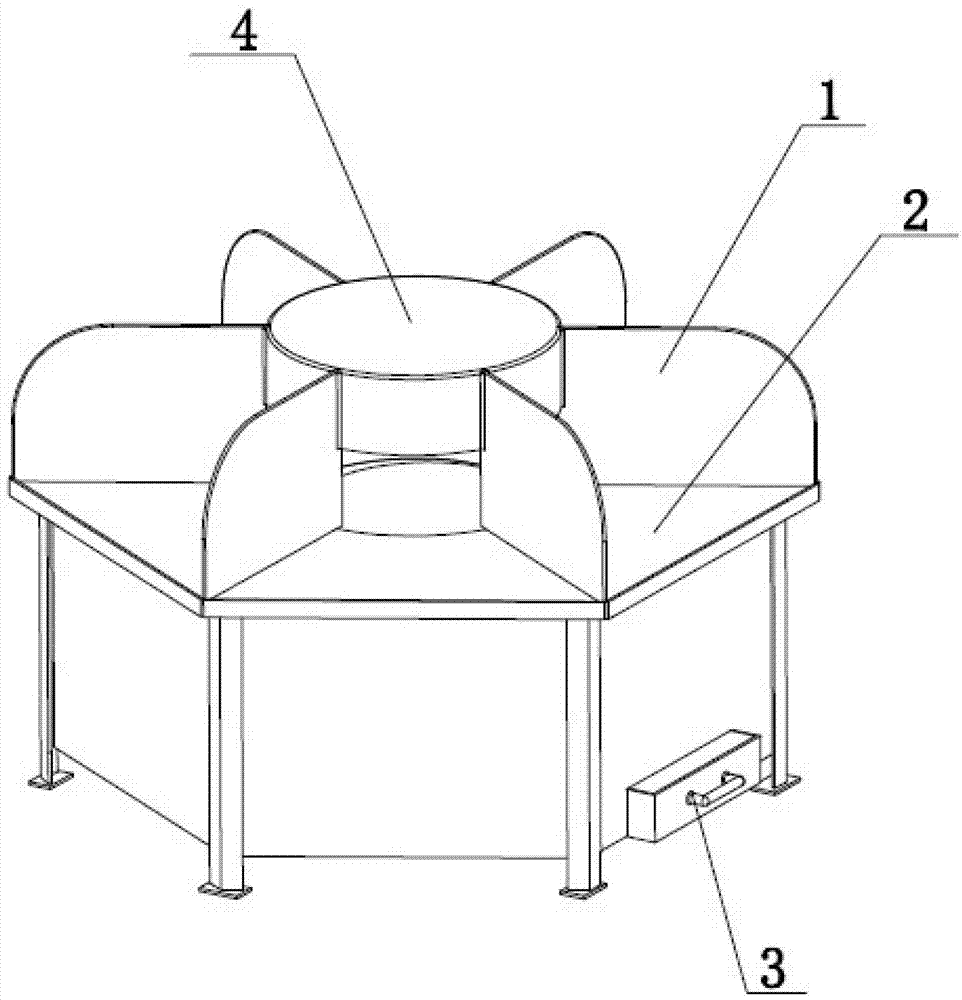

Fig. 1 is the three-dimensional front view of the utility model;

Fig. 2 is a three-dimensional structure diagram of the working base platform described in the utility model;

Fig. 3 is a half-section structure diagram of the working abutment described in the utility model;

Fig. 4 is the installation structure diagram of the dividing plate described in the utility model;

Fig. 5 is an installation structure diagram of the garbage drawer box described in the utility model.

Detailed ways

Below in conjunction with specific embodiment, further set forth the utility model. It should be understood that these embodiments are only used to illustrate the present utility model and are not intended to limit the scope of the present utility model. In addition, it should be understood that after reading the content taught by the utility model, those skilled in the art can make various changes or modifications to the utility model, and these equivalent forms also fall within the scope defined by the appended claims of the application.

As shown in Figure 1-2, the embodiment of the present utility model relates to a partition board type fitter workbench, including a partition board 1, a work base 2 and a garbage drawer box 3, the inside of the work base 2 is hollow, and the shape is The outline is a regular polygon, and there is a round hole 21 in the middle of the upper surface of the working base 2, and several partitions 1 are evenly and vertically installed on the upper end of the working base 2 along the middle round hole 21. The top of the circular hole 21 has a connecting disk 4 to connect several partitions 1 together, and the lower end of the working base 2 is equipped with a garbage drawer box 3 that can be extracted from a side wall of the working base 2. The inner side of the circular hole 21 is connected with a circular oblique funnel 5 leading to the garbage drawer box 3, the number of the partitions 1 matches the number of equal sides of the working base 2, and the box body of the garbage drawer box 3 The rear end of 32 is connected with a mobile shelf 33, and the front end of described box body 32 is equipped with handle 31.

Example 1

Use regular hexagonal working base 2, divide working base 2 evenly into 6 spaces of equal size with 6 partitions 1, the processing operation of fitter can be carried out in these 6 working spaces, after processing, the working table The metal scraps or dust on the brush are concentrated in the middle circular hole 21 with a brush, and then concentrated into the casing 32 of the garbage drawer box 3 by the circular inclined funnel 5. When the metal scraps or dust in the casing 32 accumulate When a certain amount is reached, the garbage drawer box 3 is extracted from the lower end of the work base 2 and is poured out.

Claims (3)

1. A divider-type fitter workbench, including a partition (1), a work base (2) and a garbage drawer box (3), characterized in that the inside of the work base (2) is hollow, and the outline It is a regular polygon, and there is a round hole (21) in the middle of the upper surface of the working base (2), and the upper end of the working base (2) is evenly and vertically installed with several A partition (1), above the round hole (21) there is a connecting disk (4) to connect several partitions (1), and the lower end of the working base (2) is installed with a The garbage drawer box (3) extracted from a side wall of the working base (2), the inner side of the circular hole (21) is connected with a circular oblique funnel (5) leading to the garbage drawer box (3). 2. A partition plate-type fitter workbench according to claim 1, characterized in that the number of partitions (1) matches the number of equal sides of the work base (2). 3. A divider-type fitter workbench according to claim 1, characterized in that a movable shelf (33) is connected to the rear end of the box body (32) of the garbage drawer box (3), so that A handle (31) is installed on the front end of the above-mentioned box body (32).
