Electronic folding skyscraper device for cleaning glass out of window
Technical field
The utility model relates to a kind of door glass cleaning device, specifically, relates to a kind of for cleaning the skyscraper electronic folding door glass cleaner of glass outside window.
Background technology
Existing skyscraper outside window glass adopts magnetic eraser mostly when carrying out cleaning.This magnetic eraser in use, although the wet cloth of the inside and outside usefulness of window encases magnet, but the magnet of outside must tie up with rope firmly, troublesome poeration is not convenient, otherwise the magnet one of inner face leaves glass pane, and the magnet of outside does not have the magnet in the window to hold, will fall down, and story height smashes following pedestrian or vehicle, and consequence is with hardly imaginable.If the window face is very high very large, the cleanup crew need to could all wipe glass by foreign object (such as stool, desk etc.), and not only inconvenience but also require great effort, and scrub effect is not very good, and cleaning glass is of low quality.
The utility model content
The purpose of this utility model is for skyscraper the problems referred to above such as cleaning glass difficulty, cleaning effect be poor outside window, provide a kind of simple in structure, easy to operate, cleaning thoroughly, the electronic folding skyscraper device for cleaning glass out of window of safe and convenient.
The technical solution of the utility model is: a kind of electronic folding skyscraper device for cleaning glass out of window, this cleaner comprises electric erasing head unit, holding rod and handle, the electric erasing head unit is connected with handle by holding rod, holding rod is for adopting multistage to connect the folding body of rod that pole is formed by connecting by the location knot, be provided with battery in the handle, this battery is connected with the motor of electric erasing head unit by the wire that is arranged in the holding rod.
Preferably, the electric erasing head unit comprises rubbing head cover, rubbing head and is installed in motor in the rubbing head cover, and motor is connected with rubbing head, and the rubbing head cover is installed on the holding rod, and connects as one structure with holding rod.
Preferably, rubbing head is set to foliaceous, and the cleaning cloth for cleaning glass is installed on the rubbing head.
Preferably, the end that is connected with handle of holding rod connects by the location knot.
Preferably, holding rod is comprised of three sections connecting rods, is connected to form the folding holding rod body of rod by the location knot between adjacent two connecting rods.
The charging inlet of promising charge in batteries preferably, also is set on the handle.
Preferably, the outer cover of handle is equipped with rubber sleeve.
Preferably, handle and holding rod all adopt light material to be made.
The beneficial effects of the utility model are: the utility model is simple in structure, easy to operate, holding rod adopts the multistage connecting rod to be linked to each other by the location knot, be easy to adjust length and the orientation of holding rod, and the location knot blocks automatically, the window that can adapt to differing heights, need to can be fully with the every nook and cranny scrub of window by foreign object, convenient and swift.The utility model adopts the rechargeable type battery, only need during charging the charging inlet insertion socket of cleaner is got final product, charging voltage is household electricity 220V alternating current, and quick charge only needs 3 hours, and the operating voltage of battery is 12V, can not cause safety hazard to the user of service during use; Rubbing head and holding rod connect as one structure, and be safe and reliable, can not bring potential safety hazard because rubbing head drops, and rubbing head adopts motor to rotarily drive, and scouring speed is fast, and cleaning efficiency is high.The utility model handle and holding rod all adopt light material to be made, leicht fallen D/A easy to use.
Description of drawings

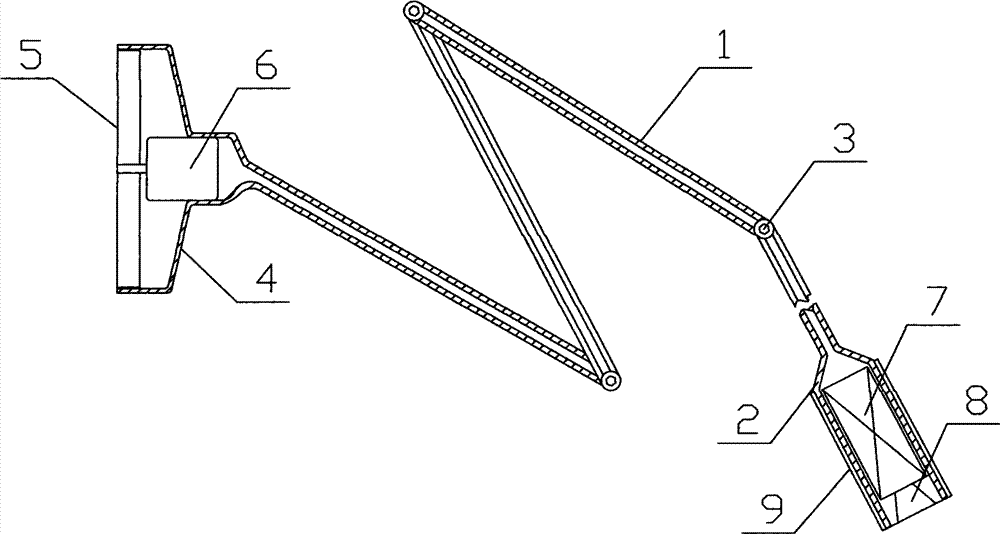

Fig. 1 is structural representation of the present utility model.
The specific embodiment
The utility model is described in further detail below in conjunction with accompanying drawing.
A kind of electronic folding skyscraper device for cleaning glass out of window, this cleaner comprises electric erasing head unit, holding rod 1 and handle 2, and the electric erasing head unit is connected with handle 2 by holding rod 1, and the end that holding rod 1 is connected with handle 2 connects by location knot 3.The electric erasing head unit comprises rubbing head cover 4, rubbing head 5 and is installed in motor 6 in the rubbing head cover 4, and motor 6 is connected with rubbing head 5, and rubbing head cover 4 is installed on the holding rod 1, and connects as one structure with holding rod 1; Rubbing head 5 is set to foliaceous, and the cleaning cloth for cleaning glass is installed on the rubbing head 5.Holding rod 1 is comprised of four sections connecting rods, is connected to form the folding holding rod body of rod by location knot 3 between adjacent two connecting rods.Be provided with battery 7 in the handle 2, this battery 7 is connected with the motor 6 of electric erasing head unit by the wire that is arranged in the holding rod 1; The charging inlet 8 of promising battery 7 chargings also is set on the handle 2; The outer cover of handle 2 is equipped with rubber sleeve 9.
During use, washing agent is dropped on the rubbing head, according to the length of the Height Adjustment holding rod of glass outside window, press power switch, rubbing head begins quick rotation, cleaner rubbing head and glass are removed gently the ambulatory handheld bar drive rubbing head and move and can clean door glass comprehensively, and in moving process according to height and the suitable transfer holding rod of angle, can fully the every nook and cranny of door glass all be wiped clean.But this cleaner continuous operation 3 hours can be satisfied normal cleaning amount, can reach service life more than 2 years, and is sturdy and durable, is applicable to family, office space.

Claims (7)

1. electronic folding skyscraper device for cleaning glass out of window, it is characterized in that: this cleaner comprises electric erasing head unit, holding rod and handle, the electric erasing head unit is connected with handle by holding rod, holding rod is for adopting multistage to connect the folding body of rod that pole is formed by connecting by the location knot, be provided with battery in the handle, this battery is connected with the motor of electric erasing head unit by the wire that is arranged in the holding rod.
2. electronic folding skyscraper device for cleaning glass out of window according to claim 1, it is characterized in that: the electric erasing head unit comprises rubbing head cover, rubbing head and is installed in the interior motor of rubbing head cover, motor is connected with rubbing head, the rubbing head cover is installed on the holding rod, and connects as one structure with holding rod.
3. electronic folding skyscraper device for cleaning glass out of window according to claim 2, it is characterized in that: rubbing head is set to foliaceous, and the cleaning cloth for cleaning glass is installed on the rubbing head.
4. electronic folding skyscraper device for cleaning glass out of window according to claim 1 is characterized in that: the end that holding rod is connected with handle connects by the location knot.
5. according to claim 1 or the described electronic folding skyscraper device for cleaning glass out of window of 4 any one, it is characterized in that: holding rod is comprised of three sections connecting rods, is connected to form the folding holding rod body of rod by the location knot between adjacent two connecting rods.
6. electronic folding skyscraper device for cleaning glass out of window according to claim 1 is characterized in that: the charging inlet that promising charge in batteries also is set on the handle.
7. according to claim 1 or the described electronic folding skyscraper device for cleaning glass out of window of 4 or 6 any one, it is characterized in that: the outer cover of handle is equipped with rubber sleeve.
