CN202819926U - Umbrella cover capable of being used as shopping bag - Google Patents
Umbrella cover capable of being used as shopping bag Download PDFInfo
- Publication number
- CN202819926U CN202819926U CN 201220537325 CN201220537325U CN202819926U CN 202819926 U CN202819926 U CN 202819926U CN 201220537325 CN201220537325 CN 201220537325 CN 201220537325 U CN201220537325 U CN 201220537325U CN 202819926 U CN202819926 U CN 202819926U
- Authority
- CN
- China
- Prior art keywords
- umbrella cover
- shopping bag
- bag
- umbrella
- cover body
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Walking Sticks, Umbrellas, And Fans (AREA)
Abstract
本实用新型提供一种可当购物袋的伞套，其由伞套体和袋体拼合组成，所述袋体的底部与伞套体相连接，伞套体的一端有一束口，所述袋体由一般购物袋构成，伞套体的束口由弹力松紧带或勒绳构成。本实用新型提供的可当购物袋的伞套的优点在于具备一物多用，简单便利的特点，外出时仅带一样东西，即可既做伞套用，又做购物袋用。同时放入折叠伞后的购物袋，底部平整，更加便于摆放物品，利用率高，使用便利。
The utility model provides an umbrella cover that can be used as a shopping bag, which is composed of an umbrella cover body and a bag body. The bottom of the bag body is connected with the umbrella cover body. One end of the umbrella cover body has a mouth. The body is composed of a general shopping bag, and the beam opening of the umbrella cover body is composed of an elastic elastic band or a drawstring. The umbrella cover that can be used as a shopping bag provided by the utility model has the advantage of being multi-purpose, simple and convenient, and can be used not only as an umbrella cover but also as a shopping bag with only one thing when going out. At the same time, the shopping bag placed behind the folding umbrella has a flat bottom, which is more convenient for placing items, has a high utilization rate, and is convenient to use.
Description
Technical field
The utility model relates to umbrella cover.
Background technology
No matter keep off the rain or hide the sun, a lot of people have Bao Lifang the custom of folded umbrella.For the edge of avoiding the folded umbrella hook hooks other article, folded umbrella all is furnished with a umbrella cover and wraps up, but when taking out the umbrella use, umbrella cover is again because little and light cause is easy to lose.In addition, advocate at present few polybag of using, the way of oneself carrying shopping bag.People because shopping bag all adopts soft and light material, so put into shopping bag when heavy article, banking are easy to make the interior article of bag when the use shopping bag, the bag type is changed, and take article very inconvenient from bag.
Summary of the invention
The technical problem that the utility model solves provides the umbrella cover that can work as shopping bag.The utility model is by the following technical solutions:
A kind of umbrella cover when shopping bag, it is comprised of umbrella cover body and bag amalgamation, and the bottom of described bag is connected with the umbrella cover body, and an end of umbrella cover body has a branch of mouthful, and described bag is made of general shopping bag, and the bundle mouth of umbrella cover body is made of elastic force elastic cord or rope.
By above technical scheme, the umbrella cover that the utility model provides not only has the placement folded umbrella, and the parcel folded umbrella can also use as shopping bag in order to avoid hook the function of other article simultaneously.Volume is little, and utilization rate is high, and is easy-to-use.
Description of drawings

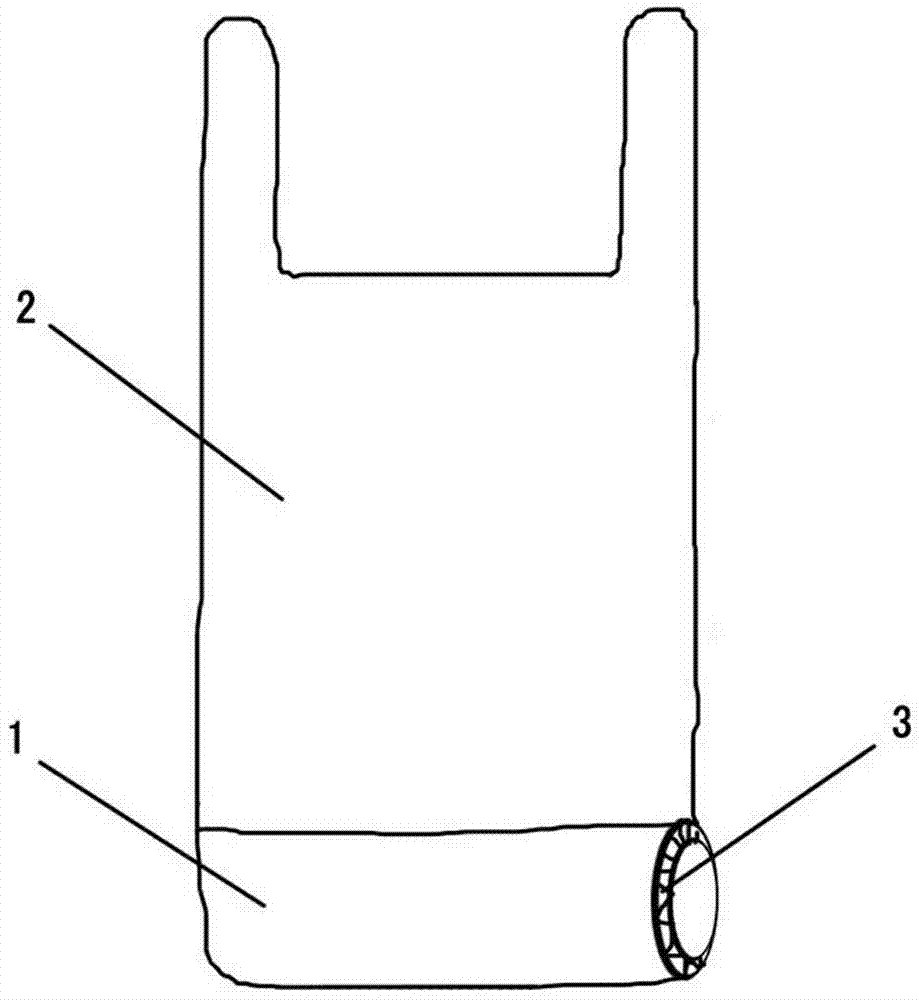

Fig. 1 is the surface structure schematic diagram that can work as the umbrella cover of shopping bag in the utility model specific embodiment.
The specific embodiment
Ask for an interview shown in the accompanying drawing 1, a kind of umbrella cover when shopping bag, it is comprised of umbrella cover body 1 and bag 2 amalgamations, the bottom of described bag 2 is connected with umbrella cover body 1, one end of umbrella cover body 1 has a branch of mouthful 3, described bag 2 is made of general shopping bag, and the bundle mouth 3 of umbrella cover body 1 is made of elastic force elastic cord or rope.During use, folded umbrella put into umbrella cover body 1 after, will restraint mouthfuls 3 and restraint, bag 2 lower ends are supportted flat, article can integrally be placed in the bag 2, are convenient to take.
The advantage of the umbrella cover of Dang the shopping bag that the utility model provides is to possess one-object-many-purposes, and simple and easy characteristics only are with the same thing when going out, can both do umbrella cover usefulness, make again shopping bag and use.Put into simultaneously the shopping bag behind the folded umbrella, the bottom is smooth, more is convenient to putting on article, and utilization rate is high, and is easy-to-use.
Claims (1)
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN 201220537325 CN202819926U (en) | 2012-10-19 | 2012-10-19 | Umbrella cover capable of being used as shopping bag |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN 201220537325 CN202819926U (en) | 2012-10-19 | 2012-10-19 | Umbrella cover capable of being used as shopping bag |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN202819926U true CN202819926U (en) | 2013-03-27 |
Family
ID=47931764
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN 201220537325 Expired - Fee Related CN202819926U (en) | 2012-10-19 | 2012-10-19 | Umbrella cover capable of being used as shopping bag |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN202819926U (en) |
-
2012
- 2012-10-19 CN CN 201220537325 patent/CN202819926U/en not_active Expired - Fee Related
