Abstract

The utility model discloses a heat removal device of an air conditioner and heat pipe integrated machine of a communication machine room. The heat removal device comprises a cabinet, an air conditioner assembly, a heat pipe assembly, a circulating fan and a cooling fan. The air conditioner assembly and the heat pipe assembly are mounted in the cabinet, the inside of the cabinet is divided into four chambers by partitions, the circulating fan and an air supply outlet are arranged in the first chamber, an evaporator and a heat pipe evaporating section are arranged in the second chamber, an indoor return air inlet is arranged on the front side surface of the second chamber, an outdoor air outlet is arranged on a side surface of the third chamber of the cabinet, a compressor, a condenser, a heat pipe condensing section, the cooling fan and an air inlet of the cooling fan are arranged in the fourth chamber, the cooling fan is arranged on the upper-layer partition, an outdoor air inlet is arranged on the rear side of the cabinet, both the inside of the heat pipe evaporating section and the inside of the heat pipe condensing section are of screen mesh structures, and liquid return by the aid of the gravity is omitted. The communication machine room is cooled down by the heat removal device in an integrated mode. A heat pipe is used for cooling in transition seasons and winters, and a large increase in energy consumption due to the fact that an air conditioner of the machine room is turned on for a long time is avoided.

Description

The heat release of communication machine room air-conditioning heat pipe integrated machine
Technical field
The utility model relates to the heat transmission equipment technical field, specifically a kind of heat release of communication machine room air-conditioning heat pipe integrated machine.
Background technology
Along with the continuous construction of communication information machine room and the extensive application of communication apparatus, so that the energy consumption of communication machine room significantly increases, both need satisfy the requirement of communication apparatus humiture, reduce again the whole energy consumption of air conditioner in machine room, therefore be necessary to adopt energy-efficient air conditioner in machine room and auxiliary heat pipe to lower the temperature, reduce to greatest extent the energy consumption of communication machine room.At present, communication machine room generally adopts air conditioner in machine room to carry out cool-down dehumidification, and throughout the year operation has consumed a large amount of electric energy.Both make existing communication machine room adopt air conditioner in machine room and auxiliary heat pipe operational mode, reduced the running time of air conditioner in machine room, reduced the energy consumption of communication machine room.Because air conditioner in machine room machine and auxiliary heat pipe be independent the setting separately, increased the complexity of equipment investment cost and technique, also taken limited space in the machine room.
The heat release of communication machine room air-conditioning heat pipe integrated machine is a kind of heat that removes equipment in the communication machine room, guarantees the communication apparatus normal operation, extension device service life, reduces the device of energy consumption.This device is embedded into heat exchange of heat pipe in the air conditioner in machine room, and by rational structure optimization, heat exchanger is reasonably arranged and control system realizes integration of equipments.This device is that heat pipe condenser section and evaporator section are embedded in the rack of air conditioner in machine room, and the heat that adopts the low heat pipe of energy consumption to absorb in the communication machine room in transition season and winter is lowered the temperature, and adopts summer air conditioner in machine room that communication machine room is lowered the temperature.The application of this equipment has reduced air-conditioner operation time, has reduced the energy consumption of air-conditioning system in the communication machine room, has reduced the cost of initial cost.
Through the prior art literature search is found, China Patent Publication No. is: CN200910026171.0, name is called: integral energy-saving type air conditioner in machine room unit, introduced a kind of integral energy-saving type air conditioner in machine room, and be that the energy-saving air of a kind of high accuracy, high reliability is regulated unit.This utility model is to be provided with dividing plate in the middle of casing, and casing inside is divided into up and down two chambers, at dividing plate air door to be opened/closed is housed, and actuator is connected with air door carries out on-off action; Be provided with evaporation fan, evaporimeter and compressor in the upper chamber, be provided with indoor air outlet at the casing top, the side is provided with indoor air inlet; Be provided with air-cooled condenser and cooling blower in bottom chamber, the casing side of lower chambers is provided with outdoor air outlet and outdoor air inlet.This utility model is integrated into outdoor air-cooled condenser and cooling blower and compressor, evaporimeter etc. in the framework, and it can realize three kinds of refrigeration modes: mechanical refrigeration pattern, hybrid refrigeration pattern and natural refrigerating mode.When the outdoor environment temperature, when humidity is suitable, unit will automatically be transformed under hybrid refrigeration pattern or the natural refrigerating mode and move, and reaches energy-conservation purpose.Its structure and characteristics does not adopt the method for heat pipe auxiliary temperature-reducing, can't adopt the heat pipe operational mode to reduce energy consumption at transition season, adopts the nature refrigerating mode need to increase air quantity, also exhaust system will be set.Both can't guarantee indoor cleanliness factor requirement, again increment the uncertainty of humiture in the air conditioner in machine room.
Find through retrieval again, Chinese patent application number is: CN200710175601.6, name is called: a kind of air conditioner in machine room unit, introduced a kind of air conditioner in machine room unit, comprise indoor air conditioner and handpiece Water Chilling Units, described handpiece Water Chilling Units is connected with indoor air conditioner, described handpiece Water Chilling Units is used to indoor air conditioner that chilled water is provided, comprise the successively compressor of head and the tail connection, condenser coil, expansion valve and evaporimeter, the centrifugal blower of described indoor air conditioner, plenum chamber, air outlet connects successively, described air outlet is positioned at the bottom of indoor air conditioner, and return air inlet is positioned at the machine room topmost; Described handpiece Water Chilling Units also comprises nature cooling heat exchanger coil and three-way control valve, described naturally cooling heat exchanger coil one termination air-conditioning system chilled water return pipe, the other end is connected with evaporimeter with described three-way control valve and is connected, and the other end of described three-way control valve is connected with described air-conditioning system chilled water backwater bypass pipe.This utility model can make air-flow and Temperature Distribution optimization in the machine room, thereby obtains best heat transfer effect, and is undertaken energy-conservationly by improving wind pushing temperature and the air blow and return temperature difference, and employing natural cooling technology scheme has improved energy-saving effect greatly.Its structure and characteristics does not adopt the method for heat pipe auxiliary temperature-reducing, and it is energy-saving and cost-reducing also can't to adopt the heat pipe operational mode to realize at transition season, need to increase air quantity with the nature refrigerating mode, also exhaust system will be set.Both can't guarantee indoor cleanliness factor requirement, again increment the uncertainty of humiture in the air conditioner in machine room.
Find through retrieval again, Chinese patent application number is: CN 201010033798.1, name is called: a kind of frozen water type machine room air conditioner, introduced a kind of frozen water type machine room air conditioner, this air-conditioner is divided into up and down two parts, and top is the indoor heat exchanger part, and this indoor heat exchanger adopts V-type to arrange, before and after each a slice, increased the front face area of heat exchanger.The bottom is the fan box part, and centrifugal blower is installed in the casing, and the fan box front panel is with exhaust vent, from the place ahead air-out.This air-conditioner is mode with bolts between two parts up and down, and the upper box body below is with outstanding lower edge, and the fan box top is with Baltimore groove, so that two parts are convenient to install location, the separate shipments of two parts casing or whole Transporting during transportation.This utility model adopts box heat exchanger and fan box isolating construction, lifting and the carrying of convenient transportation and installation site; Adopt front lower air-out mode, consistent with the blower fan air-out direction, reduced and wind resistance; Thereby reduce the blower fan power consumption, improve the air-conditioning Energy Efficiency Ratio.Its structure and characteristics does not adopt the method for heat pipe auxiliary temperature-reducing, and it is energy-saving and cost-reducing to adopt transition season to adopt the heat pipe operational mode to realize.
The utility model content
The utility model provides a kind of heat release of communication machine room air-conditioning heat pipe integrated machine for the prior art above shortcomings.
The utility model is achieved through the following technical solutions.
A kind of heat release of communication machine room air-conditioning heat pipe integrated machine, the air-condition assembly, heat pipe assembly, circulating fan and the cooling blower that comprise rack and be installed in interior of equipment cabinet, wherein, described air-condition assembly is connected with the heat pipe assembly, described circulating fan is arranged on the top of air-condition assembly and heat pipe assembly, and described cooling blower is arranged on the air-condition assembly place.
Described rack is set to the first chamber, the second chamber, the 3rd chamber and the 4th chamber by three dividing plates, and the front panel of described the first chamber is provided with indoor air outlet, and described circulating fan is arranged in the first chamber; The front panel of described the second chamber is provided with indoor return air inlet, and the part of described air-condition assembly and heat pipe assembly is arranged in the second chamber; The rear side panel of described the 3rd chamber is provided with outdoor exhaust outlet; The rear side panel of described the 4th chamber is provided with outdoor air inlet, and another part and the cooling blower of described air-condition assembly and heat pipe assembly are arranged in the 4th chamber.
Described outdoor air inlet place is provided with stormproof louvre and/or fly net, and is connected with the heat pipe assembly by airduct, is used for preventing splashing into of rainwater and/or flying into of mosquito.
Be provided with roughing efficiency air filter between described stormproof louvre and/or fly net and the airduct, be used for preventing that dust that air is brought into from accumulating in the fin of the heat pipe condenser section of the condenser of air-condition assembly or heat pipe assembly, form dirtiness resistance, caused heat exchange efficiency to descend, affected the normal operation of unit.
Described indoor return air inlet place is provided with indoor temperature controller.
Described air-condition assembly comprises from top to bottom the successively compressor of head and the tail connection, condenser, heating power expansion valve and evaporimeter, wherein, described evaporimeter is inclined in the second chamber of rack, described compressor, condenser and heating power expansion valve are arranged in the 4th chamber of rack, and described condenser is connected with the heat pipe assembly.
Described condenser and evaporimeter all adopt fin copper tubular type heat exchanger, and described copper pipe adopts female thread structure, and described fin adopts hydrophilic aluminium fin.
Described heat pipe assembly comprises from top to bottom successively heat pipe evaporator section and the heat pipe condenser section of head and the tail connection, described heat pipe evaporator section vertically is arranged on the evaporimeter front side of air-condition assembly in rack the second chamber, and be connected with indoor return air inlet on the second chamber front panel, described heat pipe condenser section is arranged on the condenser rear side of air-condition assembly in rack the 4th chamber, and is connected with outdoor air inlet on condenser and the 4th chamber rear side panel respectively.
Described heat pipe condenser section and heat pipe evaporator section all adopt fin copper tubular type heat exchanger, vertical groove structure form in described copper pipe adopts, and described fin adopts hydrophilic aluminium fin; Screen net structure is all adopted in described heat pipe condenser section and heat pipe evaporator section inside.
Described circulating fan and cooling blower all adopt centrifugal blower.
The utility model moves to script air-cooled condenser and heat pipe condenser in the indoor machine cabinet, has reduced the investment of equipment cost, has reduced the quantities of installing.During the heat pipe mode operation, working medium in the heat pipe evaporator section absorbs the heat in the communication machine room, pressure raises, working medium is because heat pipe condenser section is moved in the effect of pressure reduction, heat pipe condenser section and outdoor cold air heat exchange, working medium is condensed, and the working medium that will condense by the silk screen capillary force in the heat pipe brings back to heat pipe evaporator section, and carry out next one circulation.During the refrigeration mode operation, the low-pressure low-temperature cold-producing medium absorbs the superheated vapor that the interior heat of communication machine room has become low pressure in the evaporimeter, enter condenser after the compressed machine compression by outdoor new wind heat radiation, make the cold-producing medium in the condenser become saturated solution or supercooled liquid, again by the heating power expansion valve reducing pressure by regulating flow, the damp steam that forms low-pressure low-temperature enters evaporimeter, and evaporimeter absorbs the heat in the communication machine room again, thereby forms the circulation of a refrigeration.
Evaporimeter is in tilted layout, and heat pipe evaporator section is vertically arranged, guarantees that indoor circulation wind to greatest extent by evaporimeter and heat pipe evaporator section, has guaranteed the abundant heat exchange of indoor circulation wind and heat exchanger.
The 4th chamber is provided with compressor, condenser, and heat pipe condenser section, cooling blower and outside-air intake, compressor links to each other with evaporimeter and is installed in cooling blower below, the vertical outdoor air inlet of the cabinet plate place that is installed in successively with condenser of heat pipe condenser section.Outdoor air inlet, condenser, heat pipe condenser section, compressor, cooling blower have formed the outdoor air path successively, by with the heat exchange of outdoor air, with heat pipe condenser section, the heat of condenser and compressor discharge is taken away, and guarantees that the air conditioner in machine room condensation temperature fluctuates in the reasonable conditions scope, takes away the thermal discharge of heat pipe condenser section simultaneously by outdoor air.
Judge whether to open the air-conditioning unit according to outdoor temperature, if indoor/outdoor temperature-difference surpasses 8 ℃, close the air-conditioning unit, open cooling blower and circulating fan startup heat pipe operational mode and lower the temperature.
According to the switch of indoor return air inlet temperature control air-conditioning unit, when indoor return air temperature surpasses the setting value maximum, open the air-conditioning unit communication machine room is lowered the temperature; The minimum of a value that is lower than setting when indoor return air is closed the air-conditioning unit.
The utility model is installed in air-condition assembly and heat pipe assembly in the same cabinet plate casing, and the reasonable Arrangement by assembly has realized the integrated of system; Adopt hot pipe cooling in transition season and winter, reduce air conditioner in machine room running time; When heat pipe can not satisfy the communication machine room temperature requirement, open air conditioner in machine room, guarantee that temperature satisfies code requirement in the machine room; Whether air conditioner in machine room is opened according to the temperature of return air inlet and is controlled.
Compared with prior art, the beneficial effects of the utility model are: condensation segment and the evaporator section of heat pipe are embedded in the air conditioner in machine room, have realized the integrated of system.Reduce expense and the mounting cost of separated heat pipe and splitting air conditioner connecting pipe, reduced the cost of initial cost and later maintenance.Avoided conventional split-type air conditioner and separated heat pipe, off-premises station often suffers the impact of artificial destruction.Transition season and winter starting heat exchange of heat pipe are lowered the temperature to communication machine room, have reduced the opening time of air-conditioning unit, effectively reduce energy consumption of machine room.Both guarantee the saving of equipment cost, reduced again the energy consumption of communication machine room.
Description of drawings

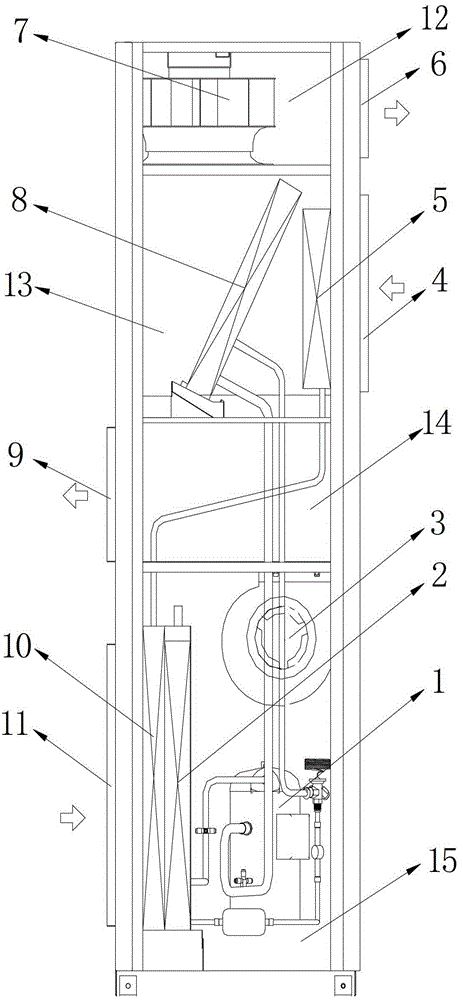

Fig. 1 is the structural representation of the utility model device;
Among the figure: 1 is that compressor, 2 is that condenser, 3 is that cooling blower, 4 is that indoor return air inlet, 5 is that heat pipe evaporator section, 6 is that indoor air outlet, 7 is that circulating fan, 8 is that evaporimeter, 9 is that outdoor exhaust outlet, 10 is that heat pipe condenser section, 11 is that outdoor air inlet, 12 is that the first chamber, 13 is that the second chamber, 14 is that the 3rd chamber, 15 is the 4th chamber.
The specific embodiment
Below in conjunction with accompanying drawing embodiment of the present utility model is elaborated; present embodiment is implemented under take technical solutions of the utility model as prerequisite; provided detailed embodiment and concrete operating process, but protection domain of the present utility model is not limited to following embodiment.
Embodiment
As shown in Figure 1, present embodiment comprises: rack and the air-condition assembly, heat pipe assembly, circulating fan 7 and the cooling blower 3 that are installed in interior of equipment cabinet, wherein, air-condition assembly is connected with the heat pipe assembly, circulating fan 7 is arranged on the top of air-condition assembly and heat pipe assembly, and cooling blower 3 is arranged on the air-condition assembly place.
Rack is provided with indoor air outlet 6 by the front panel that three dividing plates are set to the first chamber 12, the second chamber 13, the 3rd chamber 14 and the 4th chamber 15, the first chambers 12, and circulating fan 7 is arranged in the first chamber; The front panel of the second chamber 13 is provided with indoor return air inlet 4, and the part of air-condition assembly and heat pipe assembly is arranged in the second chamber 13; The rear side panel of the 3rd chamber 14 is provided with outdoor exhaust outlet 9; The rear side panel of the 4th chamber 15 is provided with outdoor air inlet 11, and another part of air-condition assembly and heat pipe assembly and cooling blower 3 are arranged in the 4th chamber 15.
Outdoor air inlet 1 place is provided with stormproof louvre and/or fly net, and is connected with the heat pipe assembly by airduct, prevents splashing into of rainwater and/or flying into of mosquito.
Be provided with roughing efficiency air filter between stormproof louvre and/or fly net and the airduct, prevent that the dust of bringing in the air from accumulating in the fin of the heat pipe condenser section 10 of the condenser 2 of air-condition assembly or heat pipe assembly, form dirtiness resistance, caused heat exchange efficiency to descend, affected the normal operation of unit.
Indoor return air inlet 4 places are provided with indoor temperature controller.
Air-condition assembly comprises from top to bottom the successively compressor 1 of head and the tail connection, condenser 2, heating power expansion valve and evaporimeter 8, wherein, evaporimeter 8 is inclined in the second chamber 13 of rack, compressor 1, condenser 2 and heating power expansion valve are arranged in the 4th chamber 15 of rack, and condenser 2 is connected with the heat pipe assembly.
Condenser 2 and evaporimeter 8 all adopt fin copper tubular type heat exchanger, and copper pipe adopts female thread structure, and fin adopts hydrophilic aluminium fin.
The heat pipe assembly comprises from top to bottom successively heat pipe evaporator section 5 and the heat pipe condenser section 10 of head and the tail connection, heat pipe evaporator section 5 vertically is arranged on evaporimeter 8 front sides of rack the second chamber 13 interior air-condition assemblies, and be connected with indoor return air inlet 4 on the second chamber 13 front panels, heat pipe condenser section 10 is arranged on condenser 2 rear sides of rack the 4th chamber 15 interior air-condition assemblies, and is connected with outdoor air inlet 11 on condenser 2 and the 4th chamber 15 rear side panels respectively.
Heat pipe condenser section 10 and heat pipe evaporator section 5 all adopt fin copper tubular type heat exchanger, vertical groove structure form in copper pipe adopts, and fin adopts hydrophilic aluminium fin; Screen net structure is all adopted in heat pipe condenser section 10 and heat pipe evaporator section 5 inside.
Circulating fan 7 and cooling blower 3 all adopt centrifugal blower.
Be specially,
Air-condition assembly and heat pipe assembly be installed in rack in, be provided with three dividing plates in the middle of the casing, casing inside is divided into up and down four chambers, be provided with circulating fan and indoor air outlet in the first chamber, be provided with evaporimeter and heat pipe evaporator section in the second chamber, front panel is provided with indoor return air inlet; The 3rd chamber casing rear side panel is provided with outdoor exhaust outlet; Be provided with compressor, condenser, heat pipe condenser section, cooling blower and outdoor air inlet in the 4th chamber, its upper strata dividing plate is provided with cooling blower, and the rear side casing is provided with outdoor air inlet.Screen net structure is all adopted in heat pipe evaporator section and condensation segment copper pipe inside, need not return liquid by gravity.
Condenser 2 and evaporimeter 8 all adopt fin-tube heat exchanger, and copper pipe adopts female thread structure.Fin adopts hydrophilic aluminium fin.
Heat pipe condenser section 10 and heat pipe evaporator section 5 all adopt fin-tube heat exchanger, vertical groove structure form in copper pipe adopts, and fin adopts hydrophilic aluminium fin.
Circulating fan 7 adopts low-noise fan, guarantees that blast can overcome circulated air by the resistance of heat exchanger, guarantees that simultaneously indoor air outlet wind speed satisfies the stream distance of level.
Cooling blower 3 adopts the blower fan of low noise, guarantees that blast can overcome the resistance by heat exchanger and inlet and outlet stormproof louvre, and outdoor air is taken away the heat dissipation capacity that reaches working medium in the heat pipe condenser section in the condenser, guarantees good heat transfer effect.
The course of work of present embodiment: this device lands and is installed in the communication machine room, link to each other by the outdoor air inlet of airduct by the stormproof louvre that arranges on the exterior wall, outdoor air is successively by heat pipe condenser section, and condenser and compressor are taken away condensation heat and compressor heat radiation; The waste heat in the communication machine room is eliminated in simultaneously indoor circulation wind and air-conditioning unit evaporimeter and heat pipe evaporator section heat exchange.When indoor/outdoor temperature-difference was greater than 8 ℃ during transition season, heat pipe started operation and is discharged into the heat in the communication machine room outdoor; When heat pipe can't satisfy the computer room temperature requirement, open air conditioner in machine room and lower the temperature, guarantee the operation of the stability and safety of communication apparatus.
The concrete advantage of present embodiment: (1) adopts air conditioner in machine room embedded heat pipe structure, reduces the sheet metal component of structure and the quantity of blower fan, has saved cost.(2) adopt return air temperature to control the start and stop of compressor, the running time of reasonably distributing heat pipe and air-conditioning, energy-conservation to greatest extent.(3) with respect to split type air conditioner in machine room and heat pipe, both reduced the installing engineering amount of exterior wall off-premises station, can not affect the attractive in appearance of whole building again.(4) by exterior wall stormproof louvre is set and carries out rational air intake, take away the condensation heat of working medium in condenser and the heat pipe condenser section.(5) avoided suffering such as conventional split-type air conditioner the situation of artificial destruction, guaranteed that air conditioner in machine room and heat pipe all can safely and steadily run.
More than specific embodiment of the utility model is described.It will be appreciated that the utility model is not limited to above-mentioned particular implementation, those skilled in the art can make various distortion or modification within the scope of the claims, and this does not affect flesh and blood of the present utility model.

Claims (10)

1. the heat release of a communication machine room air-conditioning heat pipe integrated machine, it is characterized in that, the air-condition assembly, heat pipe assembly, circulating fan and the cooling blower that comprise rack and be installed in interior of equipment cabinet, wherein, described air-condition assembly is connected with the heat pipe assembly, described circulating fan is arranged on the top of air-condition assembly and heat pipe assembly, and described cooling blower is arranged on the air-condition assembly place.
2. the heat release of communication machine room air-conditioning heat pipe integrated machine according to claim 1, it is characterized in that, described rack is set to the first chamber, the second chamber, the 3rd chamber and the 4th chamber by three dividing plates, the front panel of described the first chamber is provided with indoor air outlet, and described circulating fan is arranged in the first chamber; The front panel of described the second chamber is provided with indoor return air inlet, and the part of described air-condition assembly and heat pipe assembly is arranged in the second chamber; The rear side panel of described the 3rd chamber is provided with outdoor exhaust outlet; The rear side panel of described the 4th chamber is provided with outdoor air inlet, and another part and the cooling blower of described air-condition assembly and heat pipe assembly are arranged in the 4th chamber.
3. the heat release of communication machine room air-conditioning heat pipe integrated machine according to claim 2 is characterized in that, described outdoor air inlet place is provided with stormproof louvre and/or fly net, and is connected with the heat pipe assembly by airduct.
4. the heat release of communication machine room air-conditioning heat pipe integrated machine according to claim 3 is characterized in that, is provided with roughing efficiency air filter between described stormproof louvre and/or fly net and the airduct.
5. the heat release of communication machine room air-conditioning heat pipe integrated machine according to claim 2 is characterized in that, described indoor return air inlet place is provided with indoor temperature controller.
6. the heat release of communication machine room air-conditioning heat pipe integrated machine according to claim 2, it is characterized in that, described air-condition assembly comprises from top to bottom the successively compressor of head and the tail connection, condenser, heating power expansion valve and evaporimeter, wherein, described evaporimeter is inclined in the second chamber of rack, described compressor, condenser and heating power expansion valve are arranged in the 4th chamber of rack, and described condenser is connected with the heat pipe assembly.
7. the heat release of communication machine room air-conditioning heat pipe integrated machine according to claim 6 is characterized in that, described condenser and evaporimeter all adopt fin copper tubular type heat exchanger, and described copper pipe adopts female thread structure, and described fin adopts hydrophilic aluminium fin.
8. the heat release of communication machine room air-conditioning heat pipe integrated machine according to claim 2, it is characterized in that, described heat pipe assembly comprises from top to bottom successively heat pipe evaporator section and the heat pipe condenser section of head and the tail connection, described heat pipe evaporator section vertically is arranged on the evaporimeter front side of air-condition assembly in rack the second chamber, and be connected with indoor return air inlet on the second chamber front panel, described heat pipe condenser section is arranged on the condenser rear side of air-condition assembly in rack the 4th chamber, and is connected with outdoor air inlet on condenser and the 4th chamber rear side panel respectively.
9. the heat release of communication machine room air-conditioning heat pipe integrated machine according to claim 8, it is characterized in that, described heat pipe condenser section and heat pipe evaporator section all adopt fin copper tubular type heat exchanger, vertical groove structure form in described copper pipe adopts, and described fin adopts hydrophilic aluminium fin; Screen net structure is all adopted in described heat pipe condenser section and heat pipe evaporator section inside.
10. the heat release of communication machine room air-conditioning heat pipe integrated machine according to claim 1 is characterized in that, described circulating fan and cooling blower all adopt centrifugal blower.
