本实用新型提供一种通过拨动双层灯罩，带来光线的亮度变化的双层灯具。本实用新型包括底板，所述底板上设有一圈圆形凹槽，所述圆形凹槽内插有外层灯罩和内层灯罩，所述外层灯罩和内层灯罩为疏密不等的条状组成，被顶圈束在一起，所述底板上设有灯泡，所述灯泡设于内层灯罩内，所述内层灯罩设于外层灯罩内。本实用新型使用的时候，拨动双层的灯罩，带来光线的亮度变化，调节简单方便，富有生活乐趣。
The utility model provides a double-layer lamp which brings about changes in the brightness of light by moving the double-layer lampshade. The utility model comprises a bottom plate, and a circular groove is arranged on the bottom plate, and an outer lampshade and an inner lampshade are inserted in the circular groove, and the outer lampshade and the inner lampshade are of different density. Composed of strips, bound together by a top ring, bulbs are arranged on the bottom plate, the bulbs are arranged in the inner lampshade, and the inner lampshade is arranged in the outer lampshade. When the utility model is used, the double-layer lampshade is moved to bring about changes in the brightness of the light, the adjustment is simple and convenient, and the utility model is full of fun in life.
Description
Technical field
The utility model relates to light fixture.
Background technology
In the time of traditional light fixture brightness adjusting, often regulate by the size of electric weight, comparatively lack new meaning.
Summary of the invention
The purpose of this utility model provides a kind of by stirring double-layer lampshade, brings the double-deck light fixture of the brightness variation of light.
The utility model is by the following technical solutions:
The utility model comprises base plate, described base plate is provided with a circle circular groove, be inserted with outer lampshade and internal layer lampshade in the described circular groove, described outer lampshade and internal layer lampshade are that the strip that density does not wait forms, by the collar bundle together, described base plate is provided with bulb, and described bulb is located in the internal layer lampshade, and described internal layer lampshade is located in the outer lampshade.
By above technical scheme, when the utility model uses, stir double-deck lampshade, bring the brightness of light to change, regulate simple and conveniently, be rich in the joy of life.
Description of drawings

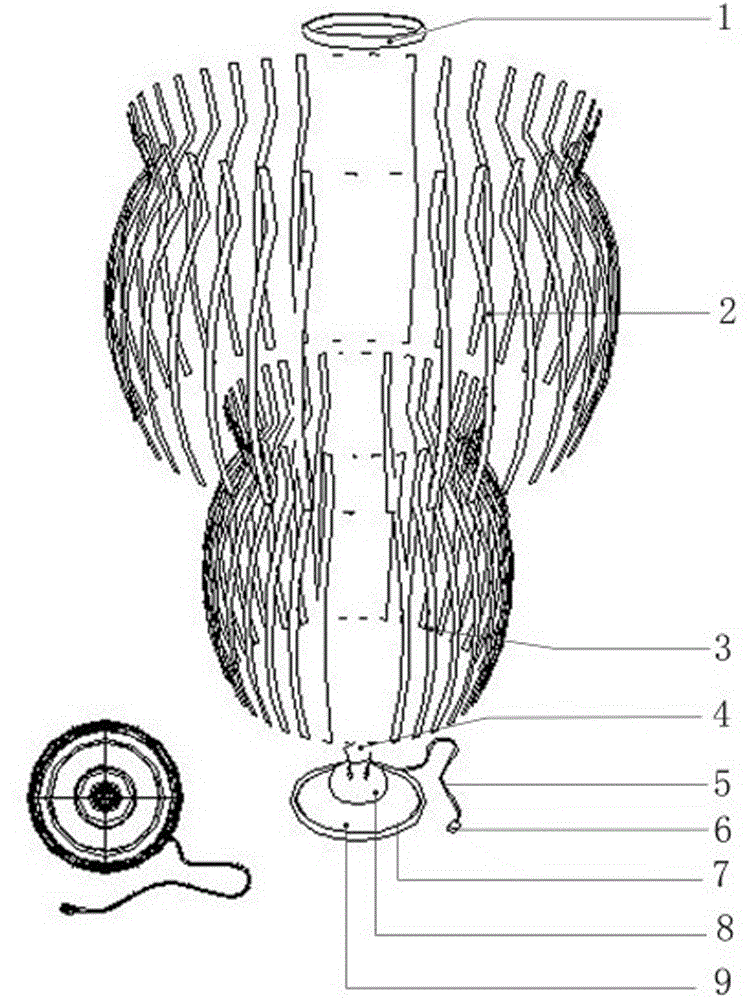

Fig. 1 is the overall structure decomposition explosion figure of double-deck light fixture in the utility model specific embodiment;
Fig. 2 is double-deck light fixture overall structure schematic appearance in off position in the utility model specific embodiment.
The specific embodiment
Ask for an interview shown in the accompanying drawing, the utility model comprises collar 1, outer lampshade 2 and internal layer lampshade 3, bulb 4, base plate 9, bulb bracing frame 8, electric wire 5, plug 6, groove 7.
The utility model comprises base plate 9, described base plate 9 is provided with a circle circular groove 7, be inserted with outer lampshade 2 and internal layer lampshade 3 in the described circular groove 7, described outer lampshade 2 and internal layer lampshade 3 are that the strip that density does not wait forms, by collar 1 bundle together, described base plate 9 is provided with bulb 4, and described bulb 4 is located in the internal layer lampshade 3, and described internal layer lampshade 3 is located in the outer lampshade 2.
When the utility model used, when the strip of outer lampshade 2 and internal layer lampshade 3 coincided together, light was brighter, and when outer lampshade 2 and internal layer lampshade 3 were staggered, the light transmission slit flow of only lighting a lamp was a little exposed, and brightness is less, can be used as mini light night and uses.
The utility model combines desk lamp and the mini light night of every day use, and multi-use is simple to operate, easy to use.
The above-mentioned specific embodiment is used for the utility model of explaining; rather than the utility model limited; in the protection domain of spirit of the present utility model and claim, any modification and change to the utility model is made all fall into protection domain of the present utility model.
Claims (1)
1. double-deck light fixture, it is characterized in that, comprise base plate, described base plate is provided with a circle circular groove, is inserted with outer lampshade and internal layer lampshade in the described circular groove, and described outer lampshade and internal layer lampshade are that the strip that density does not wait forms, by the collar bundle together, described base plate is provided with bulb, and described bulb is located in the internal layer lampshade, and described internal layer lampshade is located in the outer lampshade.
