Abstract
本实用新型公开了一种高压蒸汽灭菌柜，包括柜体；所述柜体内腔底部形成一个用于储水的储水凹槽；其特征在于：所述柜体内部从上至下依次设有过滤网和蒸汽分布板柜体底部设有蒸汽管和排水管，柜体内壁为蒸汽夹层。所述过滤网和蒸汽分布板之间设有第一温度传感器；所述蒸汽分布板下方设有第二温度传感器和液位传感器；所述蒸汽分布板为格栅板；该高压蒸汽灭菌柜能够将灭菌废水一并在线灭活，无收集泄露，无灭活死角，灭活彻底。
The utility model discloses a high-pressure steam sterilization cabinet, which comprises a cabinet body; a water storage groove for water storage is formed at the bottom of the inner cavity of the cabinet; The bottom of the cabinet with filter screen and steam distribution board is provided with steam pipes and drain pipes, and the inner wall of the cabinet is a steam interlayer. A first temperature sensor is provided between the filter screen and the steam distribution plate; a second temperature sensor and a liquid level sensor are provided below the steam distribution plate; the steam distribution plate is a grid plate; the high-pressure steam sterilizer It can deactivate the sterilized wastewater online together, without collection leakage, no dead angle for inactivation, and complete inactivation.
Description
Technical field
This utility model relates to a kind of sterilizing cabinet, is specifically related to a kind of high pressure steam sterilization cabinet.
Background technology
At present, the waste water inactivation system on the known autoclave sterilizer is to be combined by wastewater collection pipeline, wastewater collection filling, waste water heating component (electric heating tube or steam(-)coil).Need waste water to be processed to flow into waste water collection device by the wastewater collection pipeline, reach the inactivation treatment to waste water after then by the waste water heating component waste water being heated to uniform temperature and safeguarding certain hour.But because the waste water inactivation system all is the waste water that may be contained the strong bacteriovirus infection that is infectious for the treatment of some, the connection of wastewater collection pipeline increases waste water causes waste water in collection process danger; In the waste water inactivation process, the heat that produces during by the work of waste water heating component spreads to reach the purpose that waste water carries out deactivation to the external world, have the deactivation Dead Core Problems in its inactivation process, and deactivation is not thorough.
For the deficiencies in the prior art, the utility model proposes a kind of new solution.
The utility model content
Technical problem to be solved in the utility model is: according to the deficiencies in the prior art, provide a kind of high pressure steam sterilization cabinet, this high pressure steam sterilization cabinet can be revealed sterilized wastewater in the lump online deactivation without collecting, and without the deactivation dead angle, deactivation is thorough.
For achieving the above object, the technical scheme that this utility model adopts is: a kind of high pressure steam sterilization cabinet is provided, comprises cabinet; Described cabinet intracavity bottom forms a water storage groove that is used for water storage; It is characterized in that: described cabinet inside is provided with drainage screen and vapor distribution plate from top to bottom successively, and bottom of cabinet bulk is provided with steam pipe and drain pipe, and the cabinet inwall is steam jacket.
Further, be provided with the first temperature sensor between described drainage screen and the vapor distribution plate.
Further, be provided with the second temperature sensor and liquid level sensor below the described vapor distribution plate.
Further, described vapor distribution plate is flase floor.
In sum, high pressure steam sterilization cabinet provided by the utility model can be revealed sterilized wastewater in the lump online deactivation without collecting, and without the deactivation dead angle, deactivation is thorough.
Description of drawings

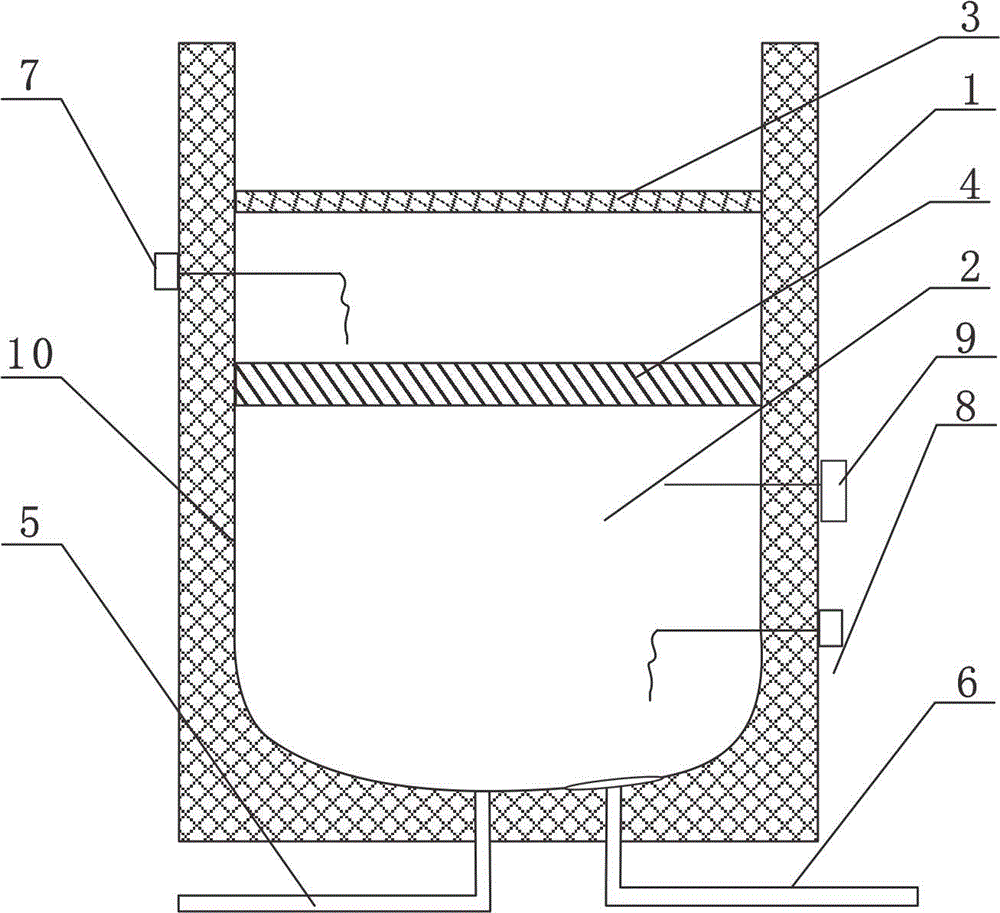

Fig. 1 is this utility model high pressure steam sterilization cabinet sketch map;
Wherein: 1, cabinet; 2, water storage groove; 3, drainage screen; 4, vapor distribution plate; 5, steam pipe; 6, drain pipe; 7, the first temperature sensor; 8, the second temperature sensor; 9, liquid level sensor, 10, steam jacket.
The specific embodiment
Below in conjunction with accompanying drawing the specific embodiment of the present utility model is described in detail.
-as shown in Figure 1, this high pressure steam sterilization cabinet comprises cabinet 1; Described cabinet 1 intracavity bottom forms a water storage groove 2 that is used for water storage; It is characterized in that: described cabinet 1 inside is provided with drainage screen 3 and vapor distribution plate 4 from top to bottom successively, and cabinet 1 bottom is provided with steam pipe 5 and drain pipe 6, and cabinet 1 inwall is steam jacket 10.
Be provided with the first temperature sensor 7 between described drainage screen 3 and the vapor distribution plate 4.Described vapor distribution plate 4 belows are provided with the second temperature sensor 8 and liquid level sensor 9.Described vapor distribution plate 4 is flase floor.
The condensed water that in sterilization process, produces (being waste water), naturally collect in the water storage groove 2, drainage screen 3 filters it, the steam jacket 10 of cabinet 1 carries out Steam Heating to it, steam passes into the cabinet inner chamber from steam pipe 5, pass from the waste water that inner chamber is collected by vapor distribution plate 4 it is carried out heat inactivation, last, the waste water after the deactivation is discharged from drain pipe 6.The deactivation temperature is by the first temperature sensor 1 and the second temperature sensor 8, by detecting wastewater temperature, guarantee that deactivation is thorough, the deactivation temperature realizes by temperature and the flow velocity of control steam, be embodied directly in the line deactivation, and the agitaion of the steam that passes into, avoided the deactivation dead angle, deactivation is thorough.
In sum, high pressure steam sterilization cabinet provided by the utility model can be revealed sterilized wastewater in the lump online deactivation without collecting, and without the deactivation dead angle, deactivation is thorough.
Although by reference to the accompanying drawings the specific embodiment of the present utility model is described in detail, should not be construed as the restriction to the protection domain of this patent.In the described scope of claims, the various modifications that those skilled in the art can make without creative work and distortion still belong to the protection domain of this patent.
Claims (4)
1. the high pressure steam sterilization cabinet comprises cabinet (1); Described cabinet (1) intracavity bottom forms a water storage groove (2) that is used for water storage; It is characterized in that: described cabinet (1) inside is provided with drainage screen (3) and vapor distribution plate (4) from top to bottom successively, and cabinet (1) bottom is provided with steam pipe (5) and drain pipe (6), and cabinet (1) inwall is steam jacket (10).
2. high pressure steam sterilization cabinet according to claim 1 is characterized in that: be provided with the first temperature sensor (7) between described drainage screen (3) and the vapor distribution plate (4).
3. high pressure steam sterilization cabinet according to claim 1 is characterized in that: be provided with the second temperature sensor (8) and liquid level sensor (9) below the described vapor distribution plate (4).
4. high pressure steam sterilization cabinet according to claim 1 is characterized in that: described vapor distribution plate (4) is flase floor.
