CN202798526U - Extensible portable solar power supply device - Google Patents

Abstract

The utility model discloses an extendable portable solar power supply device, which comprises one or more solar units with basically the same structure, each of the solar units comprises a square box, and the box is provided with a storage battery, a solar A controller, an inverter, and a set of solar panels are characterized in that a pair of casters are provided on the bottom of the box, and a telescopic pull rod is provided on the back of the box; the set of solar panels includes at least one Folding solar panels and/or at least one drawer solar panel. The utility model has the advantages of compact structure, small volume, convenient storage and transportation, and stable and reliable performance. The front of the box body is provided with a control panel, on which a USB interface, an AC socket, a DC jack, a solar unit terminal and an inverter switch are provided. On the basis of this solar unit, multiple solar units can be connected in parallel through the solar unit terminals, thereby expanding the capacity step by step.

Description

A stretchable portable solar power unit

technical field

The utility model relates to a solar power supply device, in particular to an extendable portable solar power supply device.

Background technique

In response to the impact of global warming caused by the greenhouse effect, the public's awareness of environmental protection is gradually increasing, and countries are also starting to sign relevant environmental protection conventions to curb carbon dioxide emissions. Alternative energy has become a key topic of active research in various countries.

Since solar energy is an inexhaustible and non-polluting energy source, solar energy has both economical and environmental advantages. Therefore, governments of various countries have also begun to promote various applications based on solar power generation.

Generally, a solar generator device includes a solar panel, a battery, a solar controller, and an inverter. Among them, the solar panel is the core part of the solar power generation system, and its function is to convert solar energy into electrical energy, or send it to the storage battery for storage, or promote the load to work. The role of the solar controller is to control the working state of the entire system, and to protect the battery from overcharging and overdischarging. In places with large temperature differences, qualified controllers should also have the function of temperature compensation. Other additional functions such as light control switch and time control switch should be optional options of the controller. The storage battery is generally a lead-acid battery, usually 12V. In a small and micro system, a nickel-metal hydride battery, a nickel-cadmium battery or a lithium battery can also be used. Its function is to store the electric energy from solar panels when there is light, and release it when needed. The inverter converts the DC power generated by the solar power generation system into AC power. In some occasions, when loads with multiple voltages are required, a DC-DC inverter is also used, such as converting 24VDC power into 5VDC of electric energy.

Currently commercially available solar power generators have the following drawbacks:

1) In order to effectively use solar panels to absorb solar energy, most solar panels are installed in open places that can be exposed to sunlight for a long time, and in order to improve the absorption efficiency of solar panels, most solar panels are large area design. However, such a design results in bulky solar panels that are not easy to store and transport. And when encountering bad weather, such as a typhoon, the large wind area of the solar panel makes the center of gravity of the solar panel unstable, and it is easy to dump and damage, resulting in shortening the use of the solar panel.

2) Since the entire product is bulky and heavy, it cannot be transported portablely, and usually needs to be carried by a forklift, which is very inconvenient. In addition, the solar panel, the storage battery and the solar controller are electrically connected by external wires. Since the structure cannot withstand the vibration during transportation, it is usually not allowed to move after the storage battery is installed, so as not to damage the electrical connection. Device does not work.

3) Most solar systems require a complicated wiring instruction, but it is too complicated and sometimes dangerous for people not familiar with electrical systems.

Contents of the invention

The utility model aims to solve the above-mentioned problems in the prior art, and aims to provide an extendable portable solar power supply device.

In order to solve the above problems, the utility model adopts the following technical solutions: an extendable portable solar power supply device, including one or more solar units with basically the same structure, each of the solar units includes a square box, and the The box is provided with a battery, a solar controller, an inverter and a group of solar panels, and is characterized in that a pair of casters are provided at the bottom of the box, and a retractable pull rod is provided at the back of the box; A group of solar panels includes at least one foldable solar panel and/or at least one drawer solar panel.

The solar power supply device of the present utility model has the following characteristics:

1) Portable function: pull out the telescopic pull rod upwards, and tilt the box to one side, so that the gravity of the entire box acts on a pair of casters, and the solar power supply device can be easily moved.

2) Extensible function: multiple solar units can be connected in parallel, and an external battery pack can also be connected to the solar unit, making the utility model an upgradeable system, which greatly increases the capacity of the whole machine.

3) Due to the use of foldable solar panels and drawer-type solar panels, the whole device has a compact structure and a small volume, which is convenient for storage and transportation.

4) The storage battery, solar controller, inverter and a group of solar panels in a solar unit are all set in a box without external electrical connection, and there will be no electrical contact problems due to vibration during transportation, so the performance is stable reliable.

According to the utility model, the foldable solar battery panel is arranged on the top of the box.

According to the utility model, the drawer-type solar cell panel is arranged on the side of the box body.

According to the utility model, the foldable solar cell panel and the drawer-type solar cell panel are a single flat structure, or are folded from a plurality of flat structures.

According to the utility model, a fixed solar battery panel is also arranged in the box.

According to the utility model, the box body is also provided with an auxiliary storage battery terminal and an auxiliary storage battery switch for connecting an external auxiliary storage battery pack.

According to the utility model, the box body is also provided with solar unit terminals, and multiple solar units are connected to corresponding solar unit terminals through external wires to form a parallel connection.

According to the utility model, the auxiliary battery is connected in parallel with each solar unit.

According to the utility model, the box body is further provided with a control panel, and the control panel is provided with an LED display, a USB interface and a power socket, and the power socket includes a DC power jack and an AC power socket.

According to the utility model, an inverter fan is also provided on one side of the box.

Description of drawings

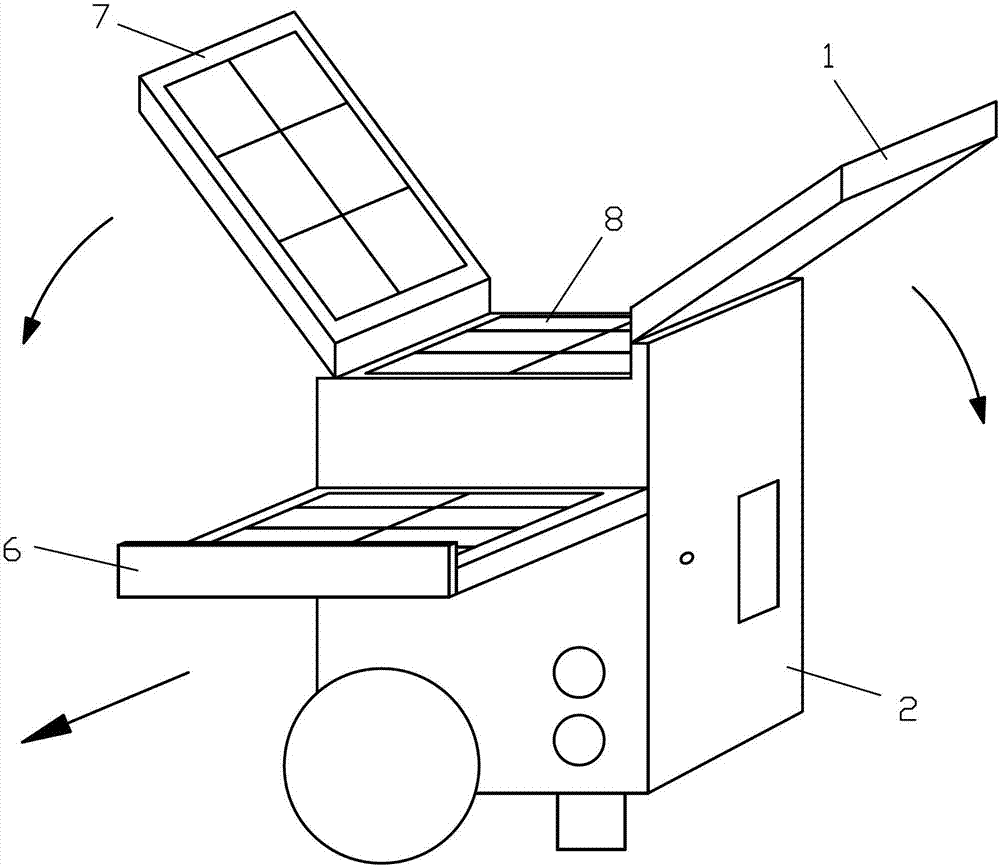

Fig. 1 is a structural schematic diagram of the extendable portable solar power supply device of the present invention.

Fig. 2 is a view of the use state of the extendable portable solar power supply device of the present invention.

Fig. 3 is a front view of the extendable portable solar power supply device of the present invention.

Fig. 4 is a rear view of the extendable portable solar power supply device of the present invention.

Fig. 5 is a left view of the extendable portable solar power supply device of the present invention.

Fig. 6 is a right side view of the extendable portable solar power supply device of the present invention.

Fig. 7 is a structural schematic diagram of an embodiment of a double-fold folded structure of the solar cell panel of the present invention.

In the figure, 1-solar panel, 2-cabinet, 3-control panel, 4-foot, 5-caster, 6-solar panel, 7-solar panel, 8-solar panel, 9-LED display Screen, 10-inverter switch, 11-USB interface, 12-solar unit terminal, 13-AC power socket, 14-auxiliary battery switch, 15-retractable pull rod, 16-auxiliary battery terminal, 17-fan, 18-solar panel, 19-storage room, 20-DC power jack.

Detailed ways

Referring to Fig. 1, a kind of extensible portable solar power supply device of the present utility model, in the example of the present utility model, the power supply device of the present utility model is a solar energy unit, comprises a square box body 2, and inside the box body 2 Equipped with battery, solar controller, inverter and a set of solar panels.

3 , 4 , 5 and 6 , a pair of feet 4 and a pair of casters 5 are provided at the bottom of the box 2 , and a retractable pull rod 15 is provided at the back of the box 2 .

The set of solar battery panels includes a pair of foldable solar battery panels 1,7 and a pair of drawer solar battery panels 6,18. The pair of foldable solar panels 1 , 7 are arranged on the top of the box 2 . A fixed solar battery panel 8 is also provided below the pair of foldable solar battery panels 1 , 7 . The pair of drawer-type solar panels 6 and 18 are respectively arranged on both sides of the box body 2 . During use, the foldable solar cell panels 1, 7 are opened outwards in sequence, so that the fixed solar cell panel 8 is exposed; simultaneously, the drawer-type solar cell panels 6, 18 are drawn out, so that each solar cell panel can to receive sunlight (as shown in Figure 2).

The front of the box body 2 is provided with a control panel 3, and the control panel 3 is provided with an LED display 9, a USB interface 11, an AC power socket 13, a DC power jack 20, a solar unit terminal 12 and an inverter switch 10. On the basis of this solar unit, multiple solar units can be connected in parallel through the solar unit terminal 12, thereby expanding the capacity step by step.

An auxiliary battery connection terminal 16 and an auxiliary battery switch 14 are also provided on the back of the box body 2 for connecting an external auxiliary battery pack. The auxiliary battery pack is connected in parallel with each solar unit.

One side of the box body 2 is also provided with an inverter fan 17 , and the other side is also provided with a storage room 19 .

In this embodiment, the foldable solar panels 1, 7 and the drawer solar panels 6, 18 are a single flat structure.

Referring to Fig. 7, the foldable solar panels 1, 7 and the drawer solar panels 6, 18 are formed by folding two flat structures, and the hinges between the two flat structures are limited and positioned The device can be adjusted to the best angle according to the direction of the sun.

The foldable solar panels 1, 7 and the drawer solar panels 6, 18 can also be folded into a multi-layer structure by three or more flat structures, and the adjacent flat structures are hinged and have a limit And positioning device, which can be adjusted to the best angle according to the direction of the sun.

It should be understood that: the above embodiments are only descriptions of the utility model, rather than limitations of the utility model, and any inventions that do not exceed the spirit of the utility model fall within the protection scope of the utility model.

Claims (10)

1. extensile portable type solar energy supply unit, comprise the essentially identical solar units of one or more structures, described each solar units comprises a square box (2), be provided with storage battery, controller for solar, inverter and one group of solar panel in the described casing (2), the bottom that it is characterized in that described casing (2) is provided with a pair of castor (5), and the back side of described casing (2) is provided with telescopic bar (15); Described one group of solar panel comprises the solar panel (6,18) of at least one folding solar panel (1,7) and/or at least one drawer type.

2. extensile portable type solar energy supply unit as claimed in claim 1 is characterized in that described folding solar panel (1,7) is arranged on the top of described casing (2).

3. extensile portable type solar energy supply unit as claimed in claim 1 is characterized in that the solar panel (6,18) of described drawer type is arranged on the side of described casing (2).

4. such as any one described extensile portable type solar energy supply unit of right 1-3, the solar panel (6,18) that it is characterized in that described folding solar panel (1,7) and drawer type is single plate armature, perhaps forms by a plurality of plate armatures are folding.

5. extensile portable type solar energy supply unit as claimed in claim 4 is characterized in that also being provided with in the described casing (2) fixed solar panel (7).

6. extensile portable type solar energy supply unit as claimed in claim 1 is characterized in that also being provided with on the described casing (2) booster battery binding post (16) and booster battery switch (14).

7. extensile portable type solar energy supply unit as claimed in claim 1, it is characterized in that also being provided with on the described casing (2) solar units binding post (12) and inverter switching device (10), a plurality of solar units are connected to form in parallel by external wire with corresponding solar units binding post (12).

8. such as claim 6 or 7 described extensile portable type solar energy supply units, it is characterized in that described booster battery and a solar units are in parallel.

9. extensile portable type solar energy supply unit as claimed in claim 1, it is characterized in that also being provided with on the described casing (2) control panel (3), described control panel (3) is provided with LED display (9), USB interface (11), AC Power supply socket (13) and direct current jack (20).

10. extensile portable type solar energy supply unit as claimed in claim 1 is characterized in that a side of described casing (2) also is provided with inverter fan (17).
