Abstract
The utility model relates to an electrochromic technical field especially relates to a photovoltaic electrochromic glass window, and it includes solar cell panel, charge and discharge controller, battery and electrochromic glass casement, and solar cell panel passes through charge and discharge controller and is connected with the battery electricity, and the battery is connected with electrochromic glass casement electricity. Compared with the prior art, the utility model discloses regard as the power energy of this photovoltaic electrochromic glass window with solar energy, accord with the demand of the energy-concerving and environment-protective of people's carbon-free, simultaneously, add charge-discharge controller between solar cell panel and battery, can effectively protect the battery, the trouble when reducing the charge-discharge takes place, and is safe, and has prolonged battery life.
Description
Technical field
The utility model relates to the electrochromism technical field, particularly relates to a kind of photovoltaic electrochromism glass windows.
Background technology
Electrochromism glass windows has the controllability that light absorption sees through under electric field action, optionally absorb or the heat radiation in the reflection external world and the diffusion of the heat of inside, plays the purpose of improving natural lighting degree, peep-proof.Present electrochromism glass windows all is to use mains supply, is difficult to satisfy the environmental requirement of people's low-carbon (LC), low power consuming.In addition, the existing electrochromism glass windows of battery that uses breaks down easily, and service lifetime of accumulator is lower.
The utility model content
The purpose of this utility model is to avoid weak point of the prior art and a kind of carbon-free, safety, photovoltaic electrochromism glass windows that the life of storage battery is long is provided.
The purpose of this utility model is achieved through the following technical solutions.
A kind of photovoltaic electrochromism glass windows, comprise solar panel, charging-discharging controller, battery and electrochromism glass windows fan, solar panel is electrically connected with an end of battery by charging-discharging controller, and the other end of battery is electrically connected with the electrochromism glass windows fan.
Wherein, the electrochromism glass windows fan comprises the first glassy layer, the first conducting film, solid electrolyte layer, organic electrochromic film, the second conducting film and the second glassy layer that amplexiforms successively, the first conducting film is electrically connected with the positive pole of battery, and the second conducting film is connected with the negative electricity of battery.
Wherein, also be provided with the second organic electrochromic film between the first conducting film and the solid electrolyte layer.
The beneficial effects of the utility model: a kind of photovoltaic electrochromism glass windows, comprise solar panel, charging-discharging controller, battery and electrochromism glass windows fan, solar panel is connected with storage battery by charging-discharging controller, and battery is electrically connected with the electrochromism glass windows fan.Compared with prior art; the utility model is with the power source of solar energy as this photovoltaic electrochromism glass windows; the demand that meets the carbon-free energy-conserving and environment-protective of people; simultaneously; set up charging-discharging controller between solar panel and battery, can effectively protect battery, the fault that reduces when discharging and recharging occurs; safety, and prolonged service lifetime of accumulator.
Description of drawings
Utilize accompanying drawing that the utility model is described further, but the content in the accompanying drawing does not consist of any restriction of the present utility model.

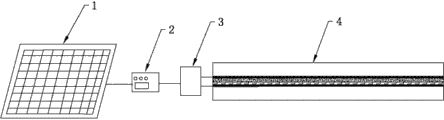

Fig. 1 is the structural representation of a kind of photovoltaic electrochromism glass windows of the present utility model.
Include among Fig. 1:
1 solar panel, 2 charging-discharging controllers, 3 batteries, 4 electrochromism glass windows fan.
The specific embodiment
The utility model is described in further detail with the following Examples.
A kind of photovoltaic electrochromism glass windows, as shown in Figure 1, comprise solar panel 1, charging-discharging controller 2, battery 3 and electrochromism glass windows fan 4, solar panel 1 is electrically connected with an end of battery 3 by charging-discharging controller 2, and the other end of battery 3 is electrically connected with electrochromism glass windows fan 4.The utility model is with the power source of solar energy as this photovoltaic electrochromism glass windows; the demand that meets the carbon-free energy-conserving and environment-protective of people; simultaneously; between solar panel 1 and battery 3, set up charging-discharging controller 2; can effectively protect battery 3; the fault that reduces when discharging and recharging occurs, safety, and prolonged 3 application lifes of battery.
A kind of photovoltaic electrochromism glass windows of present embodiment, wherein electrochromism glass windows fan 4 comprises the first glassy layer, the first conducting film, solid electrolyte layer, organic electrochromic film, the second conducting film and the second glassy layer that amplexiforms successively, the first conducting film and the second conducting film respectively with positive pole and the corresponding electrical connection of negative pole of battery 3.Wherein, conducting film is nano indium tin metal conductive oxide film, and the organic electrochromic film is linear thiophen polymer electrochromic film.The electrochromism glass windows fan 4 of present embodiment is all solid state organic electrochromic, not only with low cost, and owing to do not contain liquid electrolyte and do not contain not solid-state gel electrolyte yet, be convenient to encapsulation and processing, can be widely used in the fields such as all trades and professions, particularly smart window, curtain wall, vehicle glass.Other structure and the principle of present embodiment are identical with embodiment 1, do not repeat them here.
A kind of photovoltaic electrochromism glass windows of present embodiment is on the basis of embodiment 2, also be provided with the second organic electrochromic film between the first conducting film of electrochromism glass windows fan 4 and the solid electrolyte layer, the electrochromism glass windows fan 4 of present embodiment has double-deck organic electrochromic film, and electrochromic color is more colorful true to nature.Other structure and the principle of present embodiment are identical with embodiment 2, do not repeat them here.
Should be noted that at last; above embodiment only is used for the explanation the technical solution of the utility model but not to the restriction of the utility model protection domain; although with reference to preferred embodiment the utility model has been done detailed description; those of ordinary skill in the art is to be understood that; can make amendment or be equal to replacement the technical solution of the utility model, and not break away from essence and the scope of technical solutions of the utility model.
