Abstract

The utility model discloses an oven-drying and adjusting device for viscose fibers. The device comprises a feed machine, wherein the feed machine corresponds to a drying adjusting mechanism; a chain delivery device is arranged in the drying adjusting mechanism; all the water vapor outlets in the front region and the middle region of the drying adjusting mechanism are connected with an air inlet of an oscillating flow heat pipe interchanger; and the air outlet of the oscillating flow heat pipe interchanger is connected with the back region of drying adjusting mechanism. By adopting the oven-drying and adjusting device, viscose fibers with higher quality can be obtained, and energy consumption can be saved up to 35-40 percent.

Description

The oven dry of viscose and adjusting device
Technical field
The utility model relates to a kind of oven dry and adjusting device of viscose.
Background technology
Viscose is regarded as high pollution, highly energy-consuming, expensive industry always, China's viscose output accounts for 60% of world wide production at present, the energy consumption and the blowdown that bring thus increase, and energy consumption and environmental issue become one of further fast-developing " bottleneck " property problem of restriction China viscose glue industry.Wherein, the whole energy consumption level of viscose glue industry exceeds 10~30% than international most advanced level, and also there are a lot of problems in this external disposal of waste gas, water and industrial residue aspect.Therefore, energy-conservation, reduction of discharging has become the core work of viscose glue industry sustainable development.
In the viscose industry, dryer is one of highly energy-consuming equipment, it also is the emphasis of energy-saving and emission-reduction, what usually adopt at present is common warm-air type dryer, dry 1 ton of viscose and consume approximately 2.8 tons of steam, the dried tail gas temperature is about 110 ℃, and water vapour content accounts for 60~70%, the direct emptying one side of tail gas that carries a large amount of waste heats causes huge energy waste, causes on the other hand serious environmental pollution.
Curtain formula or drying cylinder formula drying machine subregion stage drying are adopted in the oven dry of viscose and adjusting usually, and proparea drying medium temperature is 70~100 ℃; 100~120 ℃ in middle district; 60~70 ℃ of back zones; Then enter the damping stage.Shredding wet fiber deliver on the sheet convoying curtain to machine by feeding, about 100 millimeters of fiber floor height on the maintenance convoying curtain, translational speed is 0.82~3.7 m/min, pressure fan blasts fresh air, air-heater blasts high steam simultaneously, by being discharged by exhaust fan after the repeated multiple times circulation of circulating fan, this drying course mesohigh vapours plays the effect that heat temperature raising makes the moisture gasification again, and fresh air works the wet effect of taking.Dried tail gas can't effectively carry out waste heat recovery in this traditional drying system, its main cause has two aspects: first, the drying medium that utilizes in these three sections is the mist of steam and air, dried tail gas contains a large amount of incoagulable gas, and air specific heat is little, has assembled heat exchanger and also only can reclaim fraction dried tail gas sensible heat afterwards; The second, can carry capillary fiber secretly in the drying course dried tail gas of viscose, if assemble common fin-tube heat exchanger, capillary fiber can accumulate on the fin, passage and reduction surface film thermal conductance.Therefore, dried tail gas waste heat can't effectively reclaim in the existing viscose stoving process, has caused great energy waste.
The utility model content
The purpose of this utility model is for overcoming above-mentioned the deficiencies in the prior art, a kind of oven dry and adjusting device of viscose is provided, and it can be dried and obtain more high-quality viscose, but the dry run energy efficient reaches 35~40% simultaneously.
For achieving the above object, the utility model adopts following technical proposals:
A kind of oven dry of viscose and adjusting device, comprise and feeding to machine, feed corresponding with dry governor motion to machine, be provided with chain conveyor in the dry governor motion, the steam outlet in the He Zhong district, proparea of dry governor motion all links to each other with the air inlet of Oscillatory flow heat pipe exchanger, and the air outlet of Oscillatory flow heat pipe exchanger is connected with the back zone of dry governor motion.
Described dry governor motion comprises the He Zhong district, proparea that is comprised of two superheat steam drying devices that are connected side by side at least, and the back zone that is formed by hot-air drier, described chain conveyor runs through proparea, middle district and back zone, and the chain conveyor bottom is equipped with the superheated steam device in the He Zhong district, described proparea.
Described superheated steam device comprises circulating fan, and described circulating fan air outlet communicates with steam(-)coil, and the air outlet of steam(-)coil communicates with some the first balanced ventilation devices, and the first balanced ventilation device is positioned at the chain conveyor bottom; Be connected with the temperature control automatic regulating valve on the steam(-)coil.
Be provided with the second pressure fan in the described back zone, the air inlet of the second pressure fan communicates with the air outlet of Oscillatory flow heat pipe exchanger, and the air outlet of described the second pressure fan communicates with some the second balanced ventilation devices.
The steam outlet in He Zhong district, described proparea is provided with pressure controller with the pipeline that the air inlet of Oscillatory flow heat pipe exchanger links to each other.
Linking to each other with air-introduced machine with the first pressure fan respectively into and out of the air port of described Oscillatory flow heat pipe exchanger, described air-introduced machine links to each other with described pressure controller.
Heat exchange element in the described Oscillatory flow heat pipe exchanger is the capillary light pipe.
The utility model comprises two superheat steam drying districts and a heated-air drying district, namely existing curtain formula or drying cylinder formula drying machine drying process are improved, the He Zhong district no longer blasts fresh air in the proparea of drying, but utilize the superheated steam indirect, the repeated multiple times circulation of circulating fan is established in inside, after reaching a certain setting value, steam pressure after the moisture evaporation in the drying unit drains into Oscillatory flow heat pipe exchanger by exhaust fan, the dry exhaust steam of this moment is pure steam, do not contain incoagulable gas, therefore utilize effectively recovery waste heat of Oscillatory flow heat pipe exchanger, dry exhaust steam can be to frozen state after recuperation of heat, discharge a large amount of gasification latent heats, therefore most waste heats of exhaust steam can effectively reclaim, main heat exchange element is the capillary light pipe in the Oscillatory flow heat pipe exchanger simultaneously, be difficult for the deposition capillary fiber, and tubing matter can effectively be resisted the oil of fiber drying process generation and the corrosion of faintly acid gas, the Oscillatory flow heat pipe exchanger heat exchange efficiency is high, flexible form is difficult for the drying system waste heat recovery that the characteristics such as dust stratification especially are suitable for viscose staple fibre.
In addition, Oscillatory flow heat pipe exchanger reclaims the gained waste heat in order to heat fresh air, and the fresh air after heating directly is delivered to the back zone drying of viscose by blower fan, can satisfy 60~70 ℃ required dry demand of back zone fully.
Balanced ventilation device in the utility model, chain conveyor, temperature control automatic regulating valve are existing equipment, do not repeat them here.
The beneficial effects of the utility model are, pure superheat steam drying device after improving, drying quality that can the Effective Raise viscose staple fibre, a large amount of waste heats of simultaneously dry exhaust steam are able to effective recovery, waste heat after the recovery is in order to heat fresh air, hot-air is used for the heated-air drying of back zone, and the novel dried technique after improving can be saved energy consumption for drying about 35~40%.
Description of drawings

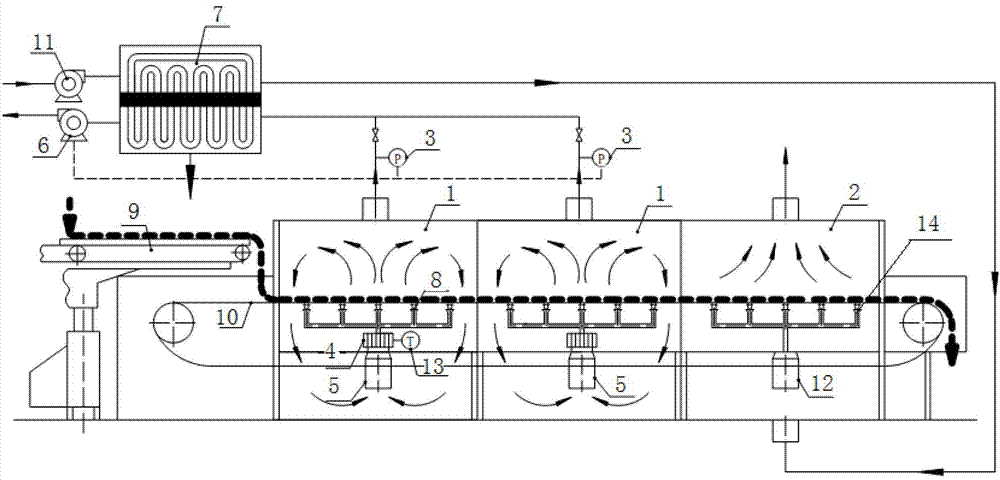

Fig. 1 is the utility model system flow chart;
1-superheat steam drying device wherein, 2-hot-air drier, 3-pressure controller, the 4-steam(-)coil, 5-circulating fan, 6-air-introduced machine, the 7-Oscillatory flow heat pipe exchanger, 8-the first balanced ventilation device, 9-feeds to machine, the 10-chain conveyor, 11-the first pressure fan, 12-the second pressure fan, 13-temperature control automatic regulating valve, 14-the second balanced ventilation device.
The specific embodiment
Below in conjunction with drawings and Examples the utility model is further specified.
As shown in Figure 1: the oven dry of viscose and adjusting device, comprise and feeding to machine 9, feed corresponding with dry governor motion to machine 9, be provided with chain conveyor 10 in the dry governor motion, the steam outlet in the He Zhong district, proparea of dry governor motion all links to each other with the air inlet of Oscillatory flow heat pipe exchanger 7, and the air outlet of Oscillatory flow heat pipe exchanger 7 is connected with the back zone of dry governor motion.
Dry governor motion comprises the He Zhong district, proparea that is comprised of two superheat steam drying devices 1 that are connected side by side at least, and the back zone that is formed by hot-air drier 2, described chain conveyor 10 runs through proparea, middle district and back zone, and chain conveyor 10 bottoms are equipped with the superheated steam device in the He Zhong district, described proparea.
The superheated steam device comprises circulating fan 5, and described circulating fan air outlet communicates with steam(-)coil 4, and the air outlet of Steam Heating dish 4 pipes communicates with some the first balanced ventilation devices 8, and the first balanced ventilation device 8 is positioned at chain conveyor 10 bottoms; Be connected with temperature control automatic regulating valve 13 on the steam(-)coil 4.
The air inlet that is provided with the second pressure fan 12, the second pressure fans 12 in the back zone communicates with the air outlet of Oscillatory flow heat pipe exchanger 7, and the air outlet of described the second pressure fan 12 communicates with some the second balanced ventilation devices 14.The steam outlet in He Zhong district, proparea is provided with pressure controller 3 with the pipeline that the air inlet of Oscillatory flow heat pipe exchanger 7 links to each other.
Linking to each other with air-introduced machine 6 with the first pressure fan 11 respectively into and out of the air port of Oscillatory flow heat pipe exchanger 7, described air-introduced machine 6 links to each other with described pressure controller 3.Heat exchange element in the Oscillatory flow heat pipe exchanger 7 is the capillary light pipe.
Oven dry of the present utility model and adjustment process are as follows:
It comprises He Zhong district, at least 2 superheat steam drying device 1(propareas) and 1 hot-air drier 2(back zone), viscose continues to carry out depth drying and adjusting finish main heating power drying in two superheat steam drying devices 1 after in hot-air drier 2.
Viscose is by feeding the proparea of delivering to superheat steam drying device 1 to machine 9, under circulating fan 5 effects, delivered in the hothouse through the first balanced ventilation device 8 by the drying medium (70~100 ℃) after steam pipe coil 4 heating, in order to dry viscose, viscose is able to the evaporation of dry simultaneously moisture, and the pressure in the superheat steam drying device 1 raises, pressure controller 3 and air-introduced machine 6 interlocks, the steam of allowance is expelled to Oscillatory flow heat pipe exchanger 7
Under chain conveyor 10 effects, viscose is sent to the middle district of superheat steam drying device 1, dry run is similar to the proparea, difference only is that the heated temperature of drying medium is different, middle district drying medium temperature is about 100~120 ℃, while also is expelled to Oscillatory flow heat pipe exchanger 7 with the steam of allowance
The new wind of Oscillatory flow heat pipe exchanger 7 heating is delivered in the hot-air drier 7 through the second balanced ventilation device 14 by the second pressure fan 12, and in order to depth drying and the adjusting of finishing viscose, dried tail gas is emptying.
Although above-mentionedly by reference to the accompanying drawings the specific embodiment of the present utility model is described; but be not the restriction to the utility model protection domain; one of ordinary skill in the art should be understood that; on the basis of the technical solution of the utility model, those skilled in the art do not need to pay various modifications that creative work can make or distortion still in protection domain of the present utility model.

Claims (7)

1. the oven dry of a viscose and adjusting device, it is characterized in that, comprise and feeding to machine, feed corresponding with dry governor motion to machine, be provided with chain conveyor in the dry governor motion, the steam outlet in the He Zhong district, proparea of dry governor motion all links to each other with the air inlet of Oscillatory flow heat pipe exchanger, and the air outlet of Oscillatory flow heat pipe exchanger is connected with the back zone of dry governor motion.
2. device as claimed in claim 1, it is characterized in that, described dry governor motion comprises the He Zhong district, proparea that is comprised of two superheat steam drying devices that are connected side by side at least, and the back zone that is formed by hot-air drier, described chain conveyor runs through proparea, middle district and back zone, and the chain conveyor bottom is equipped with the superheated steam device in the He Zhong district, described proparea.
3. device as claimed in claim 2, it is characterized in that, described superheated steam device comprises circulating fan, described circulating fan air outlet communicates with steam(-)coil, the air outlet of steam(-)coil communicates with some the first balanced ventilation devices, and the first balanced ventilation device is positioned at the chain conveyor bottom; Be connected with the temperature control automatic regulating valve on the steam(-)coil.
4. device as claimed in claim 1 is characterized in that, is provided with the second pressure fan in the described back zone, and the air inlet of the second pressure fan communicates with the air outlet of Oscillatory flow heat pipe exchanger, and the air outlet of described the second pressure fan communicates with some the second balanced ventilation devices.
5. device as claimed in claim 1 is characterized in that, the steam outlet in He Zhong district, described proparea is provided with pressure controller with the pipeline that the air inlet of Oscillatory flow heat pipe exchanger links to each other.
6. device as claimed in claim 5 is characterized in that, the linking to each other with air-introduced machine with the first pressure fan respectively into and out of the air port of described Oscillatory flow heat pipe exchanger, described air-introduced machine links to each other with described pressure controller.
7. device as claimed in claim 1 is characterized in that, the heat exchange element in the described Oscillatory flow heat pipe exchanger is the capillary light pipe.
