Abstract
一种自动虹吸式脉冲布水器，包括筒体、主管道和虹吸管；所述筒体的上部连接有进水口；主管道包括进水管和出水管；进水管在筒体内，且首端朝下，尾端朝上；出水管的尾端朝上，且与进水管的尾端连接；出水管首端朝下穿过筒体的底面；所述进水管和出水管构成倒“U”型主管道；所述虹吸管的一端自筒体上部伸入筒体，且与倒“U”型主管道的顶端连接；虹吸管的另一端在筒体外，且朝下；所述出水管的长度是，在使用状态下，使出水管的首端伸到水处理池的池底；所述虹吸管在筒体外部分的长度是，在使用状态下，使虹吸管的筒体外一端在水处理池的水面下。本技术方案的结构与其它类型布水器更为简单，不需复杂的设备，整个吸气布水过程靠水力自动完成。
An automatic siphon pulse water distributor, comprising a cylinder body, a main pipe and a siphon pipe; the upper part of the cylinder body is connected with a water inlet; the main pipe includes a water inlet pipe and a water outlet pipe; the water inlet pipe is in the cylinder body, and the head end faces downward , the tail end is upward; the tail end of the outlet pipe is upward and connected with the tail end of the water inlet pipe; the head end of the outlet pipe is downward and passes through the bottom surface of the cylinder; the water inlet pipe and the water outlet pipe form an inverted "U"-shaped main pipeline; one end of the siphon tube extends into the cylinder body from the upper part of the cylinder body, and is connected with the top of the inverted "U"-shaped main pipe; the other end of the siphon tube is outside the cylinder body and faces downward; the length of the outlet pipe is, In the state of use, the head end of the outlet pipe extends to the bottom of the water treatment pool; the length of the outer part of the siphon tube is such that the outer end of the siphon tube is under the water surface of the water treatment pool in the state of use. The structure of this technical solution is simpler than other types of water distributors, and no complicated equipment is needed, and the whole suction water distribution process is automatically completed by hydraulic power.
Description
Technical field
The utility model belongs to technical field of sewage, specifically a kind of automatic siphon formula pulse water distributing device.
Technical background
In technical field of sewage, the height of hydrolysis acidification pool or settling pond processing performance is decided by water distribution and hybrid mode in the pond largely, be to adopt pulse water distributing device to realize the treatment tanks such as hydrolysis acidification pool or settling pond are carried out moisturizing and mixing by the pulse water flow that produces the cycle and use at present more.At present, mainly contain vacuum type and Qie Menshi pulse water distributing device according to principle of work, the problem that they exist mainly is to need attached vacuum apparatus or pulse valve, and manufacturing cost is high, and failure rate is also high.
Summary of the invention
In order to solve the above-mentioned problems in the prior art, the technical program proposes a kind of automatic siphon formula pulse water distributing device, it is according to anaerobic techniques such as hydrolysis acidification pool, UASB streamflow regime, the requirement of muddy water mixing and the characteristics of present various water distributors to be developed, it partly is comprised of cylindrical shell, main pipe line, siphon pipe, venting port etc., and characteristics are continuous water inlet, moment draining, hydrolysis, anaerobic pond are formed periodic pulse water-feeding.Improve stirring intensity, in conjunction with pond base fabric hydraulic plumbing optimization design, form a water distribution system that cover is energy-efficient, operation is reliable, stable, improve the processing efficiency of hydrolysis, anaerobism, it is more stable to compare other type water distributor operation, more saves with material, and effect is more obvious.Concrete technical scheme is as follows:
A kind of automatic siphon formula pulse water distributing device is characterized in that comprising cylindrical shell, main pipe line and siphon pipe; The top of described cylindrical shell is connected with water-in; Main pipe line comprises water inlet pipe and rising pipe; Water inlet pipe is in cylindrical shell, and head end down, and tail end up; The tail end of rising pipe and is connected with the tail end of water inlet pipe up; The rising pipe head end passes the bottom surface of cylindrical shell down; Described water inlet pipe and rising pipe consist of the inverse u shape main pipe line; A described siphonal end stretches into cylindrical shell from cylindrical shell top, and is connected with the top of inverse u shape main pipe line; The siphonal the other end is outside cylindrical shell, and down;
The length of described rising pipe is under the use state, the head end of rising pipe to be reached at the bottom of the pond of water treating pond; Described siphon pipe is under the use state, to make the outer end of siphonal cylindrical shell in the underwater of water treating pond in the length of cylinder outer body.
Describedly siphonally stretch into cylindrical shell with the end that is connected of inverse u shape main pipe line from the cylindrical shell top.
The top of described cylindrical shell has venting port, is connected with valve on the venting port.
The bottom of described cylindrical shell has the bursting diaphragm, is connected with valve on the bursting diaphragm.
The outer bottom of described cylindrical shell is connected with supporting leg.
The principle of work of this water distributor is as follows:
Automatic siphon formula pulse water distributing device is to utilize the current of rapid flow in the siphon pipe that the air in the main pipe line is taken away, make and form certain vacuum tightness in the main pipe line, moment entered in the pond after the water in the container entered main pipe line under the atmospheric effect inside and outside pipeline, because flow velocity is very fast, water distribution can be finished at short notice, reaches the effect of pulse, stirs the mud at the bottom of the pond, make its with the pond in waste water constantly fully mix, the organism in microorganism and the waste water obtains sufficient contact reacts.
Range of application:
This equipment is mainly used in all sewage treatment projects that contain acidication technique, UASB anaerobism, improves the muddy water mixed effect of acidication, anaerobism, improves processing efficiency.
The product advantage:
1, structure and other type water distributor are more simple, do not need complicated equipment, and whole air-breathing water distribution process is finished by hydraulic automatism;
2, stable performance, maintenance management is convenient;
3, energy consumption is low, efficient is high, need not other power except promoting water;
4, even water distribution, hydraulic mixing is effective;
5, long service life etc.;
6, automatic siphon formula pulse water distributing device has guaranteed sludge concentration and muddy water mixed effect in conjunction with the bottom water distribution of hydrolysis acidification pool, has controlled ethene, foul gas generation, like this under treatment effect preferably, shorten the residence time, reduced the pond body bulk, reduced cost of investment.
Description of drawings

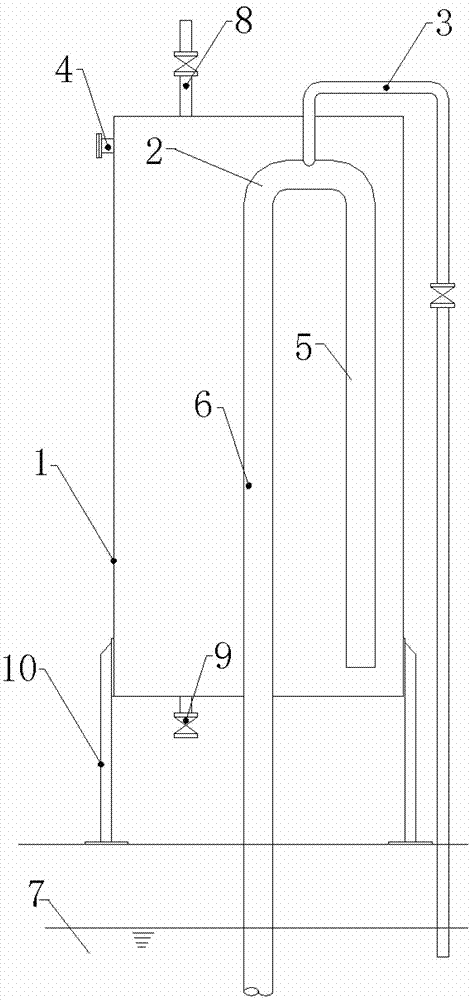

Fig. 1 is the structural principle synoptic diagram of this water distributor;
Fig. 2 is the schematic top plan view of Fig. 1;
Cylindrical shell 1, main pipe line 2, siphon pipe 3, water-in 4, water inlet pipe 5, rising pipe 6, water treating pond 7, venting port 8, bursting diaphragm 9, supporting leg 10.
Embodiment
The technical program is further specified as follows below in conjunction with accompanying drawing and embodiment:
A kind of automatic siphon formula pulse water distributing device is characterized in that comprising cylindrical shell, main pipe line and siphon pipe; The top of described cylindrical shell is connected with water-in; Main pipe line comprises water inlet pipe and rising pipe; Water inlet pipe is in cylindrical shell, and head end down, and tail end up; The tail end of rising pipe and is connected with the tail end of water inlet pipe up; The rising pipe head end passes the bottom surface of cylindrical shell down; Described water inlet pipe and rising pipe consist of the inverse u shape main pipe line; A described siphonal end stretches into cylindrical shell from cylindrical shell top, and is connected with the top of inverse u shape main pipe line; The siphonal the other end is outside cylindrical shell, and down;
The length of described rising pipe is under the use state, the head end of rising pipe to be reached at the bottom of the pond of water treating pond; Described siphon pipe is under the use state, to make the outer end of siphonal cylindrical shell in the underwater of water treating pond in the length of cylinder outer body.
Describedly siphonally stretch into cylindrical shell with the end that is connected of inverse u shape main pipe line from the cylindrical shell top.
The top of described cylindrical shell has venting port, is connected with valve on the venting port.
The bottom of described cylindrical shell has the bursting diaphragm, is connected with valve on the bursting diaphragm.
The outer bottom of described cylindrical shell is connected with supporting leg.
Claims (5)
1. an automatic siphon formula pulse water distributing device is characterized in that comprising cylindrical shell, main pipe line and siphon pipe; The top of described cylindrical shell is connected with water-in; Main pipe line comprises water inlet pipe and rising pipe; Water inlet pipe is in cylindrical shell, and head end down, and tail end up; The tail end of rising pipe and is connected with the tail end of water inlet pipe up; The rising pipe head end passes the bottom surface of cylindrical shell down; Described water inlet pipe and rising pipe consist of the inverse u shape main pipe line; A described siphonal end stretches into cylindrical shell from cylindrical shell top, and is connected with the top of inverse u shape main pipe line; The siphonal the other end is outside cylindrical shell, and down;
The length of described rising pipe is under the use state, the head end of rising pipe to be reached at the bottom of the pond of water treating pond; Described siphon pipe is under the use state, to make the outer end of siphonal cylindrical shell in the underwater of water treating pond in the length of cylinder outer body.
2. automatic siphon formula pulse water distributing device according to claim 1 is characterized in that describedly siphonally stretching into cylindrical shell with the end that is connected of inverse u shape main pipe line from the cylindrical shell top.
3. automatic siphon formula pulse water distributing device according to claim 1 and 2 is characterized in that the top of described cylindrical shell has venting port, is connected with valve on the venting port.
4. automatic siphon formula pulse water distributing device according to claim 1 and 2 is characterized in that the bottom of described cylindrical shell has the bursting diaphragm, is connected with valve on the bursting diaphragm.
5. automatic siphon formula pulse water distributing device according to claim 1 and 2 is characterized in that the outer bottom of described cylindrical shell is connected with supporting leg.
