Abstract
The utility model discloses an arc-shaped cutter holder comprising a transverse slide track which is arranged at the upper end of a lathe bench, a lateral movement base which is arranged at the upper end of the transverse slide track, a longitudinal slide track which is arranged at the upper end of the transverse slide track, a longitudinal movement base which is arranged at the upper end of the longitudinal slide track, an arc-shaped top face which is formed at the top of the longitudinal movement base, an arc-shaped sliding seat which is arranged at the upper end of the arc-shaped top face, and a cutter holder which is arranged at the upper end of the arc-shaped sliding seat. During the process of turning arc-shaped work pieces, a wedge-shaped or arc-shaped work piece can be machined by freely adjusting the position of the sliding chute of the arc-shaped sliding seat.
Description
Technical field
The utility model relates to a kind of fixture for turning tool, definite says a kind of arc tool-holder.
Background technology
Existing lathe is because the limitation of structure, and cylindrical and plane that can only the turning object such as arc or trapezoidal shaped face, just can't process, so exist function singleness, the defective that range of application is little.
Summary of the invention
The purpose of this utility model is to overcome defects, and a kind of arc tool-holder is provided, and to enlarge the application function of lathe, improves the utilization rate of equipment.
Scheme of the present utility model is by the lathe stand, transverse slipway, the transverse shifting seat, end slipway, vertically move seat, the arc sliding seat, tool-holder forms, upper end at the lathe stand is provided with transverse slipway, the transverse shifting seat is equipped with in the upper end of transverse slipway, the upper end of transverse shifting seat is provided with end slipway, the upper end of end slipway is provided with and vertically moves seat, the top that vertically moves seat is provided with arc top surface, the arc sliding seat is equipped with in the upper end of arc top surface, the upper end of arc sliding seat is provided with tool-holder, the both sides of arc sliding seat are provided with chute, are provided with set bolt in the chute.During such as need turning arc-shaped workpiece, the position of arc sliding seat chute can be reconciled arbitrarily, the oblique or arc-shaped workpiece of turning can be processed.
The utility model is simple in structure, and processing is convenient, and the scope of application is extensive.
Be described in further detail below in conjunction with accompanying drawing.
Description of drawings
Fig. 1 is the utility model structural representation;

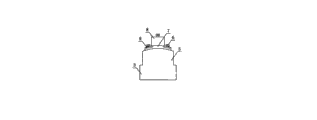

Fig. 2 is arc sliding seat schematic side view.
The specific embodiment
The upper end of the lathe stand 1 shown in Fig. 1-2 is provided with transverse slipway 2, the upper end of transverse slipway is provided with transverse shifting seat 3, the upper end of transverse shifting seat is provided with end slipway 4, the upper end of end slipway is provided with and vertically moves seat 5, the top that vertically moves seat is provided with arc top surface, and the upper end of arc top surface is provided with arc sliding seat 7, and the upper end of arc sliding seat is provided with tool-holder 8, the both sides of arc sliding seat are provided with chute 9, are provided with set bolt 6 in the chute.
Claims (1)
1. arc tool-holder, by the lathe stand, transverse slipway, the transverse shifting seat, end slipway, vertically move seat, the arc sliding seat, tool-holder forms, it is characterized in that: the upper end of described lathe stand (1) is provided with transverse slipway (2), the upper end of transverse slipway is provided with transverse shifting seat (3), the upper end of transverse shifting seat is provided with end slipway (4), the upper end of end slipway is provided with and vertically moves seat (5), the top that vertically moves seat is provided with arc top surface, the upper end of arc top surface is provided with arc sliding seat (7), the upper end of arc sliding seat is provided with tool-holder (8), the both sides of arc sliding seat are provided with chute (9), are provided with set bolt (6) in the chute.
