Abstract
The utility model discloses an embedded flaky labyrinth dripping and irrigating tape which comprises a dripping and irrigating tape shell; the shell is provided with a water outlet groove and a water inlet hole; filter windows which are communicated with the shell are uniformly distributed on the water inlet hole; the shell is internally provided with a labyrinth combined flow channel which is communicated with the water inlet hole and the water outlet groove respectively and is composed of a circular arc flow channel and a tooth-shaped flow channel in mutual serial connection; the circular arc flow channel is communicated with the water outlet groove; and the tooth-shaped flow channel is communicated with the water inlet hole. The embedded flaky labyrinth dripping and irrigating tape provided by the utility model can mainly be used for crops of large lands for growing field crops, greenhouses and the like, and is characterized in that each dripping head is provided with an individual filter; and for the design of the labyrinth combined flow channel preventing particle matters from invading, the labyrinth combined flow channel is long in flow channel, and is uniform in dripping water; and due to the design of wide flow channel, the dripping heads are difficult to be blocked.
Description
Technical field
The utility model relates to a kind of interior empiecement shape labyrinth type drip irrigation tape.
Background technology
Drip irrigation is to utilize plastic tube (drip irrigation pipe is drawn) that water is delivered to crop root by the aperture on the diameter 10mm hollow billet or water dropper to carry out localized irrigation, be by flow-out hole mouth very tiny water dropper or drip irrigation zone, water drop by drop evenly and is lentamente dropped near the crop root the soil.
The internally-inlaid drip irrigation zone is in the hollow billet manufacture process, is embedded in drip irrigation zone in the hollow billet with making in advance good water dropper.
Labyrinth type drip irrigation tape is when making light-wall pipe, in the drip irrigation zone that a side or the middle part heat seal of pipe goes out various shape runners.
Drip irrigation is the most effective a kind of Water Saving Irrigation Mode in present drought and water shortage area, and the utilization rate of its water can reach 95%.Drip irrigation is sprayed and is had higher water-saving and yield-increasing effect, can in conjunction with fertilising, improve fertilizer efficiency more than one times simultaneously.Irrigate applicable to fruit tree, vegetables, industrial crops and warmhouse booth, also can be used for field crop irrigation in the place of drought and water shortage.Its weak point is the easy fouling of water dropper and obstruction, and therefore tackling the water source carries out strict filtration treatment.
The utility model content
The utility model technical issues that need to address just are to overcome the defective of prior art, a kind of interior empiecement shape labyrinth type drip irrigation tape is provided, it mainly can be used for the crops such as land for growing field crops, booth, its characteristics have: each water dropper is with filter independently, prevent the labyrinth type combined flow channel design of particle invasion, runner is long, even, the wide runner design that drips, and water dropper is difficult for stopping up.
For addressing the above problem, the utility model adopts following technical scheme:
The utility model provides a kind of interior empiecement shape labyrinth type drip irrigation tape, comprises the drip irrigation zone housing, and housing is provided with effluent trough and inlet opening, is evenly equipped with the filtering window that communicates with housing on the inlet opening; Be provided with the labyrinth type combined flow channel that communicates with inlet opening and effluent trough respectively in the housing.
Described labyrinth type combined flow channel is made of circular arc runner and the flow path of gear profile of mutual series connection, and circular arc runner and effluent trough communicate, and flow path of gear profile and inlet opening communicate.
The utility model integrates the characteristics of labyrinth type drip irrigation tape and interior edge patch type drip irrigation tape, and labyrinth flow-path reaches a hole vacuum integral heat pressure moulding, cohesive is good, and the accuracy of manufacture is high.Many mouthfuls of water outlets of turbulent, anti-blockage capability is strong.The labyrinth flow-path design, water outlet is even, can reach more than 85%, and laying can reach 80m.Lightweight, installation administration is convenient, and artificial mounting cost is low.Interior edge water dropper carries filtering window, and anti-clogging is good.The turbulent flow runner design.Pour water evenly.Water dropper, pipeline globality are strong.The dripper spacing flexible modulation, applied widely.Cheap.
The condition that the utility model is applicable:
1, is used for the plantation of greenhouse, greenhouse crops, reduces disease and pest, save fertilizer and pesticide, increase economic efficiency.
2, be used for orchard irrigation, but Effective Raise output is improved fruit quality, effectively controls weed growth.
3, be applicable to the multiple field crops such as cotton, Chinese herbal medicine, watermelon, field vegetables, improve the mechanized cultivation dynamics.
4, the drip irrigation zone can be laid around the ridge bending, and is easy to operate.
Description of drawings

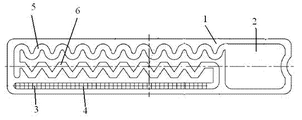

Fig. 1 is the utility model structural representation.
The specific embodiment
As shown in Figure 1, the utility model provides a kind of interior empiecement shape labyrinth type drip irrigation tape, comprises drip irrigation zone housing 1, and housing is provided with effluent trough 2 and inlet opening 3, is evenly equipped with the filtering window 4 that communicates with housing on the inlet opening; Be provided with the labyrinth type combined flow channel that communicates with inlet opening and effluent trough respectively in the housing.
Described labyrinth type combined flow channel is made of circular arc runner 5 and the flow path of gear profile 6 of mutual series connection, and circular arc runner and effluent trough communicate, and flow path of gear profile and inlet opening communicate.
It is Φ 16 that the utility model can be made into specification, rated pressure: 97KPa, flow: 1.3L/H, 2.2L/H, spacing: 300cm-1000cm.
The utility model mainly can be used for the crops such as land for growing field crops, booth, and its characteristics have: each water dropper prevents the plough groove type design of particle invasion with filter independently, and runner is long, even, the wide runner design that drips, and water dropper is difficult for stopping up.Anticorrosion, antibiont stops up, and is anti-aging; Production water dropper flow, spacing, volume length can be mediated according to client's requirement, are 1-3 service life.
It should be noted that at last: obviously, above-described embodiment only is for the utility model example clearly is described, and is not the restriction to embodiment.For those of ordinary skill in the field, can also make other changes in different forms on the basis of the above description.Here need not also can't give all embodiments exhaustive.And the apparent variation of being amplified out thus or change still are among the protection domain of the present utility model.
Claims (2)
1. empiecement shape labyrinth type drip irrigation tape in a kind, it is characterized in that: comprise the drip irrigation zone housing, housing is provided with effluent trough and inlet opening, is evenly equipped with the filtering window that communicates with housing on the inlet opening; Be provided with the labyrinth type combined flow channel that communicates with inlet opening and effluent trough respectively in the housing.
2. interior empiecement shape labyrinth type drip irrigation tape as claimed in claim 1, it is characterized in that: described labyrinth type combined flow channel is made of circular arc runner and the flow path of gear profile of mutual series connection, and circular arc runner and effluent trough communicate, and flow path of gear profile and inlet opening communicate.
