Abstract
本实用新型涉及一种电视遥控器消毒装置，属于机械电子技术领域。消毒盒盖子通过旋转轴和消毒盒固定在一起，消毒盒上设有凸台，凸台上有盖子位置检测开关，消毒盒内部的侧面安装有LED紫外线灯，消毒盒底部设有压力开关，消毒盒外侧上安装有插座，插座可以通过插头和220V家用电源连接。本实用新型可以在电视遥控器不被使用时及时的为其消毒，防止电视遥控器因多人使用受到污染而传播疾病。并且本消毒装置内部安装了压力开关和盖子位置检测开关，确保了只有在消毒盒内放置有电视遥控器，同时消毒盒盖子关闭的状态下装置才工作，既实现了节能，又防止了消毒盒内的紫外线外漏给人体造成的伤害；具有制造简单、造价低廉、可靠性高、应用方便等特点。
The utility model relates to a disinfection device for a TV remote controller, which belongs to the technical field of machinery and electronics. The lid of the disinfection box is fixed together with the disinfection box through the rotating shaft. There is a boss on the disinfection box. There is a cover position detection switch on the boss. The side of the disinfection box is equipped with an LED ultraviolet light. The bottom of the disinfection box is equipped with a pressure switch. A socket is installed on the outside of the box, and the socket can be connected with a 220V household power supply through a plug. The utility model can disinfect the TV remote controller in time when it is not in use, and prevent the TV remote controller from being polluted by many people and spreading diseases. Moreover, a pressure switch and a cover position detection switch are installed inside the disinfection device to ensure that the device works only when a TV remote control is placed in the disinfection box and the lid of the disinfection box is closed, which not only realizes energy saving, but also prevents the disinfection box from The harm caused to the human body by the leakage of ultraviolet rays inside; it has the characteristics of simple manufacture, low cost, high reliability, and convenient application.
Description
Technical field
This utility model relates to a kind of decontaminating apparatus, and particularly a kind of TV remote controller decontaminating apparatus belongs to the mechanotronics field.
Background technology
Hotel or other public places have all disposed television set now; but because these people streams in public places amounts are large; TV remote controller is easy to catch pollutant or antibacterial because many people use; endangering people's health; particularly in places such as hotels; TV remote controller often can be touched by child; and the child head of a family often can ignore these little details; cause very large potential threat for child's safety, therefore invent a kind of TV remote controller decontaminating apparatus and in time will have very large necessity for the TV remote controller sterilization.
The utility model content
For the problems referred to above, this utility model provides a kind of TV remote controller decontaminating apparatus, can when not being used, TV remote controller be timely its sterilization, prevent that TV remote controller from spreading disease because many people use to be subject to polluting, have simultaneously make simple, cheap, reliability is high, use easily characteristics.
The technical solution adopted in the utility model: a kind of TV remote controller decontaminating apparatus is comprised of disinfection box lid 1, disinfection box 2, boss 3, LED Burdick lamp 4, position of cap sense switch 5, pressure switch 6, socket 8, rotating shaft 9; Disinfection box lid 1 is fixed together by rotating shaft 9 and disinfection box 2, disinfection box 2 is provided with boss 3, position of cap sense switch 5 is arranged on the boss 3, the side of disinfection box 2 inside is equipped with LED Burdick lamp 4, disinfection box 2 bottoms are provided with pressure switch 6, disinfection box is equipped with socket 8 on 2 outsides, and socket 8 can be connected with the 220V domestic power supply by plug.
Described sterilization lid 1 is provided with handle 7.
Described LED Burdick lamp 4 is more than one or one.
When described sterilization lid 1 was opened, position of cap sense switch 5 disconnected; When sterilization lid 1 was closed, position of cap sense switch 5 was subject to the pressure of disinfection cap 1 and cuts out.
When described TV remote controller was not placed on above the pressure switch 6, pressure switch 6 was in off-state; In the time of above TV remote is placed on pressure switch 6, pressure switch 6 is subjected to the pressure of TV remote controller generation and closes.
Described disinfection box lid 1, disinfection box 2, boss 3, LED Burdick lamp 4, position of cap sense switch 5, pressure switch 6, handle 7, socket 8, rotating shaft 9 are commercially available common components.
The beneficial effects of the utility model: this utility model can be its sterilization timely when TV remote controller is not used, and prevents that TV remote controller from spreading disease because many people use to be subject to polluting.And pressure switch and position of cap sense switch have been installed in this decontaminating apparatus inside, guaranteed only in disinfection box, to be placed with TV remote controller, the state lower device of disinfection box cover closing is just worked simultaneously, both realized energy-conservationly, prevented again the injury that the ultraviolet in the disinfection box leaks outside and causes to human body; Have the characteristics such as simple, cheap, that reliability is high, application is convenient of making.
Description of drawings

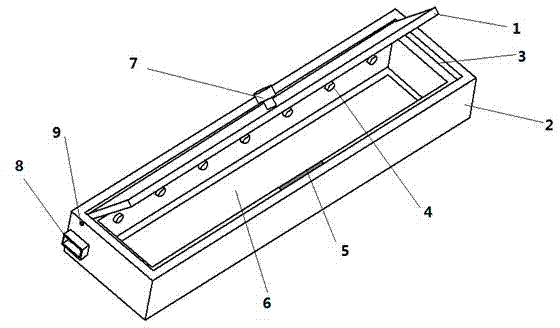

Fig. 1 is structure chart of the present utility model;
Among the figure: sterilization lid 1, disinfection box 2, boss 3, LED Burdick lamp 4, position of cap sense switch 5, pressure switch 6, handle 7, socket 8, rotating shaft 9.
The specific embodiment
The utility model is described in further detail below in conjunction with accompanying drawing.
As shown in Figure 1: a kind of TV remote controller decontaminating apparatus, it mainly is comprised of disinfection box lid 1, disinfection box 2, boss 3, LED Burdick lamp 4, position of cap sense switch 5, pressure switch 6, handle 7, socket 8, rotating shaft 9; Disinfection box lid 1 is installed together by rotating shaft 9 and disinfection box 2, and sterilization lid 1 can rotate to realize around rotating shaft 9 function of its opening and closing; A boss 3 is arranged on the disinfection box 2, a position of cap sense switch 5 is arranged on the boss 3, when sterilization lid 1 was opened, position of cap sense switch 5 disconnected, and when sterilization lid 1 was closed, position of cap sense switch 5 was subject to the pressure of disinfection cap 1 and cuts out; Disinfection box 2 installed inside have LED Burdick lamp 4, and can send ultraviolet is the TV remote controller sterilization; Disinfection box 2 bottoms are provided with pressure switch 6, and in the time of above TV remote controller is not placed on pressure switch 6, pressure switch 6 is in off-state; In the time of above TV remote is placed on pressure switch 6, pressure switch 6 is subjected to the pressure of TV remote controller generation and closes; Disinfection box 2 outsides are equipped with socket 8, and socket 8 can be connected with the 220V domestic power supply by plug, are the device power supply.
On the described sterilization lid 1 handle 7 is installed, people can utilize handle 7 to open easily or close sterilization lid 1.In order to realize more fully sterilizing function, described LED Burdick lamp 4 is more than one or one.
Operation principle of the present utility model: when not placing TV remote controller in the disinfection box 2, owing to the not stressed off-state that is in of pressure switch 5, whether the lid 1 of no matter sterilizing this moment is opened, and the LED Burdick lamp 4 of disinfection box 2 inside is not worked, to realize energy-conservation purpose; When sterilization lid 1 is opened, be in off-state because position of cap sense switch 5 is not stressed always, no matter whether disinfection box 2 inside place TV remote controller, and the LED Burdick lamp 4 of disinfection box 2 inside is not worked, and damage to human body to prevent that ultraviolet from leaking outside; When disinfection box 2 inside are placed with TV remote controller, and sterilization lid 1 is when closing, and pressure switch 6 and position of cap switch are all closed, and it is the TV remote controller sterilization that the LED Burdick lamp 4 of disinfection box 2 inside sends ultraviolet.
This utility model can be its sterilization timely when TV remote controller is not used, prevent that TV remote controller from spreading disease because many people use to be subject to polluting.And pressure switch and position of cap sense switch have been installed in this decontaminating apparatus inside, guaranteed only in disinfection box, to be placed with TV remote controller, the state lower device of disinfection box cover closing is just worked simultaneously, both realized energy-conservationly, prevented again the injury that the ultraviolet in the disinfection box leaks outside and causes to human body; Have the characteristics such as simple, cheap, that reliability is high, application is convenient of making.
This utility model describes by accompanying drawing, in the situation that does not break away from this utility model scope, can also carry out various conversion and be equal to replacement this utility model patent, therefore, this utility model patent is not limited to disclosed specific implementation process, and should comprise the whole embodiments that fall in this utility model Patent right requirement scope.
Claims (5)
1. TV remote controller decontaminating apparatus, it is characterized in that: decontaminating apparatus is comprised of disinfection box lid, disinfection box, boss, LED Burdick lamp, position of cap sense switch, pressure switch, socket, rotating shaft; The disinfection box lid is fixed together by rotating shaft and disinfection box, disinfection box is provided with boss, the position of cap sense switch is arranged on the boss, the side of disinfection box inside is equipped with the LED Burdick lamp, the disinfection box bottom is provided with pressure switch, disinfection box is equipped with socket on the outside, and socket can be connected with the 220V domestic power supply by plug.
2. a kind of TV remote controller decontaminating apparatus according to claim 1, it is characterized in that: described disinfection box is provided with handle.
3. a kind of TV remote controller decontaminating apparatus according to claim 1, it is characterized in that: described LED Burdick lamp is more than one or one.
4. a kind of TV remote controller decontaminating apparatus according to claim 1 is characterized in that: when described sterilization lid was opened, the position of cap sense switch disconnected; When the sterilization lid was closed, the position of cap sense switch was subject to the pressure of disinfection cap and cuts out.
5. a kind of TV remote controller decontaminating apparatus according to claim 1, it is characterized in that: when described TV remote controller was not placed on above the pressure switch, pressure switch was in off-state; In the time of above TV remote is placed on pressure switch, pressure switch is subjected to the pressure of TV remote controller generation and closes.
