CN202776842U - Nursing air mattress capable of assisting lateral turning - Google Patents

Abstract

A nursing air cushion that can assist sideways turning, the nursing air cushion includes a left air cushion and a right air cushion, each of the air cushions is respectively connected to an air pump, and an auxiliary air cushion is respectively provided on the left air cushion and the right air cushion, and the described The auxiliary air cushion is arranged on both sides of the centerline of the nursing air cushion, and the distance between the auxiliary air cushion and the centerline is 10-25cm. The nursing air cushion that can assist side turning of the utility model adopts a double-layer air cushion structure, the upper layer is an auxiliary air cushion, and the lower layer is an air cushion layer for normal use. The air cushion layer of the lower layer is composed of a plurality of small air cushions. In some cases, the auxiliary air cushion can be used to help the patient turn over, which has the advantage of being convenient to use.

Description

Nursing air cushion capable of assisting sideways turning

Technical field:

The utility model belongs to the nursing air cushion in the field of medical equipment, in particular to a nursing air cushion that can assist sideways turning.

Background technique:

   For patients with poor self-care ability or fractures, the air cushion that can assist in turning over can greatly facilitate the nursing work of the nurses. There is a hospital bed on the market consisting of 4 movable bed boards, which are supported by 3 hydraulic cylinders respectively. The bedridden patient can achieve the change of leaning left, leaning right or leaning forward by pressing the button on the controller without the help of others. It greatly improves the self-care ability of patients, reduces the labor intensity of nursing staff, and avoids the occurrence of pressure sores. However, due to the high cost of the turning bed, it can be used clinically in the hospital environment. It is difficult for ordinary families who have pelvic fractures and hip fractures to go home for conservative treatment, so this turning bed is really For this reason, the Chinese utility model patent No. 201020117454 is a patent for turning over pillow, which has been improved. It adopts an air cushion mechanism, including a left pouch that can be placed vertically and side by side from the flat shoulder of the patient to the bottom of the hip. and the right pouch, the left pouch and the right pouch are respectively divided into two pouches horizontally, and the four pouches can be independently inflated and deflated. A bedpan bag that can be independently inflated and deflated is arranged on the defecation position of the patient's buttocks on the turning pillow. When inflated, it is flush with the left and right pouches, and can form a bedpan after deflation. Because the air cushion adopts a single-layer structure, the actual height that can be supported is relatively low, resulting in an unsatisfactory support effect for the patient.

Invention content:

In view of the defects in the prior art, the purpose of this utility model is to provide a nursing air cushion that can overcome the above-mentioned defects and can effectively support the patient to roll over and can assist in turning over.

The technical solution adopted by the utility model to solve the technical problem is: a nursing air cushion that can assist in turning over. The nursing air cushion includes a left air cushion and a right air cushion. Each of the air cushions is connected to the air pump respectively. An auxiliary air cushion is respectively arranged on the side air cushion and the right air cushion, and the auxiliary air cushion is arranged on both sides of the center line of the nursing air cushion, and the distance between the auxiliary air cushion and the center line is 10-25cm. In order to overcome the problem of insufficient propping height of a single air cushion, the utility model adopts a double-layer structure of the bottom layer and an auxiliary propping layer. The width of the auxiliary air cushion from the center line is 10-25 cm, so that the human body has a certain buffer slope when it rolls over. Improve comfort.

The left air cushion and the right air cushion are respectively composed of multiple air cushions. The structure of the multiple air cushions can improve the propping effect and make the propping surface smoother.

The left air cushion and the right air cushion are respectively composed of three air cushions, and the auxiliary air cushion is arranged above the middle of the two middle air cushions. The structure of the three-piece air cushion is at the balance point of convenient manufacture and good supporting effect.

The supporting height of the auxiliary air cushion is 10-20cm. In order to ensure an effective prop-up height, the prop-up height of 10-20cm matches the deflation height of the bottom air cushion, which is just about the width of half of the human body.

The nursing air cushion that can assist in turning over is also provided with a controller, and the controller is provided with a deflation module, an inflation module and a rollover module. The controller is equipped with various control modes, and the single-chip microcomputer is used to control the air pump and each air pipe to realize the function of rollover and ventilation. It is convenient for the patient to use the controller to perform the rollover action by himself.

The nursing air cushion that can assist side turning of the utility model adopts a double-layer air cushion structure. The upper layer is an auxiliary air cushion, and the lower layer is an air cushion layer for normal use. Under certain circumstances, it can cooperate with the auxiliary air cushion to help the patient perform sideways movement, which has the advantage of being convenient to use.

Description of drawings:

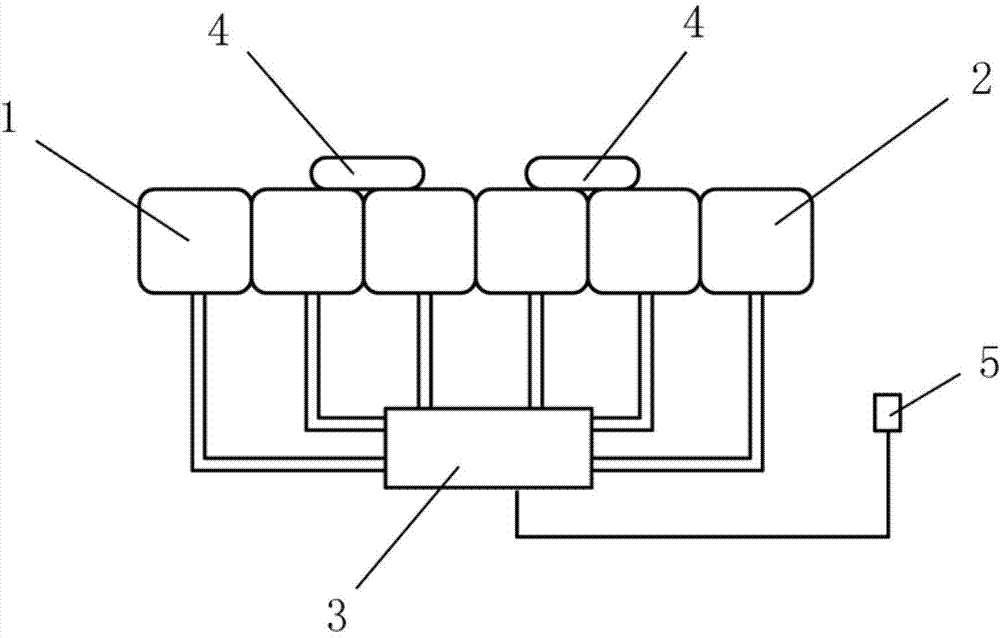

Fig. 1 is the structural representation of the utility model.

Fig. 2 is a schematic diagram of the entire inflation structure of the air cushion of the present invention.

Fig. 3 is a structural schematic diagram of the utility model in an assisted rollover state.

Detailed ways:

As shown in Fig. 1 to Fig. 3, a kind of nursing air cushion that can assist sideways turning over, described nursing air cushion comprises left side air cushion 1 and right side air cushion 2, each described air cushion connects air pump 3 respectively, left side air cushion and right side air cushion An auxiliary air cushion 4 is respectively arranged on the air cushion, and the auxiliary air cushion 4 is arranged on both sides of the center line of the nursing air cushion, and the distance between the auxiliary air cushion and the center line is 10-25cm. The nursing air cushion is composed of a left air cushion 1 and a right air cushion 2 of equal volume. Each air cushion is connected to an air pump 3, and a plurality of control valves are arranged in the air pump 3, which can realize individual control of each air cushion. The auxiliary air cushion 4 is arranged on the bottom air cushion, and the distance from the centerline of the auxiliary air cushion is 10 to 25 cm, which corresponds to the position of the scapula of the human body. The patient rolls over, which greatly facilitates patients with fractures or who cannot turn over independently.

The left air cushion and the right air cushion are respectively composed of multiple air cushions.

The left air cushion and the right air cushion are respectively composed of three air cushions, and the auxiliary air cushion is arranged above the middle of the two middle air cushions. Preferably, the left air cushion and the right air cushion are respectively composed of three air cushions, a total of six bottom air cushions, which have the advantages of uniform force distribution and relatively flat support.

The supporting height of the auxiliary air cushion is 10-20 cm. 10-20cm prop up height, and then cooperate with the deflated lower height of the air cushion on the corresponding side of the bottom layer. Just in line with the required height of the human body turning sideways.

The nursing air cushion that can assist in turning over is also provided with a controller 5, and the controller is provided with a deflation module, an inflation module and a rollover module. Each control module in the controller 5 is connected with an air pump and each valve. It can realize the auxiliary turning of the patient, which greatly reduces the workload of the medical staff. At the same time, it can alternately inflate and deflate the odd-numbered and even-numbered air cushions on the bottom layer to improve the ventilation of the patient's back.

Claims (5)

1. but nursing air cushion that secondary side is stood up, described nursing air cushion comprises left side air cushion (1) and right side air cushion (2), described each air cushion connects respectively air pump (3), it is characterized in that being respectively equipped with on left side air cushion and the right side air cushion an auxiliary air cushion (4), described auxiliary air cushion (4) is arranged on the both sides of nursing air cushion centrage, auxiliary air cushion distance center line 10～25cm.

2. but the nursing air cushion that stands up of secondary side according to claim 1 is characterized in that described left side air cushion and right side air cushion are comprised of the air cushion of polylith respectively.

3. but the nursing air cushion that stands up of secondary side according to claim 1 is characterized in that described left side air cushion and right side air cushion are comprised of three air cushion respectively, and described auxiliary air cushion is arranged on the middle upper part by middle two air cushions.

4. but the nursing air cushion that stands up of secondary side according to claim 3 is characterized in that propping up of described auxiliary air cushion highly is 10～20cm.

But 5. the nursing air cushion that stands up of secondary side according to claim 3, but it is characterized in that the nursing air cushion that described secondary side is stood up also is provided with a controller (5), and described controller is provided with venting module and inflator module and rollover module.
