Abstract

The utility model discloses a warm glove backpack powered by a mobile power supply, comprising a backpack body, on which a hand warming device is arranged, the hand warming device comprising a circulatively rechargeable mobile power supply, a connecting plug and warm gloves, wherein a heating sheet designed according to the characteristics of a human palm is arranged in the warm gloves, one end of the connecting plug is connected to a wire of the circulatively rechargeable mobile power supply, and the other end thereof is connected to a wire of the heating sheet, and the utility model can make the heating sheet generate heat through the circulatively rechargeable mobile power supply, and the product can not only be used for storing things, but also when people are walking on the road or on the way to work in winter, they can also keep warm through the hand warming device of the utility model, and blood circulation is promoted at the same time, the warm gloves can also be disassembled and used alone with the mobile power supply, which is convenient and practical; therefore, the utility model has good application prospects.

Description

Glove warmer backpack with mobile power supply

technical field

The utility model relates to the technical field of knapsacks, in particular to a glove warming knapsack with a mobile power supply for power supply.

Background technique

Backpack is a commonly used storage device in people's daily life. The existing backpack provides convenience for people to travel and carry items. With the development of economy and society and the continuous improvement of people's living standards, in order to meet people's different needs, the current The styles of backpacks are also becoming more and more diverse, but most backpacks only have the traditional wearing function, and their functions and application ranges are relatively single. It is still difficult to find a multi-functional backpack that can be worn on the back and has the function of heating and keeping warm. Seen on the market, in view of above-mentioned existing problem and defective thereof, be necessary to propose new improvement to the design of existing knapsack.

Utility model content

In view of the above problems, the utility model provides a glove warming backpack with a mobile power supply.

The technical scheme that the utility model adopts for solving its technical problem is:

A glove warmer backpack powered by a mobile power supply, comprising a backpack body, characterized in that: the backpack body is provided with a hand warmer, and the hand warmer includes a rechargeable mobile power supply, a connecting plug and warm gloves. A heating sheet is arranged inside the warm glove, and one end of the connecting plug is connected to a rechargeable mobile power supply wire, and the other end is connected to a heating sheet wire.

As a further improvement to the above solution, the warm gloves are detachably mounted on the backpack body through a movable buckle, and the warm gloves can be rotated around the movable buckle.

Further, there are two pairs of warm gloves, and the two pairs of warm gloves are symmetrically arranged on both sides of the bottom of the backpack body.

Further, the warm gloves include a thermal fiber cotton layer as an inner layer and a waterproof nylon cloth layer as an outer layer.

Further, the hand warmer also includes a switch button connected to the rechargeable mobile power supply, so as to control the switch of the rechargeable mobile power supply.

In addition, the heating sheet is connected with a heat generating circuit.

The beneficial effects of the utility model are: the utility model is a glove warming backpack with a mobile power supply, since the backpack body of the utility model is provided with a hand warming device, the hand warming device includes a rechargeable mobile power supply, a connection Plug and warm gloves. There is a heating piece designed according to the characteristics of the human palm in the warming gloves. One end of the connecting plug is connected to the rechargeable mobile power wire, and the other end is connected to the heating piece wire. Make the heat generating sheet heat, this product can not only be used for storage, but also when people walk on the road or on the way to work in winter, they can also keep warm through the hand warmer of the present utility model, and promote blood circulation at the same time, the warm gloves can also be disassembled It is convenient and practical to use alone with the mobile power supply, so it has a good application prospect.

Description of drawings

Below in conjunction with accompanying drawing and embodiment the utility model is further described:

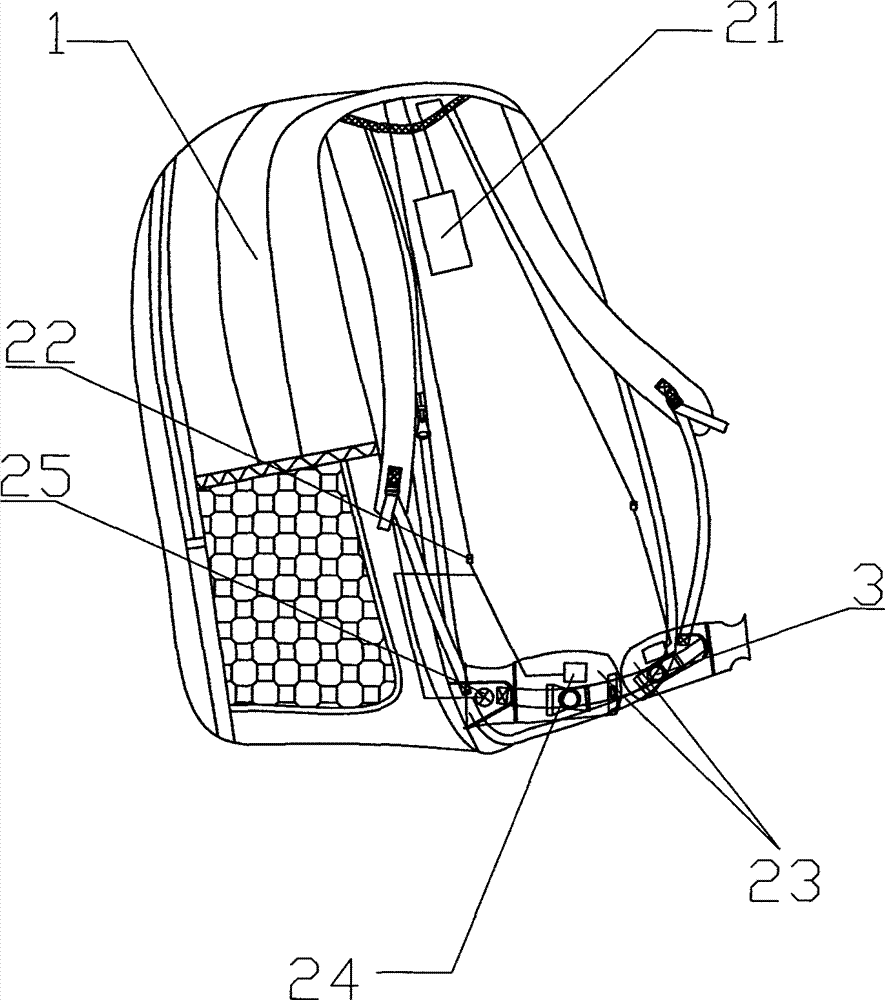

Fig. 1 is a schematic diagram of the three-dimensional structure of the utility model;

Fig. 2 is a schematic diagram of the overall structure of the utility model after the gloves are removed;

Fig. 3 is a schematic diagram of the overall structure of the utility model after the warm gloves are installed;

Fig. 4 is the overall structural schematic diagram 2 after the utility model is installed with warm gloves;

Fig. 5 is a schematic diagram of the overall structure of the left and right warm gloves with heating sheets and movable buckles of the present invention;

Fig. 6 is a schematic structural diagram of the circuit principle of the heat generation circuit of the present invention;

Fig. 7 is a schematic diagram of the separate use connection structure of the glove warmer and the rechargeable mobile power supply according to the present invention.

Detailed ways

Referring to Fig. 1-Fig. 7, a kind of glove warming backpack with mobile power supply power supply includes a backpack body 1, and a hand warming device is arranged on the backpack body 1, and the hand warming device includes a rechargeable mobile power supply 21, a connecting plug 22 and a warming device. Gloves 23, heating gloves 23 are provided with a heating sheet 24, one end of the connecting plug 22 is connected to the rechargeable mobile power supply 21 wires, and the other end is connected to the heating sheet 24 wires, and the heating sheet 24 is connected to the rechargeable mobile power supply 21. Heat generation, this product can not only be used for storing things, but also when people walk on the road or go to work in winter, they can also keep warm through the hand warming device of the utility model, which is convenient and practical.

Glove warmers 23 are detachably installed on the backpack body 1 through the movable buckle 3, and the gloves warmer 23 can rotate around the movable buckle 3. There are two pairs of warm gloves 23, and the two pairs of warm gloves 23 are symmetrically arranged on the The two sides of the bottom of the backpack body 1 are connected in a rotating and movable manner so that the user can adjust the angle according to the needs, which is comfortable and convenient.

Glove warmer 23 comprises the thermal fiber cotton layer as inner layer and the waterproof nylon cloth layer as outer layer, and described warm glove 23 can not only keep warm well, and can waterproof, and its outer layer effect appears in rainy day or snowy day. particularly prominent.

The warm glove 23 is provided with a sewed pouch for placing the heating sheet 24, so that it is more convenient to place and use.

The hand warmer also includes a switch button 25 connected to the rechargeable mobile power supply 21 to control the switch of the rechargeable mobile power supply 21. The setting of the switch button 25 allows the user to actively close or It is convenient and quick to open the warming device.

The heating sheet 24 is connected with a heat generating circuit 26 , and the heat generating circuit 26 provides heat for the heating sheet 24 .

The preferred implementation of the present utility model has been specifically described above. Of course, the present utility model can also adopt forms different from the above-mentioned embodiments, and similar fields, and these do not constitute any limitation to the present embodiment. Equivalent transformations or corresponding changes made by personnel without violating the spirit of the utility model should fall within the protection scope of the utility model.

Claims (6)

1. the glove knapsack of a Tape movement Power supply, comprise knapsack body (1), it is characterized in that: be provided with hand warming device on the described knapsack body (1), described hand warming device comprises rechargeable portable power source capable of circulation (21), attachment plug (22) and glove (23), be provided with fever tablet (24) in the described glove (23), described attachment plug (22) one ends are connected with rechargeable portable power source capable of circulation (21) wire, and its other end is connected with fever tablet (24) wire.

2. the glove knapsack of a kind of Tape movement Power supply according to claim 1, it is characterized in that: described glove (23) is installed on the described knapsack body (1) by movable button (3) is dismountable, and described glove (23) can be rotated around movable button (3).

3. the glove knapsack of a kind of Tape movement Power supply according to claim 2, it is characterized in that: described glove (23) is provided with two pairs, and two pairs of gloves (23) are symmetrical set in the both sides of knapsack body (1) bottom.

4. the glove knapsack of a kind of Tape movement Power supply according to claim 1 and 2 is characterized in that: described glove (23) comprises as the cotton layer of the thermal fiber of internal layer with as outer field waterproof nylon layer of cloth.

5. the glove knapsack of a kind of Tape movement Power supply according to claim 1 and 2, it is characterized in that: described hand warming device also comprises the shift knob (25) that is connected with rechargeable portable power source capable of circulation (21), described rechargeable portable power source capable of circulation (21) is carried out switch control.

6. the glove knapsack of a kind of Tape movement Power supply according to claim 1 and 2, it is characterized in that: described fever tablet (24) is connected with heat generation circuit (26).
