Abstract
本实用新型涉及一种循环液冷式服务器散热系统，包括用于装配在服务器上的散热板和安装在散热板上的风扇以及液冷装置，散热板上开设有至少两个散热孔，每个散热孔内均设置有除湿装置，液冷装置包括装载有液体的冷却管、连接在冷却管一端的冷却水箱以及连接在冷却管另一端的泵，泵与冷却水箱之间通过管道相连通，冷却水箱内安装有冷却器和恒温控制器，冷却管设在风扇后侧。所述的一种循环液冷式服务器散热系统，采用液冷装置，能够使其产生的冷风吹向工作时的服务器，从而有效地对服务器进行降温，从而增加其使用寿命，提高散热效率。
The utility model relates to a circulating liquid-cooled server heat dissipation system, which comprises a heat dissipation plate for assembly on the server, a fan installed on the heat dissipation plate and a liquid cooling device. At least two heat dissipation holes are opened on the heat dissipation plate, each The cooling holes are equipped with dehumidification devices. The liquid cooling device includes a cooling pipe filled with liquid, a cooling water tank connected to one end of the cooling pipe, and a pump connected to the other end of the cooling pipe. The pump and the cooling water tank are connected through pipes to cool A cooler and a constant temperature controller are installed in the water tank, and the cooling pipe is arranged at the rear side of the fan. The circulating liquid-cooled server heat dissipation system uses a liquid cooling device, which can blow the cold air generated by the server to the server during operation, thereby effectively cooling the server, thereby increasing its service life and improving heat dissipation efficiency.
Description
Technical field
The utility model relates to the field of server heat sink, especially a kind of circulation fluid cold type server radiating system.
Background technology
Development along with manufacturing technology, just carrying out the revolution of a hardware device in the computer realm, we are more and more higher for the requirement of computing power on the one hand, and this just requires the processing power of CPU to want high, usually, the processing power of CPU is higher, and the power of consumption is larger, and the heat that distributes is just more, and on the other hand, the profile of computer server cabinet is more and more less, and the ability of its heat radiation is just poor, and this is just so that people have higher requirement to the heat abstractor of computing machine.
The heat radiation of existing computer server cabinet inside, normally utilize fan on the CPU radiating fin to realize the effect of dispelling the heat, its such heat dissipating method radiating effect is poor, because the air-cooled of fan is to blow to server by the air in the cabinet, because the original temperature of air in the cabinet is just relatively high, hot blast is blowed to server, and such method does not reach the effect of refrigeration, and it easily causes server is lifetime.
Summary of the invention
The technical problems to be solved in the utility model is: in order to overcome the problem of above-mentioned middle existence, provide a kind of circulation fluid cold type server radiating system, its good cooling results, can radiating efficiency high and server is increased serviceable life.
The technical scheme that its technical matters that solves the utility model adopts is: a kind of circulation fluid cold type server radiating system, comprise be used to the heat sink and the fan and the liquid cooling apparatus that are installed on the heat sink that are assemblied on the server, offer at least two louvres on the described heat sink, be provided with dehydrating unit in each louvre, described liquid cooling apparatus comprises the cooling tube that is mounted with liquid, be connected to the cooling water tank of cooling tube one end and the pump that is connected to the cooling tube other end, be connected by pipeline between described pump and the cooling water tank, refrigeratory and radiator valve are installed in the cooling water tank, and described cooling tube is located at the fan rear side.
In order to reach better cooling effect, described cooling tube is to be combined by a plurality of U-shaped pipes.
Offer three louvres on the described heat sink.
The beneficial effects of the utility model are: described a kind of circulation fluid cold type server radiating system, adopt liquid cooling apparatus, the server in the time of can making the cold wind of its generation blow to work, thus effectively server is lowered the temperature, thereby increase its serviceable life, improve radiating efficiency.
Description of drawings
Below in conjunction with drawings and Examples the utility model is further specified.

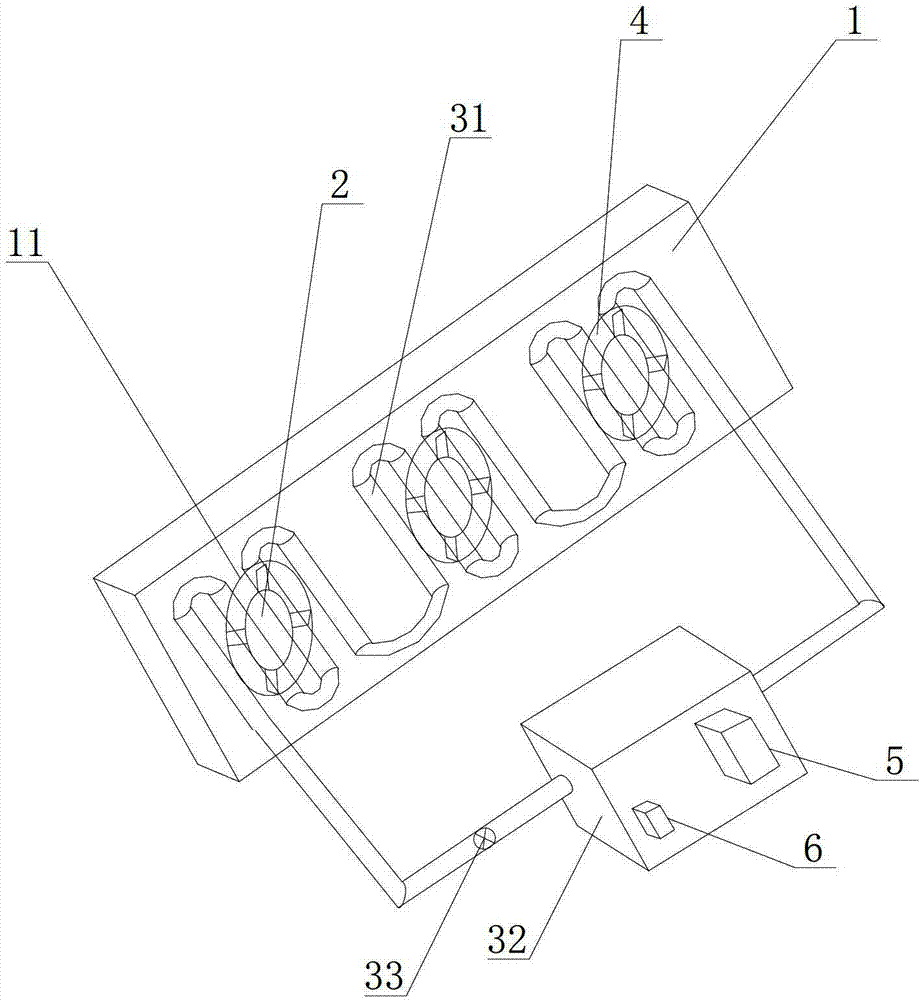

Fig. 1 is the one-piece construction schematic diagram of a kind of circulation fluid cold type server radiating system described in the utility model.
Accompanying drawing acceptance of the bid score state as follows: 1, heat sink, 11, louvre, 2, fan, 31, cooling tube, 32, cooling water tank, 33, pump, 4, dehydrating unit, 5, refrigeratory, 6, radiator valve.
Embodiment
By reference to the accompanying drawings the utility model is described in further detail now.These accompanying drawings are the schematic diagram of simplification, basic structure of the present utility model only is described in a schematic way, so it only show the formation relevant with the utility model.
A kind of circulation fluid cold type server radiating system as shown in Figure 1, comprise be used to the heat sink 1 that is assemblied on the server, offer three louvres 11 at heat sink 1, fan 2 corresponding louvres 1 are installed on the heat sink 1, be provided with dehydrating unit 4 in each louvre 11, the cooling tube 31 of loading liquid is installed at the rear of fan 2, cooling tube 31 is combined by a plurality of U-shaped pipes, one end of cooling tube 31 connects cooling water tank 32, the other end connects pump 33, between pump 33 and cooling water tank 32, be connected by pipeline, refrigeratory 5 and radiator valve 6 are installed in cooling water tank 32.
A kind of circulation fluid cold type server radiating system of the present utility model, in the server course of work, start the pump 33 that is connected on the cooling tube 31, effect by pump 33 passes into the liquid coolant in the cooling tube 31 in the cooling tube 31, effect by fan 2, cold wind is blown out from dehydrating unit 4, thereby accelerate server is dispelled the heat, enter cooling water tank 32 in from the liquid that cooling tube 31 other ends flow out this moment, effect by refrigeratory 5, liquid in the cooling water tank 32 is freezed, thus again circulation.
Take above-mentioned foundation desirable embodiment of the present utility model as enlightenment, by above-mentioned description, the relevant staff can in the scope that does not depart from this utility model technological thought, carry out various change and modification fully.The technical scope of this utility model is not limited to the content on the instructions, must determine its technical scope according to the claim scope.
Claims (3)
1. circulation fluid cold type server radiating system, it is characterized in that: comprise be used to being assemblied in the heat sink (1) on the server and being installed in fan (2) and liquid cooling apparatus on the heat sink (1), offer at least two louvres (11) on the described heat sink (1), be provided with dehydrating unit (4) in each louvre (11), described liquid cooling apparatus comprises the cooling tube (31) that is mounted with liquid, the pump (33) that is connected to the cooling water tank (32) of cooling tube (31) one ends and is connected to cooling tube (31) other end, be connected by pipeline between described pump (33) and the cooling water tank (32), refrigeratory (5) and radiator valve (6) are installed in the cooling water tank (32), and described cooling tube (31) is located at fan (2) rear side.
2. a kind of circulation fluid cold type server radiating system according to claim 1, it is characterized in that: described cooling tube (31) is to be combined by a plurality of U-shaped pipes.
3. a kind of circulation fluid cold type server radiating system according to claim 1 is characterized in that: offer three louvres (11) on the described heat sink (1).
