Abstract
A sputum collecting container is characterized by comprising a container body and a container cover, a container opening is arranged at the upper end of the container body, the container cover is mounted on the container opening, a connecting sleeve matched with a connector component in a trachea cannula is arranged on the rear side wall of the container body, the rear end of the connecting sleeve is connected with the rear side wall of the container body, a cavity of the connecting sleeve is communicated with a chamber of the container body, and two through holes are arranged on the left side wall and the right side wall of the container body respectively. The sputum collecting container is connected onto the trachea cannula used after tracheotomy to enable one end, exposed out of a human body, of the trachea cannula to be communicated with the chamber of the container body, and after sputum generated by a patient is sprayed out of the trachea cannula, the sputum is blocked and collected by the sputum collecting container, so that the sputum of the patient subjected to trachea incision is effectively prevented from being sprayed to the surrounding environment. The sputum collecting container is simple in structure, low in manufacture cost, convenient to use and beneficial to popularization and application.
Description
Technical field
This utility model relates to medical apparatus and instruments, specifically, relates to a kind of sputum collecting container.
Background technology
In clinical emergency treatment, for the respiratory tract obstruction patient, often implement bronchotomu, insert tracheal intubation after the tracheotomy, to rebuild respiratory tract.Used tracheal intubation generally comprises conduit, air bag, gas tube, charge valve and fixing head; Air bag is located at conduit one end, and gas tube is located at conduit one side (gas tube is close to catheter wall usually), and charge valve is communicated with air bag through gas tube, and the conduit other end is typically provided with interface unit, tracheal intubation can be connected with respirator by interface unit; The conduit stage casing is connected with fixing head, and the fixing head two ends are respectively equipped with eyelet, and the eyelet at fixing head two ends is used for installing frenulum.During use, conduit is provided with an end of air bag in incision of trachea inserts trachea, until fixing head touch the patient's neck front side; Then pass through charge valve, gas tube to airbag aeration, make airbag inflation and touch inner surface of trachea; After by frenulum the fixing head two ends being connected, frenulum places the patient's neck rear side, thereby the position of tracheal intubation is fixed.Yet, in the intubate process and after the intubate, easily causing patient during the patient's trachea irriate and acutely cough, sputum outwards sprays through tracheal intubation, can pollute surrounding.
Summary of the invention
Technical problem to be solved in the utility model provides a kind of sputum collecting container, and this sputum collecting container can be collected the sputum from the tracheal intubation ejection, prevents that effectively the patient's of tracheotomy sputum is ejected in the surrounding.The technical scheme that adopts is as follows:
A kind of sputum collecting container is characterized in that comprising container body and container cover, and the container body upper end is provided with vessel port, and container cover is installed in the vessel port; The rear wall of container body is provided with the branch sleeve that matches with interface unit in the tracheal intubation, and the rear end of branch sleeve is connected with the rear wall of container body, and the cavity of branch sleeve is communicated with the cavity of container body; Be respectively equipped with a through hole on the left side wall of container body and the right side wall.
During use, the interface unit of tracheal intubation embeds in the cavity of branch sleeve; The inner surface of branch sleeve and the external surface shape of interface unit and size are complementary, so that the frictional force between the inner surface of the outer surface of dependence interface unit and branch sleeve can make interface unit reliably be connected with branch sleeve.Interface unit is with after branch sleeve is connected, and the conduit in the tracheal intubation is communicated with the cavity of container body through the cavity of interface unit, and like this, the sputum that penetrates from tracheal intubation is collected in the cavity of container body not outwards splash.The rear end of branch sleeve is connected with the rear wall of container body, and like this, branch sleeve is in the cavity of container body, and structure is compacter, the more close patient's neck of sputum collecting container during use.
The above-mentioned through hole of being located on container body left side wall and the right side wall plays following effects: (1) can insert for oxygen catheter, to increase oxygen supply; (2) can insert for syringe pipe, syringe pipe passes into humidification fluid with the secretions in the humidifying respiratory tract, is convenient to the suction of secretions; (3) permeation functions, outside air can enter in the patient body through cavity, the tracheal intubation of above-mentioned through hole, container body, and patient's Exhaled gasesS can be discharged through the cavity of tracheal intubation, container body, above-mentioned through hole.Usually, above-mentioned through hole is in the branch sleeve top.
In the preferred version, the said vesse body is provided with out the expectorant pipe, goes out expectorant Guan Yiduan and is communicated with the bottom of container body cavity, goes out the expectorant pipe other end and is provided with pipe end-cap.When the sputum of collecting in the container body is more, pull up pipe end-cap, and use the expectorant pipe and be connected with sputum aspirator, by sputum aspirator with the sputum sucking-off in the container body, can prevent that on the one hand sputum from too much blocking tracheal intubation, can make on the other hand whole sputum collecting container keep lighter weight.The aforementioned tube end cap can be by a connecting band with container body or go out the expectorant pipe and be connected, and loses after pipe end-cap from pulling up preventing.
In the preferred version, the said vesse lid comprises that lower cover and loam cake, loam cake are in the lower cover top, and lower cover is installed in the vessel port; The lower cover centre is provided with locating shaft, and the loam cake centre is provided with locating hole, and locating shaft is in the locating hole, and the locating shaft upper end has limiting section, and loam cake is in limiting section below (being that loam cake is between lower cover and the limiting section); Loam cake comprises upper cover section and upper ventilation part, and upper ventilation part is provided with ventilative window; Lower cover comprises lower seal cap and lower ventilation part, and lower ventilation part is provided with a plurality of air-vents.Loam cake can rotate with respect to lower cover around locating shaft, thereby changes the position of ventilative window.In the time of in certain air-vent is in ventilative window ranges, the cavity of container body is in communication with the outside by this air-vent, ventilative window, and this air-vent plays permeation functions; When certain air-vent was covered in by upper cover section, this air-vent can not play permeation functions, like this, by changing the position of ventilative window, made the air-vent of varying number be in the ventilative window ranges venting capability of scalable container body.
This utility model is connected on the tracheal intubation used behind the bronchotomu, make tracheal intubation be exposed at the cavity of an external end connection container body, the sputum that patient produces is after the tracheal intubation ejection, blocked and collect by the sputum collecting container, prevent that effectively the patient's of tracheotomy sputum is ejected in the surrounding.This utility model is simple in structure, and cost of manufacture is lower, and easy to use, is conducive to apply.
Description of drawings

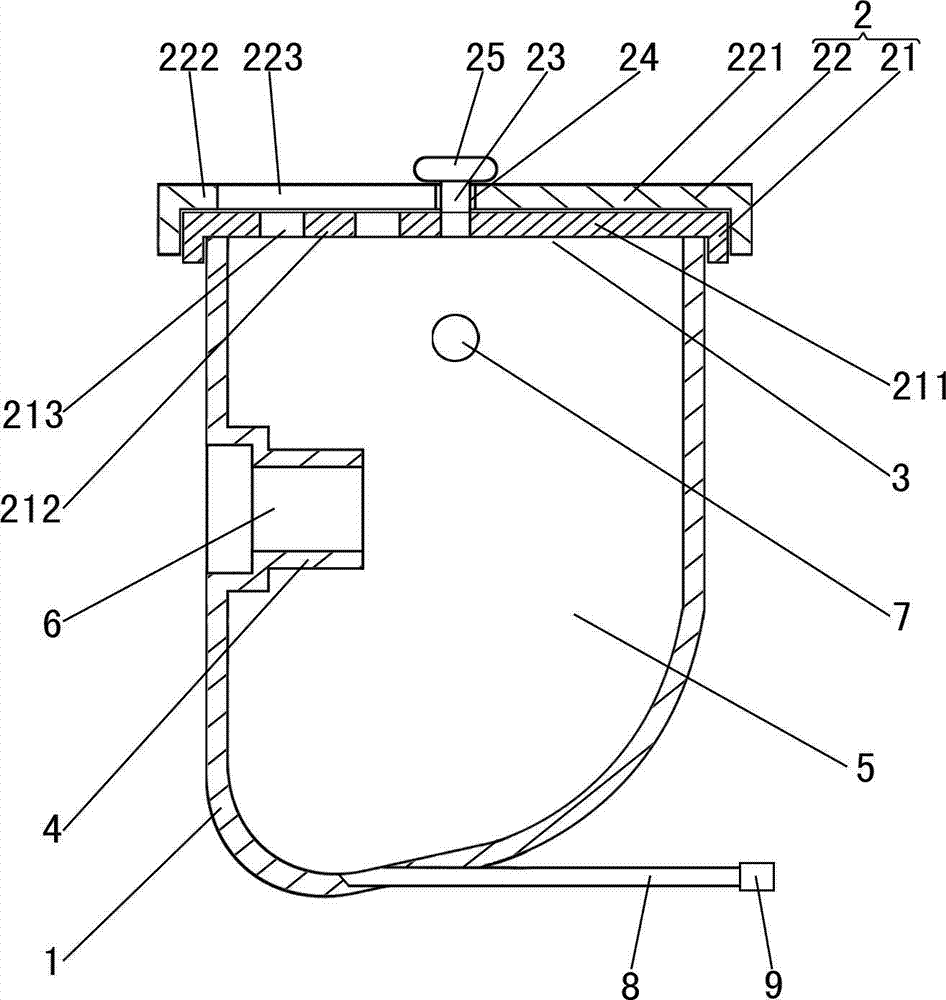

Fig. 1 is the structural representation of this utility model preferred embodiment;
Fig. 2 is the user mode schematic diagram of this utility model preferred embodiment.
The specific embodiment
As shown in Figure 1, this sputum collecting container comprises container body 1 and container cover 2, and container body 1 upper end is provided with vessel port 3, and container cover 2 is installed in the vessel port 3; The rear wall of container body 1 is provided with the branch sleeve 4 that matches with interface unit in the tracheal intubation, the rear end of branch sleeve 4 is connected (branch sleeve 4 is in the cavity 5 of container body 1) with the rear wall of container body 1, the cavity 6 of branch sleeve 4 is communicated with the cavity 5 of container body 1; Be respectively equipped with a through hole 7 on the left side wall of container body 1 and the right side wall.Container body 1 is provided with out expectorant pipe 8, goes out expectorant pipe 8 one ends and is communicated with the bottom of the cavity 5 of container body 1, goes out expectorant pipe 8 other ends and is provided with pipe end-cap 9.
In the present embodiment, container cover 2 comprises lower cover 21 and loam cake 22, and loam cake 22 is in lower cover 21 tops, and lower cover 21 is installed in the vessel port 3; Lower cover 21 centres are provided with locating shaft 23, loam cake 22 centres are provided with locating hole 24, locating shaft 23 is in the locating hole 24, and locating shaft 23 upper ends have limiting section 25, and loam cake 22 is in limiting section 25 belows (being that loam cake 22 is between lower cover 21 and the limiting section 25); Loam cake 22 comprises upper cover section 221 and upper ventilation part 222, and upper ventilation part 222 is provided with ventilative window 223; Lower cover 21 comprises lower seal cap 211 and lower ventilation part 212, and lower ventilation part 212 is provided with a plurality of air-vents 213.Loam cake 22 can rotate with respect to lower cover 21 around locating shaft 23, thereby changes the position of ventilative window 223.In the time of in certain air-vent 213 is in ventilative window 223 scopes, the cavity 5 of container body 1 is in communication with the outside by this air-vent 213, ventilative window 223, and this air-vent 213 plays permeation functions; When certain air-vent 213 is covered in by upper cover section 221, this air-vent 213 can not play permeation functions, like this, and by changing the position of ventilative window 223, make the air-vent 213 of varying number be in ventilative window 223 scopes venting capability of scalable container body 1.
With reference to figure 2, tracheal intubation comprises conduit 11, air bag 12, gas tube 13, charge valve 14 and fixing head 15; Air bag 12 is located at conduit 11 1 ends, and gas tube 13 is located at conduit 11 1 sides (gas tube 13 is close to the wall of conduit 11), and charge valve 14 is communicated with air bag 12 through gas tube 13, and conduit 11 other ends are provided with interface unit 16; Conduit 11 stage casings are connected with fixing head 15, and fixing head 15 two ends are respectively equipped with eyelet, and the eyelet at fixing head 15 two ends is used for installing frenulum; External surface shape and the size of the inner surface of branch sleeve 4 and interface unit 16 are complementary.During use, can be first the interface unit 16 of tracheal intubation be embedded in the cavity 6 of branch sleeves 4, interface unit 16 is connected with branch sleeve 4; Then conduit 11 is provided with an end of air bag 12 in incision of trachea inserts trachea, until fixing head 15 touch the patient's neck front side; Then by charge valve 14,12 inflations of 13 pairs of air bags of gas tube, make air bag 12 expansions and touch inner surface of trachea; After by frenulum fixing head 15 two ends being connected, frenulum places the patient's neck rear side, thereby the position of tracheal intubation is fixed, and interface unit 16 and sputum collecting container are exposed at external.In addition, after the insertion that also can finish first tracheal intubation reached and fixes, the interface unit 16 with tracheal intubation embedded in the cavity 6 of branch sleeves 4 again, and interface unit 16 is connected with branch sleeve 4.
When the sputum of container body 1 interior collection is more, pull up pipe end-cap 9, and use expectorant pipe 8 and be connected with sputum aspirator, by sputum aspirator with the sputum sucking-off in the container body 1.
When needing to increase oxygen supply, oxygen catheter can be inserted in the cavity of container body through a through hole 7; When needing the secretions in the humidifying respiratory tract, cavity 5, the interface unit 16 of syringe pipe through another through hole 7, container body 1 can be inserted in the conduit 11, pass into humidification fluid from syringe pipe.
In case of necessity, can open container cover 2, sputum aspirator tube be stretched in the conduit 11 through vessel port 3, carry out suction sputum.
Claims (2)
1. a sputum collecting container is characterized in that comprising container body and container cover, and the container body upper end is provided with vessel port, and container cover is installed in the vessel port; The rear wall of container body is provided with the branch sleeve that matches with interface unit in the tracheal intubation, and the rear end of branch sleeve is connected with the rear wall of container body, and the cavity of branch sleeve is communicated with the cavity of container body; Be respectively equipped with a through hole on the left side wall of container body and the right side wall.
2. sputum collecting container according to claim 1, it is characterized in that: described container body is provided with out the expectorant pipe, goes out expectorant Guan Yiduan and is communicated with the bottom of container body cavity, goes out the expectorant pipe other end and is provided with pipe end-cap.
