Abstract

The utility model discloses a digital operating room safety door control management system, which includes an electric switch door, a computer, a central server and a first RFID authentication module matched with the electric switch door, and the control terminal of the switch control motor of the electric switch door is connected to the computer The signal output end of the computer, the signal input end of the computer is connected to the signal output end of the first RFID authentication module, the data communication interface of the computer is connected to the central server, and it also includes an RFID authentication card matched with the first RFID authentication module. The utility model is composed of an RFID authentication module, an RFID authentication card, a computer, an electric switch door, an electric switch locker, a shoe locker and a central server. After the RFID authentication module senses the RFID authentication card, it can control the motor to automatically open the door of the operating room, so that the medical staff does not need to push the door by hand or open the wardrobe and shoe cabinet with a key, which facilitates the entry and exit of the medical staff.

Description

Digital operating room security door control management system

technical field

The utility model relates to the field of electronic technology, in particular to a digital operating room safety door control management system.

Background technique

The existing operating room access control system consists of a door and an access control mechanical switch. The access control mechanical switch is placed on the ground. When medical personnel need to enter and exit the operating room, they step on the access control mechanical switch to open the door, and then push the door open. However, it is found in actual work that most of the medical staff who enter and leave the operating room will carry surgical instruments, which will cause inconvenience when pushing the door. In addition, pushing the door by hand may also bring bacteria on the door into the operating room, causing potential safety hazards.

Contents of the invention

The purpose of this utility model is to provide a digital operating room safety gate control management system, which can facilitate medical staff to enter and exit the operating room, and is beneficial to prevent bacteria from being carried into the operating room.

In order to achieve this goal, the digital operating room safety door control management system designed by the utility model is characterized in that it includes an electric switch door, a computer, a central server and a first RFID (Radio Frequency Identification, radio frequency identification) that cooperates with the electric switch door. ) authentication module, wherein, the control end of the switch control motor of the electric switch door is connected to the signal output end of the computer, the signal input end of the computer is connected to the signal output end of the first RFID authentication module, and the data communication interface of the computer is connected to the center A server, which also includes an RFID authentication card matched with the first RFID authentication module.

In the above technical solution, it also includes an electric switch locker and a second RFID authentication module that cooperates with the electric switch locker. The control end of the cabinet switch control motor of the electric switch locker is connected to the signal output end of the computer. The signal input end of the computer is connected to the signal output end of the second RFID authentication module, and the RFID authentication card is also matched with the second RFID authentication module.

In the above technical solution, it also includes an electric switch shoe changing cabinet and a third RFID authentication module cooperating with the electric switch shoe changing cabinet, the control end of the cabinet switch control motor of the electric switch shoe changing cabinet is connected to the signal output end of the computer The signal input end of the computer is connected to the signal output end of the third RFID authentication module, and the RFID authentication card is also matched with the third RFID authentication module.

The utility model is composed of an RFID authentication module, an RFID authentication card, a computer, an electric switch door, an electric switch locker and a central server. After receiving the RFID authentication card, the motor can be controlled to automatically open the door of the operating room, so that the medical staff does not need to push the door by hand, which facilitates the entry and exit of the medical staff. In addition, it also avoids bringing the bacteria on the door into the operating room.

Description of drawings

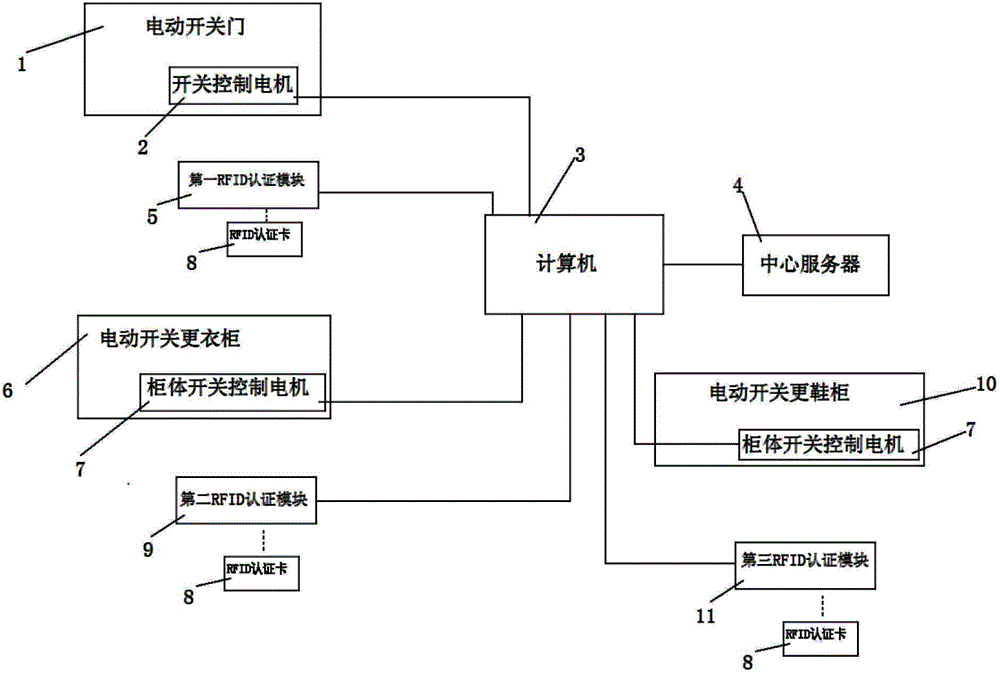

Fig. 1 is a structural block diagram of the utility model.

Among them, 1—electric switch door, 2—switch control motor, 3—computer, 4—central server, 5—RFID authentication module, 6—electric switch locker, 7—cabinet switch control motor, 8—RFID authentication card, 9—the second RFID authentication module, 10—the electric switch shoe cabinet, 11—the third RFID authentication module.

Detailed ways

Below in conjunction with accompanying drawing and specific embodiment the utility model is described in further detail:

A kind of digital operating room safety door control management system shown in Fig. 1, it comprises electric switch door 1, computer 3, central server 4 and the first RFID authentication module 5 that cooperates with electric switch door 1, wherein, electric switch door 1 The control end of the switch control motor 2 is connected to the signal output end of the computer 3, the signal input end of the computer 3 is connected to the signal output end of the first RFID authentication module 5, and the data communication interface of the computer 3 is connected to the central server 4, which also includes a connection with the first RFID authentication module 5. An RFID authentication card 8 matched with the RFID authentication module 5 .

In the above technical solution, it also includes an electric switch locker 6, a second RFID authentication module 9 cooperating with the electric switch locker 6, and the control end of the cabinet switch control motor 7 of the electric switch locker 6 is connected to the signal output of the computer 3 The signal input end of the computer 3 is connected to the signal output end of the second RFID authentication module 9, and the RFID authentication card 8 is also matched with the second RFID authentication module 9.

In the above technical solution, it also includes an electric switch shoe changing cabinet 10, a third RFID authentication module 11 cooperating with the electric switch shoe changing cabinet 10, the control terminal of the cabinet switch control motor 7 of the electric switch shoe changing cabinet 10 is connected to the computer 3 The signal output end of the computer 3 is connected to the signal output end of the third RFID authentication module 11, and the RFID authentication card 8 is also matched with the third RFID authentication module 11.

When the utility model is working: the RFID authentication card 8 is sewn on the sleeve of the surgical garment or implanted into the surgical shoe, and it is automatically verified when it passes through the ground sense monitoring area; An RFID authentication module 5 transmits the verified signal to the computer 3, and the computer 3 controls the switch to control the motor 2 to open the electric switch door 1; the second RFID authentication module 9 transmits the verified signal to the computer 3, and the computer 3 cabinet switch control The motor 7 turns on the electric switch locker 6, the third RFID authentication module 11 transmits the verified signal to the computer 3, and the computer 3 cabinet switch controls the motor 7 to turn on the electric switch to change the shoe cabinet 10, and the above-mentioned central server 4 is used to store the RFID authentication information.

The above-mentioned technical scheme can effectively control infection and ensure patient safety. The traditional door control system can only set simple logical judgments, but the system uses RFID tags, wireless reading and writing equipment, door control, controllable wardrobes and other technical means to standardize the behavior of medical staff in the workflow. Effectively control infection in the operating room.

The content not described in detail in this specification belongs to the prior art known to those skilled in the art.

Claims (3)

1. A digital operating room safety door control management system, characterized in that it includes an electric switch door (1), a computer (3), a central server (4) and a first RFID authentication module that cooperates with the electric switch door (1) (5), wherein, the control terminal of the switch control motor (2) of the electric switch door (1) is connected to the signal output terminal of the computer (3), and the signal input terminal of the computer (3) is connected to the first RFID authentication module (5 ), the data communication interface of the computer (3) is connected to the central server (4), which also includes an RFID authentication card (8) matching the first RFID authentication module (5). 2. The digital operating room safety door control management system according to claim 1, characterized in that it also includes an electric switch locker (6), and a second RFID authentication module (9) cooperating with the electric switch locker (6) , the control terminal of the cabinet switch control motor (7) of the electric switch locker (6) is connected to the signal output terminal of the computer (3), and the signal input terminal of the computer (3) is connected to the second RFID authentication module (9 ), the RFID authentication card (8) is also matched with the second RFID authentication module (9). 3. The digital operating room security door control management system according to claim 1, characterized in that it also includes an electric switch shoe changing cabinet (10), a third RFID authentication module ( 11), the control terminal of the cabinet switch control motor (7) of the electric switch shoe cabinet (10) is connected to the signal output terminal of the computer (3), and the signal input terminal of the computer (3) is connected to the third RFID certification The signal output end of the module (11), the RFID authentication card (8) is also matched with the third RFID authentication module (11).
