Abstract
本实用新型的一种镍铁炉的下料仓，镍铁炉的上面设有下料仓，下料仓为圆柱形管道，竖直设置在镍铁炉上，下料仓底端与镍铁炉顶端焊接连接，本实用新型的下料仓管道的竖直设计，使下料速度加快，避免物料的积存和下料仓的堵塞，提高了生产效率。
The utility model relates to a feeding bin of a nickel-iron furnace. The upper side of the nickel-iron furnace is provided with a lowering bin. The lowering bin is a cylindrical pipe, which is vertically arranged on the nickel-iron furnace. The top of the furnace is welded and connected, and the vertical design of the feeding bin pipeline of the utility model accelerates the feeding speed, avoids the accumulation of materials and the blockage of the feeding bin, and improves the production efficiency.
Description
Technical field
The utility model relates to a kind of blanking bin of ferronickel stove.
Background technology
The ferronickel stove is the equipment that is specifically designed to smelting ferronickel, native nickel minerals and coke powder are carried out sintering and screening after, and the lime stone coke is together, sends into the ferronickel stove by blanking bin, carries out the casting of ferronickel.Blanking bin on the ferronickel stove in the past has the angle of inclination about 45 ° usually, causes blanking velocity slower, and material accumulates on the inwall of blanking bin easily, the obstruction that causes easily blanking bin of long duration, make the Speed Reduction of blanking, blanking action is not smooth, affects production efficiency.
The utility model content
In order to address the above problem, consider that blanking bin inconvenience is cleaned and the characteristic of dredging, the utility model has been developed a kind of blanking bin of ferronickel stove, be provided with blanking bin above the ferronickel stove, described blanking bin is cylindrical pipe, vertically be arranged on the described ferronickel stove, described blanking bin bottom and described ferronickel furnace roof end are welded to connect.
Be provided with uniformly two or more described blanking bins on the described ferronickel stove.
Described blanking bin diameter is 0.5m-1m.
The beneficial effects of the utility model are that the blanking bin that vertically arranges improves blanking velocity, and is smooth and easy, is difficult for stopping up, and improved production efficiency.
Description of drawings

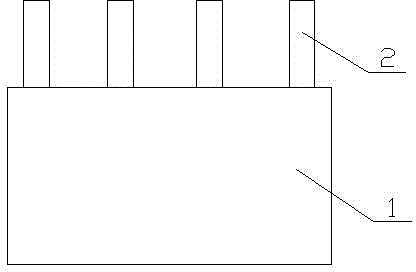

Fig. 1 is front view of the present utility model.
Wherein, 1-ferronickel stove, 2-blanking bin.
The specific embodiment
As shown in Figure 1, the blanking bin of a kind of ferronickel stove of the present utility model, be provided with blanking bin 2 above the ferronickel stove 1, described blanking bin 2 is cylindrical pipe, vertically be arranged on the described ferronickel stove 1, described blanking bin 2 bottoms and described ferronickel stove 1 top are welded to connect, and are provided with uniformly eight described blanking bins 2 on the described ferronickel stove 1, and described blanking bin 2 diameters are 0.5m.
The vertical design of blanking bin pipeline of the present utility model is accelerated blanking velocity, avoids the obstruction with blanking bin of accumulating of material, has improved production efficiency.
