Abstract

A clinical nursing support pad, the support pad includes a leg support pad and a foot support pad, the leg support pad includes a thigh load-bearing surface, a calf load-bearing surface and a bottom surface, the thigh load-bearing surface is connected to the calf load-bearing surface, and the two are respectively placed on the bottom surface connection; the foot support pad includes a foot bearing surface, an outer surface and a bottom surface, the foot bearing surface is connected to the outer surface, and the two are respectively connected to the bottom surface; Removable connection; calf bearing surface and foot bearing surface connect at an angle. The leg support pad of the utility model supports the legs to an ideal height, disperses the force on the buttocks, reduces the force on the sacrum, and reduces the possibility of pressure sores. A 90-degree angle is formed between the leg support pad and the foot support pad to prevent foot drop and heel pressure sores. This ensures that the patient rests comfortably in bed, and reduces the chance of the patient being partially compressed when lying on the back. For long-term bedridden patients, it is beneficial to the blood return of the lower limbs and prevents edema and thrombus formation.

Description

Clinical Care Support Pad

technical field

The invention relates to a support pad, in particular to a clinical nursing support pad which can raise the lower limbs and prevent foot drop when long-term bedridden patients (especially critically ill patients) lie on their backs.

Background technique

At present, when nurses in the hospital are nursing bedridden patients, especially critically ill patients, in order to ensure good blood flow in the lower limbs of the patient and local pressure, they will add various soft pillows and cushions to raise the lower limbs of the patient, but they are not professional nursing pads. It is inconvenient, and it is difficult to achieve an ideal fixed position and fixed height, so it directly affects the nursing effect, and even affects the safety of patients.

In view of the above defects in the prior art, how to improve and make up for the defects has become a research hotspot for those skilled in the art.

Contents of the invention

The purpose of the present invention is to provide a clinical nursing support pad which is convenient to use and good in nursing effect.

In order to achieve the above object, the concrete technical scheme that the present invention adopts is:

A clinical nursing support pad, the support pad includes a leg support pad and a foot support pad, the leg support pad includes a thigh load-bearing surface, a calf load-bearing surface and a bottom surface, the thigh load-bearing surface is connected to the calf load-bearing surface, and the two are respectively connected to the bottom surface; the foot support pad includes a foot bearing surface, an outer surface and a bottom surface, the foot bearing surface is connected to the outer surface, and the two are respectively connected to the bottom surface; the bottom surface of the leg support pad and the foot The bottom surface of the support pad is fixedly connected or detachably connected; the bearing surface of the calf and the bearing surface of the foot are connected at a certain angle.

Preferably, the cross-section of the leg support pad is triangular, the angle between the bearing surface of the thigh and the bottom surface is 20-60 degrees, and the angle between the bearing surface of the calf and the bottom surface is 20-60 degrees.

Preferably, a transition connection surface is also provided between the thigh bearing surface and the calf bearing surface of the leg support pad.

Preferably, the transition connection surface is a plane or an arc surface.

Preferably, the cross-section of the foot support pad is triangular, and the included angle between the foot support surface and the bottom surface is 20-60 degrees.

Preferably, a transition connection surface is provided between the foot bearing surface and the outer surface of the foot support pad.

Preferably, the transition connection surface is a plane or an arc surface.

Preferably, the lower leg bearing surface and the foot bearing surface are perpendicular to each other.

Preferably, the height of the leg support pad is 15-45 cm; the height of the leg support pad is 15-45 cm.

Preferably, an auxiliary pad for increasing the height of the leg support pad is also included.

The utility model can select the cloth of pure cotton material as the overcoat to ensure good sweat-absorbing and air-permeable properties. The support pad as a whole can be made of sponge material, which is light, comfortable and easy to support. It can also be made into a portable inflatable type.

The beneficial effects of the utility model:

The utility model solves the problem of difficulty in nursing long-term bedridden patients. The leg support pad can effectively support the legs to an ideal height, disperse the force on the buttocks, reduce the force on the sacrum, and reduce the risk of pressure sores. possible. A 90-degree angle is formed between the leg support pad and the foot support pad, which effectively prevents the occurrence of patient's foot drop and heel pressure sore. This ensures that the patient rests comfortably in bed, and reduces the chance of the patient being partially compressed when lying on the back. For long-term bedridden patients, it is beneficial to the blood return of the lower limbs and prevents edema and thrombus formation.

Description of drawings

Fig. 1 is the structural representation of the utility model embodiment 1;

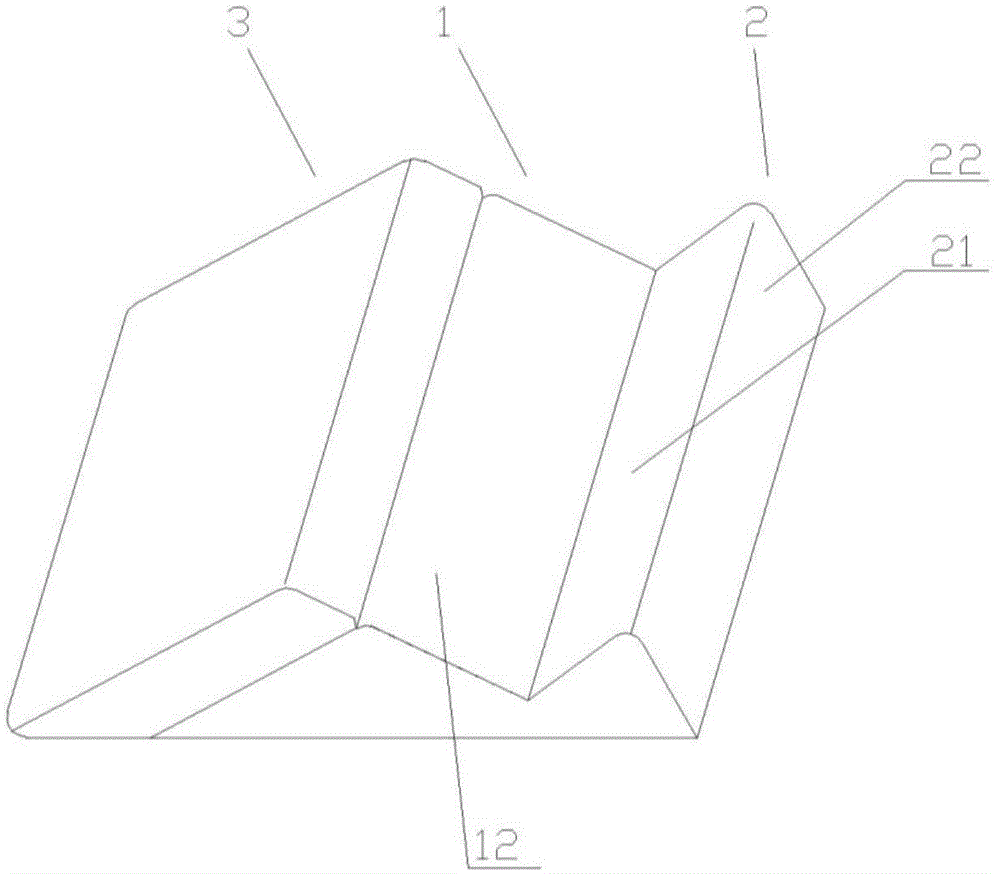

Fig. 2 is the structural representation of the utility model embodiment 2;

Fig. 3 is the structural representation of the utility model embodiment 3;

Fig. 4 is a structural schematic diagram of Embodiment 4 of the utility model.

Detailed ways

Example 1

As shown in Figure 1, a kind of clinical nursing support pad, described support pad comprises leg support pad 1 and foot support pad 2, and described leg support pad 1 comprises thigh load-bearing surface 11, calf load-bearing surface 12 and bottom surface 13 , the thigh load-bearing surface 11 is connected to the calf load-bearing surface 12, and the two are connected to the bottom surface 13 respectively; 22, and the two are connected to the bottom surface 23 respectively; the bottom surface 13 of the leg support pad 1 and the bottom surface 23 of the foot support pad 2 are fixedly connected, and can also be made into a detachable structure such as a zipper; the calf bearing surface 12 They are connected to the foot bearing surface 21 and are perpendicular to each other at an angle of 90 degrees.

The cross-section of the leg support pad 1 is triangular, the angle between the thigh bearing surface 11 and the bottom surface 13 is preferably 30-45 degrees, in this embodiment, it is 30 degrees, and the calf bearing surface 12 and the bottom surface 13 are clamped The angle is preferably 30-45 degrees, 30 degrees in this embodiment.

The cross section of the foot support pad 2 is triangular, and the included angle between the foot support surface 21 and the bottom surface 23 is preferably 30-45 degrees, and in this embodiment it is 30 degrees.

The height of the leg support pad is preferably 15-45 cm, 25 cm in this embodiment; the height of the leg support pad is preferably 15-45 cm, 25 cm in this embodiment.

Example 2

As shown in Fig. 2, the structure of the leg support pad 1 and the foot support pad 2 is the same as that of the embodiment 1, and an auxiliary pad 3 for increasing the height of the leg support pad is added. Auxiliary pad 3 can be trapezoidal, and one of them has the same shape and size as the thigh bearing surface, and can be stacked for use. The auxiliary pad 3 can increase the scope of application of the nursing pad, and can also ensure comfort and achieve the effect of maintaining limb functions for taller patients.

Example 3

As shown in FIG. 3 , a transition connection surface 14 is provided between the thigh bearing surface 11 and the calf bearing surface 12 of the leg support pad 1 . The transition connection surface 14 is an arc surface to increase the comfort of use.

A transition connection surface 24 is also provided between the foot bearing surface 21 and the outer surface 22 of the foot support pad 2 , and the transition connection surface is an arc surface to increase user comfort.

Other structures are with embodiment 1 or embodiment 2.

Example 4

As shown in FIG. 4 , a transition connection surface 14 is provided between the thigh bearing surface 11 and the calf bearing surface 12 of the leg support pad 1 . The transitional connection surface 14 is a plane to increase user comfort.

A transitional connection surface 24 is also provided between the foot bearing surface 21 and the outer surface 22 of the foot support pad 2 , and the transitional connection surface is a plane to increase user comfort.

Other structures are with embodiment 1 or embodiment 2.

During the use of the utility model, the patient lies supine on the hospital bed, the thigh bearing surface 11 of the leg support pad 1 is used to support the thigh, and the calf bearing surface 12 is used to support the calf, so that the patient's legs are bent to an ideal height, and the foot bears the weight. The surface 21 is used to support the patient's foot, and the 90 degree between the lower leg bearing surface and the foot bearing surface is used to place the patient's foot. Effectively prevent foot drop and foot pressure sores. The utility model is made of sponge material, which is light and convenient to use, and a pure cotton cover can be set on the outside, which is sweat-absorbing and breathable and convenient to replace. The foot support and leg support can be folded away when not in use. The utility model also includes an auxiliary pad, which can be used selectively, and is suitable for taller patients to achieve the best effect of nursing.

Claims (10)

1. a clinical nursing support pad, is characterized in that, described support pad comprises leg support pad and foot support pad, and described leg support pad comprises thigh load-bearing surface, shank load-bearing surface and bottom surface, thigh load-bearing surface and shank The bearing surface is connected, and the two are respectively connected to the bottom surface; the foot support pad includes the foot bearing surface, the outer surface and the bottom surface, the foot bearing surface is connected to the outer surface, and the two are respectively connected to the bottom surface; the leg The bottom surface of the support pad is fixedly connected or detachably connected with the bottom surface of the foot support pad; the bearing surface of the calf and the bearing surface of the foot are connected at a certain angle. 2. The clinical nursing support pad according to claim 1, wherein the cross-section of the leg support pad is triangular, the angle between the bearing surface of the thigh and the bottom surface is 20-60 degrees, and the lower leg The angle between the bearing surface and the bottom surface is 20-60 degrees. 3. The clinical nursing support pad according to claim 1, characterized in that, a transition connection surface is also provided between the thigh bearing surface and the calf bearing surface of the leg support pad. 4. The clinical nursing support pad according to claim 3, characterized in that, the transition connection surface is a plane or an arc surface. 5. The clinical nursing support pad according to claim 1, wherein the cross section of the foot support pad is triangular, and the angle between the foot support surface and the bottom surface is 20-60 degrees. 6. The clinical nursing support pad according to claim 1, characterized in that, a transition connection surface is also provided between the foot bearing surface and the outer surface of the foot support pad. 7. The clinical nursing support pad according to claim 6, characterized in that, the transition connection surface is a plane or an arc surface. 8 . The clinical nursing support pad according to claim 1 , wherein the lower leg bearing surface and the foot bearing surface are perpendicular to each other. 9. The clinical nursing support pad according to claim 1, characterized in that, the height of the leg support pad is 15-45 cm; the height of the leg support pad is 15-45 cm. 10. The clinical care support pad according to any one of claims 1 to 7, further comprising an auxiliary pad for increasing the height of the leg support pad.
