Abstract
炉灶用燃气节能器，属于燃气灶具技术领域，该节能器设置在炉灶内，特征是在炉灶内设有炉灶用燃气节能器，所述炉灶用燃气节能器包括主控器、风扇节能器、高压点火包、红外发射器和红外接收器，炉灶灶膛下面设置主控器，主控器通过控制线连接风扇节能器、高压点火包、燃气电磁阀、红外发射器和红外接收器；所述风扇节能器连接风扇，所述高压点火包连接高压点火针；所述红外发射器设在炉灶台面上，红外接收器设在炉灶后面的遮板上；所述高压点火针设在灶芯上，点火头对准灶头。本实用新型有效杜绝空烧，从而达到节气的目的，减少燃料的浪费，从而降低了安全隐患，同时净化了厨房的工作环境，给厨师一个良好的工作环境，进而降低了酒店的运营成本。
A gas economizer for a stove belongs to the technical field of gas stoves. The economizer is arranged in a stove, and is characterized in that a gas economizer for a stove is provided in the stove. The gas economizer for a stove includes a main controller, a fan economizer, a high-voltage Ignition package, infrared transmitter and infrared receiver, the main controller is arranged under the stove hearth, and the main controller is connected to the fan economizer, high-voltage ignition package, gas solenoid valve, infrared transmitter and infrared receiver through the control line; the fan is energy-saving The high-voltage ignition package is connected to the high-voltage ignition needle; the infrared emitter is arranged on the stove top, and the infrared receiver is arranged on the cover behind the stove; the high-voltage ignition needle is arranged on the stove core, and the ignition head Align the burner. The utility model effectively eliminates empty burning, thereby achieving the purpose of saving gas, reducing fuel waste, thereby reducing potential safety hazards, and at the same time purifying the working environment of the kitchen, providing a good working environment for chefs, and further reducing the operating cost of the hotel.
Description
Technical field
The utility model belongs to the gas kitchen ranges technical field, relates in particular to a kind of cooking stove gas energy-saver.
Background technology
In all kinds of food and drink place, need a large amount of cooking stoves that use, these cooking stove general using coal gas, natural gas, diesel oil or fuel oil act as a fuel, by the pressurization oxygenation high-pressure combustion that reaches a high temperature, in use need manually control flame size, the switch air valve, use very loaded down with trivial details of operation, and the cook need ceaselessly turn over dish in the cooking culinary art, condiment, upper dish, wash the repetitive operations such as pot, have no time frequently to adjust the size of flare at all and close fire, in this process, needing in fact flame combustion only is the cooking cooking stage, at condiment, upper dish, should extinguish when washing pot, and this moment stove fire still at burning waste fuel.When the cook begins to be busy, basic not free remove to close fire, so, have at least nearly three/once above burning by in vain waste, cause the fuel cost in hotel to pay surprising.Moreover firepower is violent during owing to the stove fire burning, and artificial and manual control is easy to cause potential safety hazard.
Summary of the invention
In order to address the above problem, the utility model provides a kind of cooking stove gas energy-saver, and " empty combustion is empty burns " in time eliminates safe hidden trouble when preventing the gas stove use.
The technical scheme that its technical problem that solves the utility model adopts is: a kind of cooking stove gas energy-saver, this energy-saving appliance is arranged in the cooking stove, feature is to be provided with the cooking stove gas energy-saver in cooking stove, described cooking stove comprises main controller, fan energy saver, high-tension ignition bag, infrared transmitter and infrared remote receiver with gas energy-saver, below the cooking stove chamber of a kitchen range main controller is set, main controller connects fan energy saver, high-tension ignition bag, gas electromagnetic valve, infrared transmitter and infrared remote receiver by control line; Described fan energy saver connects fan, and described high-tension ignition bag connects the high-tension ignition pin; Described infrared transmitter is located on the cooking stove table top, and infrared remote receiver is located on the shield of cooking stove back; Described high-tension ignition pin is located on the kitchen range core, and igniter head is aimed at kitchen range.
Further, described infrared transmitter is provided with the probe containment vessel.
The beneficial effects of the utility model are: during energy-saving appliance work, the cook is as long as be placed on the pot of cooking on the cooking stove, and namely infrared remote receiver detects after the pot, stove is lighted immediately automatically, after pot leaves cooking stove, namely infrared remote receiver detect the pot held, fire extinguishes immediately; Needs according to cook and the style of cooking are adjusted into moderate heat, little fire, effectively stop empty the burning, thereby reach the purpose of solar term, reduce the waste of fuel, thereby reduced potential safety hazard, purified simultaneously the working environment in kitchen, give good working environment of cook, and then reduced the operation cost in hotel.
Description of drawings

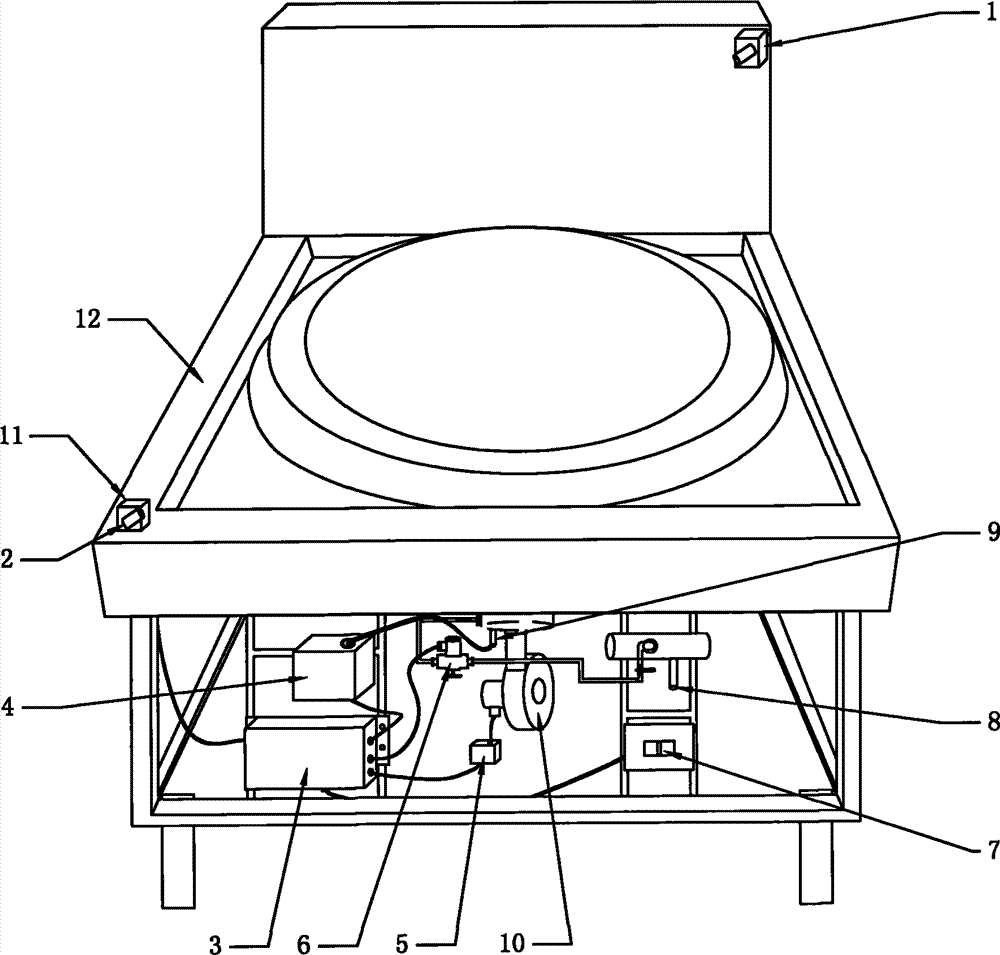

Fig. 1 is structural representation of the present utility model;
Fig. 2 is the enlarged drawing of the utility model mesohigh ignition electrode;
Shown in the figure; 1, infrared remote receiver, 2, infrared transmitter, 3, main controller, 4, the high-tension ignition bag, 5, fan energy saver, 6, gas electromagnetic valve, 7, power switch, 8, gas inlet, 9, the high-tension ignition pin, 10, fan, 11, the probe containment vessel, 12, cooking stove.
The specific embodiment
Further the utility model is illustrated below in conjunction with the drawings and specific embodiments;
Embodiment: such as Fig. 1, shown in Figure 2, a kind of cooking stove gas energy-saver, this energy-saving appliance is arranged in the cooking stove (12), feature is to be provided with the cooking stove gas energy-saver in cooking stove, described cooking stove comprises main controller (3) with gas energy-saver, fan energy saver (5), high-tension ignition bag (4), infrared transmitter (2) and infrared remote receiver (1), below cooking stove (12) chamber of a kitchen range main controller (3) is set, main controller (3) connects fan energy saver (5) by control line, high-tension ignition bag (4), gas electromagnetic valve (6), infrared transmitter (2) and infrared remote receiver (1); Described fan energy saver (5) connects fan (10), and described high-tension ignition bag (4) connects high-tension ignition pin (9); Described infrared transmitter (2) is located on cooking stove (12) table top, and infrared remote receiver (1) is located on the shield of cooking stove back; Described high-tension ignition pin (9) is located on the kitchen range core, and igniter head is aimed at kitchen range.Described infrared transmitter (2) is provided with probe containment vessel (11).During energy-saving appliance work, turn on the power switch (7), the cook is as long as be placed on the pot of cooking on the cooking stove (12), namely infrared remote receiver (1) detects after the pot, stove is lighted immediately automatically, after pot leaves cooking stove, namely infrared remote receiver (1) detect the pot held, fire extinguishes immediately; Needs according to cook and the style of cooking are adjusted into moderate heat, little fire, effectively stop empty the burning, thereby reach the purpose of solar term, reduce the waste of fuel, thereby reduced potential safety hazard, purified simultaneously the working environment in kitchen, give good working environment of cook, and then reduced the operation cost in hotel.
The above only is this novel embodiment, be not limited to novel, for a person skilled in the art, originally novel can have various variations, all any modifications of within this novel spirit and principle, doing, be equal to and replace improvement etc., all should be included within this novel claim scope.
Claims (2)
1. cooking stove gas energy-saver, this energy-saving appliance is arranged in the cooking stove, and feature is to be provided with the cooking stove gas energy-saver in cooking stove, and described cooking stove comprises main controller, fan energy saver, high-tension ignition bag, infrared transmitter and infrared remote receiver with gas energy-saver; Below the cooking stove chamber of a kitchen range main controller is set, main controller connects fan energy saver, high-tension ignition bag, gas electromagnetic valve, infrared transmitter and infrared remote receiver by control line; Described fan energy saver connects fan, and described high-tension ignition bag connects the high-tension ignition pin; Described infrared transmitter is located on the cooking stove table top, and infrared remote receiver is located on the shield of cooking stove back; Described high-tension ignition pin is located on the kitchen range core, and igniter head is aimed at kitchen range.
2. cooking stove gas energy-saver according to claim 1 is characterized in that described infrared transmitter is provided with the probe containment vessel.
