CN202739314U

CN202739314U - Chair

Info

Publication number: CN202739314U
Application number: CN 201220454636
Authority: CN
Inventors: 吴勇
Original assignee: China Academy of Art
Current assignee: China Academy of Art
Priority date: 2012-09-07
Filing date: 2012-09-07
Publication date: 2013-02-20
Anticipated expiration: 2022-09-07

Abstract

The utility model relates to a piece of furniture, specifically a chair, which includes a chair body, a chair back, and an armrest. The front end of the armrest is convex, the seat cushion is square and matches the chair surface, and the purpose is to provide a chair with simple structure and technical design, comfortable use, safety and reliability.

Description

a chair

技术领域 technical field

本实用新型涉及一种家具，具体讲是一种椅。 The utility model relates to a furniture, specifically a chair. the

背景技术 Background technique

椅子是家庭最普通的家具，现有椅子虽然款式较多，但各有特点。尽管如此，在形状设计、舒适度、功能等方面未必满足众人需求。 Chairs are the most common furniture in families. Although existing chairs have many styles, they each have their own characteristics. Despite this, it may not meet everyone's needs in terms of shape design, comfort, and functions. the

发明内容 Contents of the invention

本实用新型的目的在于克服现有技术中存在的上述不足，提供一种结构技术设计简单、使用舒适，安全可靠的椅。 The purpose of the utility model is to overcome the above-mentioned deficiencies in the prior art, and provide a chair with simple structure and technical design, comfortable use, safety and reliability.

本实用新型解决上述问题所采用的技术方案是：包括椅体、椅背、扶手，其特征在于所述椅背、扶手和椅体均为一体，椅背上端呈弧形内凹，扶手的前端呈凸状，坐垫为方形并与椅面相配。 The technical scheme adopted by the utility model to solve the above-mentioned problems is: comprising a chair body, a chair back, and an armrest. Convex, the seat cushion is square and matches the seat surface.

本实用新型所述椅体、椅背、椅脚均由硬质材料制成。 The chair body, chair back and chair feet described in the utility model are all made of hard materials. the

本实用新型与现有技术相比，具有以下优点和效果：结构简单，设计合理，一体化结构使得本实用新型结构牢固可靠，椅背上端设置成内凹的弧形，头可以靠在弧形凹型处，而扶手前端设置成凸状，手掌可以在凸处抓牢，一方面防止打滑，另一方面使躺靠的时候更加的舒适。 Compared with the prior art, the utility model has the following advantages and effects: the structure is simple, the design is reasonable, the integrated structure makes the structure of the utility model firm and reliable, the upper end of the chair back is set in a concave arc, and the head can lean against the arc Concave, while the front end of the armrest is set in a convex shape, the palm can be grasped firmly on the convex, on the one hand to prevent slipping, on the other hand to make it more comfortable when lying down.

附图说明 Description of drawings

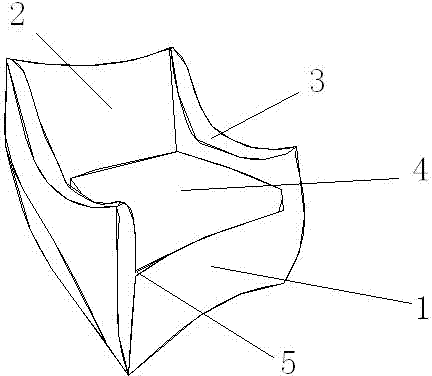

图1是本实用新型实施例结构示意图。 Fig. 1 is a structural schematic diagram of an embodiment of the utility model.

具体实施方式 Detailed ways

下面结合附图并通过实施例对本实用新型作进一步的详细说明，以下实施例是对本实用新型的解释而本实用新型并不局限于以下实施例。 The utility model will be further described in detail below in conjunction with the accompanying drawings and examples. The following examples are explanations of the utility model and the utility model is not limited to the following examples.

参见图1，本实施例中的椅包括椅体1、椅背2、扶手3和坐垫4，所述椅背2、扶手3和椅体1为一体，椅背2上端呈弧形内凹，扶手3的前端呈凸状，坐垫4为方形，恰好放在椅面5上。椅背2上端设置成内凹的弧形，主要是考虑到在人在椅子上休息时，头可以靠在弧形凹型处，而扶手3前端设置成凸状，手掌可以在凸处抓牢，一方面防止打滑，另一方面使躺靠的时候更加的舒适。 Referring to Fig. 1, the chair in the present embodiment comprises a chair body 1, a chair back 2, an armrest 3 and a seat cushion 4, the chair back 2, the armrest 3 and the chair body 1 are integrated, and the upper end of the chair back 2 is curved and concave, The front end of armrest 3 is convex, and cushion 4 is a square, just placed on the chair surface 5. The upper end of the chair back 2 is set in a concave arc, mainly considering that when a person is resting on the chair, the head can lean against the arc concave, and the front end of the armrest 3 is set in a convex shape, and the palm can be firmly grasped in the convex. On the one hand, it prevents slipping, and on the other hand, it makes it more comfortable to lie on.

本实施例所述椅体1、椅背2和扶手3均由硬质材料制成。硬质材料的构架不容易损坏，配合软的坐垫，从而不会感觉到椅子的生硬感。 The chair body 1, chair back 2 and armrest 3 described in this embodiment are all made of hard materials. The frame of the hard material is not easy to damage, and with the soft cushion, you will not feel the rigidity of the chair.

此外，需要说明的是，本说明书中所描述的具体实施例，其零、部件的形状、所取名称等可以不同，本说明书中所描述的以上内容仅仅是对本实用新型结构所作的举例说明。凡依据本实用新型专利构思所述的构造、特征及原理所做的等效变化或者简单变化，均包括于本实用新型专利的保护范围内。本实用新型所属技术领域的技术人员可以对所描述的具体实施例做各种各样的修改或补充或采用类似的方式替代，只要不偏离本实用新型的结构或者超越本权利要求书所定义的范围，均应属于本实用新型的保护范围。 In addition, it should be noted that the specific embodiments described in this specification may be different in parts, shapes and names of parts, and the above content described in this specification is only an illustration of the structure of the present invention. All equivalent changes or simple changes based on the structure, features and principles described in the utility model patent concept are included in the protection scope of the utility model patent. Those skilled in the technical field to which the utility model belongs can make various modifications or supplements to the described specific embodiments or adopt similar methods to replace them, as long as they do not deviate from the structure of the utility model or exceed the definition defined in the claims scope, all should belong to the protection scope of the present utility model.

Claims

1. a chair comprises chair body, the chair back, handrail, it is characterized in that: the described chair back, handrail and chair body all are integrated, the curved indent in chair back upper end, and the front end of handrail is convex, and cushion is square and matches with seat.

2. chair according to claim 1, it is characterized in that: described chair body, the chair back, chair pin are made by hard material.
