Abstract
本实用新型涉及一种地下空间空气输送器，包括支架和空气输送装置，空气输送装置固定于支架上；所述空气输送装置包括筒体、推杆、入口单向阀和出口单向阀，推杆设于筒体的顶部且与筒体内壁紧密滑动配合，推杆顶部设有压板，压板与支架之间设有若干弹簧；所述入口单向阀和出口单向阀分别对称设于筒体的底部的两端，入口单向阀外端口处接有进气软管，出口单向阀外端口接有出气软管。本实用新型的有益效果为：充分满足野外地下坑道作业时施工人员对于新鲜空气的需求，且携带便捷、使用方便，便于野外没有用电条件时使用。
The utility model relates to an air conveyer for underground space, which comprises a bracket and an air conveying device, and the air conveying device is fixed on the support; The rod is set on the top of the cylinder and closely slides with the inner wall of the cylinder. There is a pressure plate on the top of the push rod, and a number of springs are arranged between the pressure plate and the bracket; the inlet check valve and the outlet check valve are symmetrically arranged on the cylinder respectively. The two ends of the bottom of the inlet check valve are connected with an air inlet hose, and the outlet check valve outer port is connected with an air outlet hose. The beneficial effects of the utility model are: fully satisfying the construction personnel's demand for fresh air when working in underground tunnels in the field, and being convenient to carry and use, and convenient to use in the field when there is no power consumption condition.
Description
Technical field
The utility model relates to a kind of underground space air feeder.
Background technology
Field work, during especially open-air tunnel operation, rarefaction of air in the tunnel, very easily cause workmen's expiratory dyspnea in the tunnel, anoxic, dizzy, the serious harm workmen is healthy, the reduction operating efficiency, even life danger might appear, and at present general air transport device is bulky, power consumption is high, assembling is difficult, and open-air use is very inconvenient.
The utility model content
The purpose of this utility model provides a kind of underground space air feeder, and the workmen is for the demand of fresh air in the time of can solving open-air tunnel operation on the one hand, and it is convenient, easy to use to carry on the other hand, is convenient to use when the field does not have the electricity consumption condition.
The purpose of this utility model is achieved through the following technical solutions:
A kind of underground space air feeder comprises support and air transport device, and air transport device is fixed on the support; Described air transport device comprises cylindrical shell, push rod, inlet one-way valve and outlet check valve, and push rod is located at the top of cylindrical shell and closely is slidingly matched with cylinder inboard wall, and the push rod top is provided with pressing plate, is provided with some springs between pressing plate and the support; Described inlet one-way valve and outlet check valve are symmetrically set in respectively the two ends of the bottom of cylindrical shell, and inlet one-way valve external port place is connected to air induction hose, and outlet check valve external port is connected to air-out hose.
The beneficial effects of the utility model are: the workmen and carries conveniently, easy to use for the demand of fresh air when fully satisfying open-air tunnel operation, is convenient to use when the field does not have the electricity consumption condition.
Description of drawings
The below is described in further detail the utility model with reference to the accompanying drawings.

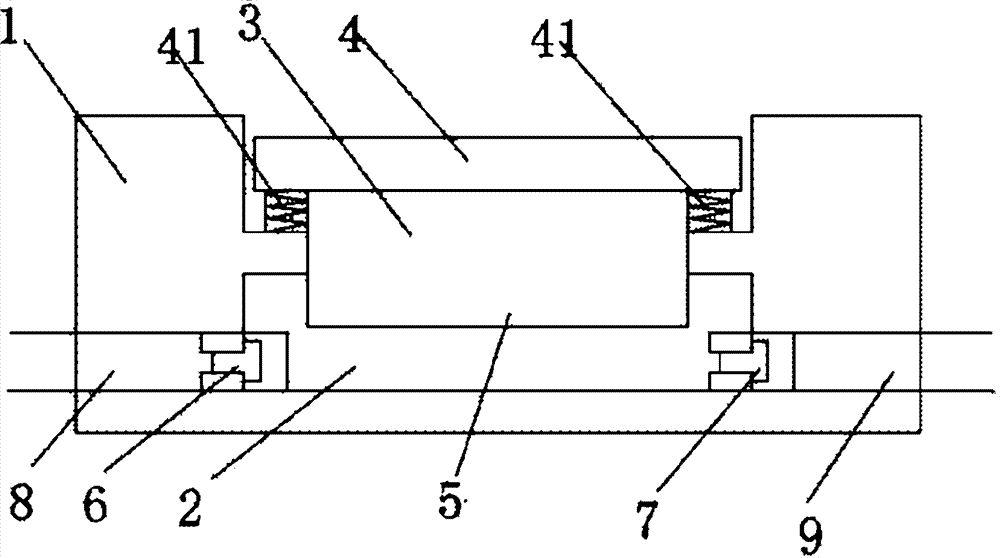

Fig. 1 is the structural representation of the described a kind of underground space air feeder of the utility model embodiment;
Among the figure:
1, support; 2, cylindrical shell; 3, push rod; 4, pressing plate; 41, spring; 5, air transport device; 6, inlet one-way valve; 7, outlet check valve; 8, air induction hose; 9, air-out hose.
The specific embodiment
As shown in Figure 1, a kind of underground space air feeder shown in the utility model embodiment comprises support 1 and air transport device 5, and air transport device 5 is fixed on the support 1; Described air transport device 5 comprises cylindrical shell 2, push rod 3, inlet one-way valve 6 and outlet check valve 7, and push rod 3 is located at the top of cylindrical shell 2 and closely is slidingly matched with cylindrical shell 2 inwalls, and push rod 3 tops are provided with pressing plate 4, are provided with some springs 41 between pressing plate 4 and the support 1; Described inlet one-way valve 6 and outlet check valve 7 are symmetrically set in respectively the two ends of the bottom of cylindrical shell 2, and inlet one-way valve 6 external port places are connected to air induction hose 8, and outlet check valve 7 external port are connected to air-out hose 9.
During concrete the use, support 1 and air transport device 5 place outside air, air-out hose 9 are probeed in the underground space of operation, and air induction hose 8 is placed outside air, extraneous fresh air enters cylindrical shell 2 by inlet one-way valve 6 when lifting pressing plate 4, exports check valve 7 closures this moment; When depressing pressing plate 4, inlet one-way valve 6 closures, the fresh air in the cylindrical shell 2 is discharged cylindrical shell by outlet check valve 7, decontrols pressing plate 4, and then pressing plate 4 returns to by spring 41 and lifts the position, sucks simultaneously extraneous fresh air, and so forth.Also support 1 and air transport device 5 can be placed in the underground space during use, and air induction hose 8 is placed in the underground space, air-out hose 9 is placed outside air, can discharge the turbid air in the underground space, and descend easily the workmen to use.
The utility model is not limited to above-mentioned preferred forms; anyone can draw other various forms of products under enlightenment of the present utility model; no matter but do any variation in its shape or structure; every have identical with a application or akin technical scheme, all drops within the protection domain of the present utility model.
Claims (2)
1. underground space air feeder, comprise support (1) and air transport device (5), air transport device (5) is fixed on the support (1), it is characterized in that: described air transport device (5) comprises cylindrical shell (2), push rod (3), inlet one-way valve (6) and outlet check valve (7), and push rod (3) is located at the top of cylindrical shell (2) and closely is slidingly matched with cylindrical shell (2) inwall; Described inlet one-way valve (6) and outlet check valve (7) are symmetrically set in respectively the two ends of the bottom of cylindrical shell (2), and inlet one-way valve (6) external port place is connected to air induction hose (8), and outlet check valve (7) external port is connected to air-out hose (9).
2. a kind of underground space air feeder according to claim 1, it is characterized in that: described push rod (3) top is provided with pressing plate (4), is provided with some springs (41) between pressing plate (4) and the support (1).
