Abstract

The utility model discloses a napkin steering device, which is composed of a chain drive system, several turntable mechanisms, a driving guide rail, a napkin conveying system, profile brackets and the like; wherein, the turntable mechanisms are evenly installed on the chains of the chain drive system, The chain drive system and turntable mechanism are set horizontally and hoisted on the profile support. The napkin paper conveying system is located below the working side of the chain drive system. The movement direction of the napkin paper conveying system is parallel to the straight line section of the chain working side in the chain drive system. The center line coincides with the center of the turntable in the turntable mechanism running on it, and the driving guide rail is fixed on the profile bracket; the napkin steering device of the utility model has the characteristics of fast steering speed, adjustable steering angle, and high steering precision, which meets the requirements for The demand for napkins in the folding production line of complex shaped napkins made of dust-free paper and other materials.

Description

A napkin turning device

technical field

The utility model relates to a steering device, in particular to a napkin steering device. the

Background technique

The napkin industry is a market with huge business opportunities. Only producers of high-quality and cheap personalized napkins can win the favor of consumers in the fierce competition. Therefore, napkin manufacturers have made many innovations in the shape, pattern, material, size and other aspects of napkins. In mid-to-high-end restaurants at home and abroad, napkins with unique shapes have increasingly become a powerful means of creating a dining atmosphere. At present, most of the napkins with complicated shapes in restaurants are folded manually by waiters, which has high labor costs, and it is not easy to ensure the cleanliness of the napkins. Therefore, the automatic folding of complex shaped napkins is becoming a research focus of some napkin manufacturers. the

The automatic folding of complex-shaped napkins involves many links. Napkin turning is an essential link in many folding processes, and the most commonly used ones are 45° and 90°. Because the napkin paper transmission speed on the folding production line is very fast, it is one of the problems that must be solved for the automatic folding of complex shaped napkin paper to develop a steering angle adjustable, fast and accurate napkin paper steering device. the

Utility model content

The purpose of the utility model is to provide a napkin steering device aiming at the deficiencies of the prior art. The steering angle of the utility model is adjustable, and the steering is fast and accurate. the

The technical solution adopted by the utility model to solve the technical problem is: a napkin steering device, which is composed of a chain drive system, several turntable mechanisms, drive guide rails, napkin conveying system and profile brackets; wherein, the turntable mechanisms are evenly spaced Installed on the chain of the chain transmission system, the chain transmission system and the turntable mechanism are set horizontally and hoisted on the profile support, the napkin conveying system is located below the working side of the chain transmission system, the movement direction of the napkin conveying system is the same as the working side of the chain in the chain transmission system The straight line section is parallel, the center line of the napkin paper conveying system coincides with the center of the turntable in the turntable mechanism running on it, and the driving guide rail is fixed on the profile bracket. the

Further, the chain drive system includes chains, sprockets, bearing housings, chain drive motors, chain restraint guide rails and other components; wherein, the chain is installed on two sprockets of the same size, and the sprockets are fixed on the profile through the bearing housings. On the bracket, the chain drive motor is installed on one of the sprockets, the chain restraint guide rail is fixed on the working side of the chain transmission system, and the chain restraint guide rail is fixed on the profile support through the chain restraint guide rail support plate. the

Further, the turntable mechanism is composed of a turntable, a turntable fixing seat, a turntable tappet, a universal ball, a rotating arm, a rotating arm roller, a linear bearing, a tension spring, a compression spring, a compression spring washer, a rubber ferrule, and a turntable mechanism. It consists of fixed block, arm return block and other components. Among them, the turntable is fixed on the turntable tappet through the turntable fixing seat; the turntable tappet is installed on the linear bearing, the top of the turntable tappet is equipped with a universal ball, and a compression spring is installed between the universal ball and the linear bearing. The two ends are in contact with the linear bearing and the upper end of the turntable tappet through spring washers. One end of the pivoting arm is fixed on the tappet of the turntable, and the other end is equipped with a roller; there is a pivoting arm return stopper behind the pivoting arm, and the pivoting arm and the pivoting arm return stopper are connected by a tension spring; between the pivoting arm and the pivoting arm return stopper A rubber ferrule is arranged on the tappet of the rotary arm between the linear bearings; the linear bearing and the return block of the rotary arm are fixed on the fixed block of the turntable mechanism, and the lower end of the fixed block of the turntable mechanism is equipped with a chain constraint roller. the

Further, the paper conveying system is composed of two identical belt conveyors and a smooth flat plate. Among them, the smooth plate is located between the two belt conveyors, connecting the belts of the two belt conveyors; the centerline of the belt of the belt conveyor coincides with the centerline of the plate, and coincides with the center of the turntable moving to the top of the plate, and the belt conveyor The linear speed of the belt is the same as the speed of the straight section of the chain. the

Further, the driving guide rail includes a turning guide rail and a descending guide rail, wherein, the two ends of the descending guide rail are curved surfaces upturned, and the middle is a straight line; the front section of the turning guide rail is a slowly rising slope, and the rear section is a straight line. the

The beneficial effect of the utility model is that the napkin steering device of the utility model has the characteristics of fast steering speed, adjustable steering angle, and high steering precision, which meets the napkin steering requirements of the complex-shaped napkin folding production line for clean paper and other materials. the

Description of drawings

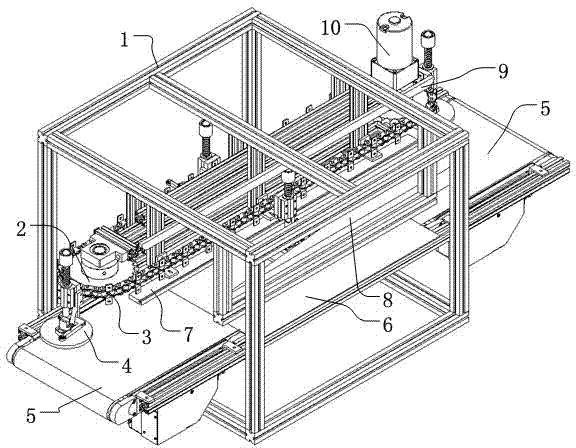

Fig. 1 is the isometric three-dimensional structure schematic diagram of the utility model napkin turning device;

Fig. 2 is the top view structure schematic diagram of the utility model napkin turning device;

Fig. 3 is a left view structural representation of the utility model napkin paper turning device;

Fig. 4 is the front view structure schematic diagram of the utility model napkin turning device;

Fig. 5 is the isometric three-dimensional structure schematic diagram of the chain transmission system and the turntable mechanism installed on it in the napkin steering device of the utility model;

Fig. 6 is a top view structural diagram of the chain drive system and the turntable mechanism installed on it in the napkin steering device of the utility model;

Fig. 7 is the front view of the turntable mechanism in the utility model napkin turning device;

Fig. 8 is the rear view of the turntable mechanism in the utility model napkin turning device;

Fig. 9 is a schematic diagram of the working principle and process of the utility model napkin turning device;

In the figure: profile bracket 1, sprocket 2, chain 3, turntable 4, belt conveyor 5, smooth plate 6, chain constraint guide 7, turning guide 8, descending guide 9, chain drive motor 10, rotating arm 11, stretching Spring 12, belt drive motor 13, sprocket bearing seat 14, chain restraint rail support plate 15, arm roller 16, rubber ferrule 17, turntable tappet 18, linear bearing 19, compression spring washer 20, compression spring 21, Universal ball 22, turntable mechanism fixed block 23, swing arm return block 24, chain restraint roller 25, turntable fixed seat 26, napkin 27. the

Detailed ways

The specific implementation of the present utility model will be further described below in conjunction with the accompanying drawings and examples. The following examples are only used to illustrate the technical solution of the utility model more clearly, but not to limit the protection scope of the utility model. the

Please refer to Figure 1-4. The napkin steering device of the utility model is composed of a chain transmission system, a plurality of turntable mechanisms, a driving guide rail, a napkin conveying system, a profile support 1 and other components. Among them, the turntable mechanism is evenly installed on the chain 3 of the chain transmission system, the chain transmission system and the turntable mechanism are horizontally arranged and hoisted on the profile support 1, and the napkin delivery system is located below the working side of the chain transmission system, responsible for the input and delivery of napkins. Output, the movement direction of the napkin conveying system is parallel to the straight line on the working side of the chain 3 in the chain drive system, and its center line coincides with the center of the turntable 4 in the turntable mechanism running on it, and the driving guide rail is fixed on the profile support 1. the

Please refer to Figure 1-4, and focus on Figure 5-6. The chain drive system of the paper turning device is made up of parts such as chain 3, sprocket wheel 2, bearing seat 14, chain drive motor 10, chain constraint guide rail 7. Among them, the chain 3 is installed on two sprockets 2 of the same size, the sprocket 2 is fixed on the profile bracket 1 through the bearing seat 14, the entire chain transmission system is hoisted on the napkin conveying system, and the chain drive motor 10 is installed on one of them. On the sprocket 2, the entire chain transmission system is driven to rotate, and the working side of the chain transmission system is also provided with a chain restraint guide rail 7, and the chain restraint guide rail 7 is fixed on the profile support 1 through the chain restraint guide rail support plate 15. the

Please refer to Figure 1-6, and focus on Figure 7-8. The turntable mechanism of the napkin steering device is composed of a turntable 4, a turntable holder 26, a turntable tappet 18, a universal ball 22, a pivot arm 11, a pivot arm roller 16, a linear bearing 19, a tension spring 12, a compression spring 21, a compression spring Parts such as gasket 20, rubber ferrule 17, turntable mechanism fixed block 23, pivoting arm return block 24 are formed. Wherein the turntable 4 is fixed on the turntable tappet 18 by the turntable fixing seat 26, and the bottom surface of the turntable 4 directly contacting with the napkin is a friction material, and the friction force is larger when it is in contact with the napkin. The turntable tappet 18 is installed on the linear bearing 19, and the top of the turntable tappet 18 is equipped with a universal ball 22, and a compression spring 21 is installed between the universal ball 22 and the linear bearing, and the two ends of the compression spring 21 are connected to the straight line through the spring washer 20. The upper end of the bearing 19 and the turntable tappet 18 is in contact. One end of rotating arm 11 is fixed on the turntable tappet 18, and the other end is equipped with rotating arm roller 16; The extension spring 12 is connected, and before the rotating arm 11 turns, the rotating arm 11 is pressed on the rotating arm return stopper 24 . A rubber collar 17 is installed on the arm tappet 18 between the pivot arm 11 and the linear bearing 19 to limit the rising distance of the turntable tappet 18 under the action of the compression spring 21 . The linear bearing 19 and the return block 24 of the rotating arm are fixed on the fixed block 23 of the turntable mechanism, and the lower end of the fixed block 23 of the turntable mechanism is equipped with a chain constraint roller 25, which can roll in the track of the chain constraint guide rail 7 to prevent the chain 3 Vibration occurs during exercise. Whole turntable mechanism just is fixed on the chain 3 by turntable mechanism fixed block 23. The utility model napkin turning device may need a plurality of turntable mechanisms, and its specific number is determined by factors such as the length of the chain 3, the speed of the chain 3 operation, is 4 in the present embodiment, and is evenly distributed on the chain 3 at intervals. the

Please refer to Fig. 1-4, the napkin paper conveying system of the napkin paper diverting device is made up of two identical belt conveyors 5 and smooth plates 6. Wherein the smooth plate 6 with less coefficient of friction is located between two belt conveyors 6, and connects the belts of two belt conveyors 5, and the belt conveyor 5 is driven by a belt drive motor 13. The center line of the belt of the belt conveyor 5 coincides with the center line of the flat plate 6 and coincides with the center of the turntable 4 moving to the top of the flat plate 6 . The linear speed of the belt of belt conveyor 5 is identical with the speed of chain 3 linear sections. the

Please refer to Fig. 1-4 and Fig. 7-8. The driving guide rail of the napkin turning device includes a steering guide rail 8 and a descending guide rail 9, wherein, the two ends of the descending guide rail 9 are curved surfaces upturned, and the middle is a straight line. When the turntable mechanism moves to the When the descending guide rail 9 touches, the upturned curved surface of the guide rail can press the boom tappet 18 through the universal ball 22, and the straight line section of the descending guide rail 9 maintains the descending state of the boom tappet 18. When the universal ball 22 moves to the descending guide rail When the upward warping surface of the 9 end, the pivoting arm tappet 18 rises back to its original position under the action of the compression spring 21. The front section of the steering guide rail 8 is a slowly rising slope, and the rear section is a straight line. After the pivoting arm roller 16 contacts with the turning guide rail 8, the pivoting arm 11 can be rotated to a certain angle under the action of the turning guide rail 8 slope sections, and keeps the turned angle at the turning guide rail 8 straight line sections. After the pivoting arm roller 16 leaves the steering guide rail 8, the pivoting arm 11 drives the turntable to return under the action of the tension spring 12. The angle of rotation of the pivoting arm 11 after passing through the inclined section of the steering guide rail 8 is determined by the distance between the steering guide rail 8 and the center of the rotating disk 4, and the steering angle can be adjusted by adjusting the distance, and its maximum steering angle is 90°. the

Please refer to Figures 1-8, and focus on Figure 9, the working process of the napkin turning device is as follows. The chain 3 moves at a linear velocity V under the drive of the sprocket 2, and moves synchronously with the steering mechanism installed on the chain 3. The two belt conveyors 5 move at the same linear speed V under the drive of the conveyor belt drive motor 13 . When the napkin 27 is transported to the bottom of the turntable 4 by the belt conveyor 5, the contact between the universal ball 22 on the turntable tappet 18 and the descending guide rail 9 makes the turntable 4 descend and hold down the napkin, and the turntable 4 and the conveyor belt at the same speed 5. Transfer the napkin 27 to the smooth flat plate 6 together, and then the napkin 27 continues to advance on the smooth flat plate 6 through the dragging of the turntable 4 pressed thereon; The turntable tappet 18 and the turntable 4 fixed thereon rotate a preset angle, so that the napkin 27 pressed under the turntable 4 completes the turning. Afterwards, turning guide rail 8 straight sections makes pivoting arm 11 keep the angle that has rotated constant, and rotating disk 4 will be dragged on the second belt conveyor 5 with the napkin 27 that is pressed under it. When the universal ball 22 moves to the up-warped section at the end of the descending guide rail 9, the arm tappet 18 rises back to its original position under the action of the compression spring 21, and drives the turntable 4 to rise and release the napkin 27. Afterwards, the napkin 27 that is detached continues to be conveyed forward by the belt conveyor 5; at the same time, the rotating arm roller 16 leaves the steering guide rail 8, and the rotating arm 11 returns under the effect of the tension spring 12 until it touches the rotating arm. Block 24. the

The beneficial effect of this embodiment is that the turning speed is fast, the napkin can be turned while maintaining the original speed of transmission, and the turning angle is adjustable, and the turning precision is high, which is suitable for use in a napkin folding production line made of dust-free paper and other materials. the

Claims (5)

1. a napkin steering device is characterized in that, it is comprised of chain drive system, some rotating disk mechanisms, driving guide rail, napkin paper delivery system and section bar support (1); Wherein, described rotating disk mechanism is installed on the chain (3) of chain drive system evenly and at intervals, chain drive system and rotating disk mechanism are horizontally disposed with and are lifted on the section bar support, the napkin paper delivery system is positioned at the below of chain drive system active side, the sense of motion of napkin paper delivery system is parallel with the linear portion of chain (3) active side in the chain drive system, the line of centers of napkin paper delivery system and the center superposition that runs to the rotating disk mechanism turntable (4) on it drive guide rail and are fixed on the section bar support.

2. described napkin steering device according to claim 1 is characterized in that, described chain drive system comprises chain (3), sprocket wheel (2), bearing seat (14), chain drive motor (10) and chain constraint guide rail (7); Wherein, described chain (3) is installed on the identical sprocket wheel (2) of two sizes, sprocket wheel (2) is fixed on the section bar support (1) by bearing seat (14), chain drive motor (10) is installed on one of them sprocket wheel (2), chain constraint guide rail (7) is fixed on the active side of chain drive system, and chain constraint guide rail (7) is fixed on the section bar support (1) by chain constraint rail support plate (15).

3. described napkin steering device according to claim 1, it is characterized in that, described rotating disk mechanism is comprised of rotating disk (4), rotating disk permanent seat (26), rotating disk tappet (18), Universal caster (22), pivoted arm (11), pivoted arm roller (16), linear bearing (19), extension spring (12), Compress Spring (21), Compress Spring packing ring (20), rubbery loop (17), rotating disk mechanism fixed block (23) and pivoted arm return block (24); Wherein, described rotating disk (4) is fixed on the rotating disk tappet (18) by rotating disk permanent seat (26); Rotating disk tappet (18) is installed on the linear bearing (19), Universal caster (22) is equipped with on the top of rotating disk tappet (18), Compress Spring (21) is housed between Universal caster (22) and the linear bearing, and Compress Spring (21) two ends are by the upper end in contact of spring washer (20) with linear bearing (19) and rotating disk tappet (18); Pivoted arm (11) one ends are fixed on the rotating disk tappet (18), and the other end is equipped with roller (16); Pivoted arm (11) rear is provided with pivoted arm return block (24), is connected with extension spring (12) between pivoted arm (11) and the pivoted arm return block (24); Pivoted arm tappet (18) between pivoted arm (11) and linear bearing (19) is equipped with rubbery loop (17); Linear bearing (19) is fixed on the rotating disk mechanism fixed block (23) with pivoted arm return block (24), and chain constraint roller (25) is equipped with in the lower end of rotating disk mechanism fixed block (23).

4. described napkin steering device according to claim 1 is characterized in that, described napkin paper delivery system is comprised of two identical band conveyors (5) and smooth plates (6); Wherein, smooth plates (6) is positioned between two band conveyors (6), connects the belt of two band conveyors (5); The line of centers of the belt of band conveyor (5) and dull and stereotyped (6) central lines, and with the center superposition of the rotating disk (4) that moves to flat board (6) top, the linear velocity of the belt of band conveyor (5) is identical with the speed of chain (3) linear portion.

5. described napkin steering device according to claim 1 is characterized in that, described driving guide rail comprises divert guide track (8) and decline guide rail (9), and wherein, decline guide rail (9) two ends are the curved surface that upwarps, and the centre is straight line; Divert guide track (8) leading portion is the inclined-plane of rising, and back segment is straight line.
