Abstract
The utility model provides a split-type conveyor line convenient for installation and maintenance. The conveyor line comprises a guide device and a driving device disposed right above the guide device. The guide device is a guide rail which serves as an advancing track of a hanging hook. The driving device comprises a chain provided with pushing fingers, and a driving chain wheel and a driven chain wheel which drive the chain. The conveyor line is characterized in that: the guide device is separated from the driving device, and the chain and the pushing fingers are modular in design, so that separate production and assembly is realized, and installation and maintenance are easy; the chain provided with the single-direction pushing fingers can realize single-direction conveyance of pig carcasses; and the chain provided with double-direction pushing fingers can realize double-direction conveyance of the pig carcasses and double-direction climbing.
Description
Technical field
The utility model relates to a kind of machining production line equipment, especially a kind of travel line.
Background technology
At present in the meat packing field; slaughter line tends to scale and automation day by day, butchers the operation workshop and need to transport hog on hook with a large amount of travel lines, and the chain that uses on the travel line then adopted hook and chain integral structures more in the past; be not easy to loading and unloading and change the manufacturing cost height.
The utility model content
The utility model provides a kind of travel line split type, easy to installation and maintenance.
Realize the travel line of the utility model purpose, comprise guide piece and be positioned at actuating device directly over the described guide piece that described guide piece is a guide rail, this guide rail is the track of advancing of hook; Described actuating device is drive sprocket and the driven sprocket with the chain of reversal means and this chain of driving.
Described chain is formed by connecting by carrier bar and carrier bar bearing pin.
Be fixed with roller by the roller bearing pin on the described chain, described roller interval is evenly distributed on the chain, and described actuating device also comprises the guiding channel-section steel, and described roller rolls at this wire channel-section steel and advances.
Be fixed with reversal means on the described roller.
Described reversal means comprises fixed block and is journaled into the activity reversal means of described fixed block below that the upper end of this activity reversal means one side is provided with retreat stop block, is used for preventing the mutually afterwards rotation of activity reversal means.
The equidirectional setting of reversal means on the described chain forms the one direction chain.
Reversal means on the described chain arranges in pairs, and the reversal means that namely both direction is opposite is one group, at chain many group reversal meanss is set, and forms two-way chain.
The beneficial effect of travel line of the present utility model is as follows:
1, chain of the present utility model will lead and actuating device separates, and chain and reversal means modular design can realize split production and assembling, and be easy to installation and maintenance.
2, chain of the present utility model uses single reversal means chain can realize the unidirectional conveying of hog on hook; Use two reversal means chains can realize the conveying of hog on hook both direction, and the climbing of both direction.
Description of drawings
Fig. 1 is the structural representation of the utility model travel line.

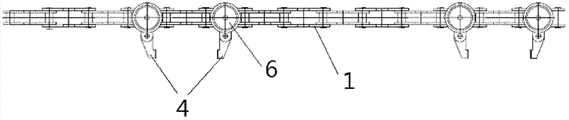

Fig. 2 is the structural representation of an embodiment of the chain of the utility model travel line.
Fig. 3 is the structural representation of the reversal means of the utility model travel line.
Fig. 4 is the structural representation of another embodiment of the chain of the utility model travel line
The specific embodiment
As shown in Figure 1, travel line of the present utility model comprises guide piece and is positioned at actuating device directly over the described guide piece that described guide piece is a guide rail 2, and this guide rail 2 is the track of advancing of hook 3; Described actuating device is drive sprocket and the driven sprocket with the chain 1 of reversal means 4 and this chain 1 of driving.
As shown in Figure 1, 2, described chain 1 is formed by connecting by carrier bar 8 and carrier bar bearing pin 5.Be fixed with roller 6 by roller bearing pin 7 on the described chain 1, described roller 6 intervals are evenly distributed on the chain 1, and described actuating device also comprises the guiding channel-section steel, and described roller 6 rolls at this wire channel-section steel and advances.Be fixed with reversal means 4 on the described roller 6.
Shown in Fig. 1,3, described reversal means 4 comprises fixed block 41 and is journaled into the activity reversal means 42 of described fixed block 41 belows that the upper end of these activity reversal means 42 1 sides is provided with retreat stop block 43, is used for preventing that activity reversal means 42 from rotating backward.Reversal means 4 equidirectional settings on the described chain 1 form the one direction chain.
As shown in Figure 4, the reversal means 4 on the described chain 1 arranges in pairs, and the reversal means 4 that namely both direction is opposite is one group, at chain 1 many group reversal meanss is set, and forms two-way chain.
The principle of work of travel line of the present utility model is as follows:
During work, hook 3 is suspended on the guide rail 2, guide rail 2 be positioned at conveying line chain under, parallel with chain, chain and reversal means 4 are moved under driven by motor, utilize the one-way pushing action of reversal means 4 to be used for promoting hook 3, thereby realize the conveying purpose of hog on hook.
When hook 3 need to have the conveying requirement at twocouese, when particularly needing both direction that ascents and descents is arranged, can adopt two reversal means chains to realize, two reversal means chain structure forms are with the structural similitude of single reversal means chain, difference only is that reversal means is paired appearance, and one of them is oppositely installed.
Claims (7)
1. travel line is characterized in that: comprise guide piece and be positioned at actuating device directly over the described guide piece, described guide piece is a guide rail, and this guide rail is the track of advancing of hook; Described actuating device is drive sprocket and the driven sprocket with the chain of reversal means and this chain of driving.
2. travel line according to claim 1, it is characterized in that: described chain is formed by connecting by carrier bar and carrier bar bearing pin.
3. travel line according to claim 1, it is characterized in that: be fixed with roller by the roller bearing pin on the described chain, described roller interval is evenly distributed on the chain, and described actuating device also comprises the guiding channel-section steel, and described roller rolls at this wire channel-section steel and advances.
4. travel line according to claim 3 is characterized in that: be fixed with reversal means on the described roller.
5. arbitrary described travel line according to claim 1～4 is characterized in that: described reversal means comprises fixed block and is journaled into the activity reversal means of described fixed block below, and the upper end of this activity reversal means one side is provided with retreat stop block, is used for preventing that the activity reversal means from rotating mutually afterwards.
6. travel line according to claim 5 is characterized in that: the equidirectional setting of the reversal means on the described chain, composition one direction chain.
7. travel line according to claim 5, it is characterized in that: the reversal means on the described chain arranges in pairs, and the reversal means that namely both direction is opposite is one group, at chain many group reversal meanss is set, and forms two-way chain.
