CN202729050U - Garbage can with partition boards - Google Patents
Garbage can with partition boards Download PDFInfo
- Publication number
- CN202729050U CN202729050U CN201220358276.3U CN201220358276U CN202729050U CN 202729050 U CN202729050 U CN 202729050U CN 201220358276 U CN201220358276 U CN 201220358276U CN 202729050 U CN202729050 U CN 202729050U
- Authority
- CN
- China
- Prior art keywords
- garbage
- partition
- dividing plate
- sewage disposer
- trash
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 239000010813 municipal solid waste Substances 0.000 title claims abstract description 29
- 238000005192 partition Methods 0.000 title claims abstract 14
- 239000000428 dust Substances 0.000 abstract description 6
- 230000009286 beneficial effect Effects 0.000 abstract description 2
- 239000010865 sewage Substances 0.000 description 18
- 230000007812 deficiency Effects 0.000 description 1
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02W—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO WASTEWATER TREATMENT OR WASTE MANAGEMENT
- Y02W30/00—Technologies for solid waste management
- Y02W30/10—Waste collection, transportation, transfer or storage, e.g. segregated refuse collecting, electric or hybrid propulsion
Landscapes
- Refuse Receptacles (AREA)
Abstract
本实用新型公开了一种带隔板的垃圾桶，属于一种垃圾容器用品，特别是适合于垃圾桶。一种带隔板的垃圾桶，包括垃圾桶本体，其特征是：所述的垃圾桶本体内的底部设置有斜B隔板，中部设置有斜A隔板，所述的斜A隔板排列设置有16-20个圆孔，垃圾箱本体的一侧对应斜A隔板、斜B隔板处分别设置有带有封盖的垃圾口。本实用新型的有益效果是可有效实现尘土与其它垃圾的分类和垃圾桶清空。
The utility model discloses a garbage can with a partition, which belongs to a garbage container article, and is particularly suitable for the garbage can. A trash can with partitions, including a trash can body, characterized in that: the bottom of the trash can body is provided with an inclined B partition, and the middle is provided with an inclined A partition, and the inclined A partitions are arranged There are 16-20 circular holes, and one side of the garbage bin body is provided with a garbage port with a cover corresponding to the inclined A partition and the inclined B partition. The beneficial effect of the utility model is that the classification of dust and other garbage and the emptying of the garbage bin can be effectively realized.
Description
Technical field
The utility model belongs to a kind of refuse container articles for use, particularly is suitable for sewage disposer.
Background technology
Sewage disposer is the articles for use that people put the indispensability of rubbish, and dust can only mix existence with other rubbish in the general sewage disposer, can not classify, and the dust and other rubbish that empty in the sewage disposer also very bothers.
The utility model content
For overcome in the general sewage disposer dust with other rubbish with can only mix existence, can not classify, and empty the deficiency that dust and other rubbish in the sewage disposer also very bother, the purpose of this utility model provides a kind of sewage disposer with dividing plate, and this utility model can be so that realize refuse classification and sewage disposer and empty.
The technical scheme in the invention for solving the technical problem is: a kind of sewage disposer with dividing plate, comprise the sewage disposer body, it is characterized in that: the intrinsic bottom of described sewage disposer is provided with oblique B dividing plate, the middle part is provided with oblique A dividing plate, described oblique A dividing plate is disposed with 16-20 circular hole, and the corresponding tiltedly A dividing plate of a side of rubbish container body, oblique B dividing plate place are provided with respectively the garbage mouth with capping.
The beneficial effects of the utility model are owing to being provided with oblique B dividing plate in the intrinsic bottom of sewage disposer, the middle part is provided with 16-20 the oblique A dividing plate of circular hole, the bottom of one side of two rubbish containers that oblique A dividing plate is divided into is provided with respectively the garbage mouth with capping, can realize effectively that the classification of dust and other rubbish and sewage disposer empty.
Description of drawings

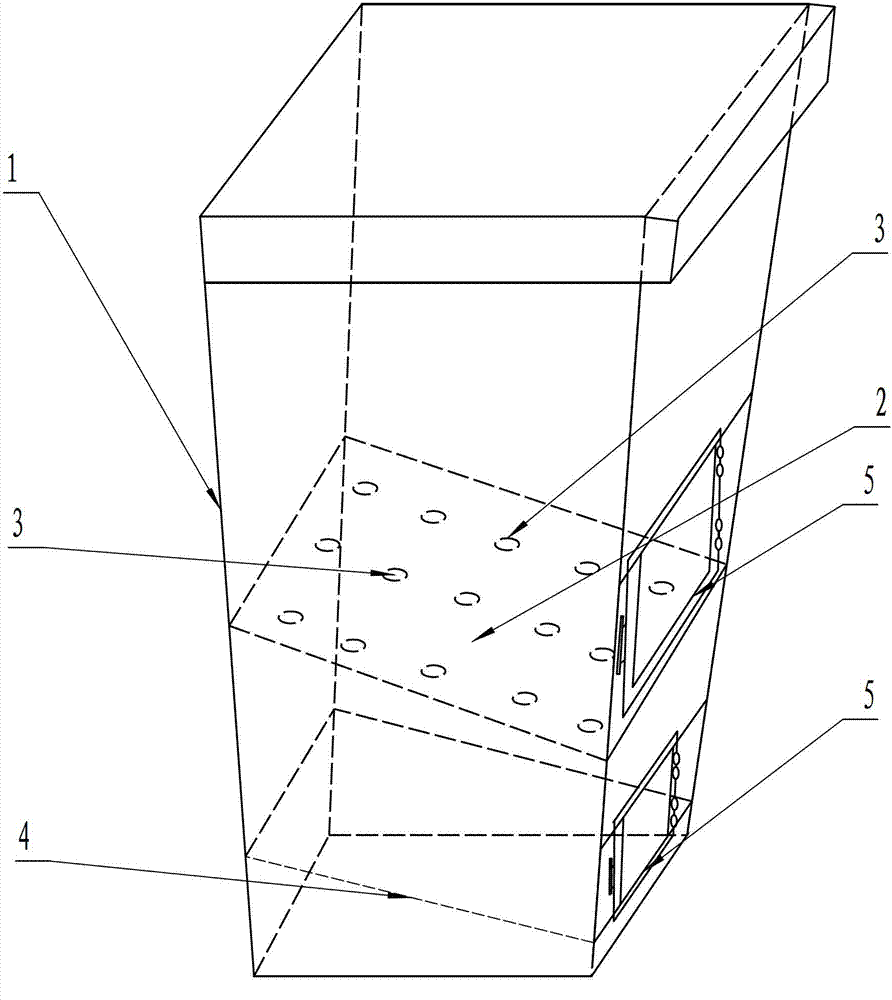

Fig. 1 is structural representation of the present utility model.
Among the figure, 1. sewage disposer body, 2. tiltedly A dividing plate, 3. circular hole, 4. tiltedly B dividing plate, 5. garbage mouth.
The specific embodiment
The specific embodiment of the present utility model is, as shown in the figure:
Embodiment 1, a kind of sewage disposer with dividing plate, comprise sewage disposer body 1, it is characterized in that: the bottom in the described sewage disposer body 1 is provided with oblique B dividing plate 4, the middle part is provided with oblique A dividing plate 2, described oblique A dividing plate 2 is disposed with 16 circular holes 3, and the corresponding tiltedly A dividing plate 2 of a side of rubbish container body 1, oblique B dividing plate 4 places are provided with respectively the garbage mouth 5 with capping.
