Abstract

The utility model discloses an iron hanger, which is characterized in that: the structure includes an upper hanger surface (2), the upper end of the upper hanger surface (2) is provided with a clothes hook (1), and the left and right sides of the upper hanger surface (2) are hinged There are two foldable handles, the lower end of the upper hanger surface (2) is hinged with the lower hanger surface (5), the upper hanger surface (2) and the lower hanger surface (5) are internally provided with heating wires (8), and the heating wires ( 8) the power cord is connected to the plug (7), and the upper coat hanger surface (2) is also provided with a gear switch (9) that can adjust the temperature of the heating wire (8). The utility model can be used as a drying clothes hanger to dry clothes, and can also be used as a simple iron to iron clothes, which is convenient for people's life.

Description

an iron hanger

technical field

The utility model relates to a multipurpose clothes hanger, in particular to a drying clothes hanger which can be used as a simple iron by folding. the

Background technique

When people go out, they will need a kind of drying clothes hanger so that they can put on dry clothes every day when they don't have much clothes. Sometimes clothes like shirts are best ironed after washing to get rid of wrinkles. But hotels and inns will not specially prepare an iron, which brings a certain amount of inconvenience. the

At present, most of the main clothes hangers with drying function can only have the ability to make clothes dry, or add the function of sterilization and deodorization, and do not have the function of ironing in essence. It is obviously unrealistic to configure a garment steamer in each hotel room, so there is still a lack of relevant achievements in the market to combine the two functions into one. the

Contents of the invention

The purpose of the utility model is to overcome the deficiencies in the prior art, and to provide an iron clothes hanger which has the function of drying clothes and can be folded into a simple iron at the same time. the

In order to solve the above technical problems, the utility model is realized through the following technical solutions:

An iron clothes hanger is characterized in that its structure includes an upper hanger surface, a clothes hook is arranged on the upper end of the upper hanger surface, two foldable handles are hinged on the left and right sides of the upper hanger surface, and a lower hanger is hinged on the lower end of the upper hanger surface The inside of the upper hanger surface and the lower hanger surface is provided with a heating wire, the power cord of the heating wire is connected to the plug, and the upper hanger surface is also provided with a gear switch that can adjust the temperature of the heating wire.

A contact switch is provided at the hinge joint between the upper hanger surface and the lower hanger surface. the

Compared with the prior art, the beneficial effects of the utility model are:

It can be used as a drying rack to dry clothes, and can also be used as a simple iron to iron clothes, which is convenient for people's life.

Description of drawings

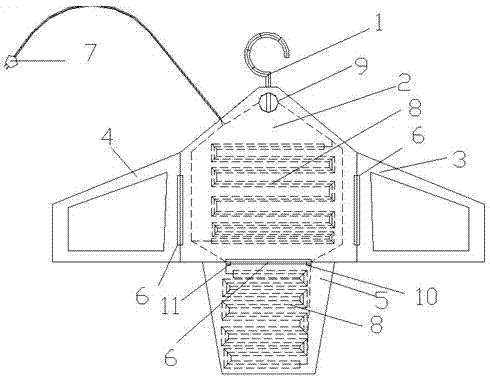

Fig. 1 is a structural view of the unfolded clothes hanger of the iron clothes hanger. the

Fig. 2 is a structural diagram of a folding iron model of the iron clothes hanger. the

Fig. 3 is a schematic circuit diagram of the iron clothes hanger. the

Detailed ways

Below in conjunction with accompanying drawing, the utility model is described in further detail:

As shown in Figure 1-3, the utility model consists of clothes hook 1, upper clothes hanger surface 2, handle 3, handle 4, lower clothes hanger surface 5, hinged part 6, plug 7, heating wire 8, gear switch 9, contact switch 10 compositions. The lower hanger surface 5, the handles 3, 4 are respectively connected to the upper hanger surface 2 through a hinged part 6 (3 in total), and can be folded. There are heating wires 8 inside the upper hanger face 2 and the lower hanger face 5 .

When used as a clothes hanger, it is unfolded, the gear switch 9 is turned to a low gear, and the heating wire 8 in the upper and lower clothes hanger surfaces works to dry clothes. the

As shown in Figure 2, when using as an iron, the lower hanger surface 5 is turned up, the contact switch 10 is disconnected, the lower hanger surface 5 no longer generates heat, the handles on both sides are symmetrically folded, and the gear switch 9 is adjusted to a high level at the same time, and the ironing flat clothing. the

The unexplained parts involved in the utility model are the same as the prior art or are realized by adopting the prior art. the

Claims (2)

1. An iron hanger, characterized in that its structure includes an upper hanger surface (2), the upper end of the upper hanger surface (2) is provided with a clothes hook (1), and the left and right sides of the upper hanger surface (2) are hinged with two Foldable handle, the lower end of the upper hanger surface (2) is hinged with the lower hanger surface (5), the upper hanger surface (2) and the lower hanger surface (5) are provided with heating wires (8), and the heating wires (8) The power cord is connected to the plug (7), and the upper coat hanger surface (2) is also provided with a gear switch (9) that can regulate the temperature of the heating wire (8). 2. An iron hanger according to claim 1, characterized in that: a contact switch (10) is provided at the hinge of the upper hanger surface (2) and the lower hanger surface (5).
