The utility model relates to a solar panel maintaining support. The solar panel maintaining support is characterized by comprising a base (1). A movable frame (2) is arranged on the top of the base (1). The movable frame (2) is a rectangular frame and has a hollow central part. Two rotating shafts (3) are respectively fixed on the two sides of the movable frame (2). The other ends of the two rotating shafts (3) are arranged on the top of the base (1). When a solar panel is to be maintained, the solar panel is placed inside the movable frame of the solar panel maintaining support and fixed through clamps. When the solar panel needs overturning, what is needed is only to rotate the movable frame which then performs 180-degree overturning. The solar panel is then conveniently maintained. The maintaining efficiency is increased while the labor is saved.

Description

The maintenance support of solar energy electroplax
Technical field
The utility model relates to a kind of maintenance support of solar energy electroplax.
Background technology
The solar energy electroplax is to be assembled in an assembly on the plate by several solar modules by certain way, and it can absorb the emittance of sunlight, and as generating.When the solar energy electroplax breaks down, it need to be overhauled from taking off and lie in table, yet all need when overhauling the tow sides of solar energy electroplax are all checked at every turn, therefore the solar energy electroplax need to be carried out turn-over.Yet some solar energy electroplax is larger, and it is stood up extremely inconvenience, has not only affected overhaul efficiency, has also increased the manpower consumption.
Summary of the invention
The purpose of this utility model is to overcome above-mentioned deficiency, provides a kind of maintenance convenient, and efficient is higher, saves the maintenance support of the solar energy electroplax of manpower.
The purpose of this utility model is achieved in that
The maintenance support of the utility model solar energy electroplax comprises base, and the top of described base is provided with adjustable shelf, described adjustable shelf is a rectangular frame, its middle part is blank, and the both sides of described adjustable shelf are fixed with respectively two rotating shafts, and the other end frame of described two rotating shafts is at the top of base.
Compared with prior art, the beneficial effects of the utility model are:
The maintenance support of this solar energy electroplax is when needs maintenance solar energy electroplax, the solar energy electroplax is placed in the adjustable shelf, and be fixed with anchor clamps, when needs carry out turn-over with the solar energy electroplax, as long as rotate adjustable shelf, adjustable shelf just can carry out the upset of 180 degree, thereby conveniently the solar energy electroplax is overhauled, improved overhaul efficiency, saved artificial.
Description of drawings

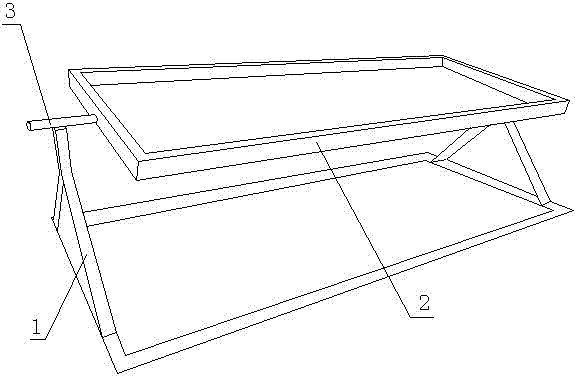

Fig. 1 is the structural representation of the maintenance support of the utility model solar energy electroplax.
Wherein: base 1, adjustable shelf 2, rotating shaft 3.
Embodiment
Referring to Fig. 1, the utility model relates to a kind of maintenance support of solar energy electroplax, comprise base 1, the top of described base 1 is provided with adjustable shelf 2, described adjustable shelf 2 is a rectangular frame, its middle part is blank, and the both sides of described adjustable shelf 2 are fixed with respectively two rotating shafts 3, and the other end frame of described two rotating shafts 3 is at the top of base 1.
When needs maintenance solar energy electroplax, the solar energy electroplax is placed in the adjustable shelf 2, and is fixed with anchor clamps.When needs carried out turn-over with the solar energy electroplax, as long as rotate adjustable shelf 2, adjustable shelf 2 just can carry out the upset of 180 degree, thereby conveniently the solar energy electroplax is overhauled, and has improved overhaul efficiency, had saved artificial.

Claims (1)

1. the maintenance support of a solar energy electroplax, it is characterized in that: it comprises base (1), the top of described base (1) is provided with adjustable shelf (2), described adjustable shelf (2) is a rectangular frame, its middle part is blank, the both sides of described adjustable shelf (2) are fixed with respectively two rotating shafts (3), and the other end frame of described two rotating shafts (3) is at the top of base (1).
