Abstract
本实用新型涉及日常生活中用到的喝水杯子，尤其是涉及具有加热功能的新型手摇式加热杯。技术方案：包括杯体、杯盖及杯底，所述杯底设置腔体，腔体内设置手摇式小型发电机，发电机依次串联电容、电阻丝组后形成闭合回路，通过在杯底外侧的摇柄摇动电机发电，电量小，对人体无伤害。有益效果：此技术简单易行，安全可靠，主要是能随时发电加热，保证了杯体内水的温度，有利于学生的身体健康，电机发电量小，对人体无伤害。
The utility model relates to a drinking cup used in daily life, in particular to a novel hand-operated heating cup with heating function. Technical solution: It includes a cup body, a cup cover and a cup bottom. A cavity is set at the bottom of the cup, and a hand-operated small generator is set in the cavity. The generator is connected in series with capacitors and resistance wires to form a closed loop. The rocker shakes the motor to generate electricity, the power is small, and there is no harm to the human body. Beneficial effects: This technology is simple, easy, safe and reliable, mainly because it can generate electricity and heat at any time, which ensures the temperature of the water in the cup and is beneficial to the health of students.
Description
技术领域 technical field
本实用新型涉及日常生活中用到的喝水杯子，尤其是涉及具有加热功能的新型手摇式加热杯。 The utility model relates to a drinking cup used in daily life, in particular to a novel hand-operated heating cup with heating function. the
背景技术 Background technique
目前市场上出售的喝水杯子，主要为普通杯子，高级的具有保温功能，主要在杯体壁上设置保温材料，加强杯体的保温效果，但保温时间短，杯子内的水温低时，人们还是不能饮用；对于学生来说，一节课的时间根本不能保证杯内的水温，因此学生不是饮用热水就是饮用冷水，对学生的身体健康留下隐患。 The drinking cups currently on the market are mainly ordinary cups, and the advanced ones have heat preservation function. The heat preservation material is mainly arranged on the wall of the cup body to strengthen the heat preservation effect of the cup body, but the heat preservation time is short. When the water temperature in the cup is low, people Still can't drink; For students, the time of a class can't guarantee the water temperature in the cup at all, so students either drink hot water or drink cold water, leaving hidden dangers to students' health. the
发明内容 Contents of the invention
本实用新型的目的就是针对现有学生的课时安排，提供一种具有加热功能的新型手摇式加热杯，杯体加热电安全可靠，简单易行。 The purpose of the utility model is to provide a novel hand-cranked heating cup with a heating function for the class time arrangement of the existing students. The heating power of the cup body is safe, reliable and easy to operate. the
技术方案：包括杯体、杯盖及杯底，所述杯底设置腔体，腔体内设置手摇式小型发电机，发电机依次串联电容、电阻丝组后形成闭合回路，通过在杯底外侧的摇柄摇动电机发电，电量小，对人体无伤害。 Technical solution: It includes a cup body, a cup cover and a cup bottom. A cavity is set at the bottom of the cup, and a small hand-operated generator is set in the cavity. The generator is connected in series with capacitors and resistance wires to form a closed loop. The rocker shakes the motor to generate electricity, the power is small, and there is no harm to the human body. the
上述技术方案还可改进为：在杯底腔内插入杯体内设置测温探头，测温探头连接与发电机串联的温控器，温控器可直接控制电机发电，无需人为手摇发电。有益效果：此技术简单易行，安全可靠，主要是能随时发电加热，保证了杯体内水的温度，有利于学生的身体健康，电机发电量小，对人体无伤害。 The above technical solution can also be improved as follows: a temperature measuring probe is inserted into the cup body in the bottom cavity of the cup, and the temperature measuring probe is connected to a thermostat connected in series with the generator. The thermostat can directly control the motor to generate electricity without manual power generation. Beneficial effects: This technology is simple, easy to operate, safe and reliable, mainly because it can generate electricity and heat at any time, which ensures the temperature of the water in the cup and is beneficial to the health of students. the
附图说明 Description of drawings

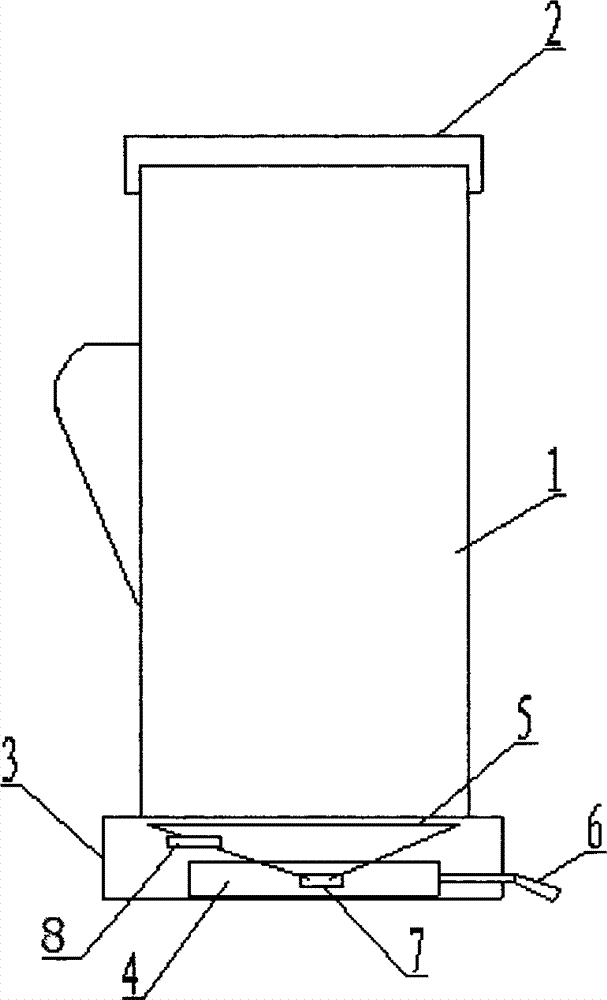

附图是实施例1的结构示意图。 Accompanying drawing is the structural representation of embodiment 1. the
具体实施方式 Detailed ways
实施例1： Example 1:
参照附图，本实施例主要包括杯体1、杯盖2及杯底3，所述杯底3设置腔体，腔体内设置手摇式小型发电机4，发电机4依次串联电容8、电阻丝组5后形成闭合回路，通过在杯底3外侧的摇柄6摇动电机发电，电量小，对人体无伤害。
With reference to the accompanying drawings, this embodiment mainly includes a cup body 1, a cup cover 2 and a cup bottom 3. A cavity is arranged at the bottom of the cup 3, and a small hand-operated generator 4 is arranged in the cavity. The generator 4 is connected in series with a
实施例2：在实施例1的基础上，发电机依次串联电容、电阻丝组和温控器7后形成闭合回路，在杯底腔内插入杯体内设置测温探头，测温探头连接与发电机串联的温控器，通过温控器控制电机发电，无需人为手摇发电，省时省力省心。 Embodiment 2: On the basis of Embodiment 1, the generator is connected in series with the capacitor, the resistance wire group and the temperature controller 7 to form a closed circuit, and a temperature measuring probe is inserted into the cup body in the bottom cavity of the cup, and the temperature measuring probe is connected to the generator The temperature controller connected in series with the machine, through the temperature controller to control the motor to generate electricity, no need for manual power generation, saving time, effort and worry. the
