Abstract
本实用新型公开了一种智能电力监测与控制系统，包括中央控制器、状态量采集电路、脉冲采集电路、GPRS无线通讯电路、抄表电路、控制输出电路、交流采样电路，所述状态采集电路、交流采样电路和脉冲采集电路的信号输出端与所述中央处理器的信号输入端通讯连接，所述抄表电路与所述中央控制器通讯连接，所述控制输出电路的信号输入端和所述GPRS无线通讯电路均与所述中央控制器的信号输出端连接。通过采用上述技术方案，本实用新型能实现智能电能分析和智能电量集抄，同时能将采集的参数传送到中央控制器内进行管理，经过处理后的参数通过GPRS无线通讯电路发送至电力控制中心。
The utility model discloses an intelligent power monitoring and control system, which comprises a central controller, a state quantity acquisition circuit, a pulse acquisition circuit, a GPRS wireless communication circuit, a meter reading circuit, a control output circuit, and an AC sampling circuit. , the signal output end of the AC sampling circuit and the pulse acquisition circuit are connected in communication with the signal input end of the central processing unit, the meter reading circuit is connected in communication with the central controller, and the signal input end of the control output circuit is connected to the signal input end of the central processing unit. The GPRS wireless communication circuits are all connected with the signal output terminals of the central controller. By adopting the above-mentioned technical scheme, the utility model can realize intelligent electric energy analysis and intelligent electric quantity collection, and at the same time, the collected parameters can be transmitted to the central controller for management, and the processed parameters are sent to the electric power control center through the GPRS wireless communication circuit .
Description
技术领域 technical field
本实用新型涉及一种监测与控制系统，特别是涉及一种智能电力监测与控制系统。 The utility model relates to a monitoring and control system, in particular to an intelligent power monitoring and control system.
背景技术 Background technique
随着国家经济的发展，城市电网负荷密度越来越大，配电网对可靠性的要求越来越高，城市电网供电方式逐步向环网型供电方式发展，近几年，由于城市建设进入高速发展期，城市环网供电自动化技术面临新问题，对电能的有效、合理地调度与分配，也日益受到人们的重视。现有的电力检测与控制系统已不能满足人们的需要。 With the development of the national economy, the load density of the urban power grid is increasing, and the reliability requirements of the distribution network are getting higher and higher. The power supply mode of the urban power grid is gradually developing to the ring network power supply mode. In the period of rapid development, the automation technology of urban ring network power supply is facing new problems, and the effective and reasonable dispatching and distribution of electric energy has also been paid more and more attention by people. The existing power detection and control system can no longer meet people's needs.
发明内容 Contents of the invention
本实用新型的目的是为了解决上述问题而提供一种能实现智能电能分析、智能电量集抄、低功耗的智能电力监测与控制系统。 The purpose of this utility model is to provide an intelligent electric power monitoring and control system capable of realizing intelligent electric energy analysis, intelligent electric quantity collection and low power consumption in order to solve the above problems.
本实用新型是通过以下技术方案实现的： The utility model is achieved through the following technical solutions:
一种智能电力监测与控制系统，包括中央控制器、状态量采集电路、脉冲采集电路、GPRS无线通讯电路、抄表电路、控制输出电路、交流采样电路，所述状态采集电路、交流采样电路和脉冲采集电路的信号输出端与所述中央处理器的信号输入端通讯连接，所述抄表电路与所述中央控制器通讯连接，所述控制输出电路的信号输入端和所述GPRS无线通讯电路均与所述中央控制器的信号输出端连接。 An intelligent power monitoring and control system, including a central controller, a state quantity acquisition circuit, a pulse acquisition circuit, a GPRS wireless communication circuit, a meter reading circuit, a control output circuit, an AC sampling circuit, the state acquisition circuit, the AC sampling circuit and The signal output terminal of the pulse acquisition circuit is connected to the signal input terminal of the central processing unit in communication, the meter reading circuit is connected to the central controller in communication, and the signal input terminal of the control output circuit is connected to the GPRS wireless communication circuit. All are connected with the signal output terminal of the central controller.
状态量采集电路、脉冲采集电路和抄表电路负责采集各种功率、电量、电表读数、需量、电流、电压等实时数据，然后将采集的参数传送到中央控制器内进行管理，经过处理后的参数通过GPRS无线通讯电路发送至电力控制中心。 The state quantity acquisition circuit, pulse acquisition circuit and meter reading circuit are responsible for collecting real-time data such as various power, electricity, meter readings, demand, current, voltage, etc., and then transmit the collected parameters to the central controller for management. The parameters are sent to the power control center through the GPRS wireless communication circuit.
作为本实用新型的进一步改进为，所述智能电力监测与控制系统还包括储存管理电路，所述储存管理电路与所述中央控制器连接。储存管理电路能对参数进行存储管理。 As a further improvement of the present utility model, the intelligent power monitoring and control system further includes a storage management circuit connected to the central controller. The storage management circuit can store and manage the parameters.
作为本实用新型的进一步改进为，所述智能电力监测与控制系统还包括显示管理电路，所述显示管理电路与所述中央控制器连接。传输到显示管理电路的参数通过LED液晶显示屏进行显示。 As a further improvement of the present utility model, the intelligent power monitoring and control system further includes a display management circuit connected to the central controller. The parameters transmitted to the display management circuit are displayed through the LED liquid crystal display.
本实用新型的有益效果是： The beneficial effects of the utility model are:
通过采用上述技术方案，本实用新型能实现智能电能分析和智能电量集抄，同时能将采集的参数传送到中央控制器内进行管理，经过处理后的参数通过GPRS无线通讯电路发送至电力控制中心。 By adopting the above-mentioned technical scheme, the utility model can realize intelligent electric energy analysis and intelligent electric quantity collection, and at the same time, the collected parameters can be transmitted to the central controller for management, and the processed parameters are sent to the electric power control center through the GPRS wireless communication circuit .
附图说明 Description of drawings

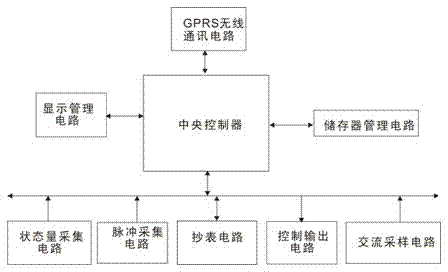

图1是本实用新型智能电力监测与控制系统的结构示意图。 Fig. 1 is a structural schematic diagram of the utility model intelligent power monitoring and control system.
具体实施方式 Detailed ways
下面结合附图及具体实施例对本实用新型作进一步的详细说明： Below in conjunction with accompanying drawing and specific embodiment the utility model is described in further detail:
如图1所示，本实用新型智能电力监测与控制系统，包括中央控制器、状态量采集电路、脉冲采集电路、GPRS无线通讯电路、抄表电路、控制输出电路、交流采样电路，所述状态采集电路、交流采样电路和脉冲采集电路的信号输出端与所述中央处理器的信号输入端通讯连接，所述抄表电路与所述中央控制器通讯连接，所述控制输出电路的信号输入端和所述GPRS无线通讯电路均与所述中央控制器的信号输出端连接。 As shown in Figure 1, the utility model intelligent power monitoring and control system includes a central controller, a state quantity acquisition circuit, a pulse acquisition circuit, a GPRS wireless communication circuit, a meter reading circuit, a control output circuit, and an AC sampling circuit. The signal output terminals of the acquisition circuit, the AC sampling circuit and the pulse acquisition circuit are communicatively connected with the signal input terminal of the central processing unit, the meter reading circuit is communicatively connected with the central controller, and the signal input terminal of the control output circuit Both the GPRS wireless communication circuit and the signal output terminal of the central controller are connected.
状态量采集电路、脉冲采集电路和抄表电路负责采集各种功率、电量、电表读数、需量、电流、电压等实时数据，然后将采集的参数传送到中央控制器内进行管理，经过处理后的参数通过GPRS无线通讯电路发送至电力控制中心。 The state quantity acquisition circuit, pulse acquisition circuit and meter reading circuit are responsible for collecting real-time data such as various power, electricity, meter readings, demand, current, voltage, etc., and then transmit the collected parameters to the central controller for management. The parameters are sent to the power control center through the GPRS wireless communication circuit.
所述智能电力监测与控制系统还包括储存管理电路，所述储存管理电路与所述中央控制器连接。储存管理电路能对参数进行存储管理。所述智能电力监测与控制系统还包括显示管理电路，所述显示管理电路与所述中央控制器连接。传输到显示管理电路的参数通过LED液晶显示屏进行显示。 The intelligent power monitoring and control system also includes a storage management circuit connected to the central controller. The storage management circuit can store and manage the parameters. The intelligent power monitoring and control system also includes a display management circuit connected to the central controller. The parameters transmitted to the display management circuit are displayed through the LED liquid crystal display.
