CN202695785U

CN202695785U - Subscriber identity module (SIM) card connector

Info

Publication number: CN202695785U
Application number: CN 201220279784
Authority: CN
Inventors: 张驰; 朱永光
Original assignee: Qidong Qianshuo Electronic Co Ltd
Current assignee: Qidong Qianshuo Electronic Co Ltd
Priority date: 2012-06-14
Filing date: 2012-06-14
Publication date: 2013-01-23
Anticipated expiration: 2022-06-14

Abstract

The utility model discloses a SIM card connector, which comprises an insulator, terminals fixed on the insulator and a metal shell. The insulator includes a bottom wall of a channel for accommodating a plurality of terminals, and a pair of side walls protruding from both sides of the bottom wall. The wall and the cavity communicated with the bottom wall are formed by the bottom wall and a pair of side walls. The terminal includes a holding plate and a contact portion protruding from the holding plate. The contact portion includes a connecting portion and a main elastic arm protruding from the connecting portion. And the secondary elastic arm and the joints on the main elastic arm and the secondary elastic arm, the joint of the main elastic arm is more protruding than the joint of the secondary elastic arm and extends into the cavity, and the end of the secondary elastic arm is more convex than the end of the main elastic arm into the cavity. So that the SIM card can squeeze the primary and secondary elastic arms of the contact part when the SIM card is inserted forwardly and backwardly, so as to protect the terminals of the SIM card connector.

Description

Sim card connector

[technical field]

The utility model relates to a kind of sim card connector of tracking exchage.

[background technology]

Mobile phone has spread to each corner, and to the facility that people bring, SIM card is one of requisite parts of mobile communication, and SIM card need a connector with its be fit into realize in the mobile phone communication.

See also the Chinese utility model CN201117853 patent at bulletin on September 17th, 2008, a kind of sim card connector is disclosed, it comprises sheet and several integrated conducting terminals that are fixed in sheet, sheet is provided with the accepting groove of accommodating SIM card, and this conducting terminal has the holding parts, the elasticity that are immobilizated on the sheet and is resisted against the lower shell fragment on the circuit board and is resisted against upper shell fragment on the SIM card.Because upper shell fragment only has one to connect the conducting terminal contact site, when SIM card when a side of accepting groove is inserted in the accepting groove, i.e. the side that is connected with upper shell fragment of holding parts is called normally along pegging graft, described SIM card can be guided in the accepting groove from upper shell fragment; But, when SIM card is in relative opposite side inserts accepting groove, namely go up the end of shell fragment, be called oppositely contrary pegging graft, SIM card can be compressed by the end of upper shell fragment, and can't insert in the accepting groove, simultaneously might be when Overexertion, SIM card can be with the upper shell fragment crimp of conducting terminal.

Necessary existing sim card connector is improved, overcome defective of the prior art.

[utility model content]

Technical problem to be solved of the present utility model is to provide a kind of sim card connector of protecting terminal.

For addressing the above problem, the utility model adopts following technical scheme: a kind of sim card connector, comprise insulator, be retained on terminal and metal shell on the insulator, insulator comprises having a plurality of diapires of accommodating the conduit of terminal, the pair of sidewalls that is protruded out by the diapire both sides and consist of the cavity that communicates with diapire by diapire and pair of sidewalls, terminal comprises holding board and the contact site that protrudes out from holding board, this contact site comprises a junction, from main elastic arm and hypoelasticity arm that connecting portion protrudes out and be positioned at main elastic arm and the hypoelasticity arm on contact, the contact of main elastic arm more protrudes in the cavity than the contact of hypoelasticity arm, and the end of the relatively main elastic arm of the end of hypoelasticity arm more protrudes into cavity.

Also can improve: above-mentioned diapire has upper surface, and the end of this hypoelasticity arm is positioned at the downside of bottom wall upper surface.

Also can improve: above-mentioned holding board is plane configuration, has conduit, and contact site protrudes out to cavity in this conduit.

Also can improve: the primary and secondary elastic arm is arranged side by side.

Also can improve: the hypoelasticity arm is provided with the slit that does not communicate with the conduit of holding board, and main elastic arm protrudes out in cavity from this slit.

Also can improve: an end of described insulator is provided with retaining wall.

Also can improve: described metal shell is provided with the end face relative with diapire and is coated on the side in the sidewall outside.

Also can improve: sidewall is provided with groove and convex closure, the side of metal shell be provided with the shell fragment that is buckled in the groove and with the through hole of convex closure buckle.

Compared with prior art, the terminal of two kinds of elastic arms of employing of the utility model sim card connector, wherein SIM card can be pushed main elastic arm along inserting, and can push the hypoelasticity arm during contrary inserting, with the terminal of protection sim card connector.

[description of drawings]

Fig. 1 is the first execution mode three-dimensional view of the utility model sim card connector;

Fig. 2 is decomposition view shown in Figure 1;

Fig. 3 is the cutaway view of A-A line shown in Figure 1;

Fig. 4 is terminal view shown in Figure 1;

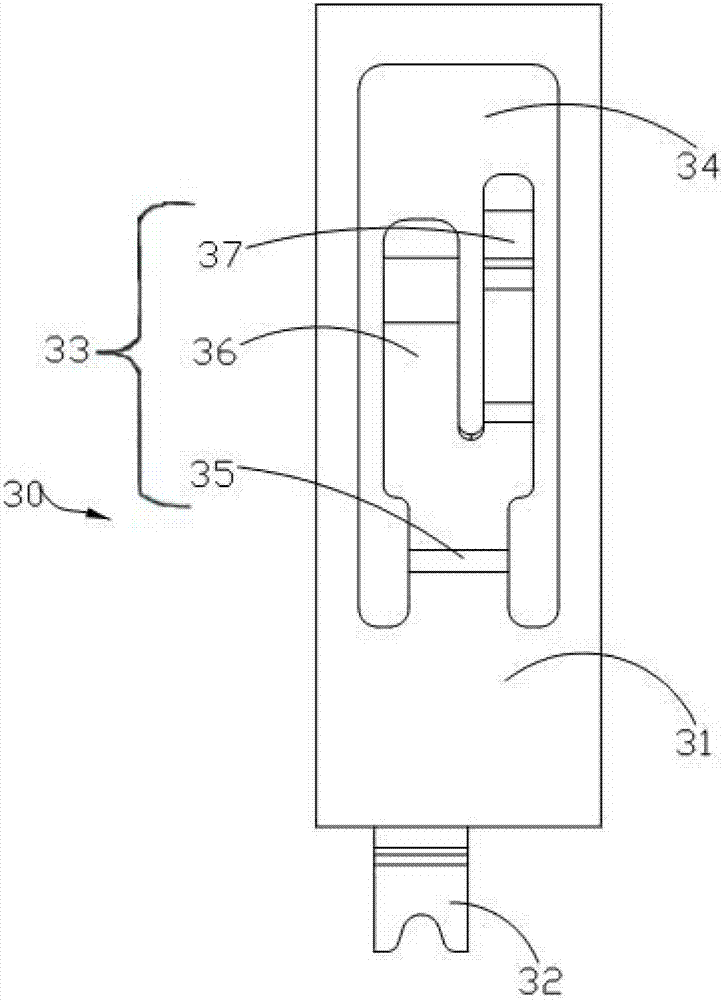

Fig. 5 is the vertical view of a terminal shown in Figure 4;

Fig. 6 is the end view of a terminal shown in Figure 4;

Fig. 7 is the second execution mode three-dimensional view of the terminal of the utility model sim card connector;

Fig. 8 is the vertical view of a terminal shown in Figure 7;

Fig. 9 is the end view of a terminal shown in Figure 7.

[embodiment]

See also Fig. 1 to shown in Figure 6, be the first execution mode view of the utility model sim card connector; Comprise: the insulator 10 that is formed by insulating material, be immobilizated in 8 butts 30 on the insulator and be immobilizated in the outer metal shell 20 of insulator, this terminal and metal shell are to be made by the metallic conduction material.

Insulator 10 has diapire 11, connect the pair of sidewalls 12 of diapire both sides, be positioned at diapire reaches the cavity 14 that is made of this diapire and sidewall with sidewall one end and interconnective retaining wall 13, insert in this cavity for the SIM card module, diapire comprises the conduit 15 that is arranged side by side into two rows, to accommodate terminal in wherein, the convex closure 17 that the sidewall lateral surface is provided with groove 16 and outwards protrudes out, the lateral surface of retaining wall is provided with holddown groove 18.

Metal shell 20 comprises end face 21, is positioned at the side 22 of end face both sides and connects the side and be positioned at the bottom surface 23 of insulator diapire downside, this end face is provided with the through hole corresponding with the conduit of diapire 24, the side is provided with the through hole 25 of the convex closure that is retained on sidewall and is held in shell fragment 26 in the groove 16, this metal shell also is provided with the retaining sheet 27 in the holddown groove 18 that is retained on retaining wall simultaneously, by the structure of this metal shell and cooperatively interacting of insulator, so that being fixed on, metal shell is retained on the insulator.

Ginseng Fig. 4 and shown in Figure 5, terminal 30 comprises holding board 31, welding foot 32 and contact site 33, holding board 31 is provided with conduit 34, contact site 33 protrudes out in cavity from this conduit, this contact site is provided with the connecting portion 35 that connects holding board, extends and the main elastic arm 36, the hypoelasticity arm 37 that are arranged side by side and be positioned at contact on the primary and secondary elastic arm from connecting portion, vertical direction at vertical diapire, the contact of main elastic arm more protrudes into cavity than the contact of hypoelasticity arm, and the end of hypoelasticity arm more protrudes into cavity than the end of main elastic arm.The end of above-mentioned hypoelasticity arm is longer than the end of main elastic arm.

When SIM card was in the end insertion cavity of cavity 14, in the time of namely in the suitable insertion cavity, this SIM card can push main elastic arm 36, and drive hypoelasticity arm 37 makes whole contact site 33 towards conduit 34 lateral movements together.When the user with SIM card when the other end of cavity inserts cavity, namely oppositely insert cavity, this SIM card can push first hypoelasticity arm 37, and drives main elastic arm 36 and make together whole contact site towards the conduit lateral movement.The Direct/Reverse of the present utility model sim card connector of all pegging graft, relatively existing SIM connector can protect connector to prevent squeezed bad terminal, prolongs the useful life of sim card connector.And the end of hypoelasticity arm is positioned at the downside of bottom wall upper surface, can prevent that the unfavourable balance SIM card is with hypoelasticity arm jack-up.

Fig. 6 to Fig. 8 is the terminal second execution mode mode of the utility model sim card connector, because of insulator identical with the first execution mode structure with metal shell, this place will no longer narrate, terminal 330 comprises holding board 331, welding foot 332 and contact site 333, holding board is provided with conduit 334, contact site protrudes out in cavity from this conduit, this contact site is provided with the connecting portion 335 that connects holding board and the main elastic arm 336 that extends from connecting portion, hypoelasticity arm 337, wherein the hypoelasticity arm is provided with slit 338, and main elastic arm protrudes out in cavity from the slit of this hypoelasticity arm, vertical direction at vertical diapire, the contiguous connecting portion end master of place elastic arm more protrudes into cavity than hypoelasticity arm, and the end of hypoelasticity arm more protrudes into cavity than the end of main elastic arm.And this slit and conduit do not connect mutually, so the end of above-mentioned hypoelasticity arm is longer than the end of main elastic arm.

When if SIM card is inserted in the cavity from an end of cavity, in the time of namely in the suitable insertion cavity, this SIM card can push main elastic arm 336, and drive hypoelasticity arm 337 makes whole contact site 333 towards the conduit lateral movement together.When the user with SIM card when the other end of cavity inserts cavity, namely oppositely insert cavity, this SIM card can push first the hypoelasticity arm, and drives main elastic arm and make together whole contact site towards the conduit lateral movement.The relatively existing SIM connector of the utility model can protect connector to prevent squeezed bad terminal, prolongs the useful life of sim card connector.

Claims

1. sim card connector, it is characterized in that: comprise insulator, be retained on terminal and metal shell on the insulator, insulator comprises having a plurality of diapires of accommodating the conduit of terminal, the pair of sidewalls that is protruded out by the diapire both sides and consist of the cavity that communicates with diapire by diapire and pair of sidewalls, terminal comprises holding board and the contact site that protrudes out from holding board, this contact site comprises a junction, from main elastic arm and hypoelasticity arm that connecting portion protrudes out and be positioned at main elastic arm and the hypoelasticity arm on contact, the contact of main elastic arm more protrudes in the cavity than the contact of hypoelasticity arm, and the end of the relatively main elastic arm of the end of hypoelasticity arm more protrudes into cavity.

2. sim card connector as claimed in claim 1, it is characterized in that: above-mentioned diapire has upper surface, and the end of this hypoelasticity arm is positioned at the downside of bottom wall upper surface.

3. sim card connector as claimed in claim 2, it is characterized in that: the end of above-mentioned hypoelasticity arm is longer than the end of main elastic arm.

4. sim card connector as claimed in claim 3, it is characterized in that: above-mentioned holding board is plane configuration, has conduit, contact site protrudes out to cavity in this conduit.

5. such as the described sim card connector of one of claim 1 to 4, it is characterized in that: the primary and secondary elastic arm is arranged side by side.

6. such as the described sim card connector of one of claim 1 to 4, it is characterized in that: the hypoelasticity arm is provided with the slit that does not communicate with the conduit of holding board, and main elastic arm protrudes out in cavity from this slit.

7. sim card connector as claimed in claim 4, it is characterized in that: an end of described insulator is provided with retaining wall.

8. sim card connector as claimed in claim 7 is characterized in that: described metal shell is provided with the end face relative with diapire and is coated on the side in the sidewall outside.

9. sim card connector as claimed in claim 8, it is characterized in that: sidewall is provided with groove and convex closure, the side of metal shell be provided with the shell fragment that is buckled in the groove and with the through hole of convex closure buckle.
