CN202694678U

CN202694678U - Electronic anti-theft soft label with anti-counterfeiting and identifying functions

Info

Publication number: CN202694678U
Application number: CN 201220254257
Authority: CN
Inventors: 王俊杰; 丛得云
Original assignee: Hangzhou Century Co Ltd
Current assignee: CENTURY TECHNOLOGY Co Ltd
Priority date: 2012-05-29
Filing date: 2012-05-29
Publication date: 2013-01-23
Anticipated expiration: 2022-05-29

Abstract

The utility model provides an electronic anti-theft soft label with an anti-counterfeit identification function, which is a layered structure, including an upper anti-theft label layer and a lower anti-counterfeit label layer, and a release layer is provided between the anti-theft label layer and the anti-counterfeit label layer. The release surface of the release layer is on the lower surface of the release layer, the bottom surface of the anti-theft soft label has an adhesive layer, and the anti-counterfeit label layer is provided with a mark. The electronic anti-theft soft label provided by the utility model has a simple structure, is easy to use, and has multiple functions such as anti-theft and anti-counterfeiting identification.

Description

The soft label of a kind of electronic anti-theft with the anti-counterfeit recognition function

Technical field

The utility model relates to commercial anti-theft label and article mark field, relates in particular to the soft label with anti-theft feature and anti-counterfeit recognition function.

Background technology

For the soft label of traditional electronic anti-theft, although can play the theft protection effect and can improve efficient to merchandise control, do not have the anti-counterfeit recognition function.

Summary of the invention

Technical problem to be solved in the utility model provides the soft label of a kind of electronic anti-theft with the anti-counterfeit recognition function.For this reason, the utility model is by the following technical solutions: it is layer structure, comprise the anti-theft tag layer on upper strata and the anti-counterfeiting mark layer of lower floor, has release layer between anti-theft tag layer and the anti-counterfeiting mark layer, the release face of release layer is in the lower surface of release layer, the bottom surface of described theft prevention soft tag has adhered layer, and described anti-counterfeiting mark layer is provided with sign.

On the basis of adopting technique scheme, the utility model also can adopt following further technical scheme:

The back side of described anti-theft tag layer and release layer upper surface bonding, release bonding of the front of described anti-counterfeiting mark layer and release layer.

The front of described anti-theft tag layer has protective seam.

Be printed with pattern, literal on described anti-theft tag layer front and/or the protective seam or/and symbol.

Described anti-theft tag layer is transparent at the described sign of correspondence place; Be printed with pattern, literal on described anti-theft tag layer front and/or the protective seam or/and symbol, itself and described sign be common to consist of a complete image.

Described anti-counterfeiting mark layer also have covered by the anti-theft tag layer or pattern that part is covered, literal or/and symbol, it forms a complete image with sign.

Described adhered layer all adopts non-drying glue layer.

Because adopt the technical solution of the utility model, the soft label construction of electronic anti-theft provided by the utility model is simple, uses easily, and have the several functions such as theft protection and anti-counterfeit recognition.

Description of drawings

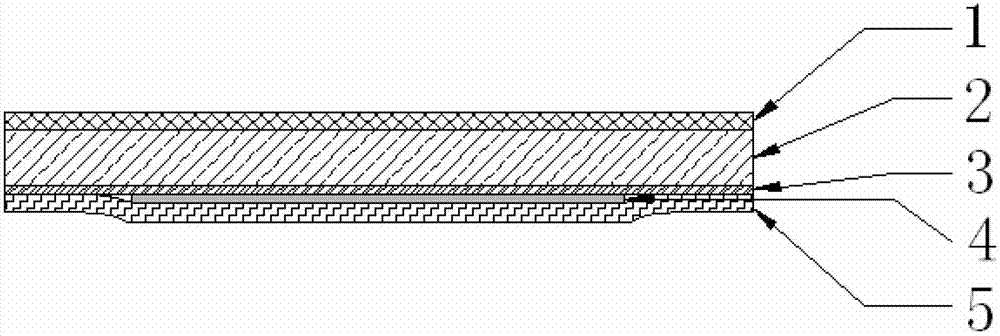

Fig. 1 is the enlarged diagram of the utility model layer structure.

Fig. 2 when not tearing the anti-theft tag layer off, front schematic view of the present utility model.

Fig. 3 is after tearing the anti-theft tag layer off, front schematic view of the present utility model.

Embodiment

With reference to accompanying drawing 1.The utility model is layer structure, comprise the anti-theft tag layer 2 on upper strata and the anti-counterfeiting mark layer 4 of lower floor, has release layer 3 between anti-theft tag layer 2 and the anti-counterfeiting mark layer 4, the release face of release layer 3 is in the lower surface of release layer, the bottom surface of described theft prevention soft tag has adhered layer 5, and described anti-counterfeiting mark layer is provided with sign 41.

Described release layer comprises Ranvier's membrane, is release in the zone of the corresponding anti-counterfeiting mark layer 4 of the lower surface of Ranvier's membrane.

Described anti-theft tag layer 2 comprises coil surface, dielectric film, capacitive surface, and the three consists of the LC resonant circuit.

Described adhered layer 5 adopts non-drying glue layer, and described sign 41 can be a kind of or combination in any of pattern, literal, symbol etc.

The back side of described anti-theft tag layer 2 and release layer 3 upper surfaces bonding, release bonding of the front of described anti-counterfeiting mark layer 4 and release layer 3.The front of described anti-theft tag layer 2 has protective seam 1.

Described anti-theft tag layer 2 is transparent at the described sign of correspondence place 21, such as the coil surface for example of the P.e.c. 22(in the anti-theft tag layer 2) do not cover in the described corresponding sign place 21, make sign 41 be in visual state; Be printed with pattern, literal on the described protective seam 1 or/and symbol 23, itself and described sign 41 be common to consist of a complete image.

Described anti-counterfeiting mark layer 4 also have covered by anti-theft tag layer 2 or pattern that part is covered, literal or/and symbol 42, it also forms a complete image with sign 41.

Pattern on protective seam 1, literal or/and symbol 23 with anti-counterfeiting mark layer 4 peel off and after being removed, pattern, literal and form a complete image with sign 41 or/and 42 of symbols appear fully along with peeling off of anti-counterfeiting mark layer 4.

The soft label of the anti-fraud functional electronic anti-theft of the utility model band can be attached on any position of commodity; in use; first the protection of the one deck on the adhered layer 5 base stock is torn off (if the area of anti-counterfeiting mark layer 4 is less than the Ranvier's membrane of release layer 3; then the part of adhered layer 5 can cover on the Ranvier's membrane of release layer 3); expose adhesive sticker, adhesive sticker is pasted the jail towards commodity get final product.

Before anti-theft tag layer 2 is unstripped; can see by pattern; literal is or/and the width of cloth complete image (such as Fig. 2) that symbol 23 and sign 41 form; after anti-theft tag layer 2 peeled off; protective seam 1 can be peeled off with anti-theft tag layer 2; can take away a part of pattern; what the assessor saw is that the brand-new image of a width of cloth is retained in (such as Fig. 3) on the commodity that are stuck; it is different from the image of seeing before peeling off fully; but by the pattern that is covered or partly cover by anti-theft tag layer 2 on a part of seeing image before peeling off (namely identifying 41) and the anti-counterfeiting mark layer 4; literal is or/and symbol 42 consists of a brand-new image jointly, and this is a kind of method for anti-counterfeit.In addition, another kind of method for anti-counterfeit is: directly with sign 41 as anti-counterfeiting mark or by identify 41 and pattern, literal or/and symbol 42 forms anti-counterfeiting mark (no matter whether having pattern, literal or/and symbol 23).In addition, described anti-theft tag layer 2 also can be opaque at the described sign of correspondence place 21, after peeling off anti-theft tag layer 2, directly with sign 41 as anti-counterfeiting mark or by identify 41 and pattern, literal or/and symbol 42 forms anti-counterfeiting mark (no matter whether having pattern, literal or/and symbol 23).

Claims

1. An electronic anti-theft soft label with anti-counterfeiting identification function is characterized in that it is a layered structure, including an anti-theft label layer on the upper floor and an anti-counterfeit label layer on the lower floor, with a release layer between the anti-theft label layer and the anti-counterfeit label layer, The release surface of the release layer is on the lower surface of the release layer, the bottom surface of the anti-theft soft label has an adhesive layer, and the anti-counterfeit label layer is provided with a mark.

2. A kind of electronic anti-theft soft label with anti-counterfeiting identification function as claimed in claim 1, it is characterized in that the back side of the anti-theft label layer is bonded to the upper surface of the release layer, and the front of the anti-counterfeit label layer is bonded to the release layer. The release surface of the layer is bonded.

3. A kind of electronic anti-theft soft label with anti-counterfeiting identification function as claimed in claim 1 or 2, it is characterized in that the front of the anti-theft label layer has a protective layer.

4. An electronic anti-theft soft label with anti-counterfeiting identification function according to claim 1 or 2, characterized in that patterns, characters or/and symbols are printed on the front of the anti-theft label layer.

5. An electronic anti-theft soft label with anti-counterfeiting identification function according to claim 3, characterized in that patterns, characters or/and symbols are printed on the front side of the anti-theft label layer and/or on the protective layer.

6. A kind of electronic anti-theft soft label with anti-counterfeiting identification function as claimed in claim 1 or 2, it is characterized in that, the anti-theft label layer is transparent at the place corresponding to the mark; the front side of the anti-theft label layer is printed with a pattern , text or/and symbols, which together with the logo form a complete image.

7. A kind of electronic anti-theft soft label with anti-counterfeiting identification function as claimed in claim 3, it is characterized in that said anti-theft label layer is transparent at the place corresponding to said mark; said anti-theft label layer is printed on the front and/or on the protective layer There are patterns, words or/and symbols, which together with the logo form a complete image.

8. A kind of electronic anti-theft soft label with anti-counterfeiting identification function as claimed in claim 1 or 2, it is characterized in that the anti-theft label layer is transparent at the place corresponding to the identification; Covered or partially covered patterns, words and/or symbols, which together with the logo form a complete image.

9. An electronic anti-theft soft label with anti-counterfeiting identification function as claimed in claim 1 or 2, characterized in that said sticking layers all adopt self-adhesive layers.
