CN202681289U - Changeable bed - Google Patents

Abstract

A deformable bed includes a bed board, a first long guardrail is located at the right side of the bed board, a first short guardrail is located at the front side of the bed board, a second long guardrail is located at the left side of the bed board, and a second short guardrail is located at the rear side of the bed board. The side panel and the second long guardrail are connected through the outer sides of the two hinges. The bed bottom bracket is fixedly connected under the bed panel. The left side column of the bed bottom bracket is connected with a foldable sliding roller through a pin, and the bottom end of the long column is also connected through a pin. There are foldable sliding rollers, and two slidable and foldable supporting legs are arranged under the bed board, which are respectively connected with the first crossbar and the second crossbar through hinges. The utility model can transform from a crib to an adult single bed, and can be disassembled and assembled. Due to its unique structural design, it can easily realize the change of size and shape, and has strong function expansion, so that the use value of the bed can be fully realized. use.

Description

a transformable bed

technical field

The utility model relates to the field of furniture, in particular to a deformable bed. the

Background technique

At present, the functions of the domestic cribs sold on the market are relatively single. It is mainly composed of four-side guardrails and a bed board. There are generally fixed connections between the four-side guardrails and between the four-side guardrails and the bed board. The four-side guardrails cannot be opened, so the length and width of the crib are fixed and cannot be changed. When the baby grows up to 3-4 years old, as the child's height increases, the crib can no longer meet the child's sleeping needs, and it will be discarded as waste or given away or sold, and the family needs to buy a new one bedding. This not only occupies the space but also causes unreasonable use of family resources, and correspondingly increases the extra expenses of the family. the

Contents of the invention

The technical problem to be solved by this utility model is to provide a deformable bed, which can transform from a crib to a single bed for adults. According to the actual needs of children and the changes of children's growth, the size and shape of the bed can be changed through the special structure of the deformable bed. The function is expandable, so that the use value of the bed can be fully utilized. the

The utility model adopts the following technical solutions:

A deformable bed, comprising a bed board, the first long guardrail is located on the right side of the bed board, two long columns on both sides of the first long guardrail are fixedly connected with the upper right corner and the lower right corner of the bed board, the lower edge of the first long guardrail is connected with the bed board The right edge of the fixed connection. The first short guardrail is located at the front side of the bed board, and is connected with the long column on one side of the first long guardrail by two rollover movable buckles, and the lower edge of the first short guardrail is connected with the lower edge of the bed board by two hinges outside. The second long guardrail is located on the left side of the bed board, and is connected with the first short guardrail through two rollover movable buckles, and the lower edge of the second long guardrail is connected with the bed board through two hinge inner sides. The second short guardrail is located on the rear side of the bed board, connected with the second long guardrail through two rollover movable buckles, and connected with the long column on the other side of the first short guardrail through two rollover movable buckles, and the second short guardrail The lower edge is connected with the upper edge of the bed board through the outside of the hinge. The side panel and the second long guardrail are connected through the outer sides of the two hinges. The bed bottom bracket is fixedly connected under the bed panel. The left side column of the bed bottom bracket is connected with a foldable sliding roller through a pin, and the bottom end of the long column is also connected through a pin. There are foldable sliding rollers, and two slidable and foldable supporting legs are arranged under the bed board, which are respectively connected with the first crossbar and the second crossbar through hinges.

The slidable and foldable support legs are "L" shaped, and when the slidable and foldable support legs connected to the first cross bar are folded, the bar on the horizontal plane is perpendicular to the first cross bar, and when unfolded, the bar on the horizontal plane is perpendicular to the first cross bar. on a straight line. the

The first cross bar and the second cross bar are connected with the bed board through a slide groove. the

A deformable bed of the present utility model adopts the above technical scheme, which can be transformed from a crib into a single bed for adults, and can be disassembled and assembled. Due to its unique structural design, the utility model can easily change the size and shape, and has strong function expansion, so that the use value of the bed can be fully utilized. The utilization of resources is maximized, the cost of household furniture is saved, the structure is simple, the loading and unloading is convenient, and it is easy to put into the market for mass production. the

The deformable bed of the present utility model will be further described below in conjunction with the accompanying drawings. the

Description of drawings

Figure 1 is a schematic diagram of the assembly of the crib of the deformable bed of the present invention. the

Fig. 2 is an assembly schematic diagram of the first deformation of the deformable bed of the present invention. the

Fig. 3 is an assembly schematic diagram of the second deformation of the deformable bed of the present invention. the

Fig. 4 is an assembly schematic diagram of the third deformation of the deformable bed of the present invention. the

Fig. 5 is an assembly schematic diagram of the fourth deformation of the deformable bed of the present invention. the

Fig. 6 is a schematic diagram of the assembly of the single bed of the deformable bed of the present invention. the

Fig. 7 is an exploded perspective view of the deformable bed of the present invention. the

The markings in the figure are as follows: 1. The first long guardrail, 2 and 2' long columns, 3. The first short guardrail, 4. The bottom bracket of the bed, 5 and 6 foldable sliding rollers, 7 slidable and foldable support legs, 8 side panels , 9 second long guardrail, 10 second short guardrail, 11, 13, 14, 28, 16, 17, 19, 22 hinge, 12 first crossbar, 15 second crossbar, 18, 20, 21, 23 , 24, 25, 26 rollover movable buckle, 27 bed boards. the

Detailed ways

Example 1

As shown in Figure 1, it is a schematic diagram of the structural assembly of the deformable bed used as a crib, including a bed board 27, the first long guardrail 1 is located on the right side of the bed board 27, and the long columns 2, 2' on both sides of the first long guardrail 1 are connected to the bed board 27. The upper right corner of the bed board 27 is fixedly connected with the lower right corner, and the lower edge of the first long guardrail 1 is fixedly connected with the right edge of the bed board 27 . The first short guardrail 3 is located at the front side of the bed board 27, and is connected with the long column 2 of the first long guard rail 1 through rollover movable buckles 24, 25, and the lower edge of the first short guardrail 3 and the lower edge of the bed board 27 pass through the hinge 16 , 17 lateral connections. The second long guardrail 9 is positioned at the left side of the bed board 27, and is connected with the first short guardrail 3 by rollover movable buckles 18, 20, and the lower edge of the second long guard rail 9 is connected with the bed board 27 by hinges 19, 22 inboards. The second short guardrail 10 is located at the rear side of the bed board 27, and is connected with the second long guardrail 9 through the rollover movable buckle 21, 23, and is connected with the long column 2' of the first short guardrail 3 through the rollover movable buckle 26, and the second short guardrail 9 is connected with the rollover movable buckle 26. The lower edge of the guardrail 10 is connected with the upper edge of the bed board 27 through the outside of the hinge.

Side plate 8 is connected with the second long guardrail 9 by hinge 11, 28 outsides, bed board 27 below is fixedly connected with bed bottom support 4, is connected with collapsible sliding roller 6 by pin under the left column of bed bottom support 4, long The bottom end of the column 2 is connected with a foldable sliding roller 5 by a pin, and two slidable and foldable support legs 7 are also provided below the bed board 27. 12 and the second cross bar 15 are connected by hinges 13,14. The first cross bar 12 and the second cross bar 15 are connected with the bed board 27 through a slide groove. the

Example 2

Fig. 2-Fig. 6 are the transformation process of the transformable bed of the present invention from a crib to a single bed for adults.

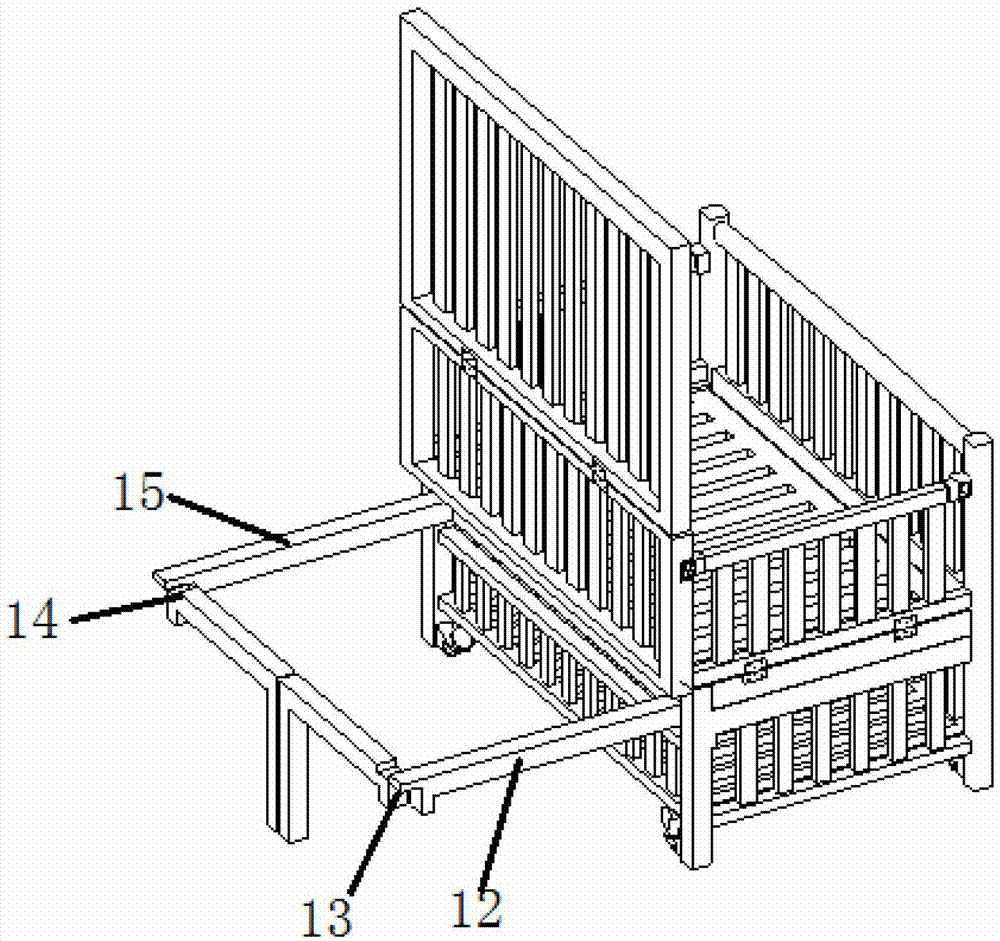

The initial structure of embodiment 2 is the same as embodiment 1, at first as shown in Figure 2, four collapsible sliding rollers are folded up, and whole bed promptly can not slide again like this. The side plate 8 is turned over 180° around the hinges 11 and 28, so that the side plate 8 and the second long guardrail 9 are on a plane. Then as shown in Figure 3, the first cross bar 12 and the second cross bar 15 are horizontally pulled out from under the bed board 27, and now the bar on the horizontal plane of the sliding and folding support leg 7 is perpendicular to the first cross bar 12 and the second cross bar 15 . Then as shown in Figure 4, the two slidable and foldable support legs 7 are turned over 90° in the horizontal direction through hinge 13 and hinge 14. Two crossbars 15 are on a straight line. Then as shown in Figure 5, the second long guardrail 9 is rotated 90° around the hinges 19,22. Two long guardrails 9 move together, and the relative position of both remains unchanged. In this way, the side plate 8 is contacted with the second long guardrail 9 and the first cross bar 12, the second cross bar 15 and two sliding support legs 7 and is supported by them. Finally, as shown in Figure 6, the first short guardrail 3 rotates 180° around the hinges 16,17, the rollover movable buckles 24,25 are separated, the second short guardrail 10 also rotates 180° around the corresponding hinges, and the rollover movable buckles 26 Separate from the corresponding rollover activity buckle. In this way, the process of transforming from a crib to an adult single bed is realized. the

The above-mentioned embodiments are only described to the preferred implementation of the utility model, and are not limited to the scope of the utility model. Various modifications and improvements made should fall within the scope of protection determined by the claims of the utility model. the

Claims (2)

1. A deformable bed, including a bed board (27), the first long guardrail (1) is located on the right side of the bed board (27), the long columns (2, 2') on both sides of the first long guardrail (1) and the bed board The upper right corner and the lower right corner of (27) are fixedly connected, and the lower edge of the first long guardrail (1) is fixedly connected with the right edge of the bed board (27); the first short guardrail (3) is located at the front side of the bed board (27), and The long column (2) of the first long guardrail (1) is connected by a rollover movable buckle (24, 25), and the lower edge of the first short guardrail (3) and the lower edge of the bed board (27) pass through the hinge (16, 17) ) external connection; the second long guardrail (9) is located on the left side of the bed board (27), and is connected with the first short guardrail (3) through the rollover movable buckle (18, 20); the lower edge of the second long guardrail (9) It is connected with the bed board (27) through the inner side of the hinge (19, 22); the second short guardrail (10) is located at the rear side of the bed board (27), and is connected with the second long guardrail (9) through the rollover movable buckle (21, 23) Connection, connected with the long column (2') of the first short guardrail (3) through the rollover movable buckle (26), the lower edge of the second short guardrail (10) is connected with the upper edge of the bed board (27) through the outside of the hinge The side panel (8) is connected with the second long guardrail (9) through the outer side of the hinge (11, 28), the bed bottom bracket (4) is fixedly connected under the bed board (27), and the left column of the bed bottom bracket (4) The bottom is connected with a foldable sliding roller (6) through a pin, and the bottom end of the long column (2) is connected with a foldable sliding roller (5) through a pin. The supporting legs (7) are turned over and connected with the first crossbar (12) and the second crossbar (15) through hinges (13, 14) respectively. 2. The transformable bed according to claim 1, characterized in that: the slidable and foldable support legs (7) are "L" shaped, and the slidable and foldable support legs connected with the first crossbar (12) (7) The bar on the horizontal plane is perpendicular to the first cross bar (12) when folded, and the bar on the horizontal plane and the first cross bar (12) are in a straight line when unfolded. 3. The deformable bed according to claim 1, characterized in that: the first crossbar (12) and the second crossbar (15) are connected to the bed board (27) through a chute.
