CN202680624U - Outdoor protective cap - Google Patents

Abstract

An outdoor protective cap, comprising a cap body and a ring-shaped brim extending outward along the periphery of the cap body. , the edge of the brim of the hat is evenly provided with a plurality of hook and loop buttons corresponding to the ring-shaped hook and loop buttons, the top of the hat body is provided with a hidden pocket, and the hidden pocket is equipped with a rain cape and an anti-sand curtain, and the foldable support frame is equipped with There are loops for attaching rain capes and sand screens. It is easy to use and can be used as an ordinary hat at ordinary times. Compared with parasols and umbrellas, it can not only shade the sun when the sun is strong, but also shade the rain in rainy weather, and it frees people's hands to do other things. The weather blocks wind and sand, which significantly enhances the protection of the human body.

Description

outdoor protective hat

technical field

The utility model relates to an outdoor protective cap.

Background technique

When the weather is hot, people usually need to play umbrellas to resist strong sunlight and prevent ultraviolet rays when they walk or move outside. But the situation of changeable weather in summer is in the majority, yet people usually forget to carry sunshade or umbrella, and hand-held sunshade or umbrella is all very inconvenient for the person who carries article or outside activities. In addition, when encountering windy and sandy weather, sand and dust will cause greater damage to the skin and eyes, and it is also very unfavorable for travel.

Contents of the invention

The technical problem to be solved by the utility model is to provide an outdoor protective cap that is easy to use, which can be used as an ordinary cap at ordinary times. Compared with parasols and umbrellas, it can not only shade the sun when the sun is strong, but also shade the rain in rainy weather. , and liberate people's hands to do other things, and can also block wind and sand in windy and sandy weather, which significantly enhances the protection of human body.

The technical scheme of the utility model is:

The outdoor protective cap includes a cap body and a ring-shaped visor extending outward along the periphery of the cap body. The special feature is that a foldable support frame is provided inside the visor, and a ring-shaped gluing button is provided on the outer surface of the root of the visor. The edge of the brim of the hat is evenly provided with a plurality of sticky buttons corresponding to the ring-shaped sticky buckles. Hanging loops for rain ponchos and sand screens.

The foldable support frame is composed of a support ring fixed at the root of the brim of the hat and fixed to the brim of the hat body, a plurality of foldable support rods evenly fixed on the periphery of the support ring and extending toward the brim of the brim, and a plurality of foldable support rods connected into a Composed of an integral reinforcement ring.

The foldable support bar is composed of supporting ribs and folding ribs hinged to each other. The end of the supporting ribs is provided with a baffle to prevent the folding ribs from rotating below the brim of the hat, and the baffle is provided with a clip corresponding to the folding ribs groove, and the hanging ring is fixedly connected to the free end of the folding rib.

The edge of the brim of the hat is also provided with a ring-shaped reflective tape, so as to realize the warning effect at night or when the light is insufficient, and prevent traffic accidents from happening.

The cap body and the visor are made of sun-proof and rain-proof materials, so as to shield sunlight and rain.

The poncho and the anti-sand curtain are respectively provided with movable hooks hung on the hanging rings.

The rain cape is provided with a transparent viewing port to clearly observe the external environment.

The beneficial effects of the utility model are:

1. Since there is a foldable support frame inside the brim of the hat, the foldable support frame is in a folded state during normal use, and the edge of the brim of the brim is folded toward the root of the brim of the brim by using the Velcro structure to form a folded state, which can be used as an ordinary decorative hat ;When the sun is strong or it is raining or windy and sandy, the foldable support frame is in the unfolded state, and the brim of the hat is unfolded to form a covering surface centered on the human body, which can effectively block the sun, rain or sandstorm. It is easy to operate and very convenient to use , the user can carry items or do other things with both hands.

2. Since the rain cape and anti-sand curtain are built into the hidden pocket on the top of the cap body, it can be taken out and used in rainy or sandy weather, which increases the coverage of the human body and enhances the protection.

Description of drawings

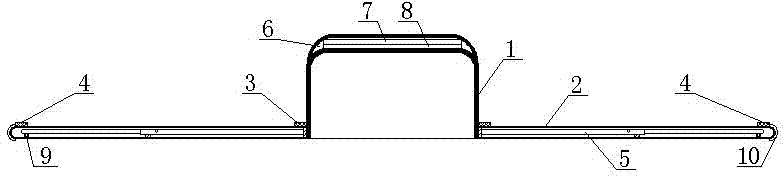

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the top view of Fig. 1;

Fig. 3 is a structural schematic diagram of the foldable support frame of the present invention;

Fig. 4 is the structural representation of the folding process of the present utility model;

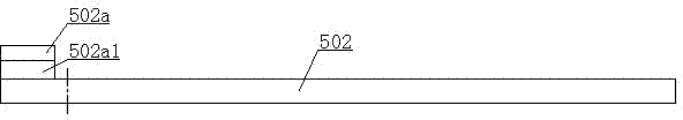

Fig. 5 is a structural schematic diagram of the support ribs of the foldable support rod of the present invention;

Fig. 6 is the right side view of Fig. 5;

Fig. 7 is a schematic diagram of the three-dimensional structure of the utility model hanging rain cape;

Fig. 8 is a partial schematic view of the rain cape of the present invention.

In the figure: cap body 1, visor 2, ring-shaped velcro 3, gluing 4, foldable support frame 5, support ring 501, support rib 502, baffle plate 502a, card slot 502a1, reinforcing ring 503, folding rib 504, dark Pocket 6, rain cape 7, transparent view port 701, movable hook 702, anti-sand curtain 8, hanging ring 9, reflective tape 10, invisible zipper 11.

Detailed ways

As shown in the figure, the outdoor protective cap includes a cap body 1 and a ring-shaped visor 2 extending outward along the periphery of the cap body 1. The cap body 1 and the visor 2 are made of sunscreen and rainproof materials. The utility model uses a rainproof silk fabric . The brim of the hat 2 is provided with a foldable support frame 5 , the outer surface of the root of the brim of the hat 2 is provided with an annular velcro 3 , and the edge of the brim of the hat 2 is evenly provided with a plurality of velcro 4 corresponding to the ring velcro 3 . The top of the cap body 1 is provided with a concealed pocket 6, which is closed by an invisible zipper 11. Concealed pocket 6 is built-in with rain cape 7 and anti-sand curtain 8, is provided with the hanging ring 9 that articulates rain cape 7 and anti-sand curtain 8 on the collapsible support frame, is respectively provided with the activity that hangs on the hanging ring on poncho and anti-sand curtain. hook up. The edge of the brim of the hat is also provided with a ring-shaped reflective tape that plays a warning role.

The foldable support frame 5 is composed of a support ring 501 , a foldable support rod and a reinforcement ring 503 . Wherein the support ring 501 is located at the root of the visor 2 and is fixed with the edge of the cap body 1; the foldable support rod is composed of mutually hinged support ribs 502 and folding ribs 504, and there are a plurality of foldable support rods, which are uniformly fixed on the periphery of the support ring 501 And extend to the brim of the hat 2, the end of the support rib 502 is provided with the baffle plate 502a that prevents the folding rib 504 from rotating below the brim 2, and the baffle plate 502a is provided with a draw-in groove 502a1 corresponding to the folding rib 504; The support ribs 502 of the foldable support rods are fixedly connected to connect a plurality of foldable support rods; the hanging ring 9 is fixedly connected to the free ends of the foldable ribs 504 .

After the rain cape 7 is articulated on the hat, it can ensure that the clothes and the knapsack etc. are not drenched by rainwater. Rain cape 7 is provided with transparent viewing port 701, and the position of transparent viewing port 701 is according to human body structure characteristics, close to the brim of a hat, adapts to eye height, not only prevents rainwater from pouring into but also facilitates observation of road conditions. The poncho 7 has a trapezoidal structure as a whole, so that it can still wrap completely even in rainy weather accompanied by strong winds, and the lower part is longer than the upper part to facilitate walking or cycling.

The anti-sand curtain 8 is made of thin and transparent gauze with moderate texture, and can also be connected with the hanging ring 9 on the foldable support frame through the movable hook 701. eye injury.

Claims (7)

1. outdoor head protector, comprise the cap body and the outward extending annular the brim of a hat around the cap body, it is characterized in that: be provided with foldable support frame in the described the brim of a hat, the root outer surface of the described the brim of a hat is provided with annular thread gluing, the corresponding described annular thread gluing in the edge of the described the brim of a hat evenly is provided with a plurality of thread gluings, described cap body top is provided with dark pocket, and described dark pocket is built-in with rain cape and sand prevention curtain, and described foldable support frame is provided with the link that articulates rain cape and sand prevention curtain.

2. outdoor head protector according to claim 1 is characterized in that: described foldable support frame by be located at the brim of a hat root and with the fixing support ring in cap body edge, evenly be fixed in support ring periphery and a plurality of Collapsible support levers that extend to the brim of a hat edge, the reinforcing ring that a plurality of Collapsible support levers are combined as a whole forms.

3. outdoor head protector according to claim 2, it is characterized in that: described Collapsible support lever is made of the brace rod that is hinged and folding muscle, described brace rod end is provided with and prevents that described folding muscle is to the baffle plate of the brim of a hat below rotation, described baffle plate is provided with the draw-in groove of corresponding folding muscle, and described link is fixed in the free end of described folding muscle.

4. outdoor head protector according to claim 1, it is characterized in that: the edge of the described the brim of a hat also is provided with annular reflective tape.

5. outdoor head protector according to claim 1, it is characterized in that: described cap body and the brim of a hat are made by sun-proof rainproof material.

6. it is characterized in that: be respectively equipped with the Removable hook that hangs on the described link on described rain cape and the sand prevention curtain according to claim 1 or 3 described outdoor head protectors.

7. outdoor head protector according to claim 1, it is characterized in that: described rain cape is provided with transparent viewport.
