Abstract

The utility model discloses an automatic feeding device for a plug seedling production line, which comprises a horizontal screw conveyor, a vertical screw conveyor and a spreader, and is characterized in that: the vertical screw conveyor is placed vertically, and a feeding port is opened at its lower end , there is a discharge port at the upper end; one end of the horizontal screw conveyor is fixedly connected with the feed port at the lower end of the vertically placed vertical screw conveyor, and the other end is installed with a deceleration motor; the spreader is fixedly connected with the discharge port at the upper end of the longitudinal screw conveyor . The utility model can adjust the rotation speed of the agitator by changing the rotation speed of the material spreading motor, so that the filling is uniform and smooth; the excess material soil directly falls into the hopper, and the transportation and recovery are integrated, and the layout is compact and reasonable; the filling speed is fast, the operation is simple, and the transmission Stable and high production efficiency.

Description

An automatic feeding device for a plug seedling production line

technical field

The utility model relates to an automatic feeding device for a plug seedling raising production line of agricultural machinery, which belongs to the technical field of precision agricultural machinery.

Background technique

At present, as a new seedling and sowing method in the modern agriculture, forestry and flower industry, the technology of plug seedling cultivation and sowing has achieved great development and application at home and abroad. The plug seedling production line at home and abroad generally fills the plug with substrate or mixed soil first, then makes holes in the plug with the substrate installed, and then completes the sowing operation in the plug that has been punched. The plug tray also needs to cover some substrate on its surface, and finally perform a watering operation. When feeding the trays, they are generally artificial fillers, dusty during work, serious matrix waste, poor working environment and low work efficiency. Therefore, there is an urgent need for a device that can realize automatic feeding of plug seedling substrates, is applicable to plug trays of various specifications, and can be adapted to filling various substrates.

Contents of the invention

The purpose of this utility model is to provide an automatic feeding device for a plug seedling production line, which can adjust the speed of the agitator by changing the speed of the spreading motor, so that the filling is uniform and smooth; the excess material soil directly falls into the hopper, Conveying and recycling are integrated, and the layout is compact and reasonable; the filling speed is fast, the operation is simple, the production efficiency is high, and the work is reliable, which can meet the needs of automatic feeding of the plug seedling production line.

The purpose of this utility model is achieved in this way: an automatic feeding device for a plug seedling production line, including a horizontal screw conveyor, a vertical screw conveyor and a feeder, characterized in that: the vertical screw conveyor is placed vertically, and its lower end is opened There is a feeding port and a feeding port at the upper end; the horizontal screw conveyor is located under the frame, one end is fixedly connected with the feeding port at the lower end of the vertically placed vertical screw conveyor, and the other end is equipped with a deceleration motor; the spreader and The discharge port at the upper end of the longitudinal screw conveyor is fixedly connected and located directly above the conveyor belt.

As a design of the automatic feeding device for a plug seedling production line of the utility model: the horizontal screw conveyor includes notched spiral blades and full-edge spiral blades; the notched spiral blades and the full-edge spiral blades are fixed on the pusher shaft, One end of the pushing shaft is connected with the reduction motor, and the middle is fixedly installed on the hopper through a support bearing, and the other end is suspended in the air.

As a design of the automatic feeding device for a plug seedling production line of the present utility model: the longitudinal screw conveyor includes a feeder casing and a longitudinal conveying screw; one end of the longitudinal conveying screw is installed on the feeder casing through a bearing, and the other end Connected with the feeding motor.

As a design of an automatic feeding device for a plug seedling production line of the present invention: the spreader includes a stirrer and a spreader box; the stirrer is installed on the spreader box through a bearing with a seat and is connected to the spreader motor.

The utility model has the following advantages:

(1) The device occupies a small area, has high production efficiency, simple operation and strong adaptability;

(2) The speed of the agitator is adjustable, so that the filling is uniform and smooth;

(3) The excess material soil is directly dropped into the material box, and the transportation and recycling are integrated, which avoids the waste of raw materials such as matrix or mixed soil.

Description of drawings

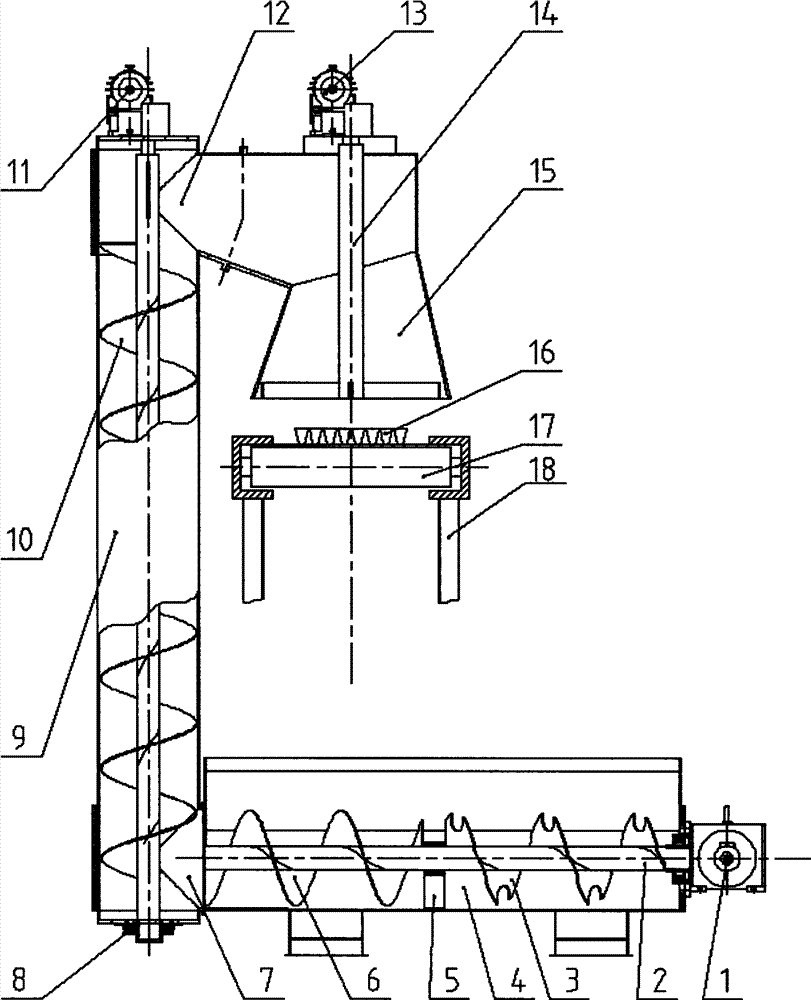

Fig. 1 is a schematic cross-sectional structure diagram of the utility model.

Fig. 2 is a top view structural diagram of the utility model.

In the figure 1. Geared motor, 2. Pusher shaft, 3. Notched spiral blade, 4. Hopper, 5. Support bearing, 6. Full edge spiral blade, 7. Feed inlet, 8. Bearing, 9. Feedway shell Body, 10. Longitudinal conveying screw, 11. Feeding motor, 12. Outlet, 13. Spreading motor, 14. Agitator, 15. Spreading box, 16. Cave plate, 17. Conveyor pulley, 18. Rack, 19. Conveyor belt.

Detailed ways

The best embodiment of an automatic feeding device for a plug seedling production line of the present invention will be described in detail below in conjunction with the accompanying drawings.

The utility model includes a horizontal screw conveyor, a vertical screw conveyor and a spreader, and is characterized in that: the vertical screw conveyor is placed vertically, with a feed port (7) at its lower end and a discharge port (12) at its upper end. ); the horizontal screw conveyor is located below the frame (18), and one end is fixedly connected to the feed inlet (7) at the lower end of the vertical vertical screw conveyor, and the other end is equipped with a geared motor (1); the spreader is connected to the vertical screw conveyor The discharge port (12) at the upper end of the device is fixedly connected and is located directly above the conveyor belt (19); the horizontal screw conveyor includes a notched helical blade (3) and a full-edge helical blade (6); the notched helical blade (3) and the entire edge The screw blade (6) is fixed on the pusher shaft (2), one end of the pusher shaft (2) is connected with the geared motor (1), the middle is fixedly installed on the hopper (4) through the support bearing (5), and the other end is suspended in the air ; The longitudinal screw conveyor includes a material channel housing (9) and a longitudinal conveying screw (10); one end of the longitudinal conveying screw (10) is installed on the material channel housing (9) through a bearing (8), and the other end is connected to the feeding motor (11) is connected; The spreader comprises agitator (14) and the spreader box (15); The stirrer (14) is installed on the spreader box (15) by a bearing with seat and links to each other with the spreader motor (13).

Working process and principle of the present utility model are as follows:

When working, first pour the matrix or mixed soil into the hopper (4), and the geared motor (1) drives the notched screw blade (3) fixed on the pusher shaft (2) to rotate at high speed, and can also transfer more The large matrix or mixed soil is crushed and refined, and then the refined matrix or mixed soil is conveyed into the feedway shell (9) by the full-edge spiral blade (6) through the feed port (7), and then the upper The material motor (11) drives the vertical conveying screw (10) to rotate at high speed, and the substrate or mixed soil is smoothly lifted to the discharge port (12), and then conveyed to the spreading box (15) through the discharge port (12), and finally sprinkled The material motor (13) drives the agitator (14) to rotate at a constant speed, and the matrix or mixed soil is filled with the plug tray (16). The frame (18) designed by the utility model is located between the spreading box (15) and the hopper (4), crosses the hopper (4) horizontally, and the redundant matrix or mixed soil can directly fall into the hole tray (16) In the hopper (4) below, redundant matrix or mixed soil is recovered conveniently, and waste is avoided.

The utility model has the advantages of simple structure, convenient and reliable control, can be adapted to various trays of different sizes and specifications, and can meet the demands of different production scales.

Claims (4)

1. An automatic feeding device for a plug seedling production line, comprising a horizontal screw conveyor, a vertical screw conveyor and a feeder, characterized in that: the vertical screw conveyor is placed vertically, and a feeding port (7) is opened at its lower end , a discharge port (12) is opened at the upper end; one end of the horizontal screw conveyor is fixedly connected with the feed port (7) at the lower end of the vertical screw conveyor, and the other end is equipped with a reduction motor (1); The discharge port (12) at the upper end of the screw conveyor is fixedly connected. 2. The automatic feeding device of a kind of plug seedling raising production line according to claim 1, characterized in that the horizontal screw conveyor comprises a notch helical blade (3) and a full-edge helical blade (6); the notch helical blade (3) and The full-edge spiral blade (6) is fixed on the pusher shaft (2), and one end of the pusher shaft (2) is connected with the reduction motor (1), and the middle is fixedly installed on the hopper (4) through the support bearing (5). One end is left floating. 3. The automatic feeding device of a kind of plug seedling cultivation production line according to claim 1, characterized in that the longitudinal screw conveyor comprises a feedway housing (9) and a longitudinal conveying screw (10); one end of the longitudinal conveying screw (10) It is installed on the material channel housing (9) through a bearing (8), and the other end is connected with the feeding motor (11). 4. The automatic feeding device of a kind of tray seedling raising production line according to claim 1, characterized in that the spreader comprises a stirrer (14) and a spreader box (15); the stirrer (14) is installed by a bearing with seat Link to each other with the material spreading motor (13) on material spreading box (15).
