Abstract
本实用新型公开了一种用于暖芯地板的内嵌式连接件，包括分别嵌入相邻两块暖芯地板相接处的连接件Ⅰ及连接件Ⅱ，所述连接件Ⅰ上设有凹槽，所述连接件Ⅱ上设有可与凹槽嵌装在一起的凸起，所述连接件Ⅰ及连接件Ⅱ内部开设有可供电线穿过的穿孔。本实用新型制作简单、安装方便，不仅使得相邻的暖芯地板能够紧密连接固定，也方便了暖芯地板中输电电线的安装铺设，同时保证了暖芯地板安装时的美观度及工作时的稳定程度。
The utility model discloses an embedded connector for warm core floor, which comprises connector I and connector II which are respectively embedded in the junction of two adjacent warm core floors. The connector I is provided with a concave The connector II is provided with a protrusion that can be embedded with the groove, and the connector I and the connector II are provided with through holes for the wire to pass through. The utility model is simple to manufacture and easy to install, not only enables the adjacent warm-core floors to be closely connected and fixed, but also facilitates the installation and laying of power transmission lines in the warm-core floors, and at the same time ensures the aesthetics of the warm-core floors during installation and the safety during work. degree of stability.
Description
技术领域 technical field
本实用新型涉及一种连接件，具体涉及一种用于暖芯地板的内嵌式连接件。 The utility model relates to a connecting piece, in particular to an embedded connecting piece used for a warm core floor.
背景技术 Background technique
暖芯地板，是通过在普通地板内部加设加热源而构成的，由于其占地面积小、取暖效果好，已经广泛应用在室内装饰中。通常，暖芯地板在铺设时，由于其内的加热源要连接电线，导致铺设难度较大，难以保证地板与地板间的紧密程度，不仅美观度不好，同时也使得加热效果得不到保证。 The warm core floor is formed by adding a heating source inside the ordinary floor. Because of its small footprint and good heating effect, it has been widely used in interior decoration. Usually, when laying the warm core floor, because the heating source in it needs to be connected with wires, the laying is difficult, and it is difficult to ensure the tightness between the floor and the floor. Not only the aesthetics is not good, but also the heating effect cannot be guaranteed. .
发明内容 Contents of the invention
本实用新型的目的在于克服上述现有技术的不足，提供一种可内嵌入相邻的两块暖芯地板之间，便于地板电线铺装的内嵌式连接件。 The purpose of this utility model is to overcome the shortcomings of the above-mentioned prior art, and provide an embedded connector that can be embedded between two adjacent warm-core floors to facilitate laying of floor wires.
一种用于暖芯地板的内嵌式连接件，包括分别嵌入相邻两块暖芯地板相接处的连接件Ⅰ及连接件Ⅱ，所述连接件Ⅰ上设有凹槽，所述连接件Ⅱ上设有可与凹槽嵌装在一起的凸起，所述连接件Ⅰ及连接件Ⅱ内部开设有可供电线穿过的穿孔。 A built-in connector for warm-core floors, including connector I and connector II respectively embedded in the junction of two adjacent warm-core floors, the connector I is provided with a groove, and the connector The part II is provided with a protrusion that can be embedded with the groove, and the inside of the connecting part I and the connecting part II is provided with a through hole for the wire to pass through.
本实用新型制作简单、安装方便，不仅使得相邻的暖芯地板能够紧密连接固定，也方便了暖芯地板中输电电线的安装铺设，同时保证了暖芯地板安装时的美观度及工作时的稳定程度。 The utility model is simple to manufacture and easy to install, not only enables the adjacent warm-core floors to be closely connected and fixed, but also facilitates the installation and laying of power transmission lines in the warm-core floors, and at the same time ensures the aesthetics of the warm-core floors during installation and the safety during work. degree of stability.
附图说明 Description of drawings

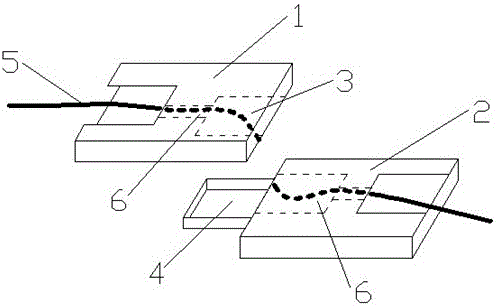

图1为本实用新型的结构示意图。 Fig. 1 is the structural representation of the utility model.
具体实施方式 Detailed ways
参见图1，本实用新型提供的一种用于暖芯地板的内嵌式连接件，包括分别嵌入相邻两块暖芯地板相接处的连接件Ⅰ1及连接件Ⅱ2，所述连接件Ⅰ1上设有凹槽3，所述连接件Ⅱ2上设有可与凹槽3嵌装在一起的凸起4，所述连接件Ⅰ1及连接件Ⅱ2内部开设有可供电线5穿过的穿孔6。
Referring to Fig. 1, the utility model provides a built-in connector for warm core floor, including connector I1 and connector II2 respectively embedded in the junction of two adjacent warm core floors, the connector I1 There is a groove 3 on the top, and the connector II2 is provided with a protrusion 4 that can be embedded with the groove 3. The connector I1 and the connector II2 are provided with a perforation 6 for the
